Picture a remote water tank pump station or a pipeline valve located miles away from your central control room. You need to pull real-time Modbus data from the sensors, but there is zero cellular coverage.
You have two bad options: deploy an expensive satellite connection, or spend thousands of dollars digging trenches to lay fiber-optic cables.
Fortunately, there is a third option. This is exactly where an industrial LoRa device becomes your most valuable engineering tool. It works like an invisible, very long-range serial cable that connects isolated edge devices to your network without you having to pay any monthly carrier fees.

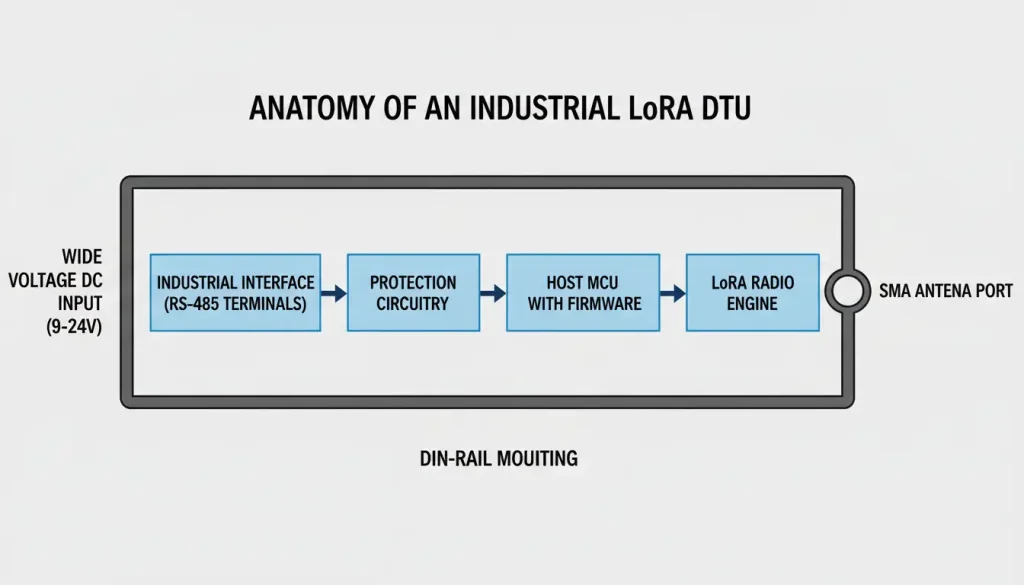

Inside an Industrial LoRa Device: What Matters
When you look at an industrial-grade LoRa device you see a system that is put into a tough box. To use an industrial-grade LoRa device the way you need to know about its three main parts.
1. The Radio Engine & Antenna
This is the part of the LoRa transceiver like the Semtech SX127x or SX128x series. When we use LoRa transceivers for work it is not just about the LoRa transceiver chip itself but also, about how the LoRa transceiver is actually used.
- Power: These devices are locked to bands that do not need a license like the ones that are under one gigahertz. For example they use 433MHz, 868MHz, 915MHz or 490MHz which is used in some places like China. The power that these devices put out is usually up to +20dBm. +27Dbm, which is really close to the maximum amount that is allowed by law for getting the best range, with Frequency and Power.
- The Receiver Sensitivity is really good on these high-end modules. They can pick up signals that’re as low as -140dBm or even better. This is what makes Receiver Sensitivity important not just the power of the signal. It is the Receiver Sensitivity that lets the signal travel a way and get through things that are, in the way.
- Antenna Connection: You get a strong SMA or TNC connector for an antenna. This is important because it lets you put the antenna in a spot away from things that can interfere with the signal, like other electronics. The antenna needs to be, from all the electrical noise to work really well.

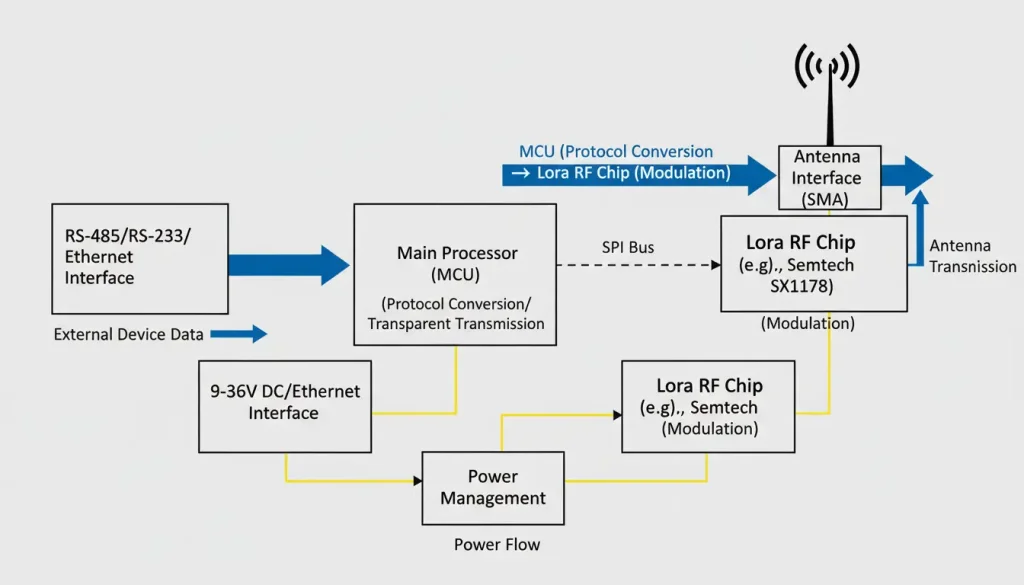

2. The Host Processor & Firmware
This microcontroller is what runs the devices logic. The firmware of the microcontroller determines how the microcontroller behaves and that determines the devices behavior:
- Transparent Bridge Mode is the common way that these devices work. The device takes the information it gets from its port and turns it into a LoRa packet. It does this the way around too. The device does not know what the information actually means. It could be Modbus or plain text or even custom binary information. The Valoris VT-LR600 is a device that works in this way. It makes a kind of connection between two points, like a cable that you cannot see. This connection is seamless so it works well. Transparent Bridge Mode is what makes this possible.
- Protocol Conversion Mode is really useful. It lets advanced devices understand the information that is being sent to them. For instance a device can take the information it gets from a meter in Modbus RTU format change it into a format, like JSON or an MQTT message and then send it using LoRa. This helps to cut down on the time the device needs to be sending information and also saves power.
3. The Industrial Interfaces & Power
This is what separates an industrial device from a development board.
- Wired Interfaces: We need screw-terminal blocks for RS-485 and RS-422 and for the power supply. This is important because it helps the equipment resist vibration and makes the wiring easier. Sometimes you will see a DB9 connector for RS-232 or an RJ45 connector for Ethernet like the one on Valoriss VT-LR601 model. The Wired Interfaces have protection to keep them safe from big surges of electricity and, from static electricity.
- Power Design: They accept a wide DC input range (e.g., 9-24V or 9-36V), common in industrial panels. Low quiescent current is vital for solar/battery-powered edge applications.

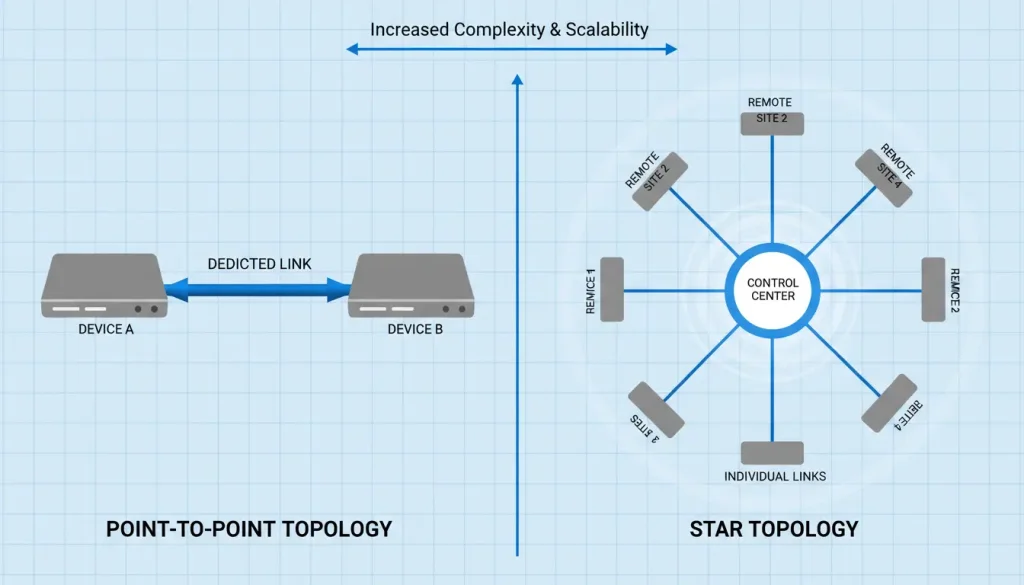

How It Actually Works: The Two-Device Rule
A key thing to note is that for a point-to-point connection industrial LoRa devices are used in pairs. You need to buy two units, not one because one LoRa device acts as the transmitter also known as the remote unit and the other LoRa device acts as the receiver also known as the base station. These LoRa devices must be set up with the frequency spreading factor and bandwidth for them to work together.
| Topology | Device Pairing | Typical Use Case |
| Point-to-Point | 1 x Remote DTU ↔ 1 x Base DTU | Replacing a single, long serial cable between a PLC and an HMI or SCADA system across a facility. |
| Point-to-Multipoint (Star) | Many x Remote DTUs ↔ 1 x Base DTU | Collecting data from multiple scattered water meters, tank level sensors, or environmental monitors back to a central control room. |
| Serial-to-Ethernet Bridge | 1 x Remote Serial DTU ↔ 1 x Base Ethernet DTU | Connecting a remote RS-485 sensor network (Modbus RTU) back to a central network where data is ingested by a server. The base unit (e.g., Valoris VT-LR601) handles the LoRa-to-TCP/IP conversion. |
The Data Path: A sensor with an RS-485 output is wired to Remote DTU A. DTU A sends the data via LoRa radio to Base DTU B, which could be several kilometers away. DTU B then outputs the exact same RS-485 data stream to its local PLC or SCADA system. The PLC sees no difference from a direct wired connection, aside from a slight latency (typically 100ms to several seconds, depending on settings).
Key Decision Factors: When to Use (and When to Avoid) LoRa Devices
Use Industrial LoRa Devices when you need to:
Transmit Small, Non-Time-Critical Data: Payloads are small (tens to hundreds of bytes), and update intervals are measured in seconds, minutes, or hours.
Eliminate Costly Wiring: Running fiber or conduit over kilometers, across roads, or between buildings is prohibitively expensive.
Connect Powerless Remote Assets: Sensors in fields, on pipelines, or in parking lots where providing mains power is impossible. LoRa devices can run for years on batteries or small solar panels.
Create a Private, Off-Grid Network: You need a dedicated data link without recurring cellular subscriptions or dependency on public operator coverage.
Avoid Them or Proceed with Caution for:
- LoRa is not the choice for things that need a lot of bandwidth, like video or big file transfers. It is also not good for real-time control, where you need a response away like in a matter of milliseconds. LoRa just does not work well for these kinds of things like closed-loop control that requires a fast response. LoRa is not, for applications that need fast responses, like video or large file transfers or closed-loop control that needs to happen in milliseconds.
- Massive-Scale, Public Network Deployments: For city-wide sensor networks with thousands of diverse devices, a LoRaWAN architecture (with gateways and a network server) is more appropriate than simple point-to-point DTUs.
- “Set and Forget” Without RF Planning: Throwing devices up without considering antenna placement, line-of-sight, spreading factor, and local interference will lead to unreliable performance. It requires more upfront RF knowledge than Wi-Fi.
| Technology | Typical Range | Data Rate | Power Use | Infrastructure Cost | Operational Cost | Best For |
| LoRa (Point-to-Point) | 2 km – 15+ km | 0.3 – 50 kbps | Very Low | Low (Device Pairs) | None | Long-range, low-power, sparse data, private links. |
| Cellular (4G/5G) | Carrier Coverage | High (Mbps-Gbps) | Medium-High | Medium (Router + SIM) | High (Monthly Data Plan) | Mobile assets, high-bandwidth, wide coverage needs. |
| Wi-Fi | < 100 m | High (Mbps) | Medium | Low (Access Points) | None | High-speed data within buildings or campuses. |
| LoRaWAN | 2 km – 15+ km | 0.3 – 50 kbps | Very Low | High (Gateways + Server) | Low/None (Public) or Medium (Private) | Massive-scale, public/private sensor networks. |
Real-World Application Snapshots
1. Remote Pump Station Monitoring:
- Challenge: Monitor tank level and pump status at a remote agricultural site with no AC power or cellular signal.
- The solution is to use a powered level sensor that has an RS-485 output. This sensor connects to a LoRa DTU at the pump station. The level. The LoRa DTU work together to send information
2. Distributed Temperature Monitoring in a Warehouse Complex:
The problem we are trying to solve is to keep an eye on the temperature in a lot of warehouse buildings that are really far apart on a big industrial campus. The thing is, it is very hard to run cables between these buildings. We need to find a way to monitor the temperature in all of these warehouse buildings without having to deal with the hassle of running cables everywhere. The temperature, in these warehouse buildings is what we really need to focus on.
The temperature sensor is a cool device. It has a LoRa radio inside it. This sensor is placed in each warehouse. The sensor sends the temperature readings to the office building. There is a device, in the main office building called the base station LoRa DTU. This device is connected to the network. The temperature readings are stored in this device. If something goes wrong it sends out an alarm. All of this happens in the office building. The temperature sensor is a device that just sends the readings to the base station LoRa DTU.
Reading the Datasheet: What Specs Really Mean
When evaluating a device like the Valoris VT-LR600/601, look beyond the marketing. Here’s what key specs mean for your project:
(Key Specs Decoded for Industrial LoRa Devices (Based on provided Valoris VT-LR600/601 specs))
| Parameter | Example Specification | Practical Implication |
| Operating Temperature | -40°C to 85°C | Can be installed in unheated outdoor enclosures or in hot industrial environments without climate control. |
| Supply Voltage | DC 9-24V | Can be powered directly from standard industrial 12V or 24V DC power supplies, or from a battery bank with a voltage regulator. |
| Transmit Power | +20 dBm | Near the maximum allowed in many regions. Provides strong signal for challenging links. Requires proper antenna. |
| Receiver Sensitivity | -140 dBm | Excellent. Can decode very weak signals, enabling long range and robust performance in non-line-of-sight conditions. |
| Interface | Terminal Blocks (RS-485/422), DB9 (RS-232), RJ45 (Ethernet on VT-LR601) | Enables direct, tool-free connection to industrial sensors, PLCs, and networks without custom cables or adapters. |
| Range (Claimed) | 6-8 km (outdoor, unobstructed) | A realistic starting point for planning. Actual range will be lower in urban/suburban settings due to buildings and foliage. |
Getting Started: A Pragmatic Approach
- Define Your Data: What is the payload size and how often does it need to be sent? This dictates if LoRa is suitable.
- Map Your Links: Identify point-to-point or point-to-multipoint topologies. You will need at least two devices.

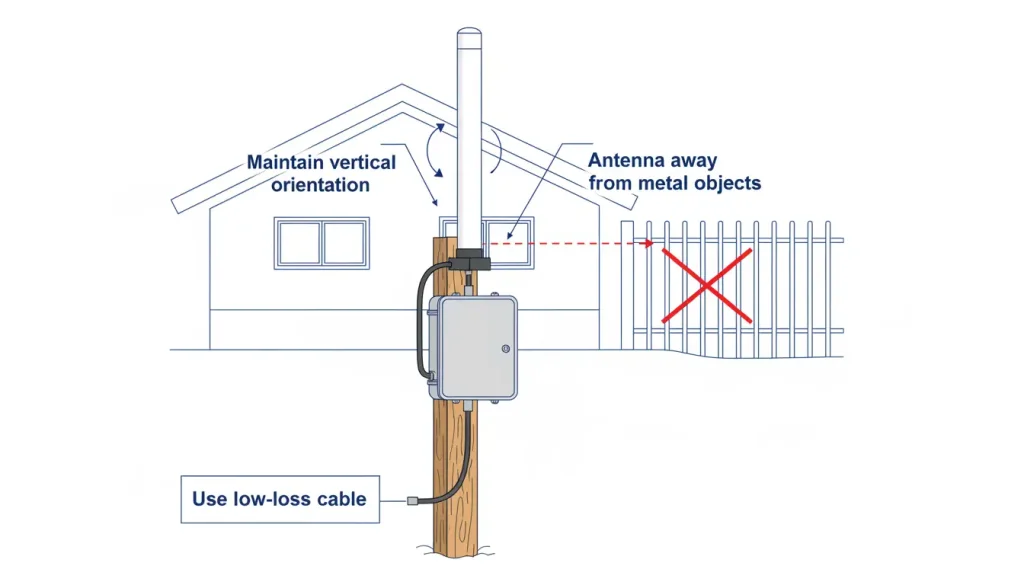

- Plan the RF: Consider distance, obstacles, and antenna placement. For links over 1 km or in cluttered environments, an external antenna mounted high is almost always necessary.
- Power the Edge: For remote units, calculate battery life or size a small solar panel based on the device’s current draw and your transmission interval.
- Configure and Test: Set matching parameters (frequency, SF, bandwidth) on both devices. Conduct a field test before final installation to verify link stability.
Key Takeaways
- An industrial LoRa device is a specialized tool for reliable, long‑distance, low‑data‑rate communication where wires fail and cellular is unavailable or too expensive.
- These devices work in pairs (or star topologies), creating private, off‑grid networks without recurring fees.
- Understand the three internal pillars: radio engine, host processor, and industrial interfaces—they determine performance and reliability.
- LoRa is not for high‑bandwidth or real‑time applications. Choose it for small payloads, sparse data, and battery‑powered edge devices.
- Proper RF planning—antenna placement, line‑of‑sight, parameter matching—makes the difference between a reliable link and endless troubleshooting.
Deploy Your Private LoRa Network with Valtoris
An industrial LoRa device is not just a hobbyist radio board; it is mission-critical infrastructure. At Valtoris, we engineer LoRa solutions specifically for harsh environments (-40°C to 85°C) and legacy industrial protocols.
- At the Center: Use our [VT-LR601 LoRa Gateway] to receive that data, automatically convert it to JSON via MQTT, and push it to your local SCADA server or cloud.
- At the Edge: Use our [VT-LR600 Serial Nodes] to connect directly to your RS232/RS485 meters and transmit data up to 8km.
Frequently Asked Questions
Q1: Does the 8km range apply indoors or through metal factory walls?
A: No. The 8km rating is strictly for clear Line of Sight (LoS) outdoors. In heavy industrial environments with steel structures, silos, or thick concrete walls, the effective range drops significantly (often to 1-2km or less). For deep indoor penetration, you must mount high-gain antennas outside your control cabinets and elevate them as high as possible.
Q2: Do I need a special radio license to operate a private LoRa network?
A: No. LoRa works on the ISM (Industrial, Scientific, and Medical) frequency bands that are available all over the world and don’t require a license. You don’t have to pay the government for a license. You do need to make sure that the hardware you buy is set to the legal frequency in your area (for example, 915 MHz for North America and 868 MHz for Europe).
Q3: Can I poll my remote RS485 Modbus PLC every 100 milliseconds over LoRa?
A: No. LoRa is a low-bandwidth technology designed for sparse data transmission. High-frequency polling will cause massive packet collisions and violate radio duty cycle regulations. You should adjust your SCADA polling intervals to seconds or minutes. If your application demands millisecond real-time control, you must upgrade your architecture to an [Industrial Cellular Router].
