The design of the transport layer for Industrial Internet of Things (IIoT) networks requires balancing physical constraints against long-term operational expenditures (OpEx). When architecting SCADA deployments, engineers must evaluate three dominant wireless standards: Industrial Wi-Fi (802.11), 4G LTE Cellular, and Private LoRa (Sub-GHz RF).
These technologies are not interchangeable. Their underlying radio frequency (RF) physics and payload management mechanisms dictate fundamentally different use cases. Attempting to deploy Wi-Fi across a sprawling agricultural field, or forcing a battery-backed sensor to maintain a continuous 4G LTE connection, will guarantee rapid system failure.
This technical guide provides an objective engineering analysis of Private LoRa vs. 4G LTE vs. Industrial Wi-Fi. We will detail their physical layer limitations (signal penetration), power consumption budgets, protocol handling capabilities, and 5-Year Total Cost of Ownership (TCO) to ensure correct hardware selection at the edge.
⚙️ Interactive Protocol Specifier: Wi-Fi vs 4G LTE vs LoRa
Select your specific project constraints below to instantly determine the optimal communication architecture for your field deployment based on engineering best practices.
The Connectivity Dilemma: Why Your Protocol Dictates IoT Project Success
A strong physical transport layer is needed to connect a remote RS485 flow meter or legacy PLC to a central cloud historian. Engineers have historically been forced to go with hardwired Ethernet trenches or immensely expensive 900MHz licensed radio networks. Today, the choice is overwhelmingly divided into three domains: Industrial Wi-Fi for local campuses, Cellular (4G LTE / 5G) for wide-area routing, and Low-Power Wide-Area Networks (LPWAN) like LoRa for off-grid telemetry.
Many IT-centric system integrators make the mistake of thinking that “data is data” and that wireless protocols are just invisible Ethernet cables. Within Operational Technology (OT), physics rules. If you force a battery-backed agricultural sensor to use a high-frequency, continuous-sync protocol such as 4G or Wi-Fi, you will guarantee hardware failure at an early stage. In contrast, trying to push high-speed CCTV or real-time deterministic SCADA control loops over a low baud rate LoRa network will result in catastrophic network saturation and bus collisions.
Coverage and Range: Carrier Infrastructure vs. Private Self-Healing Networks
The most obvious and immediate difference between these two technologies is who actually owns, manages and dictates the network infrastructure.
4G LTE: Carrier-Managed Infrastructure
In the case of an Industrial 4G Cellular Modem (most often referred to in industrial automation as a DTU or Data Terminal Unit) the deployment speed is almost immediate. You’re basically renting billions of dollars of existing telecom infrastructure. The module connects with an M2M SIM card and requests an IP address and immediately starts pushing TCP/UDP or MQTT payloads out to the internet.
But there’s a big caveat to that convenience: You’re completely at the mercy of the coverage map of the carrier. Commercial cellular service often disappears or degrades to severe jitter in deep subterranean parking garages, offshore oil rigs or large agricultural valleys, leaving your critical assets disconnected and your SCADA screens blind.
Private LoRa P2P: Infrastructure Independence
Private LoRa turns you into your own local Telecom Provider. Install a centralized LoRa Gateway and create a private localized RF net. For example, the VT-LR600 devices use patented LoRa modulation technology to offer an outdoor line-of-sight communication range of 8km. LoRa uses sub-GHz frequencies (410MHz to 525MHz for example) which means its radio waves have massive wave lengths.
Industrial Wi-Fi: High Frequency, High Attenuation
Wi-Fi operates on 2.4 GHz and 5 GHz frequency bands. While these high frequencies allow for massive data throughput, they suffer from extreme free-space path loss and material absorption. In an industrial plant, a 2.4 GHz wave is rapidly absorbed by moisture, concrete, and steel tanks. This is why Wi-Fi fails in the field: covering a sprawling agricultural site or a dense manufacturing plant requires installing dozens of expensive Access Points (APs), laying fiber-optic backhauls to connect them, and dealing with constant roaming disconnects.
The Physics of RF Penetration & Fresnel Zones
According to IEEE academic research on LPWAN propagation, lower frequencies experience exponentially less free-space path loss and material attenuation compared to higher frequencies. A 490MHz LoRa wave will easily penetrate 5 floors within a building, bypassing concrete blast walls and dense forest canopies drastically better than a 2.4GHz Wi-Fi signal or a 2.1GHz 4G LTE band.| Infrastructure Metric | Industrial Wi-Fi | 4G LTE Cellular | Private LoRa (Sub-GHz) |
|---|---|---|---|
| Max Wireless Range | < 100 meters (per AP) | Dependent on cell tower | ~8 km (Line of Sight) |
| Obstacle Penetration | Poor (Absorbed by walls/water) | Moderate | Excellent (Through ~5 floors) |
| Infrastructure Dependency | Heavy (Requires dense AP network) | Requires Carrier Cell Towers | Requires a local Gateway pair |
Power Consumption: Grid Power vs. Off-Grid Solar Constraints
If you are drawing power from an industrial control panel connected to a steady 220V/110V grid, power consumption really doesn’t matter much. But the physical size, cost, and winter reliability of your power infrastructure is a function of the protocol you choose for remote water level sensors or agricultural soil probes that run on localized solar arrays and 12V/24V DC batteries.
Industrial Wi-Fi: High Continuous Draw for Beaconing
Wi-Fi was never designed to have high throughput always on local environments. Wi-Fi radios need to constantly transmit and listen for beacon frames so that they can maintain the association with the network. This leads to a high power draw at baseline. Thus, Wi-Fi converters and access points are designed for grid-powered factory floors and control cabinets only, and are neither economically nor physically feasible for small off-grid solar deployments.
4G LTE: Continuous Active Polling and High Peak Currents
A 4G LTE baseband processor requires massive energy overhead to maintain its presence on a public network. To stay connected, the module must navigate Radio Resource Control (RRC) states, as defined by 3GPP telecommunication standards. Even during “idle” periods, a standard 4G modem consumes significant power (often 50mA to 100mA) just to listen for carrier paging cycles. During active transmission, peak currents can spike over 500mA. Running a 4G router on a small off-grid solar setup will inevitably lead to rapid battery depletion and system failure during overcast winter weeks.
LoRa: Stable, Low-Power Industrial DC Operation
Consumer LPWAN devices are powered by fragile AA batteries, but true industrial LoRa nodes are designed to be integrated directly into standard 9-24V DC control cabinets or compact off-grid solar charge controllers. Running at a very low steady state current draw (~30mA at 12V), these nodes dramatically reduce the size and capital cost of remote solar panels and battery banks versus cellular equivalents. This gives you 24/7 uptime without having to trench in expensive grid power.
| Operational State | Wi-Fi (802.11) | 4G LTE Power Draw | Private LoRa Draw |
|---|---|---|---|
| Idle / Receive State | High (Constant beaconing) | Moderate (50mA+) | Ultra-Low (~30mA @ 12V) |
| Active Transmission (TX) | High | High Peak Current (500mA+) | Low and stable |
POWER REQUIREMENTS: EDGE DEPLOYMENTS
Comparing Energy Infrastructure for Wi-Fi, 4G LTE, and LoRa
Data Bandwidth and Latency: High-Speed Streaming vs. Micro-Payloads
The trade-off for LoRa’s massive range and off-grid stability is evident in bandwidth. You can’t beat Shannon-Hartley theorem. You have to trade speed for distance and sensitivity. Your bandwidth budget can range from the localized Gigabits (Wi-Fi) to wide-area Megabits (4G) to ultra-long-range Kilobits (LoRa).
Industrial Wi-Fi: The Local Heavyweight
Modern 802.11 standards deliver unprecedented data rates (often over gigabits per second) and ultra-low latencies (sub-10 milliseconds) via Wi-Fi. Real-time coordination of AGV robots, 4K machine vision cameras, or millisecond-level PLC synchronization on the factory floor makes Wi-Fi the undisputed king. However, this huge bandwidth is confined to a small local radius.
4G LTE: The Wide-Area Broadband Standard
LTE speeds are measured in megabits per second (Mbps) and network latencies can often be under 50 milliseconds. If your site architecture requires CCTV video streaming, frequent over-the-air (OTA) PLC firmware updates, heavy log file transfers or real-time closed loop motion control across a wide geographic area, it is the required protocol. The VT-DTU500 is an industrial 4G device that can perform robust networking tasks such as being a TCP Server that supports up to 30 TCP connections at the same time.
LoRa: Micro-Payloads Only
This is done intentionally to achieve the processing gain and an amazing receiving sensitivity of -140dBm. Speeds are usually measured in a few kbps. It sends data in little packets. This is perfect for reading a Modbus temperature register, checking a discrete valve status or sending a lightweight JSON payload. It can’t physically process video feeds or large IT network traffic.
| Data Metric | Wi-Fi (802.11ac/ax) | 4G LTE (Cat 4) | Private LoRa |
|---|---|---|---|
| Max Data Rate | Massive (Gigabits/sec) | High (150 Mbps) | Ultra-Low (< 50 kbps) |
| Network Latency | < 10 Milliseconds | < 50 Milliseconds | Seconds (Due to airtime) |
| Optimal Application | Factory AGVs, 4K CCTV | Remote Video, IT routing | Sensor arrays, Modbus polling |
The Protocol Trap: Can You Run MQTT or IP over LoRa?
A frequent question on automation forums is: “Can I just send MQTT or HTTP packets directly from my edge sensor over LoRa?”
This is where understanding the transport layer is critical. Wi-Fi and 4G LTE natively support TCP/IP. This means they easily handle complex application-layer protocols like MQTT, HTTPS, or REST APIs. Your network switches and cloud servers inherently understand the traffic.
LoRa does not support IP natively. Because LoRa payloads are restricted to a few dozen bytes, adding massive TCP/IP packet headers (which alone can be 40+ bytes) would instantly saturate the radio duty cycle. LoRa is designed to transmit raw, lightweight serial data (like a hexadecimal Modbus RTU string).
The Solution: If you want to leverage LoRa’s massive range but need modern IT protocols for your cloud historian, you must deploy a protocol-translating gateway. An edge node transmits raw serial bytes over LoRa RF. The central Gateway (e.g., the VT-LR601) receives the radio wave, parses the data, and wraps it into a TCP/IP packet (JSON/MQTT) which it then outputs via its Ethernet RJ45 port to the local network.
Total Cost of Ownership (TCO): Hidden SIM Fees vs. Infrastructure CapEx
When presenting an IoT architecture to a CFO or operations director, the financial model is heavily scrutinized over a 5-year horizon. Wi-Fi, 4G, and LoRa have diametrically opposed cost structures regarding Capital Expenditure (CapEx) and Operational Expenditure (OpEx).
Industrial Wi-Fi: Extreme Initial CapEx
While Wi-Fi has zero cellular data fees, covering a sprawling outdoor industrial facility requires purchasing dozens of expensive industrial-grade Access Points (APs), laying fiber-optic backhauls to connect them, and ongoing IT maintenance. The upfront CapEx makes it economically unviable for sparse telemetry, though it remains essential for dense, high-bandwidth indoor zones.
4G LTE: The Reality of Recurring OpEx
Every 4G module deployed in the field requires a provisioned M2M/IoT SIM card. While an individual data plan might only cost $2.00 per month, scaling this across a facility with 200 field sensors results in $4,800 in annual recurring OpEx. Over a 5-year project lifespan, you are paying nearly $24,000 strictly for data transit—a budget killer for low-margin municipal or agricultural projects.
LoRa: Zero Monthly Fees (Moderate CapEx, Zero OpEx)
Because LoRa operates on unlicensed ISM radio bands, you effectively own the network. Once you purchase the edge nodes and the central gateway, there are absolutely zero recurring monthly data fees paid to telecom carriers. The initial CapEx is slightly higher than a 4G modem due to the requirement of purchasing the central gateway hardware, but the long-term Return on Investment (ROI) is unbeatable for dense sensor deployments.
| Cost Factor (5-Year TCO) | Industrial Wi-Fi (200 Nodes) | 4G LTE Architecture (200 Nodes) | Private LoRa Architecture (200 Nodes) |
|---|---|---|---|
| Hardware & IT CapEx | Extremely High (Access Points, Fiber backhaul) | Low (Only purchase edge modems) | Moderate (Nodes + Local Gateway investment) |
| Carrier Data Fees (OpEx) | $0.00 (Internal Network) | ~$24,000 ($2.00/mo x 200 nodes x 60 mos) | $0.00 (Unlicensed RF Spectrum) |
| Network Management | High IT burden (Security, DHCP, Roaming) | Handled by Carrier (AT&T, Vodafone, etc.) | Self-Managed Enterprise RF Network |
Network Density & Scalability: Handling Sensor Congestion
One of the most important things to consider architecturally that the novice integrator often forgets is what happens when your project goes from 10 sensors to 200 sensors all in one geographic location.
Using 200 individual 4G DTUs in one factory or farm and managing 200 individual IP addresses, tracking 200 SIM card data caps and maintaining 200 separate VPN tunnels is an IT networking nightmare. Also when 200 devices query a SCADA server at the same time thru cellular networks, it can cause serious bottlenecks.
Similarly, dumping 200 wireless serial servers onto an existing corporate Wi-Fi network creates severe channel congestion. Industrial environments are already noisy; saturating the 2.4GHz band with constant Modbus polling traffic will degrade performance for other critical Wi-Fi devices and trigger continuous roaming disconnects.
Private LoRa protocols are meant for local scale. By isolating your telemetry on dedicated sub-GHz radio bands, you are able to build a local sensor web that is highly scalable, avoids Wi-Fi channel interference, and never touches the public internet until the data is safely aggregated at the gateway level. This drastically decreases the attack surface of cyber security threats.

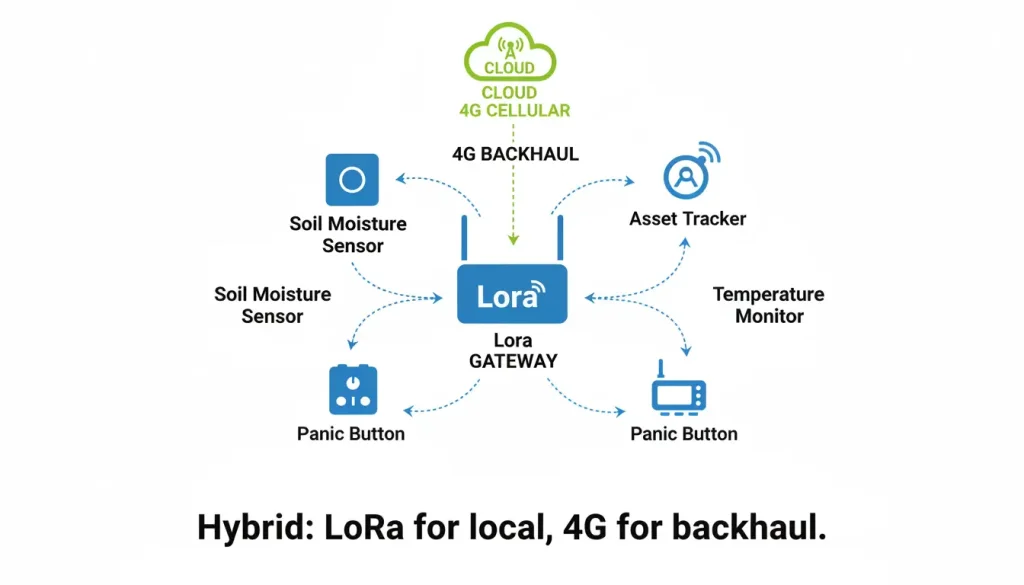

The Ultimate Architecture: The “Hybrid Edge” Topology
The secret that elite system integrators know is that you do not have to force a single protocol to do everything. The most robust, reliable, and cost-effective Industrial IoT architectures leverage multiple technologies simultaneously based on local infrastructure availability.
Instead of purchasing a 4G SIM card for every single field sensor or trenching fiber for new Wi-Fi APs, modern automation engineers deploy a tiered architectural approach:
- The Wireless Edge (LoRa P2P): Install rugged VT-LR600 Serial Nodes at the sensor level. These nodes connect to user devices via RS232, RS485, or RS422 ports. Operating on just 30mA at 12V, they integrate perfectly with compact off-grid solar setups, broadcasting Modbus data over an 8km range for free.
- The Aggregation Point (LoRa Gateway): Install a central VT-LR601 LoRa Gateway at a grid-powered facility. This gateway acts as the receiver, pulling in data points from the scattered VT-LR600 nodes and converting them to Ethernet (TCP/IP) protocols.
- The Backhaul (4G or Wi-Fi): Depending on your facility, you have two options for the final connection to the SCADA server:
- Scenario A (No Local Network): Connect the LoRa gateway to an Industrial 4G Router (VT-DTU500). It pushes the aggregated payloads to the cloud over a single cellular connection.
- Scenario B (Existing Wi-Fi): If the central facility already has Wi-Fi, bypass cellular entirely. Use a Serial-to-Wi-Fi Converter (VT-WF Series) to push the telemetry directly onto the local 802.11 network. Using the Virtual COM utility, legacy SCADA software can read the data as if it were hardwired.
The Engineering Result: You achieve the massive, obstacle-penetrating wireless range of LoRa for off-grid areas, harness the high-bandwidth zero-OpEx routing of Industrial Wi-Fi where local networks exist, and leverage 4G LTE for global cloud backhaul. You eliminate blind spots while paying for one monthly SIM card plan instead of two hundred.
Frequently Asked Questions (IoT Protocols & Architecture)
Q1: Can I poll multiple remote LoRa nodes simultaneously without RF collisions?
Q2: What is the exact difference between “Private LoRa P2P” and “LoRaWAN”?
Q3: Do I need a static IP address from my cellular provider for the 4G gateway?
Q4: Does the 4G gateway support local routing if my site needs an Ethernet connection?
Q5: Can LoRa nodes act as repeaters for sensors blocked by extreme terrain (Non-LOS)?
Q6: Is the over-the-air Sub-GHz LoRa transmission secure against sniffing?
Q7: If the 4G LTE network drops during a storm, how does the system handle data?
Q8: If a field sensor goes offline, how do I isolate the fault between the LoRa RF link and the 4G backhaul?
