Industrial LoRa to Ethernet gateway (VT-LR601)

Engineered for zero-fee wireless telemetry, this industrial LoRa edge gateway securely bridges RS232/485/422 serial data and Ethernet into standard TCP/IP networks. It functions as a robust Modbus TCP to RTU converter, enabling seamless integration of remote legacy field devices into centralized SCADA systems without recurring cellular costs.


Part No. VT-LR601
sku : IoT-L101
INSTANT QUOTE

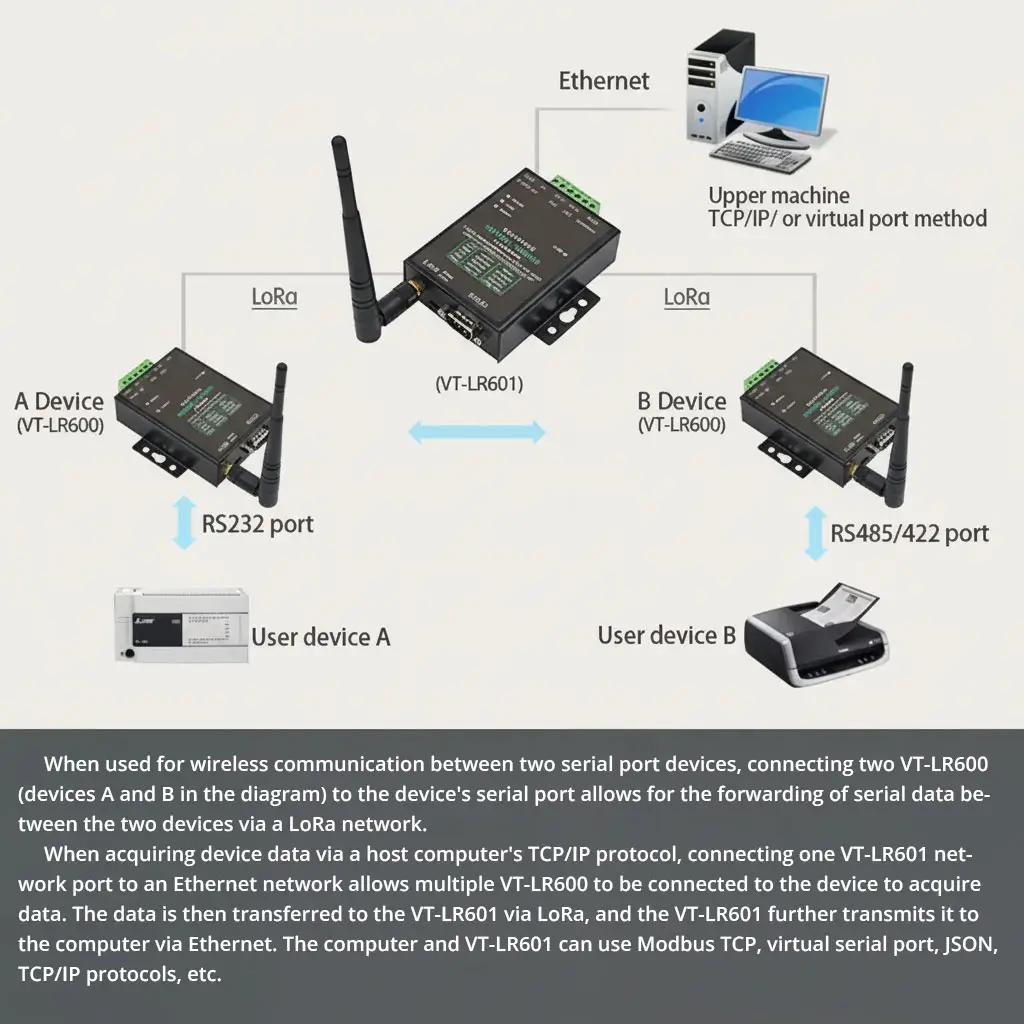

Our LoRa adapters must be used in pairs:

For RS485/232/422 to LoRa to RS485/232/422, we recommend VT-LR600 +VT-LR600.

For RS485/232/422 to LoRa to Ethernet adapters, we recommend VT-LR600 + VT-LR601.

Please purchase VT-LR600 at same time, purchase link as below:

The Valtoris LORA products can be applied to:

  • Power electronics, intelligent instruments;

  • Industrial automation system;

  • The Internet of things; Climate and geological monitoring

  • Building/access/security control system

Primary function

Long-distance LORA communication scheme, high performance, high stability Outdoor unshielded communication distance is 6km~8km

Stronger Wireless Function

VT-LR600 achieves high standards in wireless communication performance, including frequency range, wireless channel, receiver sensitivity, and transmit power

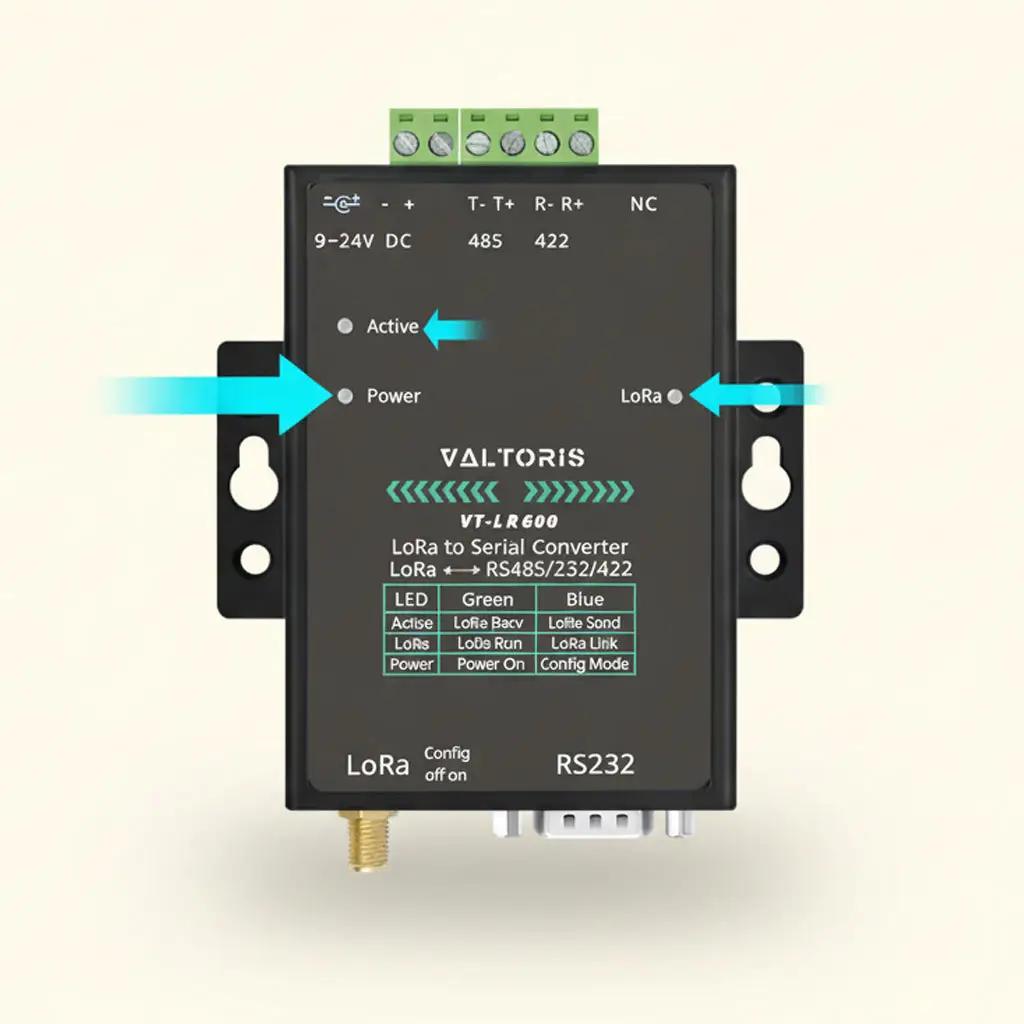

Rich indicator lights

Multi function

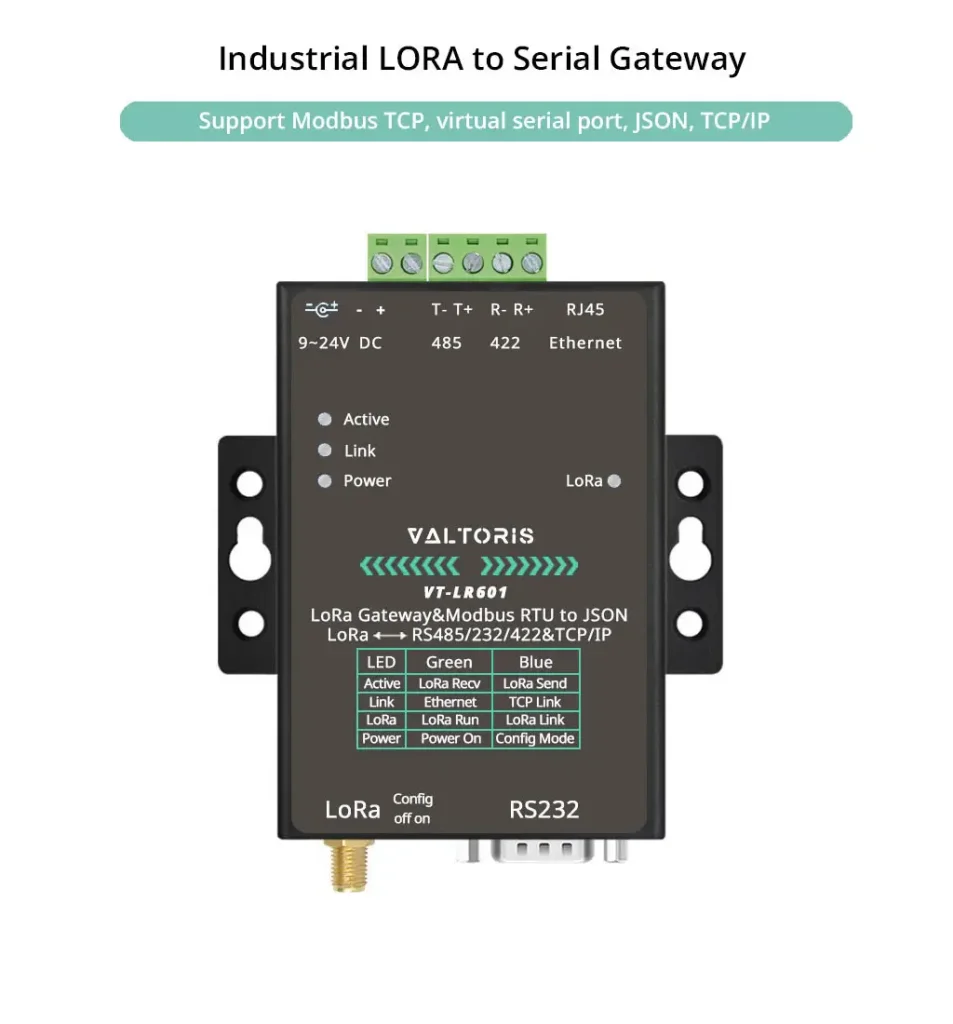

The VT-LR601, based on the VT-LR600, features multi-functional LoRa-to-Ethernet conversion, enabling LoRa to TCP/IP conversion

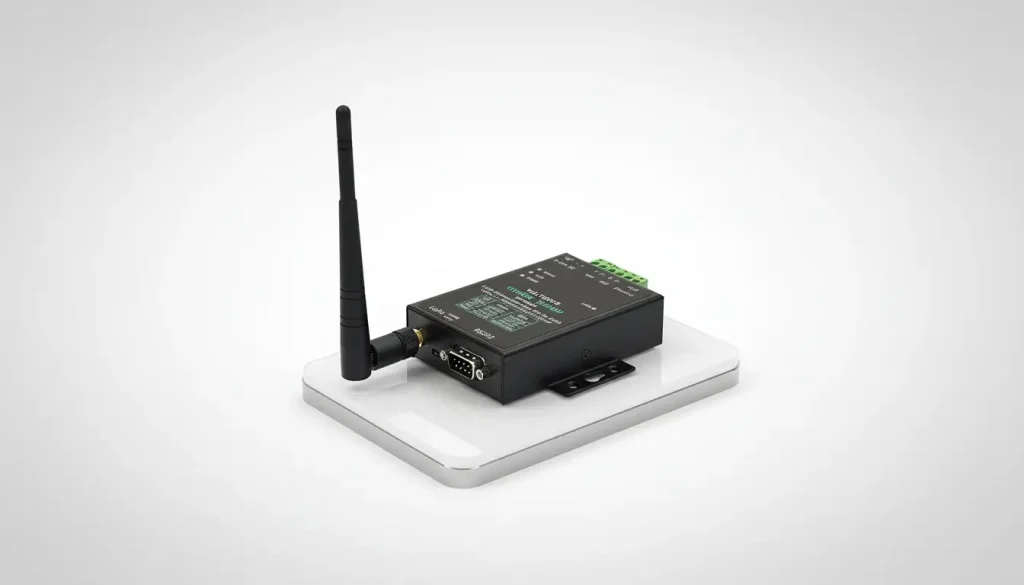

Product show

Outline dimensions

Appearance
Interface:485/422: Terminal;  232： DB9; Ethernet: RJ45

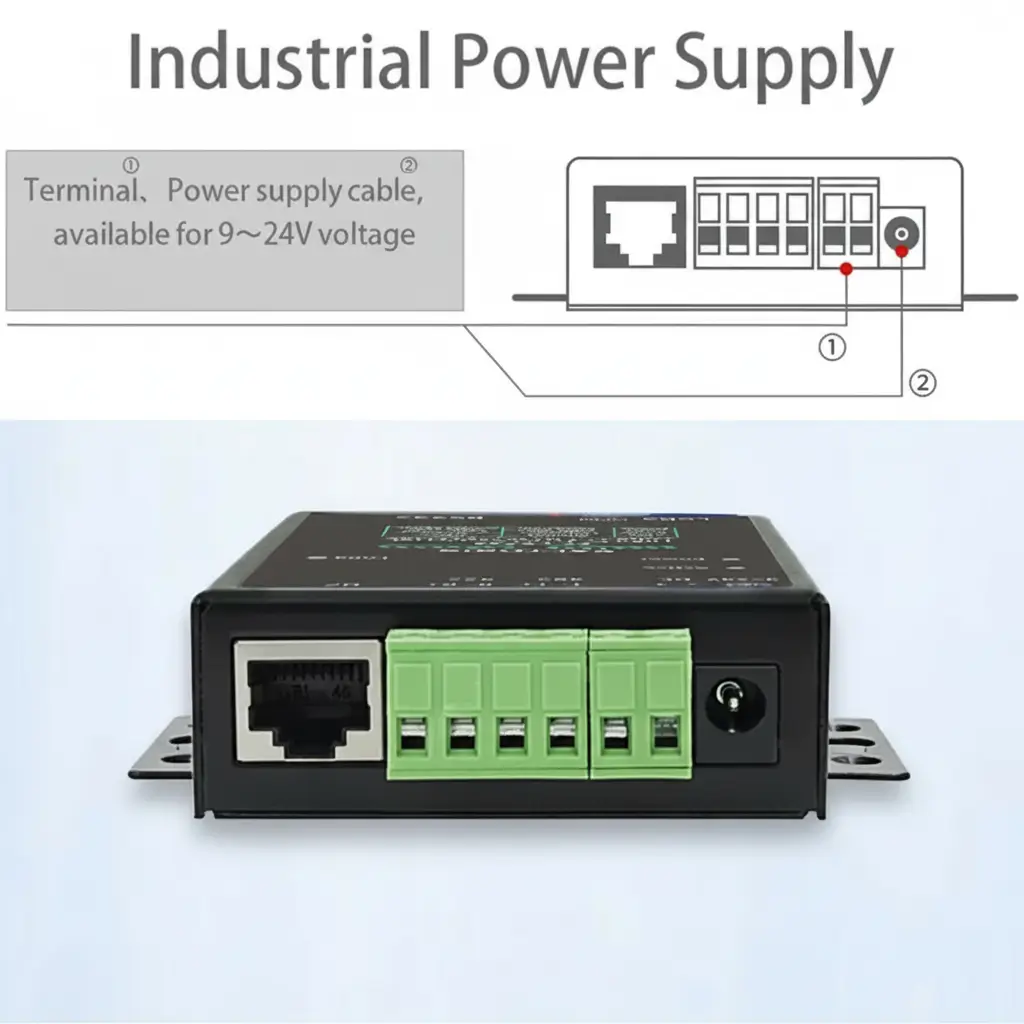

Power Supply:Inside positive outside negative, standard outlet

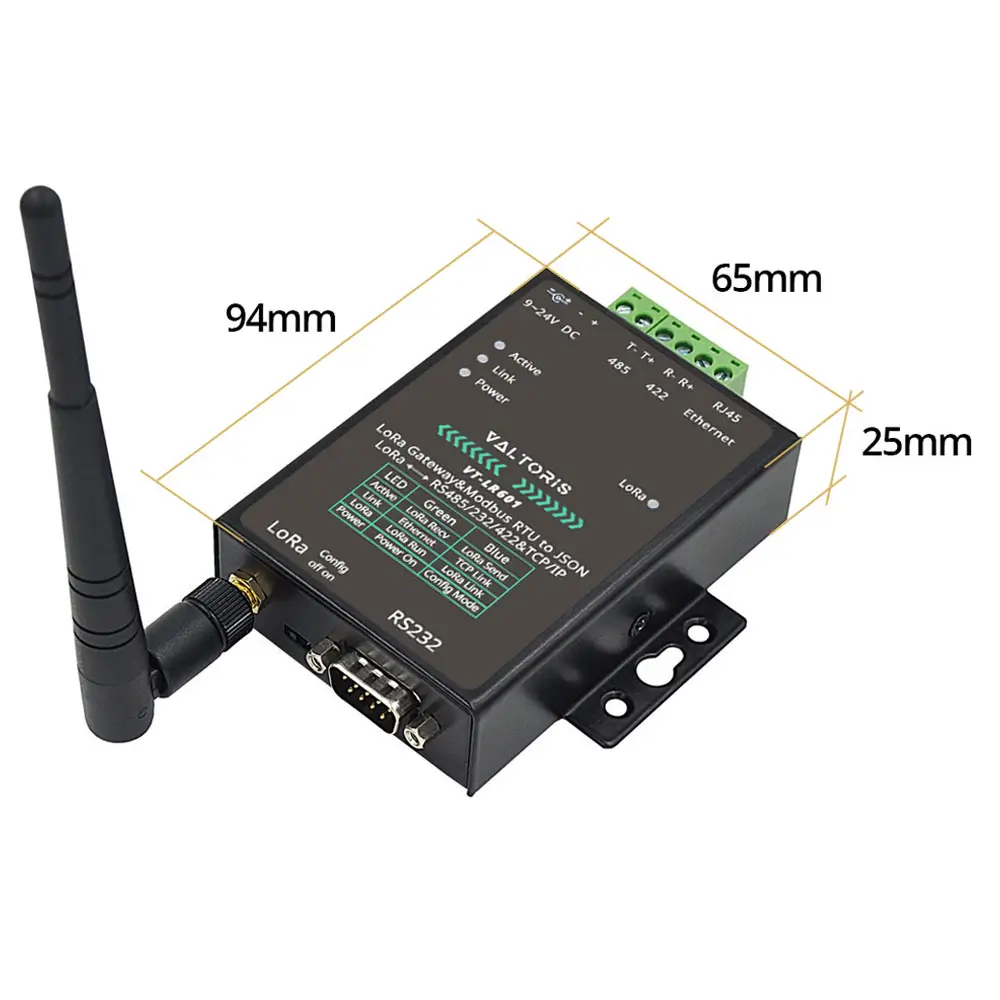

Size:L x W x H =9.4cm×6.5cm×2.5cm
Specification Parameters
Working VoltageDC9~24V
Working CurrentVT-LR600：30mA@12V
VT-LR601：160mA@12V
Operating temperature-40℃~85℃
Humidity<95%RH

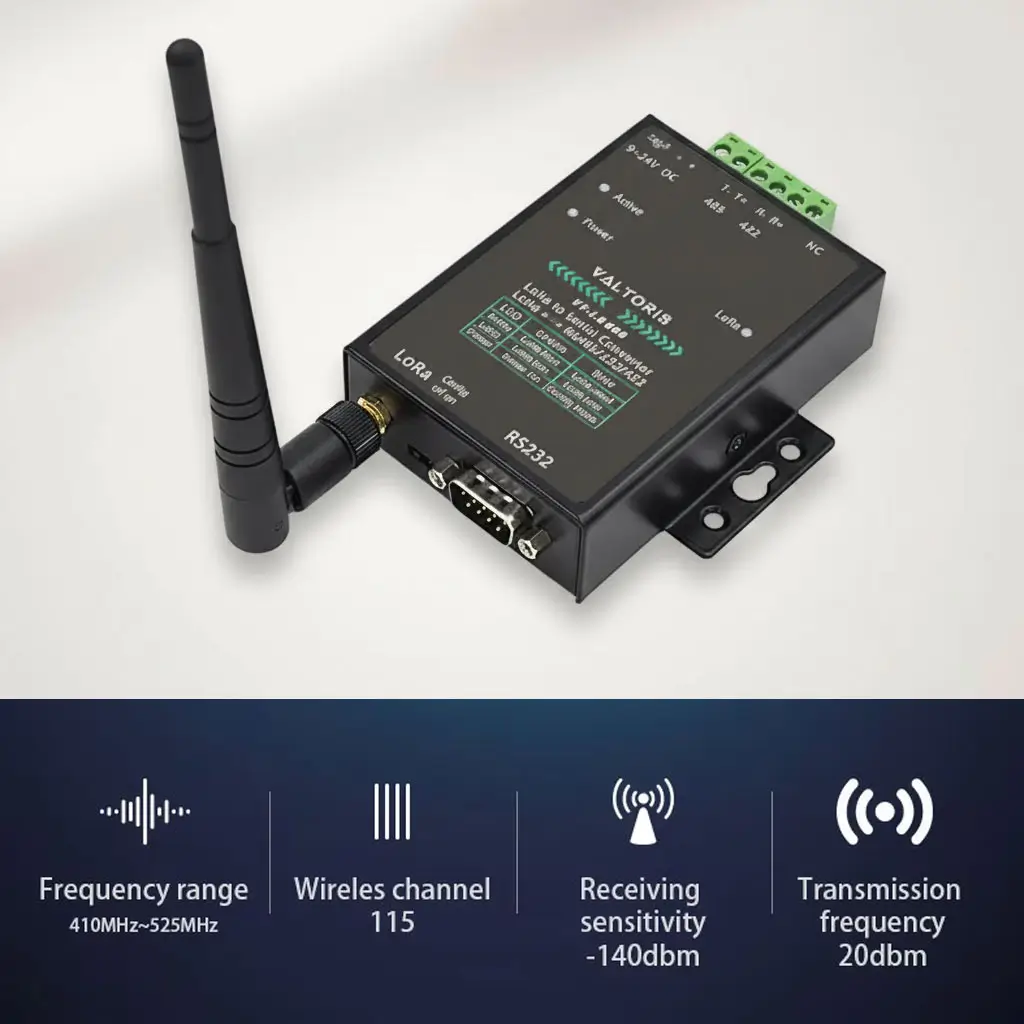

Wireless Communication
Transmission DistanceThe outdoor area has no shelter of 6km~8km, and the indoor area crosses about 5 floors
Frequency Range410MHz~525MHz
Wireless Channel115
Receiving Sensity-140dbm
Transmit Power20dbm
Modulation SystemLoRa™ Patented modulation technology
Wireless ConnectionExternal SMA male antenna, suction cup antenna 1 meters; Working frequency： 490MHz
Wire Communication
Serial Port DataBaud Rate：1200~115200bps；Check Bits：None, Even, Odd；Digit 8；Stop bits 1
Ethernet Protocol（Only VT-LR601 support TCP/IP protocol）ETHERNET、 IP、 TCP、 UDP、 HTTP、 ARP、 ICMP、 DHCP、 DNS
Environment
Operating temperature-40~85℃
Storage temperature-45~165℃
Humidity range5~95% relative humidity

Summary:

LORA (Point-to-Point) is a long-distance wireless communication scheme. Compared with GPRS and 4G solutions, Lora does not require a monthly fee for access to the network, and it has a longer distance compared with WiFi and Zigbee. So LORA is becoming more and more widely used in small data long-distance communication.

Features

LORA products adopt SX1287 chip and use Semtech’s patented LORA ™ modulation technology to achieve a receiving sensitivity of -140dBm and output power of +20dBm. The outdoor line-of-sight communication distance is 8km, featuring long distance, low power consumption and anti-interference.

At present, our Lora products are divided into two categories. One is serial port to Lora, model VT-LR600, which contains three serial port forms, namely RS232/485/422. The other type is Ethernet (TCP/IP) to Lora, the model is VT-LR601, can connect Lora and the Internet.

[User Manual] Valtoris-VT-LR600-VT-LR601 User Manual
