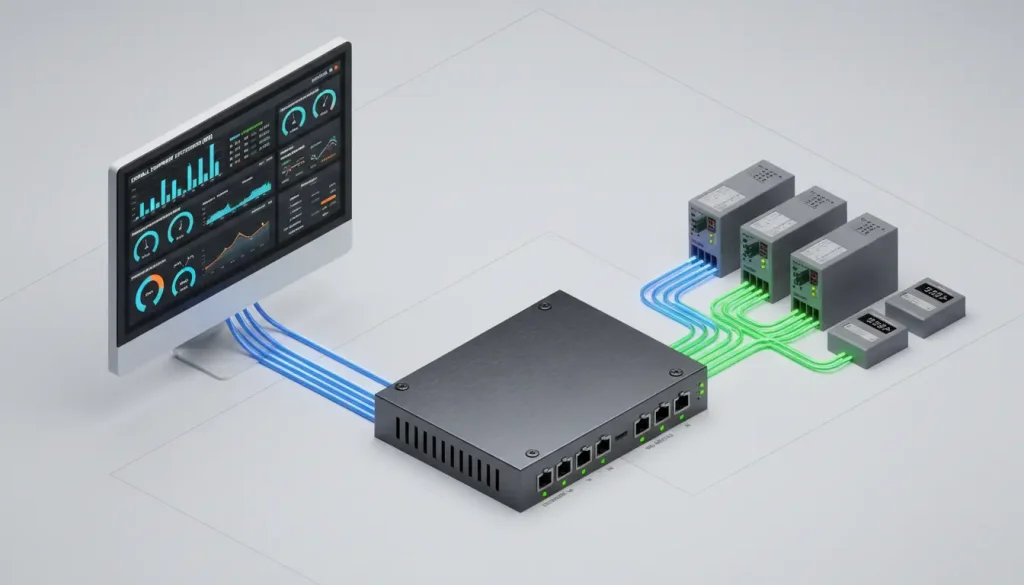

A: There are 2 industrial processes. First, combine multiple local serial devices into one RJ45 uplink with a Multi-Port Serial Server (e.g., a 4-port or 8-port server) Second, employ the Daisy-Chain Topology. Serial servers with dual Ethernet ports are used as an unmanaged switch. You can daisy chain them and completely remove the need for outside industrial switches in your cabinet.

A: You do this with a Virtual COM Port (VCOM) program. Our servers include a utility that installs on your Windows or Linux host. It maps the remote serial device server IP address to a virtual local COM port. Your legacy software will work as if the RS232/RS485 device was directly plugged into the back of the PC.
(For complete software configuration see our complete [RS232 to Ethernet Conversion & Pinout Guide])

A: Transparent transmission just puts the original serial data into TCP packets and blindly sends it. This is fine for basic ASCII data, but it often causes timeout errors and bus lockups when polling Modbus RTU due to network latency. A true Modbus Gateway actively translates the protocol from Modbus RTU to standard Modbus TCP/IP. It manages slave IDs, packet parsing and buffers data locally to avoid polling conflicts and provide instantaneous SCADA responses.

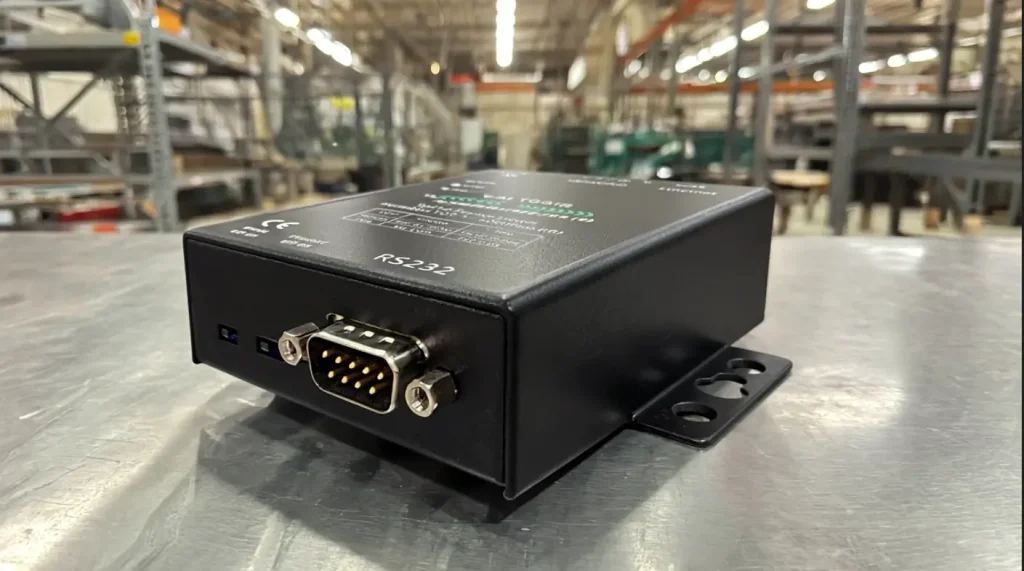

A: Not if you pick a versatile 3-in-1 model. Our next generation serial device servers like the [1CH-RS232/485/422-ETH series] combine all three major serial interfaces into one device. This enables system integrators to standardize on one hardware model over an entire plant, with easy bridging between legacy RS232 PLCs and long-haul RS485 sensor networks.

A: Basic transparent converters will lock up or return garbled data if two TCP hosts poll the same RS485 bus simultaneously. As a specialized manufacturer of serial connectivity, our advanced servers feature built-in Multi-Host support and Modbus storage caching. This allows multiple SCADA systems to query the server concurrently, returning data in milliseconds without causing serial bus collisions.

A: Consumer-grade converters will fail instantly under electrical stress. Because serial connectivity is our core engineering advantage, Valtoris industrial units are built with robust electromagnetic isolation (EMI), dedicated serial port surge protection, and wide-voltage inputs (e.g., 9-24V DC). They are rigorously tested to survive the harsh electrical transients common in power distribution and heavy manufacturing.
