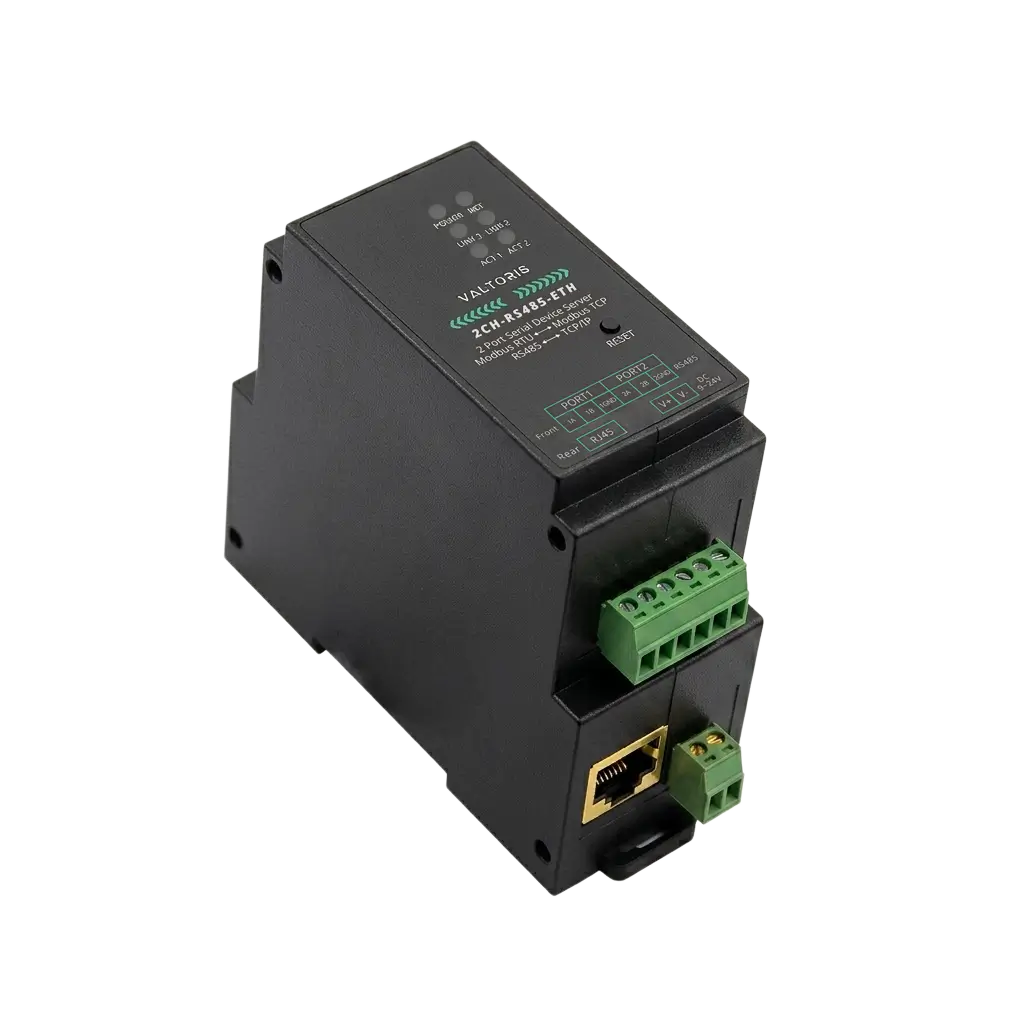

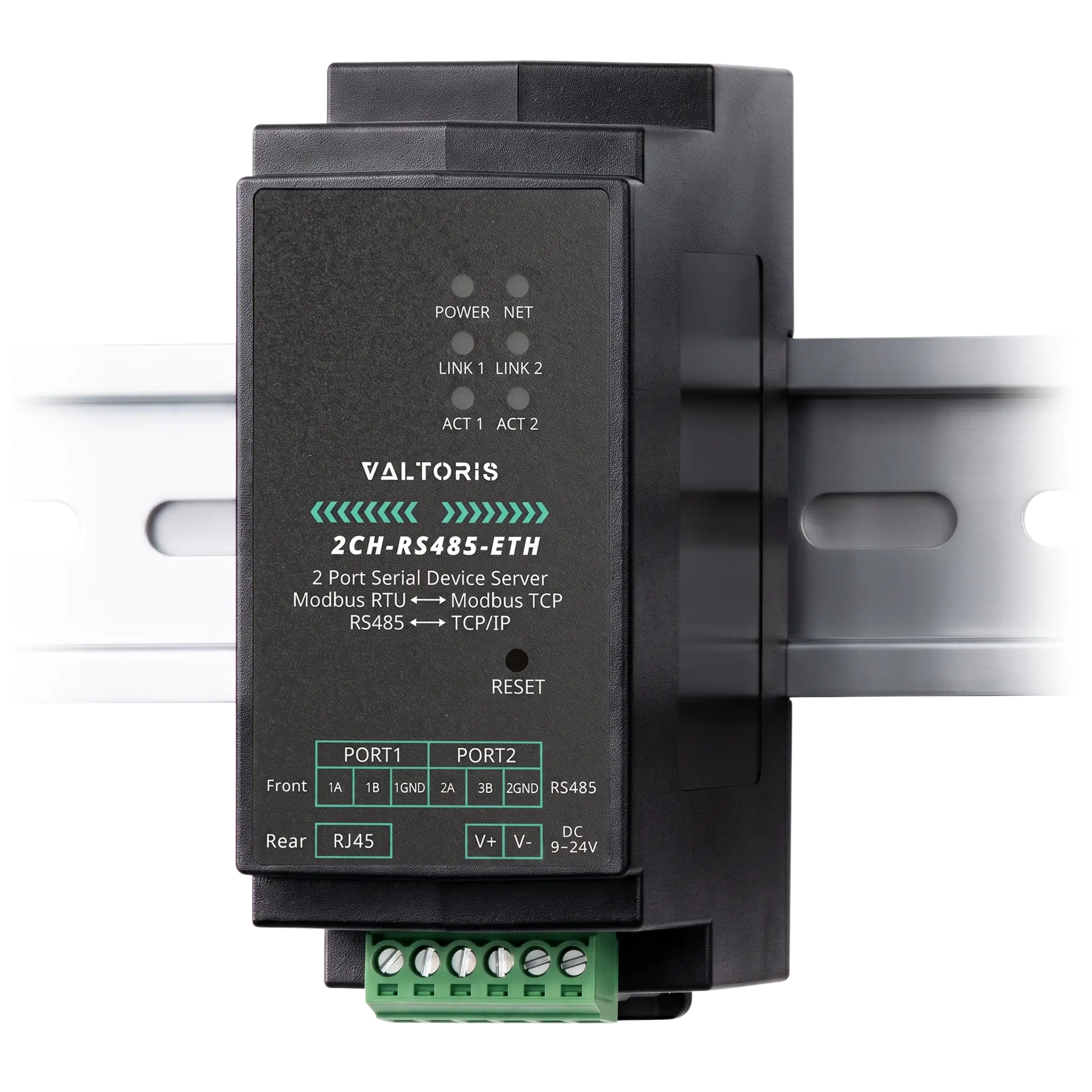

DIN-Rail 2-Port RS485 Modbus Gateway & Edge Computing Node

A compact, DIN-rail mounted 2-port RS485 to Ethernet gateway. Designed to minimize control panel footprint, it bridges legacy serial instruments directly into modern SCADA networks and cloud brokers via built-in Modbus RTU-to-TCP and MQTT/JSON conversion.

Part No. 2CH-RS485-ETH
sku : IoT-SS103
INSTANT QUOTE

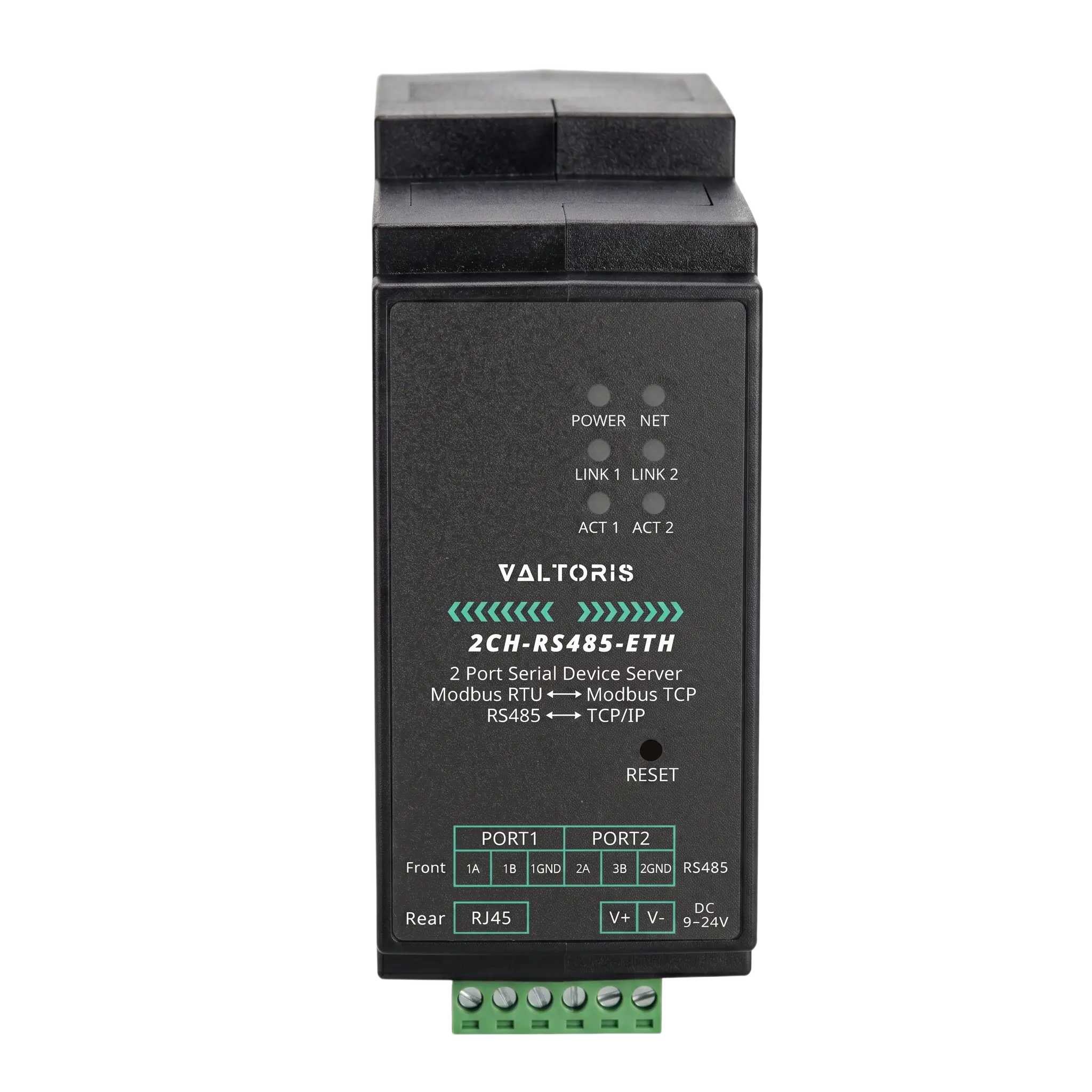

Industrial 2-Port RS485 to Ethernet Module

A highly compact DIN-rail gateway providing dual independent RS485 channels. Engineered to connect multiple legacy field instruments to your local area network while saving critical cabinet space.

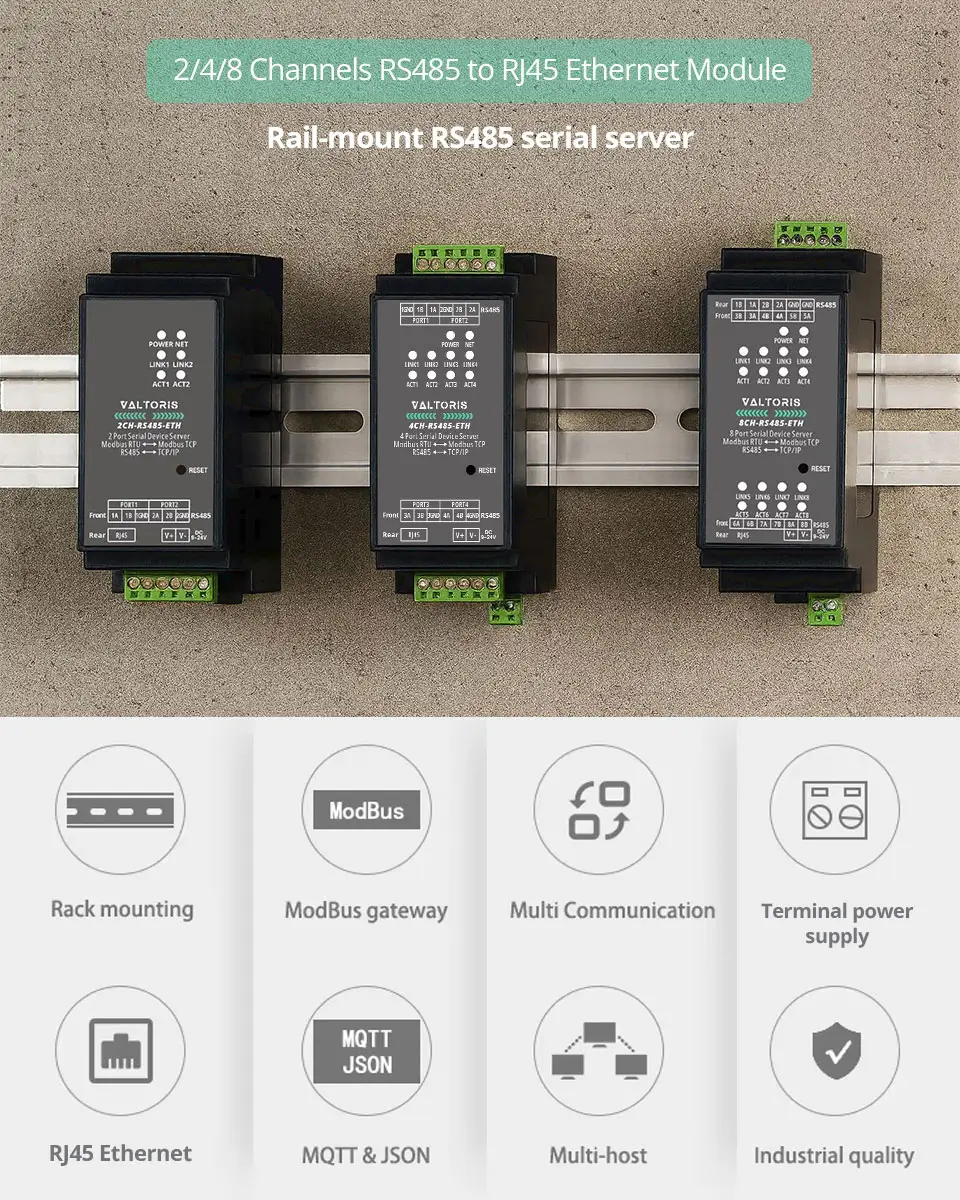

2-Port RS485 to Ethernet Serial Module Overview

Extreme Environment Durability & 15KV ESD Protection

Built for the harshest industrial control panels. The flame-retardant alloy plastic shell withstands up to 110°C without melting. Combined with ±15KV air discharge protection and a certified -40°C to 85°C operating range, it guarantees zero downtime in extreme electrical environments.

High temperature does not melt
Flame retardant in high temperature shell
High and low temperature extreme test
15KV air discharge ESD test protection

Bi-Directional Transparent Transmission & Multi-Mode

Provides a reliable, zero-data-loss tunnel between your serial devices and LAN. Fully supports TCP Server, TCP Client, and UDP modes to adapt to diverse network topologies.

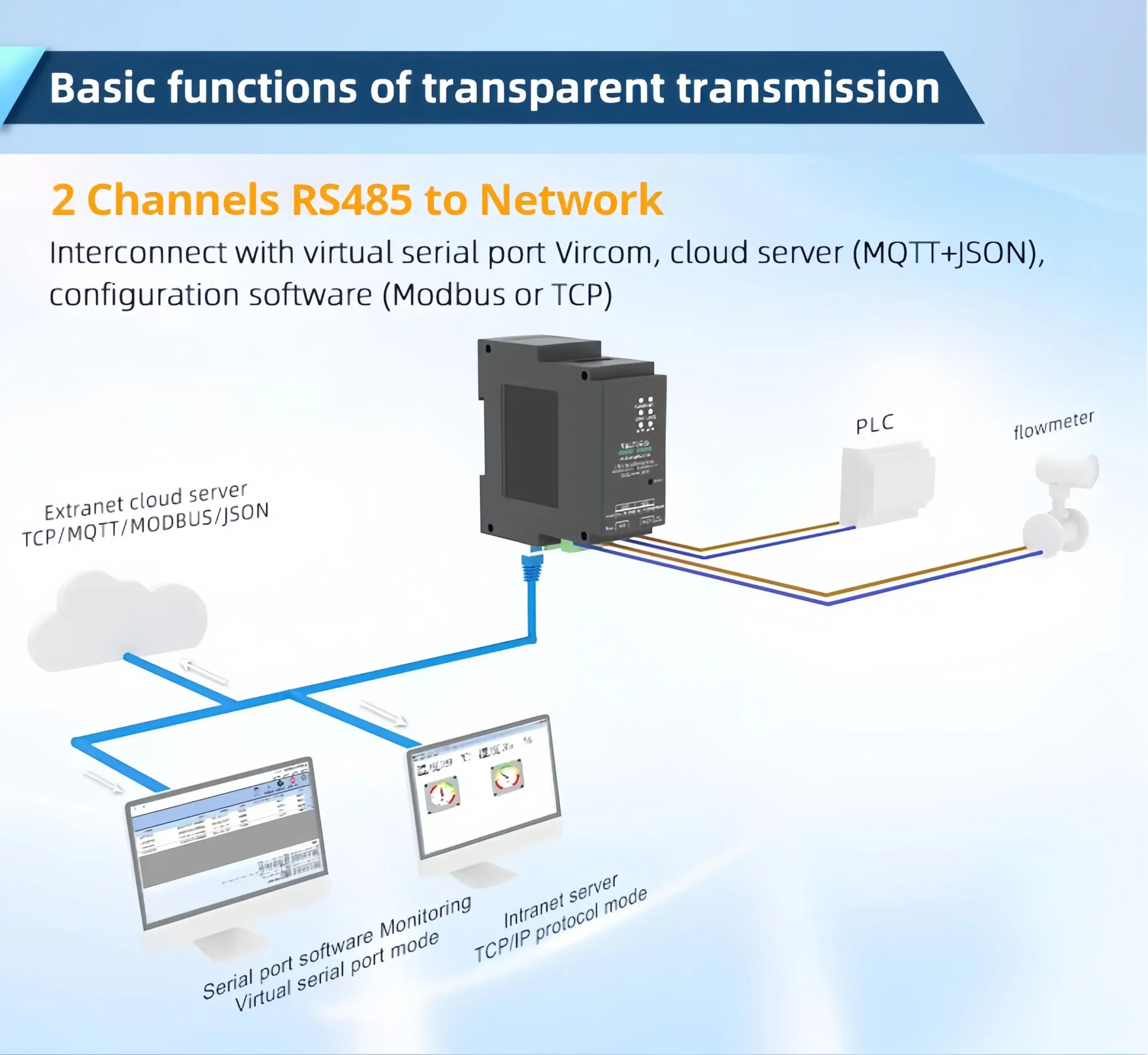

Basic functions of transparent transmission

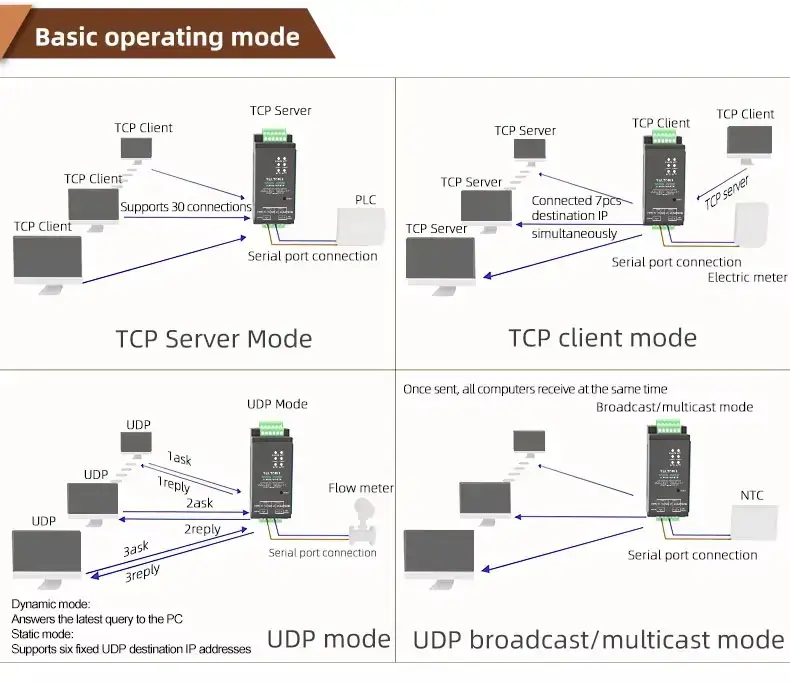

Basic TCP UDP operating mode configurations

Modbus RTU to TCP Protocol Conversion

Acts as an autonomous protocol bridge. Allows modern Modbus TCP SCADA networks to effortlessly query and control legacy Modbus RTU meters and PLCs.

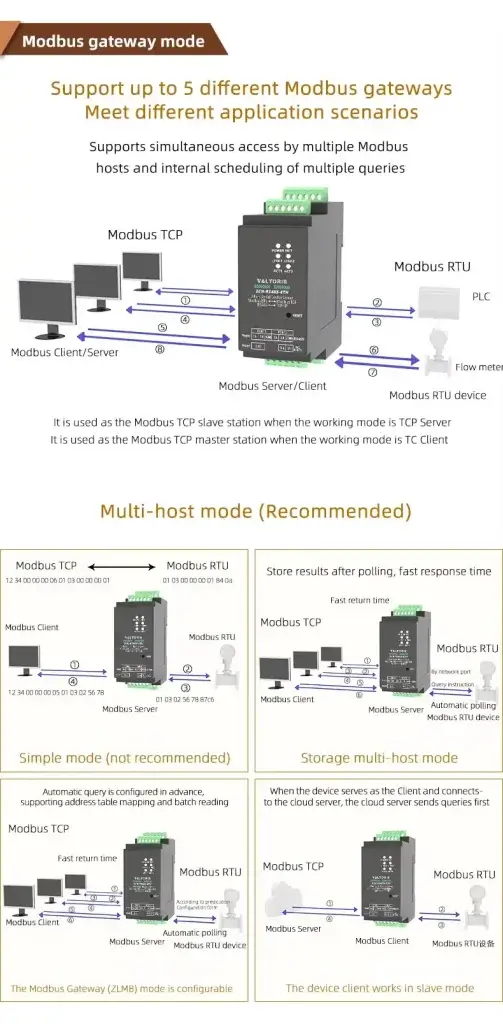

Modbus gateway mode protocol conversion

MQTT & JSON Edge Computing for IoT

Accelerate your cloud integration. The gateway automatically parses raw serial telemetry into structured JSON payloads and pushes them directly to MQTT brokers for real-time dashboarding.

MQTT mode JSON and Gateway function mode

Interface Diagram & Mechanical Dimensions

MQTT mode JSON and Gateway function mode

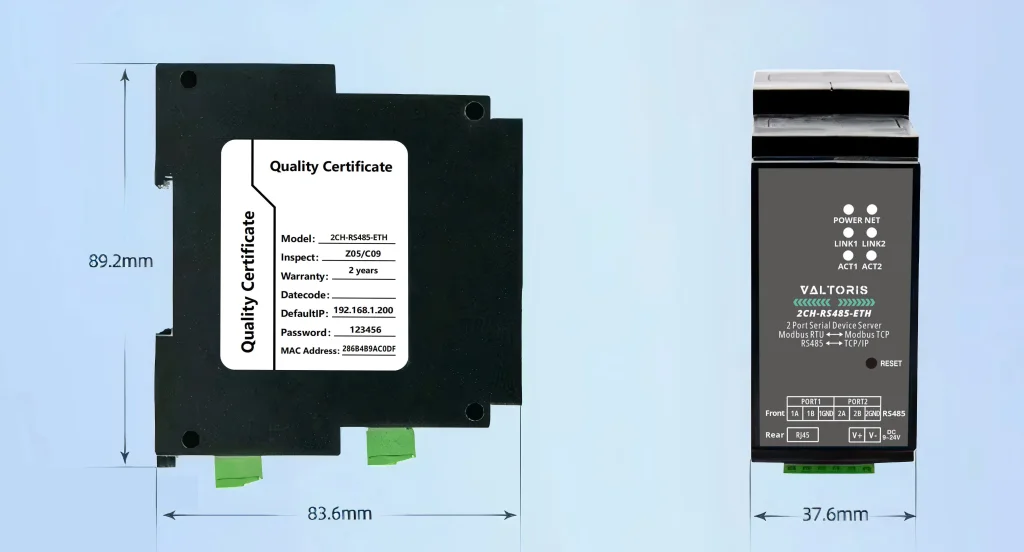

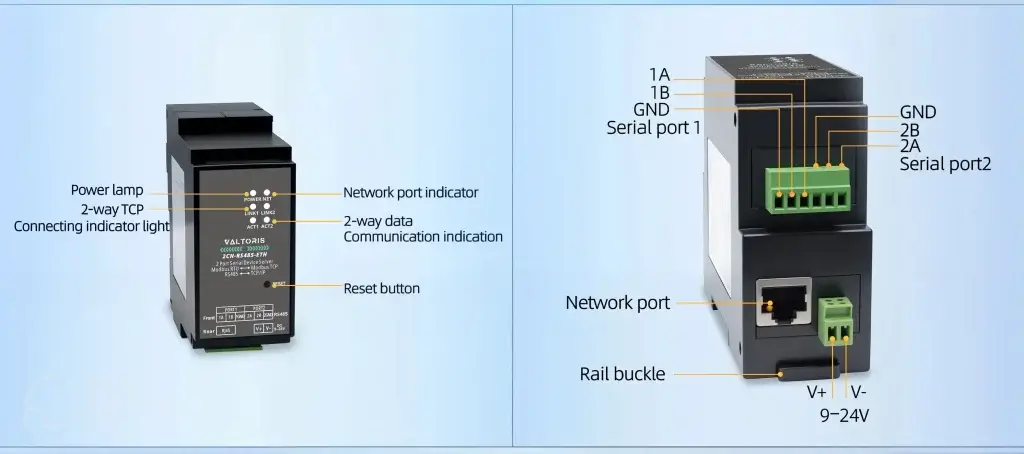

Hardware interface diagram and physical CAD dimensions

Selection guide

ModelSerial Port TypePower Supply Voltage RangeDimensions
(L × W × H)
1CH-RS485-ETH

1CH-RS485-ETH

Single serial port serverScrew terminalDC 9~24V89*37*59mm
1CH-RS232/485/422-ETH (V)

1CH-RS232/485/422-ETH (V)

RS232/485/422 choose one, single serial port serverScrew terminal + DC 5.5 power portDC 9~24V94*65*25mm
1CH-RS232/485/422-ETH

1CH-RS232/485/422-ETH

RS232/485/422 choose one, single serial port serverScrew terminal + DC 5.5 power portDC 9~24V94*65*25mm
2CH-RS485-ETH

2CH-RS485-ETH

 Dual serial ports serverScrew terminalDC 9~24V37*83*89mm
2CH-RS485-ETH(V)

2CH-RS485-ETH(V)

 Dual serial ports serverScrew terminalDC 9~24V150*105*41mm
2CH-RS232/485/422-ETH

2CH-RS232/485/422-ETH

RS232/485/422 choose one, Dual serial ports serverScrew terminal + DC 5.5 power portDC 9~24V94*65*25mm
4CH-RS485-ETH (V)

4CH-RS485-ETH (V)

4 serial ports serverScrew terminalDC 9~24V150*105*41mm
4CH-RS485-ETH

4CH-RS485-ETH

4 serial ports serverScrew terminalDC 9~24V37*83*89mm
4CH-RS232/485/422-ETH

4CH-RS232/485/422-ETH

RS232/485/422 choose one, 4 serial ports serverScrew terminal + DC 5.5 power portDC 9~24V92*197*25mm
8CH-RS485-ETH (V)

8CH-RS485-ETH (V)

8 serial ports serverScrew terminalDC 9~24V270*105*26mm
8CH-RS485-ETH

8CH-RS485-ETH

8 serial ports serverScrew terminalDC 9~24V37*83*89mm
8CH-RS232/485-ETH

8CH-RS232/485-ETH

8 serial ports serverScrew terminal + DC 5.5 power portDC 9~24V270*105*26mm
16CH-RS232/485/422-ETH

16CH-RS232/485/422-ETH

16 serial ports serverAC 220V power portAC 220V480*180*44mm
32CH-RS232/485/422-ETH

32CH-RS232/485/422-ETH

32 serial ports serverAC 220V power portAC 220V480*180*44mm



Hardware & Interfaces
Ethernet Port1× 10/100M RJ45 (Auto MDI/MDIX)
Serial Interface2× RS485 Ports
Power InputDC 9~24V (Screw Terminal) | 30mA@12V DC
EMC ProtectionESD: ±8KV Contact / ±15KV Air
Surge: ±4KV Power / ±2KV Signal
Serial Specifications
Baud Rate300 ~ 921600 bps
Data & Parity BitsData: 5 ~ 9 bits | Parity: none, odd, even, mark, space
Software & Network
ProtocolsModbus TCP, MQTT, JSON, HTTP, RealCom (VirCom)
Operating ModesTCP Server, TCP Client, UDP, UDP Multicast
ConfigurationWEB Browser, VirCom Utility
Environment
Operating Temp.-40°C ~ +85°C
Dual-Port Industrial IoT Gateway

The 2CH-RS485-ETH is a dedicated dual-port RS485 IoT gateway specifically engineered for high-density industrial environments. It acts as a comprehensive serial server, Modbus gateway, MQTT gateway, and RS485-to-JSON edge converter all in one ruggedized unit.

Ultra-Compact DIN-Rail Design

It adopts an innovative DIN-rail mounting chassis with 2 independent RS485 ports. Compared with traditional desktop serial servers, the width is only about 1/4 of the original size, which greatly solves the space limitation problem for crowded control panels. It is powered by a secure 9~24V DC terminal block input.

Technical FAQ & Troubleshooting

How does my SCADA software route queries separately to Port 1 and Port 2?
In TCP Server mode the 2CH-RS485-ETH creates a separate local TCP port for each physical RS485 channel. For example, Port 1 could listen on TCP 4196 and Port 2 could listen on TCP 4197. Your SCADA just points its IP connection at the specific TCP port number to make sure data only goes to the targeted RS485 loop.
It’s very compact. Will it overheat if I mount it inside a sealed outdoor control panel?
No. The enclosure is molded from a specialized high-temperature flame-retardant alloy plastic. Laboratory testing guarantees no casing deformation up to 110°C, and the internal ICs are certified to operate continuously in environments reaching 85°C.
Does the “Multi-Host” feature prevent RS485 collision if two masters poll at the same time?
Yes. Because RS485 is a half-duplex bus, simultaneous polling typically causes a crash. Our gateway solves this by buffering the incoming Ethernet TCP requests from multiple masters and dispatching them sequentially to the serial bus, effectively preventing data collision and timeout errors.
