1 Port RS232/485/422 to Ethernet Converter | TCP/IP to serial
An industrial-grade RS232/RS485/RS422 to Ethernet serial device server and Modbus/MQTT edge computing gateway. Featuring a 3-in-1 selectable serial interface, 2KV surge protection, and wide 9-24V power input (Terminal Block or 5.5mm DC)
Bi-Directional Transparent Data Transmission
Seamlessly bridge your legacy serial devices to local area networks. It ensures zero-data-loss transmission between RS232/485/422 and Ethernet without altering your payload.

Modbus RTU to TCP Gateway
Upgrades legacy PLCs and meters effortlessly. It acts as an autonomous gateway converting Modbus TCP network queries into Modbus RTU serial commands.

Multiple Communication Modes
Highly adaptable to various network topologies. Supports TCP Server, TCP Client, UDP mode, and UDP multicast, accommodating diverse SCADA software requirements.



Multi-Host Polling & Virtual Serial Port
Features advanced arbitration to prevent RS485 bus collisions when multiple hosts poll simultaneously. Fully compatible with VirCom software for virtual COM port mapping.

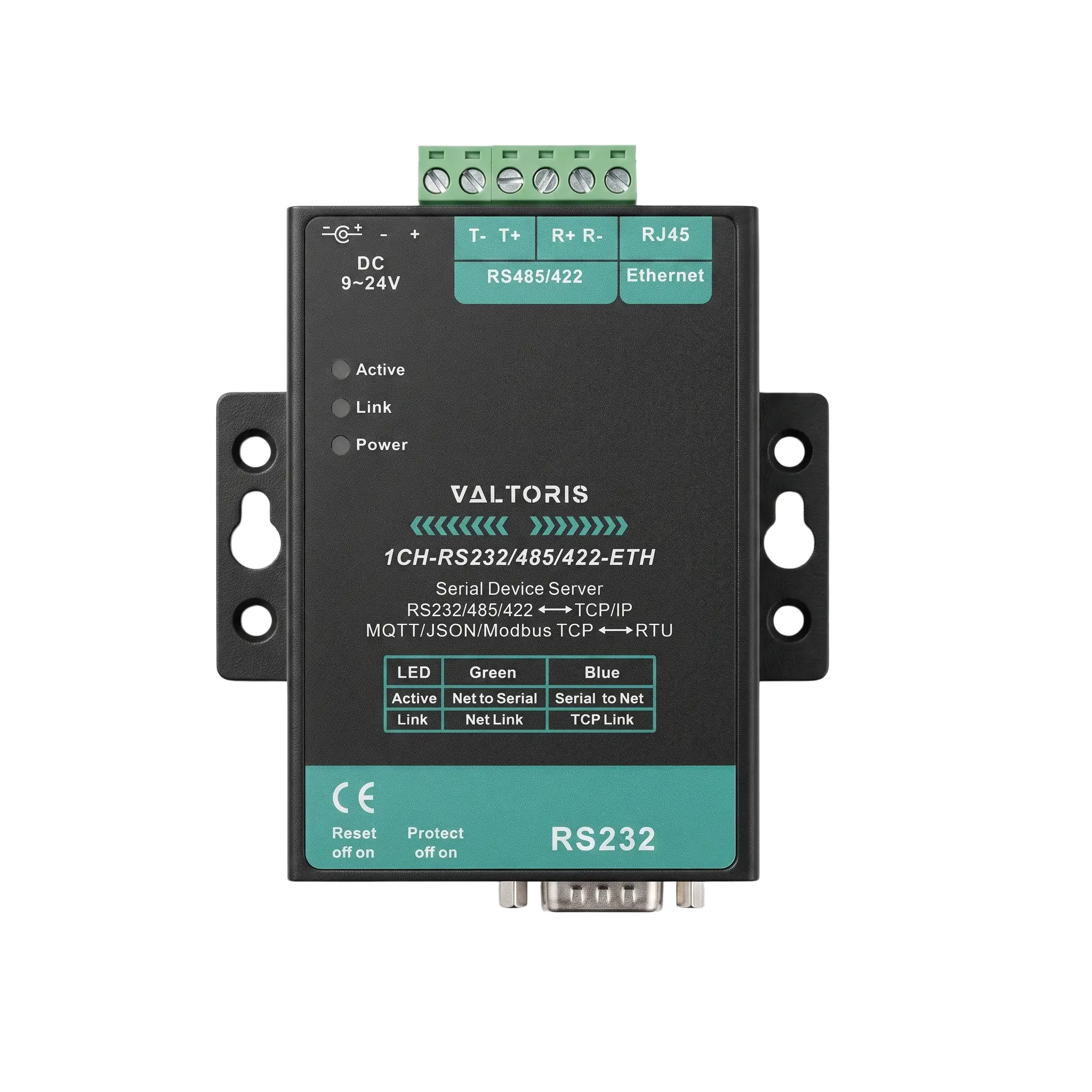

Interface Diagram


Outline dimensions

Selection guide
| Hardware & Interfaces | |
| Ethernet Port | 1× 10/100M RJ45 Port, 2KV Surge Protection |
| Serial Interface | 1× RS232 (DB9), 1× RS485 (Terminal), 1× RS422 (Terminal) – Choose One |
| Power Input | DC 9~24V (Screw Terminal or DC 5.5mm port) |
| Serial Specifications | |
| Baud Rate | 300 ~ 115200 bps |
| Data & Parity Bits | Data: 5 ~ 9 bits | Parity: none, odd, even, mark, space |
| Software & Network | |
| Protocols | TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, Modbus, MQTT |
| Operating Modes | TCP Server, TCP Client, UDP, Real Com Driver (Virtual Serial) |
| Configuration | WEB Browser, VirCom Utility, Device management library |
| Environment | |
| Operating Temp. | -40°C ~ +85°C |
| Humidity | 5~95% relative humidity (non-condensing) |

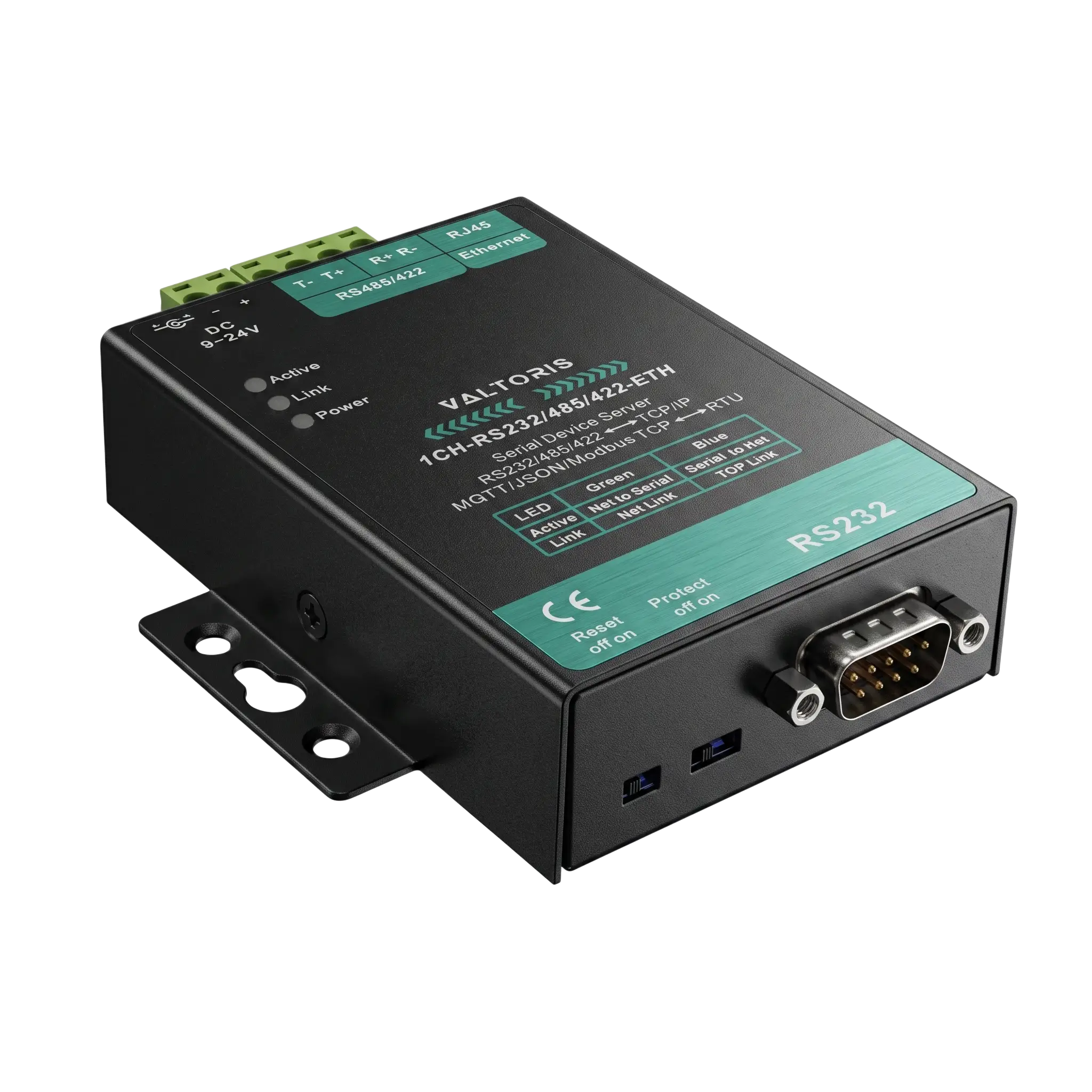

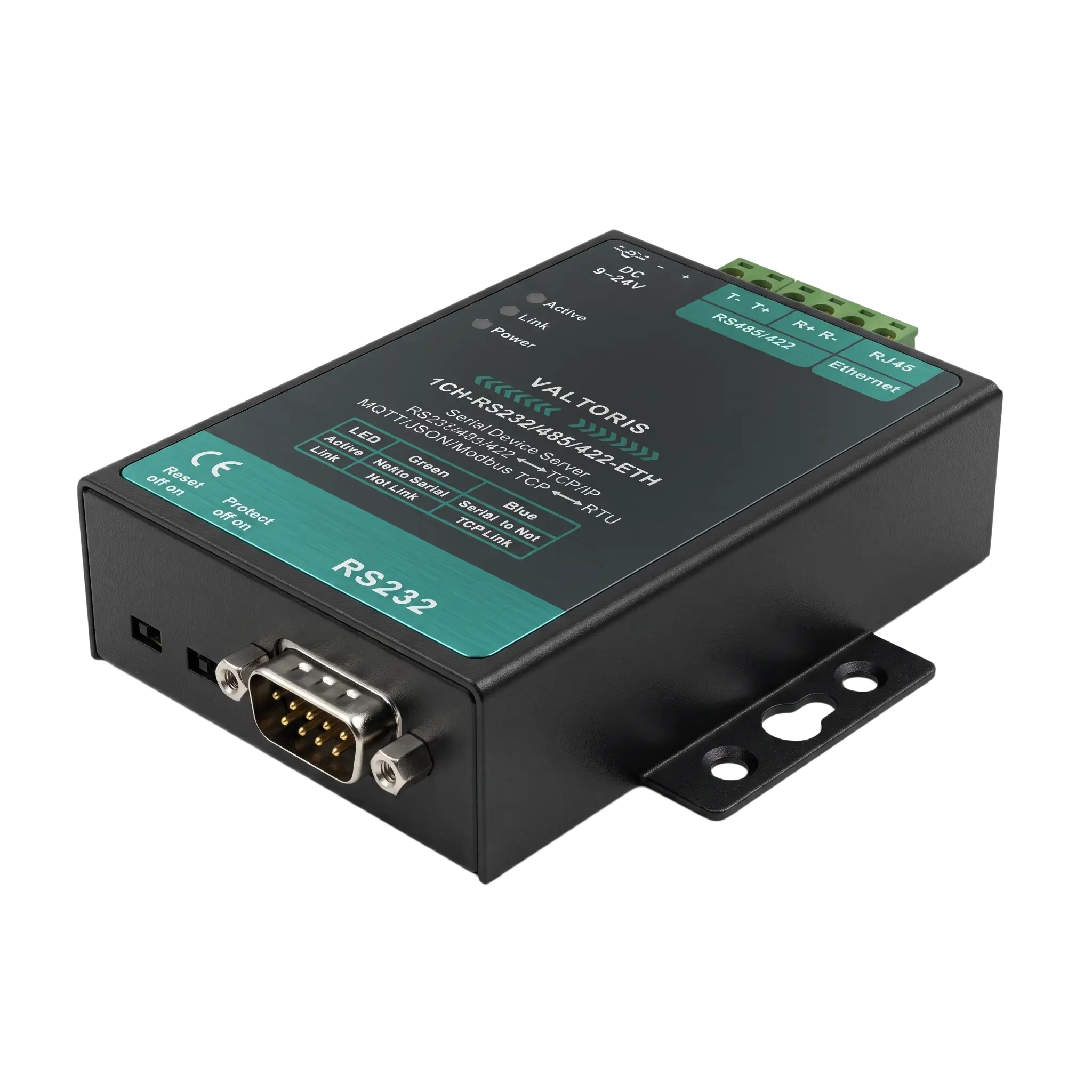

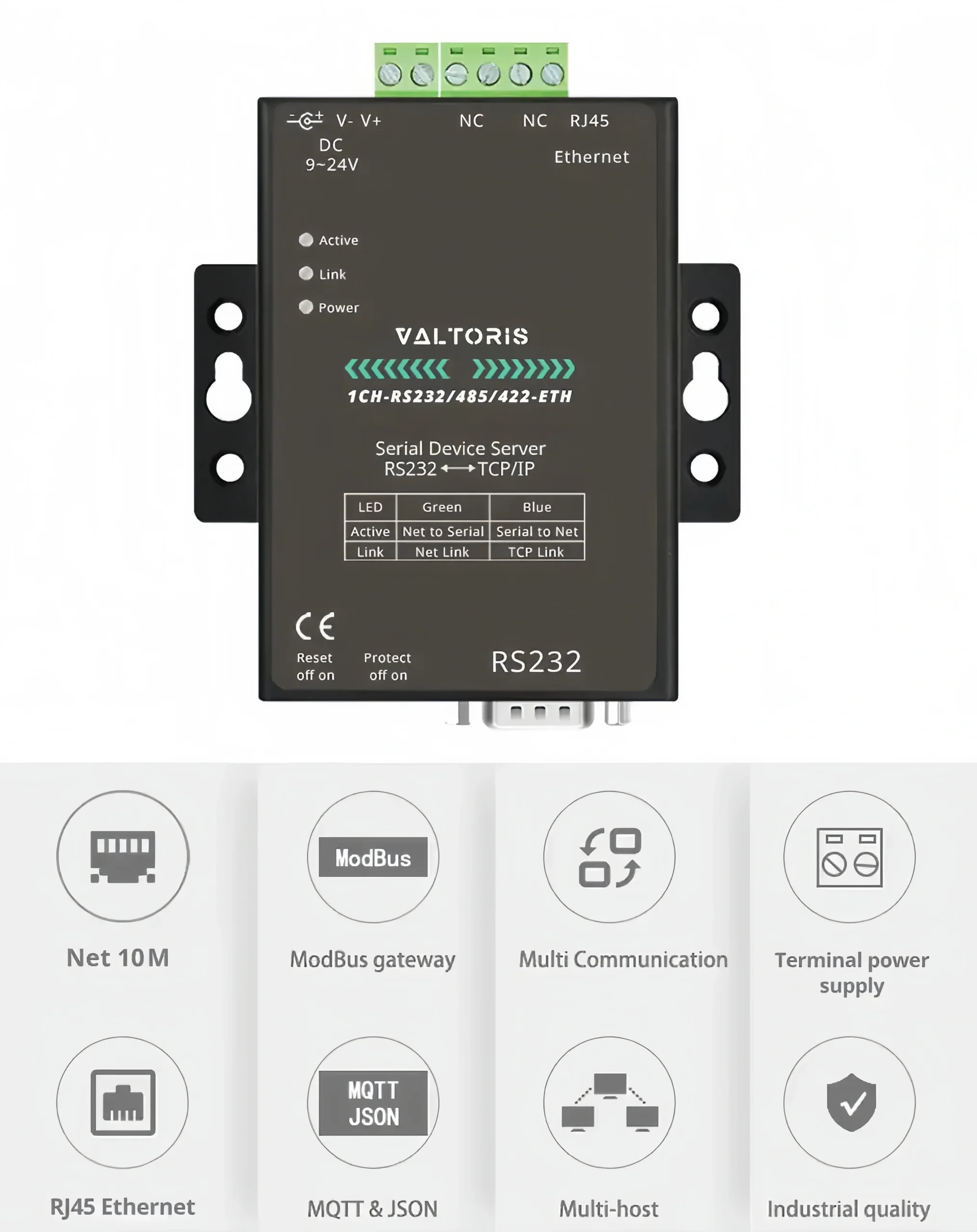

The 1CH-RS232/485/422-ETH (V) is an IoT gateway with a wide range of functions developed for complex industrial environment. It is a small device that brings together the features of a standard serial server, an intelligent Modbus gateway, a MQTT gateway and a raw-to-JSON edge converter.
It features three different serial interfaces (RS232, RS485 and RS422) allowing the user to choose the precise physical layer required for their legacy equipment and a robust 10/100M Ethernet interface. It has much higher cost effectiveness and deployment flexibility than ordinary single port serial servers.

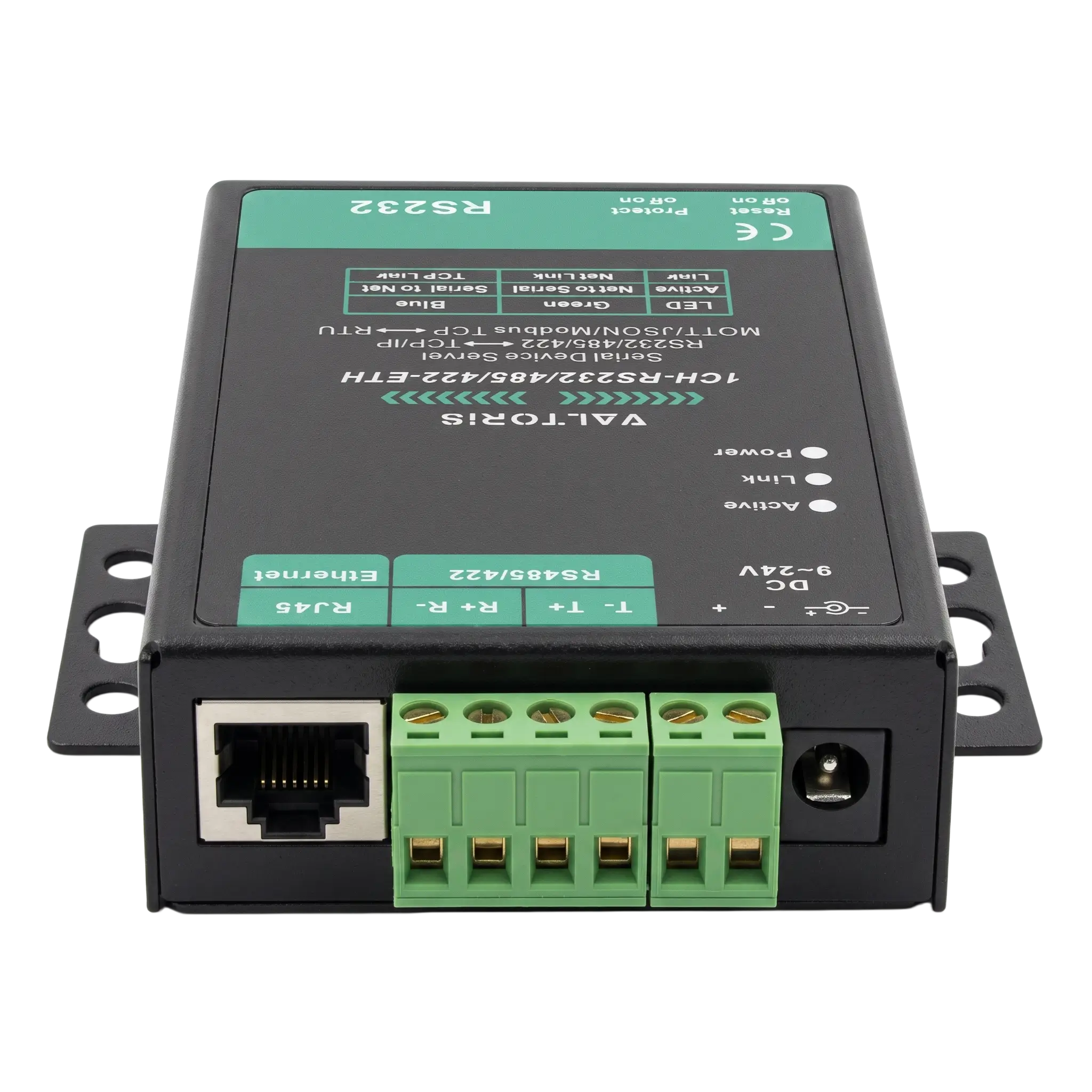

It is built for rugged enterprise use, and can easily be screw-hole mounted on desktop or panel. Power delivery is very flexible, with supply via an industrial terminal block or a standard 5.5mm round-hole DC adapter. Wide voltage input range 9~24V DC ensures stable operation even in industrial power fluctuations.
