Have you ever stared at a multi-million dollar CNC machine or a high-precision medical analyzer and realized it only has a 9-pin “D-sub” portโThis is something that your new Dell laptop does not have.You aren’t alone. Itโs a common frustration in factory floors and hospitals alike.
This leads many to ask the fundamental question: What is a serial device server, and why is it still the backbone of modern industrial networking even in 2026?
Examples of Common Serial Devices in Use Today
Before we get into the details lets check if you’re, in the right spot. Many people don’t even know they are using devices because they’ve been hidden in cabinets for years. If you handle any of the following then you are working with a device:
- Industrial Powerhouses: PLCs (Programmable Logic Controllers), VFDs, and CNC controllers that run the worldโs assembly lines.
- Retail & Logistics: That old, reliable barcode scanner at the warehouse or the digital scale that never seems to break.
- Infrastructure Essentials: Network switch “Console” ports, UPS systems in data centers, and smart meters.
- Healthcare Technology: Blood gas analyzers and patient monitors in ICU wards.
If your device has a port that looks like a larger version of a VGA connector (usually 9 pins), you are dealing with a serial port (also called a COM port).

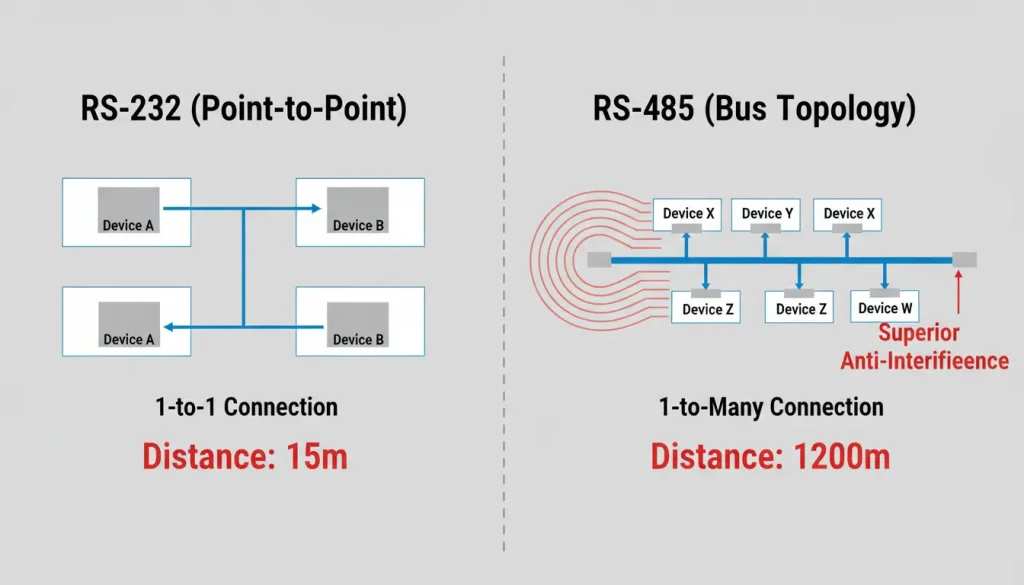

RS-232, RS-422, and RS-485 Explained Simply
The alphabet soup of serial standards is where most engineers get a headache. You don’t need to be an electrical wizard, but you do need to know which cable to grab. The configurtion (excuse my typing) depends entirely on these standards.
RS-232: The Short-Range King
Think of RS-232 as a conversation between two people in a quiet room. This conversation is simple. The RS-232 has been around since the 60s.. The RS-232 has a big problem. It can not shout far to other people in other rooms.ย
- Distance: Officially 15 meters.
- Use Case: Connecting a scanner to a PC right next to it.
RS-485: The Factory Workhorse
RS-485 is more like a PA system in a noisy factory. It can “talk” over long distances and isn’t bothered by the electrical noise from big motors.
- Distance: Up to 1,200 meters.
- Capability: It can talk to up to 32 devices on a single pair of wires (Multi-drop).
The RS-485 system can talk to things that’re really far away and it is not affected by the electrical noise that comes from big motors.
How to Connect a Legacy Serial Device to a Modern PC (No COM Port Needed)
Your computer does not have a port. Now what happens? You have two choices, with the computer and picking the wrong choice with the computer is a classic way to waste a Monday morning with the computer.
The “Quick Fix”: Serial to USB Adapters
This is a cable that plugs into your USB port and gives you a 9-pin output.
- The Pain Point: A lot of cheap $5 cables use “counterfeit” Prolific chips. When Windows 11 updates its drivers, these cables often stop working or cause the dreaded “Blue Screen of Death.”
- The Pro Advice: Only buy adapters with FTDI or genuine Prolific chipsets. They cost a few dollars more, but they actually work when you need them to.
The “Enterprise Solution”: The Serial Device Server
If your device is really away like in a different room or even a different building a regular USB cable is not going to work. You need a Serial Device Server. This is a box that acts as a bridge between the serial world and the Ethernet world.
What is a Serial Device Server? One Device, Three Jobs
A serial device server is a box. It has two sides. One side plugs into your equipment like a PLC or a scale or a CNC machine or even an old printer. The other side of the device server plugs into your network using an Ethernet cable.
That is the way to explain what a serial device server does. But to really get what the serial device server is about, you have to think about the three separate jobs that this one serial device server box can handle.

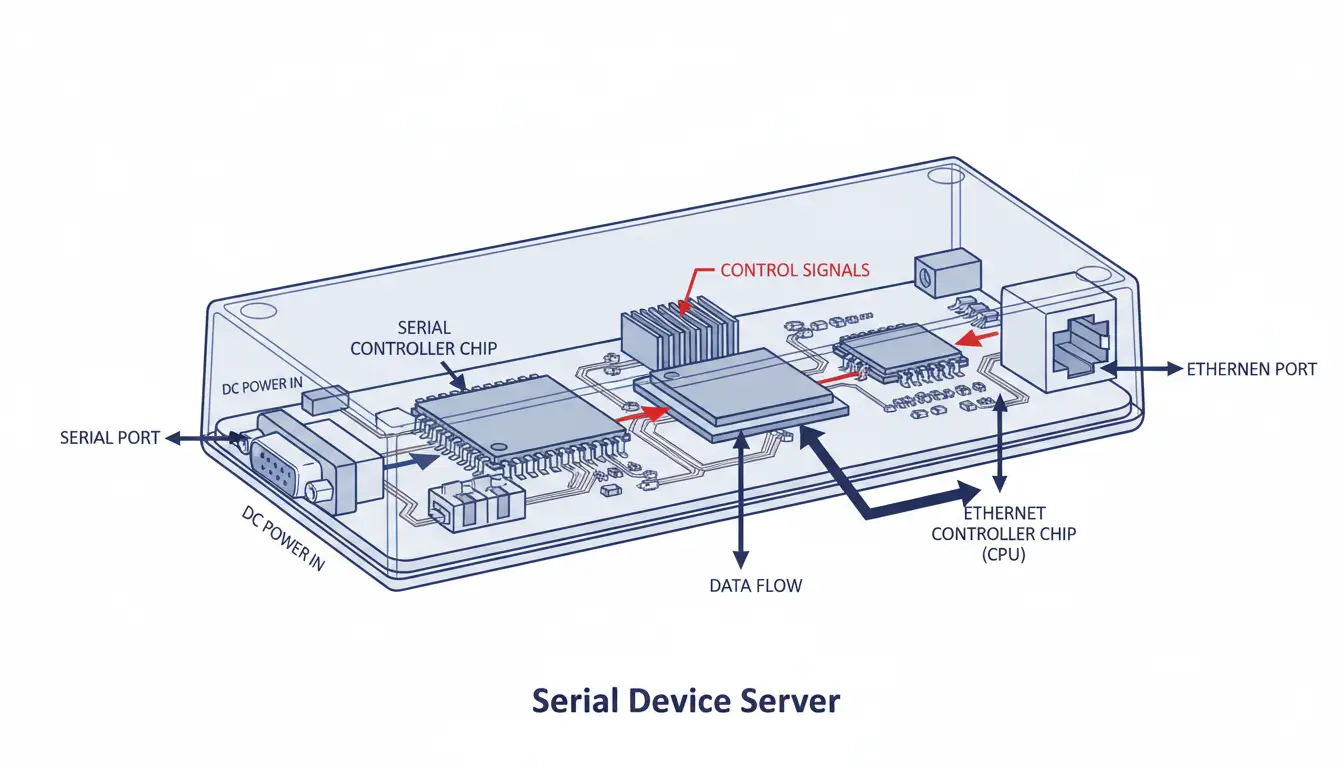

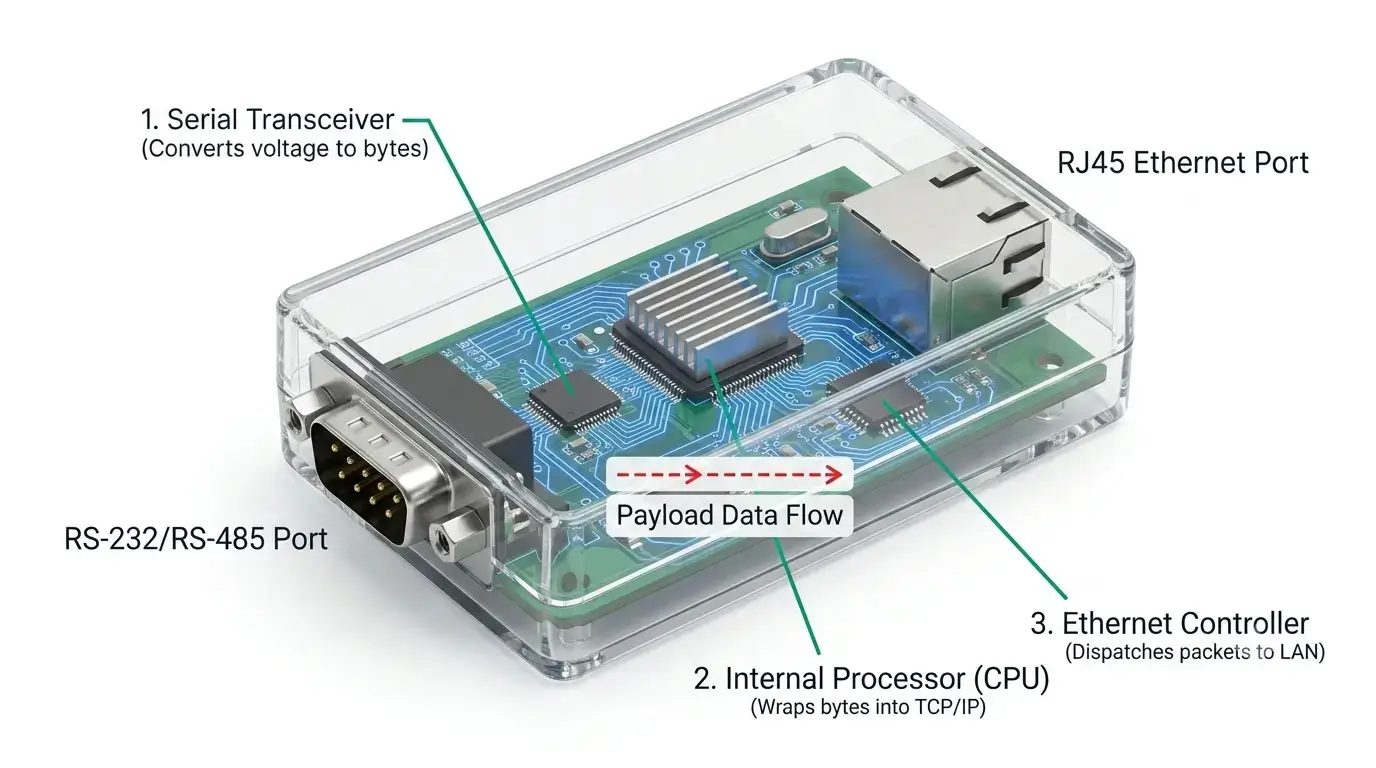

Job 1: Physical Conversion
RS232 and RS485 work by changing voltage levels over wires to send data. Ethernet is different. Information is placed into frames that have addresses and checks for errors. A serial device server is, like a bridge that connects these two systems. Inside the box:
- Aย serial transceiverย converts the voltage signals from your device into digital bytes.
- Aย processorย takes those bytes and wraps them in TCP/IP packets.
- Anย Ethernet controllerย sends those packets out the network port.
It is important to remember that the data itself always stays the same. If your device sends the sequence 0x01 0x03 0x00, the exact same sequence will arrive at the end. The server only changes the way the data is carried.
Job 2: Network Access

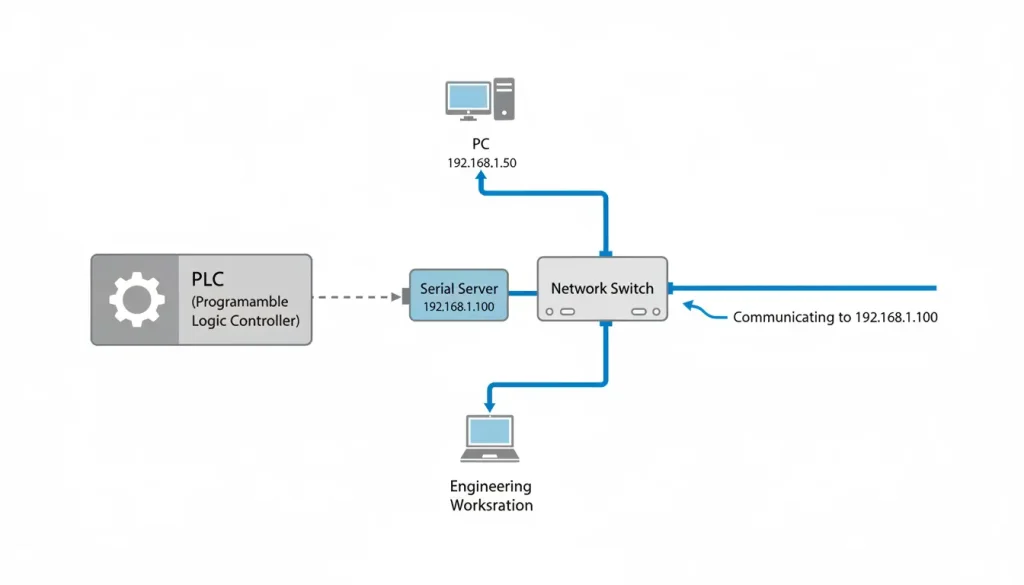

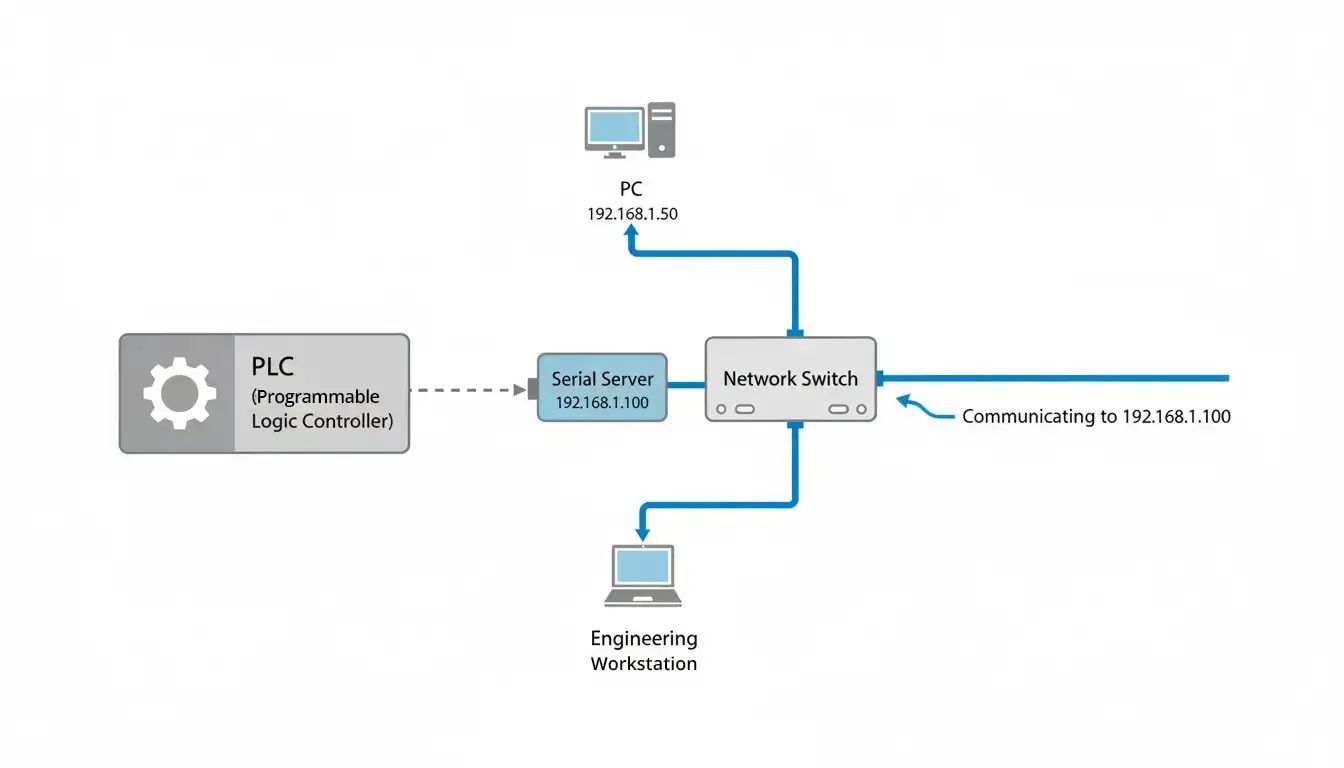

When you connect your device to a server it is like adding it to a network. This serial server has its special address, on the internet, which is called an IP address. The serial server is what makes your device a part of the network.
You can:
- Open a browser and configure the server
- Ping it to check if it’s alive
- Connect to it directly using TCP/IP (port 23 for telnet, port 502 for Modbus, or any port you choose)
The place where your device is does not matter anymore. Your device can be in the room or it can be in the next building or it can even be in the next city. If the device is on the network then you can reach the device.
For testing the server you can use tools like PuTTY or Hercules for free. You can use these tools to open a connection to the servers internet address and port. You can send a bytes to the server and then you can see what the server sends back, to you.
Job 3: Software Integration
This is the part that surprises most people.
Your old software probably expects a COM port, like COM1 or COM3 or COM5. This software will open one of these ports. Talk to the device directly. The thing is, it does not know anything, about IP addresses or TCP ports. It just talks to the device using the COM port. Your old software and the device they just use the COM port to communicate with each other.

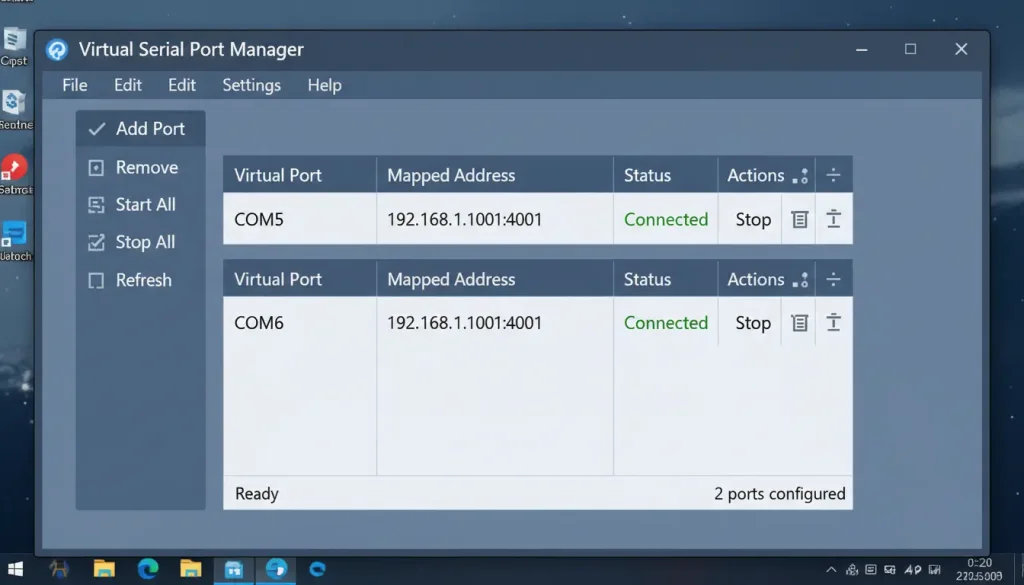

Serial device servers come with a piece of software called aย virtual COM port driver. Valtoris calls theirs VirCom.
Here’s what it does:
- Installs on your Windows PC
- Creates fake COM ports (COM5, COM6, etc.)
- Maps each fake COM port to a server’s IP address and port number
Your old software uses COM5. This driver gets everything that is sent to that port puts it into packets and then sends it to the server. When the server sends data back it shows up on COM5.
The software does not know that the device is actually else. It thinks that the device is connected directly to the computer. The software is talking to COM5 and it has no idea that the device’s not really there it just thinks the device is plugged into the computer.
Summary of the “Three Jobs”
| Job | What It Does | Why It Matters |
|---|---|---|
| Physical conversion | RS232/485 โ Ethernet | Old devices can use modern networks |
| Network access | Gives device an IP address | Access from anywhere |
| Software integration | Virtual COM ports | No software changes needed |
That is the thing. A serial device server takes a device that was made to connect and makes it work on a network without changing the serial device server or the software that talks to the serial device server.
Understanding Baud Rate, Data Bits, and Parity: Why is it all Gibberish?
Youโve connected everything. Your terminal just shows weird symbols and boxes. This is the #1 pain point for technicians. Serial communication isn’t “plug and play.” Both ends must agree on the secret handshake.
- Baud Rate: The speed. 9600 is the classic “safe” speed. 115200 is fast. If these don’t match, you get garbage.
- Data Bits: Usually 8.
- Parity: An old-school way to check for errors. Usually set to “None.”
- Stop Bits: Usually 1.
The “8-N-1” Rule: When in doubt, try 9600-8-N-1. It solves about 80% of connection issues.
Troubleshooting Common Serial Port Errors
If you can’t see your COM port in the software, or the connection keeps dropping, check these three things:
- Is the COM Port Missing? Check your Windows Device Manager. If there is an exclamation mark it means your driver is not working properly.
- Is the Port “In Use”? Serial ports can only connect to one program at a time. For example if you have PuTTY open your industrial software will not be able to connect.
- TX/RX Swap: In RS-232 the Transmit wire of the server must go to the Receive pin of the device. Sometimes you need a cable called a Null Modem to swap these wires.
It’s More Than a Cable
People sometimes refer to it as a “serial to Ethernet converter”. That is correct for its function but it does not describe the other things that the serial to Ethernet converter can do. The serial to Ethernet converter has jobs, than that.
A real serial device server also:
- Handles multiple connections (TCP server/client modes)
- Buffers data so nothing gets lost
- Can work as a Modbus gateway (RTU to TCP)
- Supports MQTT for cloud applications
- Has surge protection and isolation for industrial use
Choosing the Right Model: What Matters
Not all servers are built for the same world. If you put a cheap plastic box in a hot factory, it will fail in a week. Trust me, the reliablity isn’t worth the $20 you saved.
| Model | Ports | Modbus Gateway | MQTT | JSON | Isolation |
|---|---|---|---|---|---|
| 1โport basic | 1 | Yes | No | No | None |
| 2โport isolated | 2 | Yes | Yes | Yes | 1500V |
| 4โport isolated | 4 | Yes | Yes | Yes | 3000V |
| 8โport isolated | 8 | Yes | Yes | Yes | 3000V |
| 16โport rack | 16 | Yes | No | No | None |
| 32โport rack | 32 | Yes | No | No | None |
The right choice depends on your application:
- One device, basic use โ a singleโport model is fine
- Cloud or IoT โ pick one with MQTT support
- Harsh environment โ choose isolated models with industrialโgrade protection

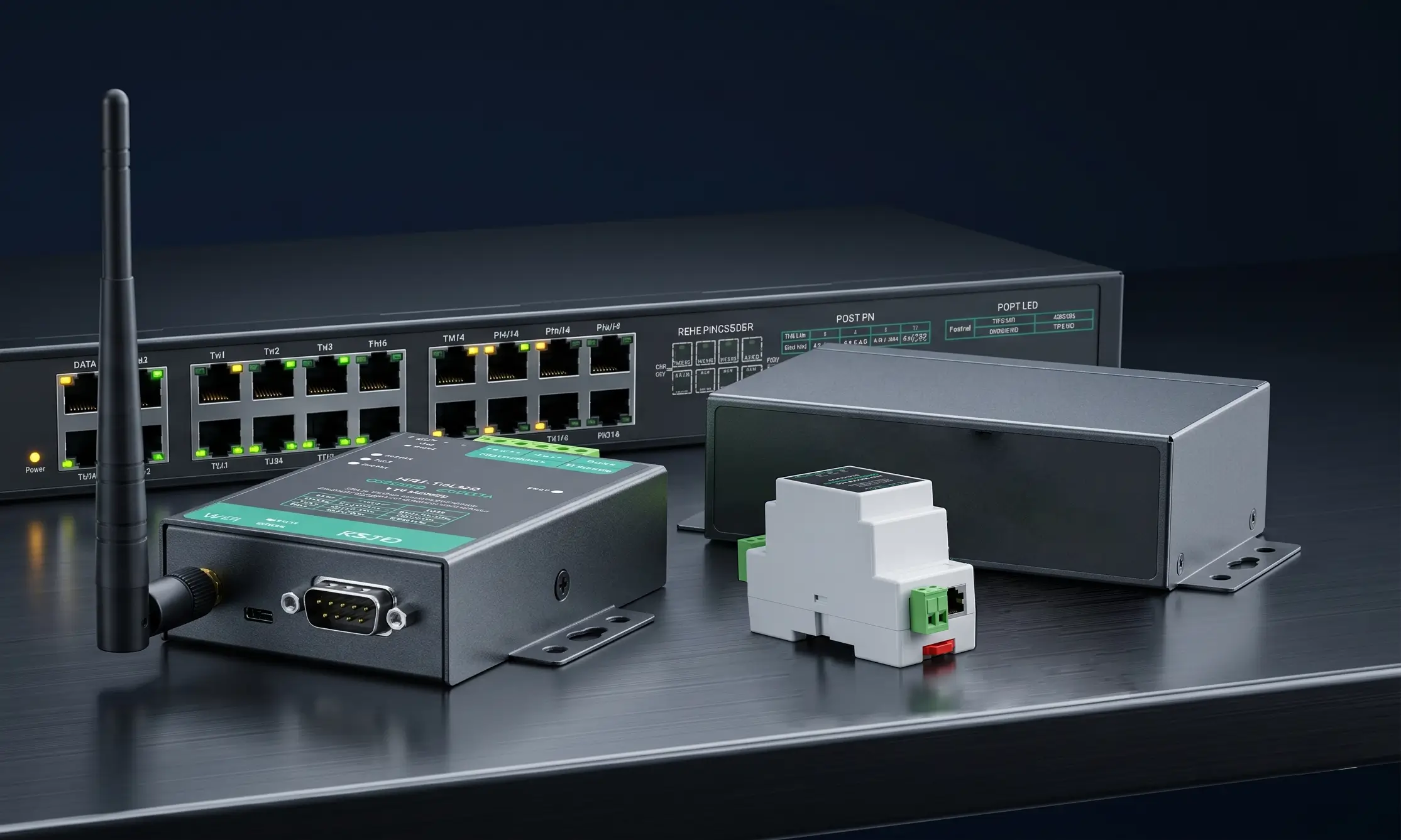

Industrial vs. Office
Not all serial device servers are built the same.
| Feature | Office Grade | Industrial Grade |
|---|---|---|
| Temperature | 0ยฐC to 40ยฐC | -40ยฐC to 85ยฐC |
| Enclosure | Plastic | Metal |
| Power | 5V USB | 9-24V DC terminal |
| Mounting | Desktop | DIN rail option |
| Protection | None | Surge, ESD, isolation |
Why “Isolation” is the Killer Feature: In a factory when a big motor starts it can send a surge of electricity through the ground wire. Without 1500V isolation that surge will travel up the cable and damage the serial server, your network switch, and maybe even the PC on the other end.
Why Serial Devices are Still Crucial for Industrial IoT (IIoT)
It’s 2026โwhy are we still talking about tech from the 60s?
- Reliability: Serial is deterministic. Thereโs no “operating system” to crash on a serial wire. It just sends bits.
- Simplicity: You can debug a serial port with a $10 multimeter. Debugging a complex WiFi mesh network is a nightmare.
- Cost: Replacing a $100,000 CNC machine just because its port is “old” is a terrible business decision. A $150 device server makes it a modern, cloud-connected asset instantly.
The global serial device server market is growing at 8โ10%. We are seeing this growth because we are building bridges. not tearing down perfectly good machines.
Common Questions
Q: Do I need special software?
For testing no. We need to open a connection and send some data to see how it works. For production use, with software, yes, we will need the virtual COM driver to make it work properly with the old software and the virtual COM driver.
Q: Can I connect multiple devices?
You can have one port that connects to one device. However, it is possible to purchase servers that have 2, 4 8, 16 or 32 ports. This means you can have one box and still connect to devices. The serial ports, on these servers let you connect to a lot of devices using one box.
Q: How far can I go?
Serial side:
- The RS232 cable can be 15 meters long.
- The RS485 cable can be up, to 1200 meters long.
Network side:
It can go far as your network can reach.
Q: Does it work with Modbus?
Yes. Most servers are able to convert Modbus RTU, which’s serial to Modbus TCP, which is network. So your SCADA system talks to the servers IP address. Then the server talks, to your devices. This is how it works with Modbus RTU and Modbus TCP. Your SCADA system uses the servers IP address to communicate. The server is the one that actually talks to your devices using Modbus RTU.
Q: Is setup difficult?
You have ten minutes to get this done. First you need to plug it in. Then you have to find the IP address using the discovery tool. After that you open the web page. On the web page you will have to set the baud rate so it matches the device you are using. Next you need to choose an operating mode, for the device. Once you have done all of that you are done with the setup of the device.
When You Need One
You need a serial device server if:
- Your device has RS232 or RS485 but no network port
- The device is too far away to run serial cable
- You have multiple serial devices to connect
- Your software expects a COM port but the device is remote
- You want to send serial data to the cloud
Bottom Line
Serial device server. Three jobs.
- Convert serial signals to Ethernet packets
- Put the device on the network with its own IP
- Let old software talk to it through virtual COM ports
One box can do all three things. The device that you have does not change. The software that you use does not change either. The only thing that changes is the connection. It goes from being connected with a cable, to being connected to the whole network.
