Best Sierra Wireless RV50X Alternative: Stop Overpaying for CAT6 Bandwidth

• Facebook
• Twitter
• Reddit
• LinkedIn

Engineer’s Note: Migrating away from legacy industry standards like Sierra Wireless requires careful topology planning. This guide is written for integrators deploying low-to-medium bandwidth SCADA (Modbus/MQTT) systems. High-bandwidth applications should consult their carrier regarding 5G deployment strategies.

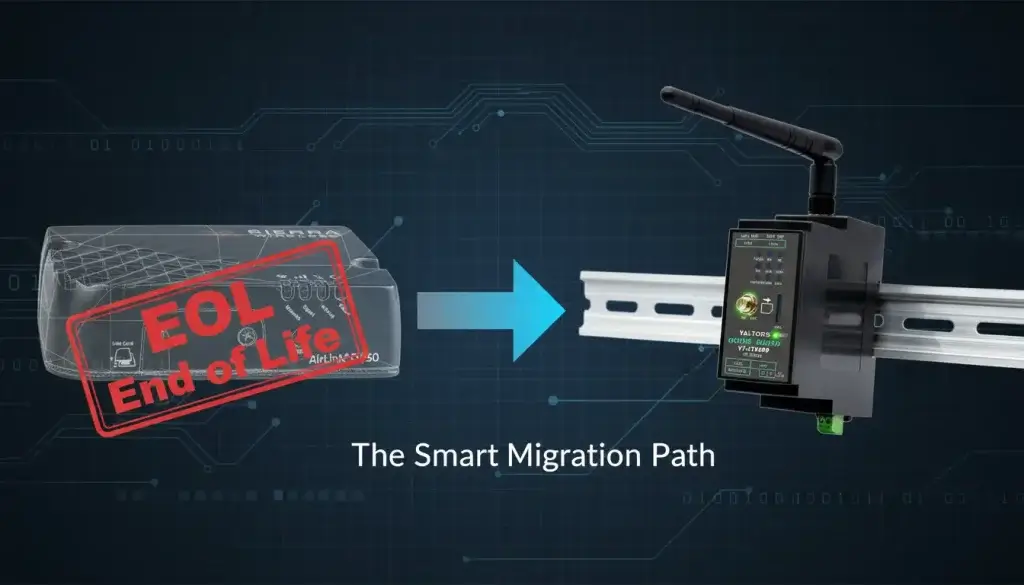

Surviving the RV50X EOL: What Actually Matters in an Alternative?

The industrial networking world is in the midst of a major transition. For nearly 10 years, the Sierra Wireless AirLink RV50X has been the “Gold Standard” for remote asset connectivity across water utilities, oil fields and solar farms. Yet, with the inevitable march of technology and supply chain optimizations, the industry is now facing EOL (End-of-Life) cycles for legacy Cat 6 platforms.

For an automation engineer, “EOL” is not just a status update — it’s a risk. It means no more spare parts, no more technical support and eventually, unpatched security holes. But replacing an RV50X is not as simple as picking another router from a catalog. A rushed decision can result in a “Hardware Mismatch” where the new device requires too much power, cannot cope with the necessary thermal environment, or requires a complete change to the existing control panel layout.

In this guide, we will analyze why the smart move in 2026 isn’t necessarily buying “the next most expensive thing,” but rather right-sizing your hardware to the actual requirements of OT (Operational Technology) telemetry.

Don’t Pay for Bandwidth Your SCADA Doesn’t Use: The Cat 1 vs. Cat 6 Reality

One of the most persistent myths in IIoT procurement is that “higher Category (Cat) equals better performance.” While this is true for streaming Netflix in 4K, it is fundamentally flawed for industrial telemetry.

The RV50X utilizes an LTE Cat 6 modem. In contrast, the Valtoris VT-LTE400 is purpose-built with LTE Cat 1 (10 Mbps Down / 5 Mbps Up). To the untrained eye, this looks like a “downgrade.” To a senior network engineer, this is “optimization.”

The Technical Argument: According to the 3GPP (3rd Generation Partnership Project), the global authority on cellular standards, Cat 1 was specifically designed to bridge the gap between high-speed consumer mobile broadband and low-power IoT.

• Packet Size vs. Throughput: A standard Modbus TCP poll or an MQTT JSON payload typically ranges from 200 bytes to 2 kilobytes. Transmitting this over a 300 Mbps Cat 6 pipe is like using a 16-lane highway to move a single bicycle.
• Heat Dissipation: Cat 6 chipsets require complex MIMO (Multiple-Input Multiple-Output) processing, which generates significant internal heat. In a sealed, unventilated NEMA enclosure, this extra heat is the #1 killer of hardware. Cat 1 chipsets run significantly cooler, leading to a much higher MTBF (Mean Time Between Failures).

Expert Viewpoint: “In mission-critical SCADA systems, stability is the only metric that matters. Over-specifying bandwidth often introduces unnecessary thermal complexity without providing a single millisecond of latency improvement for small-packet telemetry.” — Senior Systems Architect, IIoT Forum.

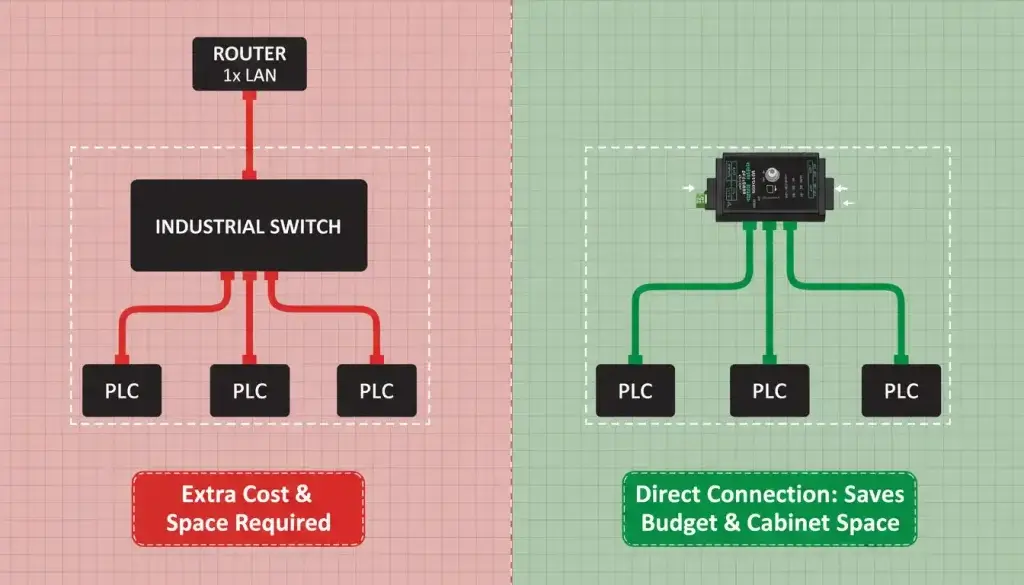

The Port Advantage: Say Goodbye to External DIN-Rail Switches

If you open an existing RV50X deployment cabinet, you will almost always find a “hidden cost”: an external 4-port or 5-port industrial Ethernet switch. Because the RV50X only features a single Gigabit LAN port, it physically cannot connect a Master PLC, an HMI, and a local IP camera simultaneously.

This creates three major engineering headaches:

1. Increased Failure Points: Every patch cable and every power lead for that external switch is a potential point of failure.
2. Space Constraints: On a standard 35mm DIN rail, every millimeter is precious. An RV50X plus a switch typically occupies over 150mm of rail width.
3. Power Complexity: You now have to wire and protect power for two devices instead of one.

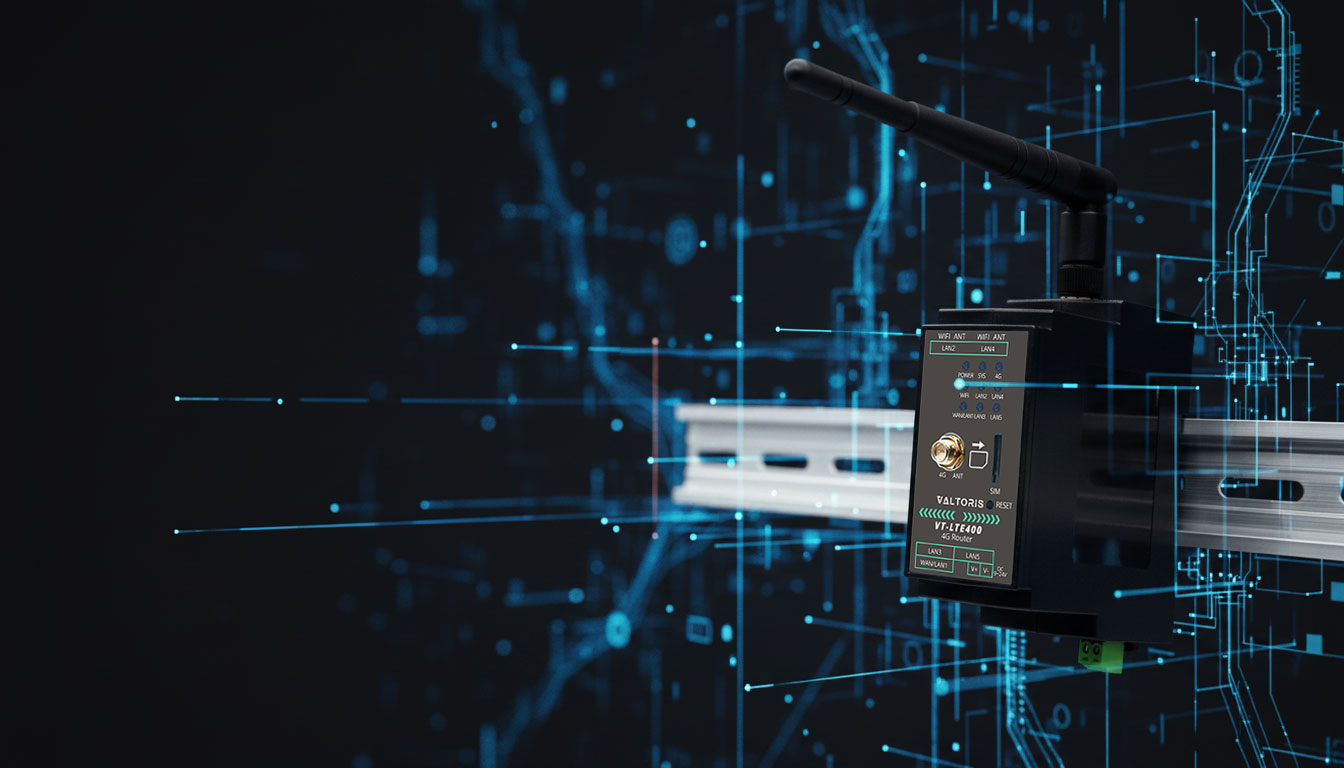

The Valtoris VT-LTE400 Solution: The VT-LTE400 integrates 4x 10/100M LAN ports and 1x WAN port directly into its compact chassis (37.6 x 83.6 x 89.2mm).

Escaping the “Sierra Tax”: Centralized Management Without Forced Subscriptions

One of the most frequent complaints in the Reddit r/PLC and PLCTalk forums is what engineers call the “Sierra Tax.” This refers to the heavy push for AirLink Management Service (ALMS) subscriptions. While centralized management is useful for fleets of 1,000+ units, many project managers find themselves locked into recurring SaaS fees just to maintain basic visibility.

The Philosophy of Autonomous Networking: The VT-LTE400 is designed for engineers who want Local Ownership.

• Built-in Security: It features a robust stateful firewall, MAC/IP filtering, and native support for multiple VPN protocols (OpenVPN, IPsec, WireGuard).
• No License Keys: All advanced functions—including static routing, host name mapping, and smart failover—are unlocked by default.
• Direct Web UI: Management is performed via a clean, industrial-grade Web interface (192.168.8.1). No cloud middleman is required for configuration.

Surviving the Furnace: Why a True 85°C Thermal Rating is Your Best Insurance

A control cabinet sitting in direct sun in the Mojave Desert or the Australian Outback isn’t just “warm”; it’s a furnace. Thermal studies published by the IEEE (Institute of Electrical and Electronics Engineers) indicate that internal enclosure temperatures can be 25°C to 30°C higher than the external ambient temperature.

If the ambient temperature is 40°C (104°F), your cabinet interior is likely at 70°C.

• The RV50X Limit: Its maximum operating temperature is 70°C. At this point, the device will likely trigger thermal throttling (reducing CPU speed) or initiate emergency shutdowns to protect the modem.
• The Valtoris Advantage: The VT-LTE400 is rated for -40°C to 85°C. This extra 15°C of “thermal headroom” is the difference between a stable network and an emergency truck roll to a remote site in the middle of summer.

Seamless PLC Integration: Keeping Your RS-232 and Modbus Polling Alive

Many engineers hesitate to move away from the RV50X because of its integrated RS-232 port. They have legacy devices—older VFDs, power meters, or legacy PLCs—that speak “Serial,” not “Ethernet.”

However, modernizing your network shouldn’t mean staying with a legacy all-in-one router. The Modular Connectivity Strategy is far more resilient.

By pairing the VT-LTE400 with a dedicated Valtoris Serial-to-Ethernet Converter, you gain a significant security and maintenance advantage:

1. FIFO Buffering: Dedicated converters handle Modbus RTU timing much more efficiently than a router’s secondary software process.
2. Electrical Isolation: Valtoris converters offer 3000V Optical Isolation. If a lightning strike or a ground loop occurs on your 500-meter serial wire, it will only damage the inexpensive converter—leaving your $300+ 4G router perfectly intact.
3. Future-Proofing: If you ever decide to replace that legacy PLC with a modern Ethernet-enabled one, you simply remove the converter and plug directly into one of the VT-LTE400’s 4 LAN ports. Your core network topology remains unchanged.

Future-Proofing: The Path from 4G to 5G and Beyond

A common question we receive from project managers is: “Should I skip 4G and go straight to 5G?”

For industrial telemetry, the answer is usually “Wait.” 5G mmWave and Sub-6 architectures offer incredible speeds, but their penetration through heavy industrial walls and their power consumption are still inferior to the mature LTE Cat 1/Cat 4 networks.

Furthermore, the U.S. Federal Communications Commission (FCC) and global carriers have committed to maintaining LTE networks well into the 2030s. LTE Cat 1 is currently the most efficient, cost-stable technology for 24/7 monitoring.

The VT-LTE400 is the perfect “Transition Bridge.” It supports multiple frequency bands (B1, B3, B5, B7, B8, B20) so it works across South Asia, Europe, Middle East and Africa. When 5G becomes affordable and robust as Cat 1, the transition will be easy because your internal network is already standardized on the Ethernet architecture of the VT-LTE400.

The Final Verdict: Why Engineers are Choosing Valtoris

The RV50X EOL is an opportunity to re-evaluate your network ROI. If your project requires:

• Connecting multiple Ethernet devices without an external switch.
• Survival in unventilated enclosures reaching 85°C.
• Zero recurring software subscription fees.
• A rugged, compact, metal-housed solution that costs roughly half of enterprise brands.

Then the VT-LTE400 isn’t just an alternative—it’s an upgrade for the modern industrial floor.
