Industrial Network Broadcast Storm Fix: Isolate PLC Traffic

Looking for a reliable industrial network broadcast storm fix? The symptoms on the factory floor are impossible to overlook: Your SCADA screen freezes on and off, Modbus TCP connections drop randomly and when you log into the dashboard of your industrial cellular router, the CPU utilization is spiked at 99%. You haven’t added any complex programming logic but the entire communications backbone feels like it’s choking on invisible traffic.

In 90% of these cases, the hardware isn’t broken. The problem is the fundamental network architecture. Before you start replacing expensive PLC communication modules or blaming your ISP, you need to understand how “Flat Networks” create broadcast radiation, and how you can implement an industrial network broadcast storm fix by choosing to natively isolate PLC traffic on a cellular router.

The Anatomy of an Industrial Broadcast Storm: The Flat Network Trap

To understand why your network is choking, we have to look at how Ethernet behaves at Layer 2 (the Data Link Layer). When a system integrator sets up a remote pump station or a factory work cell, the cheapest and easiest approach is to plug everything—the Siemens or Allen-Bradley PLC, the touchscreen HMI, the CCTV camera, and the 4G uplink router—into a single, unmanaged DIN-rail network switch. They assign everything an IP address in the `192.168.1.x` range. This architecture is known in IT circles as a Flat Network.

In a flat network, there are no physical or logical boundaries. Every single device resides in the exact same “Broadcast Domain.”

According to the Cisco Converged Plantwide Ethernet (CPwE) Design Guide—the global gold standard for industrial network architecture—failing to segment these domains is the leading cause of industrial network degradation. If you have an IP camera streaming high-resolution video using multicast, or a malfunctioning network interface card (NIC) stuck in a discovery loop, it will spew thousands of broadcast packets per second.

Why Do Cellular Routers Crash Under Flat Networks?

An industrial cellular router is primarily a Layer 3 routing device. It is engineered with an ARM processor designed to encrypt VPN tunnels, manage NAT tables, and maintain a stable 4G/5G connection to the cell tower. It is not designed to act as a garbage disposal for local Layer 2 noise.

Every single device on a flat network—including your crucial cellular router—is forced by the IEEE 802.3 Ethernet standard to receive every broadcast packet, interrupt its CPU to inspect the packet header, and then discard it if it’s irrelevant. This constant CPU interruption prevents the router from managing its cellular modem, which is exactly what causes your SCADA system to experience Modbus TCP timeouts.

Prove It Yourself: Step-by-Step Wireshark Packet Analysis

If your IT department insists that the network infrastructure is fine and blames your PLC logic, you can definitively prove the existence of a broadcast storm using Wireshark. We are not looking for timing errors here; we are looking for sheer packet volume and CPU exhaustion.

Follow these exact steps to catch the storm in the act:

1. Mirror the Uplink Port: Connect your diagnostic laptop to a mirrored port on the unmanaged switch. Crucially, mirror the specific port that connects directly to the cellular router.
2. Capture the Chaos: Start a Wireshark capture without any capture filters. Let it run for 60 to 120 seconds during a period where the SCADA system is reporting lag.
3. Apply the Broadcast Filter: In the display filter bar, type eth.dst == ff:ff:ff:ff:ff:ff or (ip.addr >= 224.0.0.0 and ip.addr <= 239.255.255.255). This isolates all ARP broadcasts and Layer 2 multicast traffic.
4. Generate the I/O Graph: Navigate to Statistics > I/O Graphs. Click the ‘+’ to add a new graph, set the Y-Axis to Packets/s (Packets per second), and apply the filter from Step 3.

What you are looking for is the baseline noise level. According to ODVA’s EtherNet/IP specifications, background broadcast traffic should comfortably remain under 100 packets per second. If your Wireshark I/O graph shows the router’s port is being bombarded with 3,000 to 5,000 broadcast packets per second (pps), you have found the smoking gun. The router’s CPU is spending 95% of its clock cycles just reading and dropping junk mail from the IP camera or a noisy VFD.

The Expensive Mistake: Buying an External Managed Switch

When engineers finally realize they need to shrink the broadcast domain, the conventional IT advice is to purchase a Layer 2 or Layer 3 Managed Switch to implement VLANs (Virtual Local Area Networks). While an external managed switch will indeed fix the problem, it introduces three massive headaches for industrial edge deployments:

• Cost Prohibitive: Ruggedized, industrial DIN-rail managed switches often cost anywhere from $500 to $1,500+.
• Space Constraints: Control panels in remote pump stations, traffic cabinets, or mobile AGVs have extremely limited physical DIN-rail real estate.
• Management Complexity: It introduces another point of failure, requires an additional 24VDC power drop, and adds another proprietary web interface that maintenance technicians must learn to troubleshoot at 2 AM.

The Smart Fix: Isolate PLC Traffic directly on a Cellular Router

The most elegant and cost-effective industrial network broadcast storm fix is simply to remove the external managed switch. Instead, use the built-in hardware switching capabilities of a sophisticated industrial cellular gateway to segment the traffic at the edge.

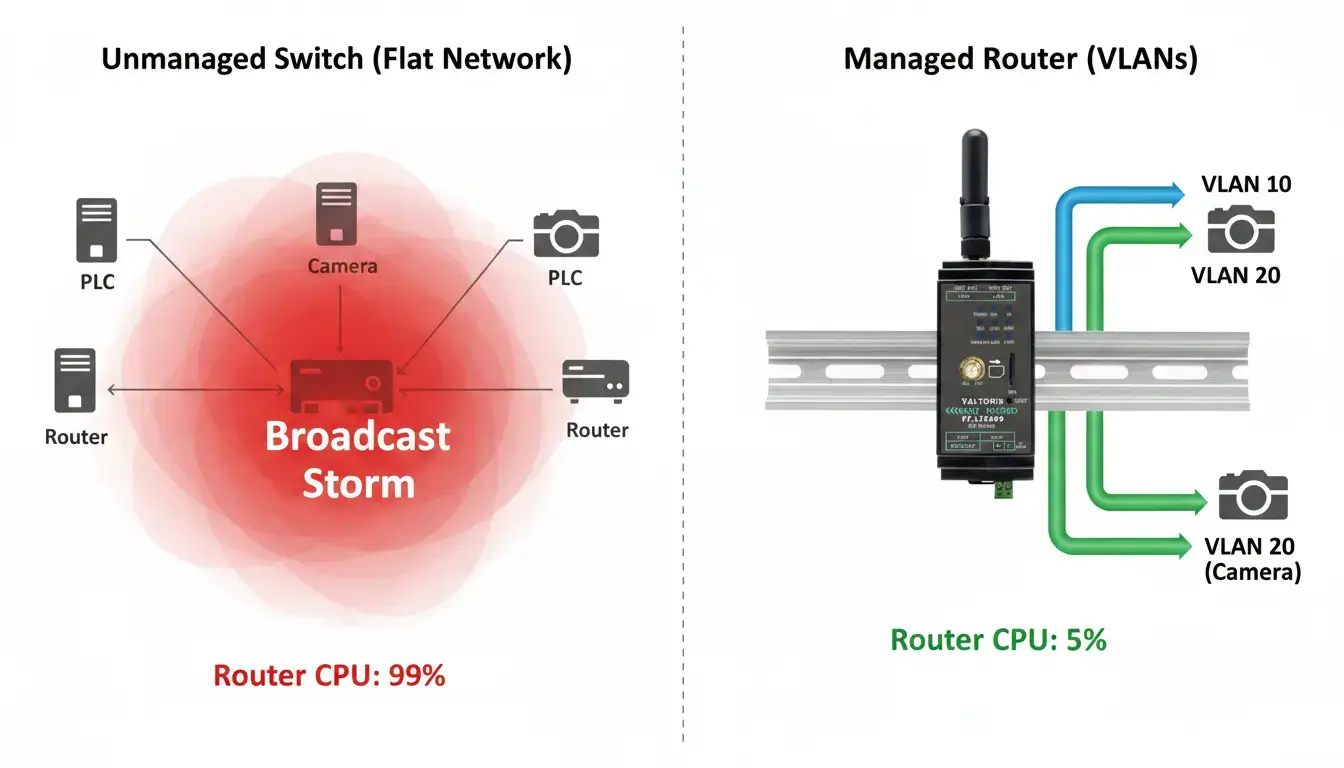

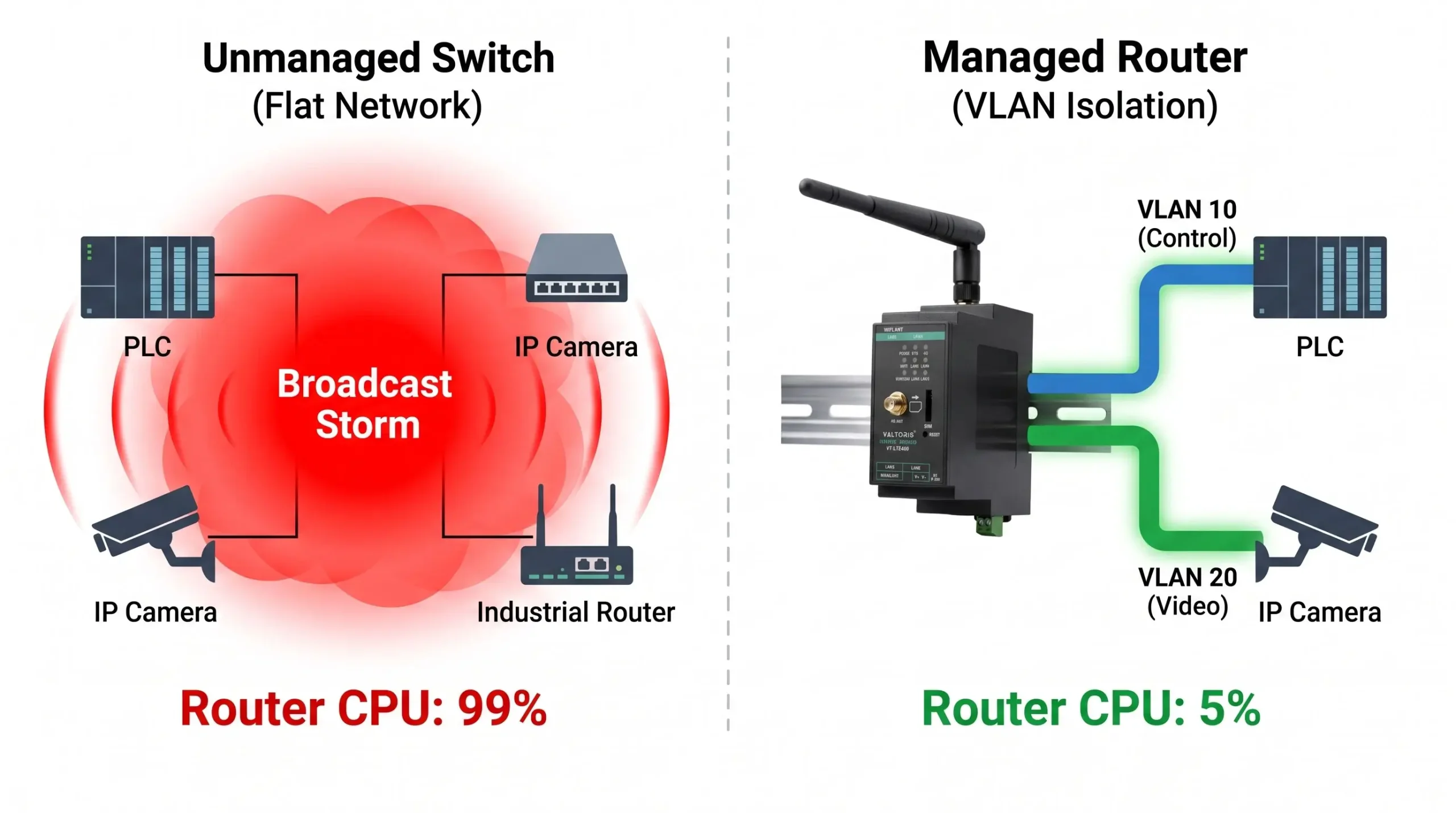

By leveraging Port-Based Untagged VLANs directly on the router’s LAN ports, you can physically isolate traffic streams. Unlike 802.1Q tagged VLANs (which most standard PLCs cannot process), port-based VLANs strip the tag before the packet hits the end device. You can assign physical LAN Port 1 exclusively to your deterministic PLCs, and LAN Port 2 to the high-bandwidth IP Cameras. The router’s hardware switch ASIC ensures that a broadcast storm generated by the camera on Port 2 cannot physically cross the silicon barrier to flood the PLC on Port 1.

How to Configure VLAN Isolation on the Valtoris VT-LTE400

If you are deploying an enterprise-grade device like the Valtoris VT-LTE400, you already have a powerful managed switch built directly into the chassis. The VT-LTE400 features four physical 10/100M Fast Ethernet LAN ports, backed by a dedicated hardware switch chip that processes VLAN rules at wire speed without burdening the main routing processor.

Here is how you execute the ultimate broadcast storm fix in under 5 minutes:

1. Switch Menu: Log into the VT-LTE400 UI and navigate to Network > Switch.
2. Enable VLAN Functionality: Select the “Enable VLAN functionality” check box. This turns on the hardware switch chip.

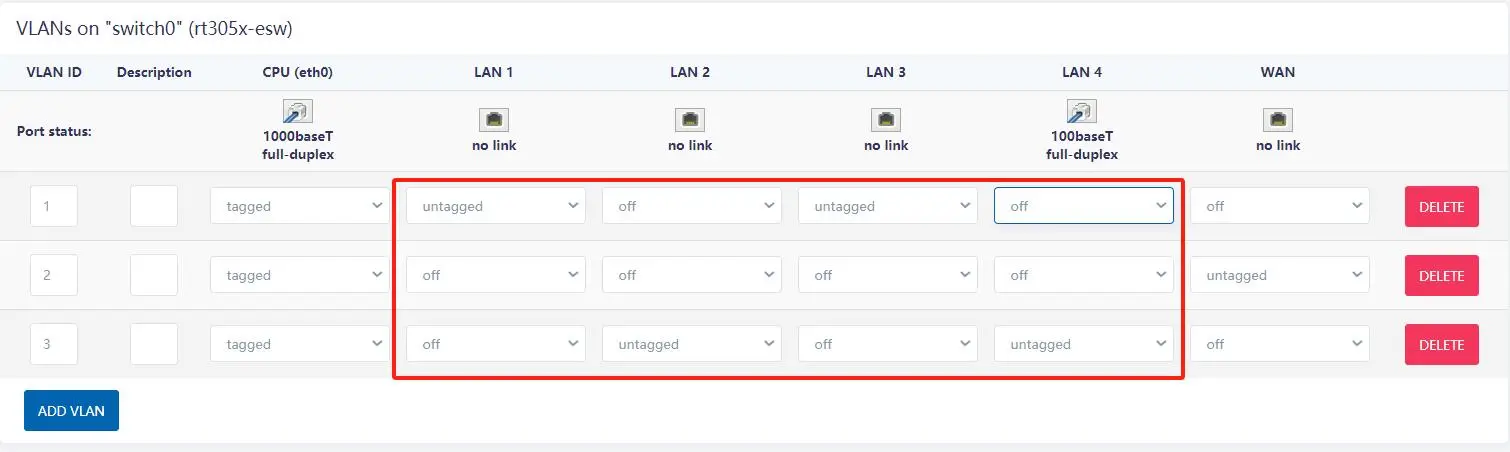

3. Create VLAN IDs: By default, all physical LAN ports are members of VLAN 1, and the WAN port uses VLAN 2. Click ‘Add’ to create a new VLAN (e.g., VLAN ID 3) to house your noisy devices.
4. Assign Ports (Untagged): Assign physical LAN Port 1 to VLAN 1 (Untagged) and set the other physical ports to ‘Off’. Assign LAN Port 2 to VLAN 3 (Untagged). Crucial Step: Leave the ‘CPU’ port as ‘Tagged’ for all active VLANs so the router’s brain can route internet access to both subnets.
5. Configure Interface Subnets: Go to Network > Interfaces and click ‘Add New Interface’. Create a new logical interface mapped to eth0.3 (VLAN 3) with a completely different subnet (e.g., assign 192.168.10.1 to VLAN 3, while VLAN 1 remains 192.168.1.1).

By saving this configuration, you have established a physical quarantine zone. A broadcast storm on Port 2 will hit the router’s internal switch chip and be instantly dropped before it ever touches the PLC on Port 1. Beyond performance, this segmentation is also a mandatory requirement under ISA/IEC 62443 cybersecurity standards, preventing lateral movement if an IP camera is compromised by malware.
