Inside RS485 Optical Isolation: Teardown & Ground Loop Fixes

There’s a certain unique smell when an industrial Programmable Logic Controller (PLC) dies on the factory floor. It’s the sharp, acrid scent of ozone mixed with vaporized silicon. Trace the RS485 communication cable from the main control cabinet, through the manufacturing plant to a large 500kW Variable Frequency Drive (VFD), or a remote solar inverter. You examine the wiring closely. The A+ & B- lines are perfect. The 120 ohm termination resisters are in the right place. The baud rates are identical.

So, why did a $3,000 Siemens S7-1500 or Allen-Bradley ControlLogix processor just commit hardware suicide over a simple two-wire Modbus RTU connection?

The answer almost always lies in the invisible, highly destructive forces of the physical layer: Ground loops and severe common-mode voltage surges. In this comprehensive RS485 optical isolation teardown, we are going beyond superficial software troubleshooting. We are going to physically cut open an industrial protocol gateway, examine the Printed Circuit Board (PCB) at the microscopic level, and reverse-engineer exactly how it bends the laws of electromagnetics to keep your Operational Technology (OT) networks alive.

The Anatomy of a Fried PLC Port: Why RS485 Fails in the Wild

To understand the cure, we must first profoundly diagnose the disease. The EIA/TIA-485 standard (universally referred to as RS485) is arguably the most resilient, widely adopted serial protocol ever invented for industrial automation. It owes its legendary robustness to differential signaling. Instead of sending a voltage relative to a single ground wire, the transmitter pushes voltage onto two wires simultaneously (A and B). If a nearby AC motor induces 5 Volts of electromagnetic interference (EMI) onto wire A, it induces that exact same 5 Volts onto wire B. The receiver chip at the other end only reads the difference between the two wires, mathematically canceling out the ambient noise.

This sounds bulletproof in theory. But there is a fatal Achilles’ heel written deep into the official EIA-485 specification: The Common-Mode Voltage Limit.

In a clean laboratory environment it is trivial to maintain the ground potential difference under 12 Volts. In a real wastewater treatment plant or a sprawling megawatt solar farm, it is practically impossible.

When you pull a 1,000-meter copper RS485 cable between a master PLC in Building A and a slave sensor array in Building B, you are physically bridging two entirely different earth ground potentials. If a lightning strike hits the soil 500 meters away, or a massive industrial VFD dumps high-frequency Pulse Width Modulation (PWM) switching noise into the local ground plane, the earth potential at Building B might violently spike to 150 Volts relative to Building A.

Because electrons always seek the path of least resistance to equalize, this massive 150-volt surge rushes across the RS485 shielding and signal wires. It hits the communication port of your master PLC, vastly exceeding the +12V design limit, and punches straight through the fragile silicon junction of the transceiver chip.

Teardown: Looking Inside an Industrial RS485 Optical Isolator

To get a real handle on how to permanently beat these destructive ground loops, we need to get under the hood of the electrical architecture. See the internal functional block diagram of a true industrial-grade isolated protocol gateway.

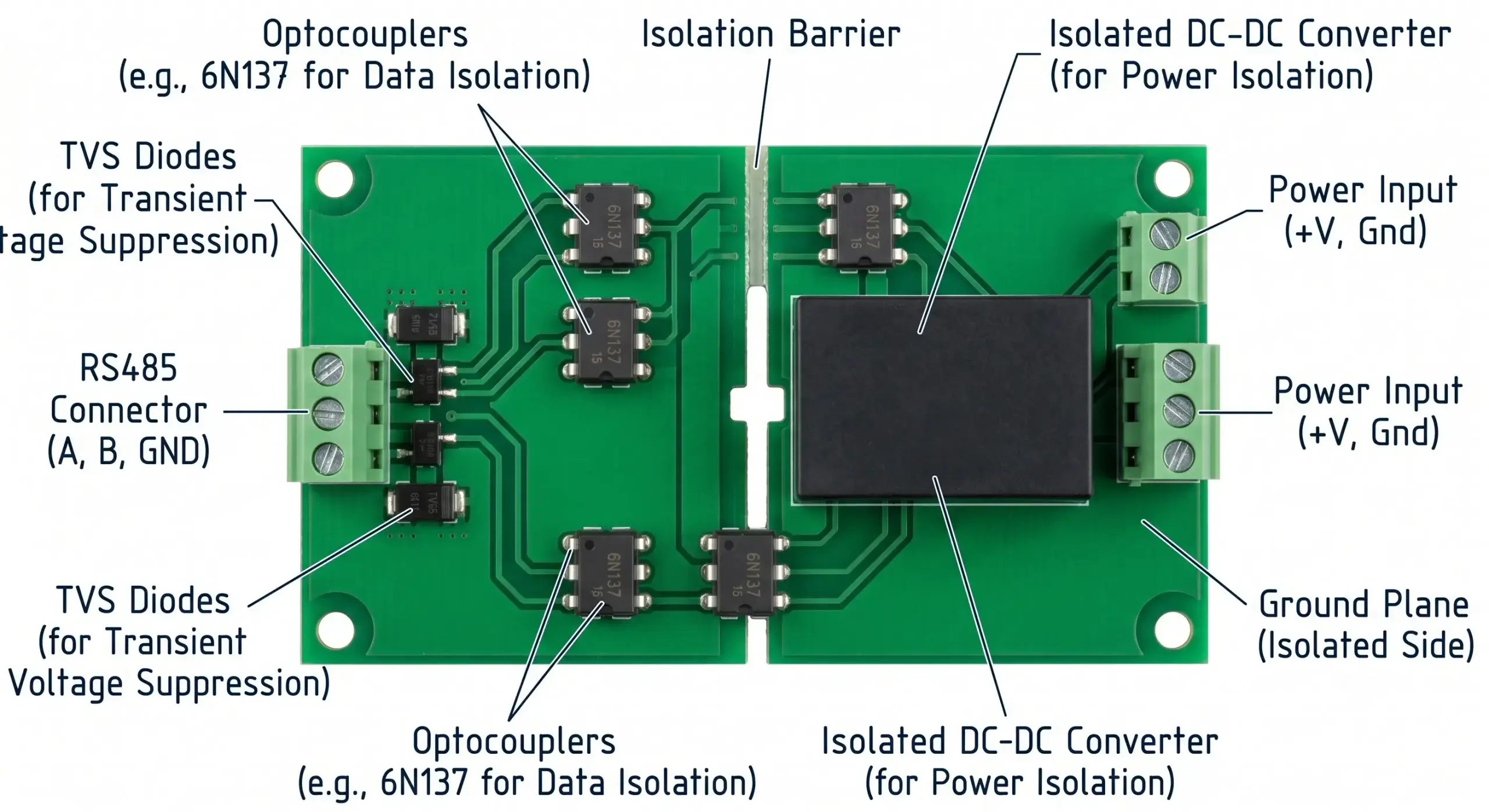

Figure 2: Blueprint Teardown of an Industrial 3-Way Isolated RS485 PCB. Notice how the Power (DC-DC) and Data (Optocouplers) completely bridge the physical gap without any shared ground traces.

The very first thing an electrical engineer notices when inspecting a properly designed isolated board is a literal, physical gap in the fiberglass. This is known in the industry as the Isolation Barrier or Creepage Distance. You will see a distinct line—often physically milled out of the board—where absolutely no copper traces exist. This trench separates the “Safe Side” (where your expensive PLC or Ethernet switch connects) from the “Dangerous Side” (the field RS485 wires running out into the factory).

Scientifically, it is impossible for stray ground loop currents to flow from the field device to the master controller by physically breaking the continuous copper connection. But this immediately gives rise to a paradox: If the copper wires are completely severed, how does the Modbus data cross the chasm?

The Optical Barrier: How Optocouplers Block Destructive Surges

The magic happens inside the small, typically 8-pin Integrated Circuits (ICs) bridging the physical gap on the PCB. These are Optocouplers (or in newer designs, high-speed capacitive digital isolators). They perform a miraculous conversion known as Galvanic Isolation.

When the RS485 transceiver on the “dangerous side” receives a bit of data (a logical ‘1’ representing a high voltage state), it doesn’t send that raw voltage into the PLC. Instead, it sends a tiny, precisely calibrated amount of current to a microscopic Light Emitting Diode (LED) hidden entirely inside the optocoupler chip’s epoxy casing.

• Step 1: The internal LED flashes a tiny, high-speed pulse of infrared light.
• Step 2: The light passes through a transparent silicon barrier in the chip.
• Step 3: A highly sensitive phototransistor on the ‘safe’ side inside the chip’s cavity picks up that flash of light and converts it back into a clean, electrical logical ‘1’.

Because light is completely immune to electromagnetic interference, and because photons do not carry electrical charge, the Modbus data crosses the barrier effortlessly while the lethal voltage surge is left stranded.

The Dirty Secret of Cheap Isolators: Why 3-Way Isolation is Mandatory

If you search Amazon or industrial supply catalogs for “RS485 Isolator,” you will find generic, unbranded dongles selling for as little as $15. If you deploy these in a heavy industrial setting, your network will still eventually crash. Why? Because of the dirty secret of cheap isolation electronics: They only isolate the data lines, not the power supply.

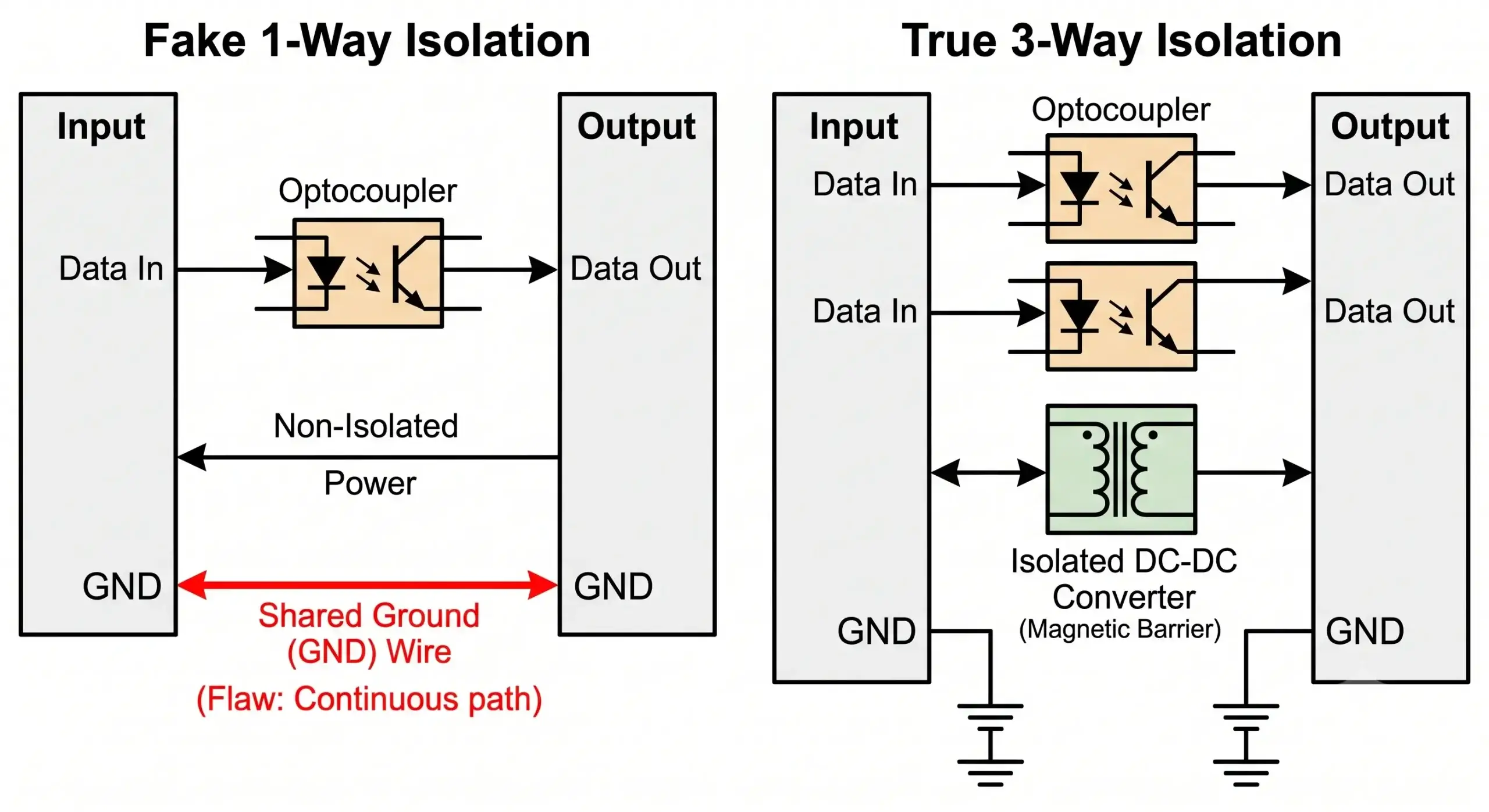

Figure 3: True 3-Way Isolation Architecture. Professional gateways completely isolate Input Data, Output Data, and the Power Supply, ensuring no ground loops can bypass the optical barrier.

In order for the transceiver chip on the “dangerous side” of the isolation barrier to function and read the field wires, it needs an active 5V DC power source. Cheap isolators cut corners to save money by simply drawing this power from the PLC side, running a continuous copper VCC and GND trace right across the isolation barrier to power the chip.

This entirely defeats the purpose of the optocouplers. The 200V surge will simply ignore the optical chips, travel straight down the shared ground line, bypass the barrier entirely, and fry your equipment.

Professional engineering standards mandate 3-Way Isolation (Isolating the Power Supply, Input Data, and Output Data). This requires a dedicated Isolated DC-DC Converter module. This part employs small magnetic induction coils to transfer power over the isolation barrier without direct wire contact, so the ground planes are 100% segregated. This is precisely why true 3000V isolated gateways (like the Valtoris VI series) require a specialized 18~36V DC power input to feed the primary side of the magnetic transformer.

Beyond Isolation: TVS Diodes and Shielding for Ultimate Reliability

While an optical barrier is the ultimate defense against sustained ground loop currents, a robust industrial design requires a multi-layered, defense-in-depth strategy to handle incredibly fast transient spikes (like nearby lightning strikes, electrostatic shock, or heavy relay switching).

If you look closely at the green screw terminal blocks on our PCB teardown, you will see robust, barrel-shaped components soldered in parallel across the A+ and B- lines right where the field wires enter the board. These are Transient Voltage Suppressor (TVS) Diodes (often from the SMAJ or SMBJ semiconductor series).

The TVS diode is an ultrafast pressure relief valve when an electrostatic discharge (ESD) event hits the line. It clamps the voltage spike to a safe value, say 7V, and dissipates the kinetic energy. But the problem is, it’s not so simple to design: The TVS diodes inherently have parasitic capacitance. An inexperienced engineer will use the wrong diode and the capacitance will round off the sharp edges of the RS485 square waves and effectively destroy high speed (115.2 kbps) communication. Good industrial designers combine high clamping power with ultra low capacitance parts for safety and sharp signal integrity.

The Architectural Conclusion: Buy vs. Build

A deep understanding of galvanic isolation, optoelectronics and common mode rejection will give you a real leg up on troubleshooting unstable SCADA networks. If your Modbus polling intermittently drops out when heavy machinery powers up, or you’re swapping out burnt communication modules every summer during thunderstorm season, you now know exactly what is happening at the electron level.

You could attempt to mitigate this by stringing together aftermarket optical repeaters, designing custom DC-DC isolation boards, and soldering custom TVS diode arrays in your lab. However, in modern IT/OT convergence projects, relying on fragile, pieced-together serial daisy-chains is a massive architectural liability that increases maintenance overhead and downtime risks.
