You’ve seen “ZigBee” on smart home boxes. You’ve heard it mentioned in IoT articles. Maybe you’re wondering: is it like WiFi? Like Bluetooth? Do I actually need it?
Here’s the shortest answer: ZigBee is a wireless protocol designed for devices that need to run for years on small batteries and talk to each other without a central router.
That’s it. Now let’s unpack what that actually means—and whether it’s the right choice for your application.
Quick Reality Check: Is ZigBee Still Relevant?
If you’re wondering whether ZigBee is still a thing in 2026, the numbers say yes.
| Metric | Value |
|---|---|
| Global ZigBee market size (2025) | USD 5.2 billion |
| Projected by 2035 | USD 9.3 billion |
| Annual growth rate (CAGR) | 6.1% |
| Industrial application share | 34.6% (largest segment) |
Source: Future Market Insights, 802.15.4/ZigBee Market Report 2025
ZigBee isn’t going anywhere. In fact, it’s growing—especially in industrial settings.
The One Sentence That Explains Everything
ZigBee is for devices that only need to say a few words, but need to keep talking for years without plugging in.
Think about a temperature sensor in a warehouse. It doesn’t need to stream video. It just needs to send “22°C” once every five minutes. Running a wire to it is expensive. Changing batteries every month is a nightmare. ZigBee solves both problems.
How ZigBee Works (Simple Version)
Three things make ZigBee different from other wireless tech:
1. Low Power
ZigBee radios sleep most of the time. They wake up send a packet of data and then go back to sleep. The ZigBee standard from IEEE 802.15.4 says that ZigBee works at speeds of 250 Kbps on the 2.4GHz band or 20 or 40 Kbps, on the 868 or 915MHz bands. A pair of AA batteries can power a designed ZigBee device for 2 to 3 years.

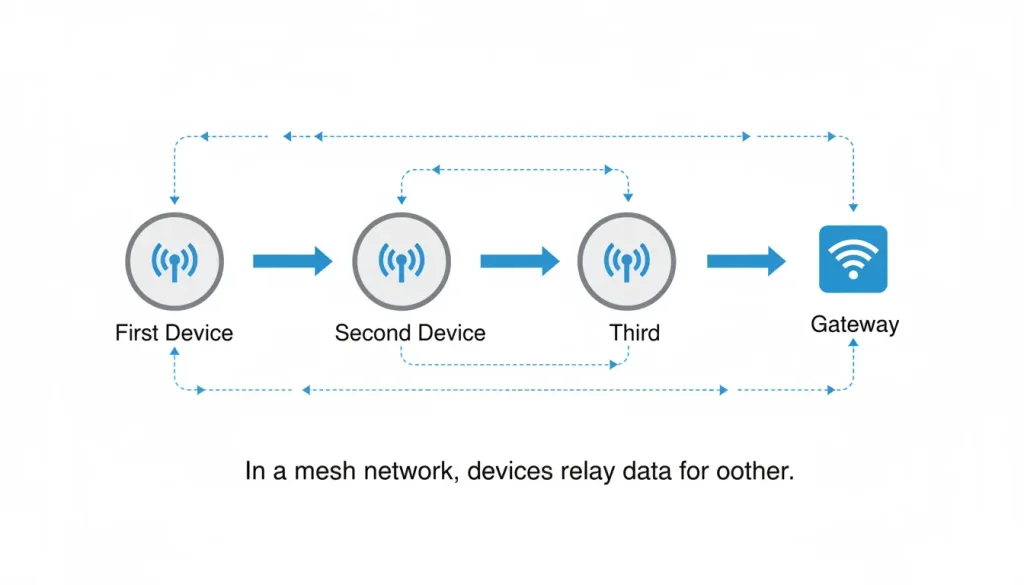

2. Mesh Networking
In WiFi, every device talks to the router. If the router dies or a device is too far away, it’s done.
In ZigBee, devices talk to each other. If Device A can’t reach the hub directly, it passes its data to Device B, which passes it to Device C, which reaches the hub. The network heals itself if a device drops out.
The ZigBee protocol is maintained by the Connectivity Standards Alliance (CSA-IOT) , formerly the ZigBee Alliance.
- Designed for Short Bursts
ZigBee is not for streaming music or video. The data rates are low they are between 20 to 250 kbps. This is plenty for things like temperature readings or on and off commands or motion sensor alerts. ZigBee is the tool for the job when the job is to send small data reliably for a long time with ZigBee.
Where ZigBee Gets Used
- Smart homes use ZigBee for things like lights, switches, sensors and thermostats.
- Industrial monitoring uses ZigBee for equipment vibration, temperature and pressure.
- Building automation uses ZigBee for HVAC control, access control and lighting.
- Healthcare uses ZigBee for monitors and medical device tracking.
- Agriculture uses ZigBee for soil sensors and irrigation control.
The industrial segment alone accounts for 34.6% of the ZigBee market, making it the single largest application area .
The Honest Part: Where ZigBee Struggles
Interference from WiFi is real
The 2.4GHz band is crowded. WiFi and Bluetooth share the space. But how bad is it really?
A 2023 study published in IEEE Access conducted real-time experiments on WiFi-ZigBee coexistence. Key findings:
- WiFi transmits at 10–100 times higher power than ZigBee
- WiFi activity can trigger ZigBee devices to back off and starve under certain conditions
- Most link disconnectivity and packet loss are due to channel access failure, not data transmission errors
What this means for you: In environments with dense WiFi deployment, ZigBee networks need careful channel selection. Good ZigBee devices use spread spectrum technology and let you manually choose channels to avoid WiFi congestion.
Range is not magic
- Open field: up to 2000 meters with line of sight
- Indoors through concrete and steel: 20–30 meters per hop
That’s why mesh matters—each ZigBee device extends the network.
Not all devices play nice
Certification helps. Real-world mixing of brands can still get messy. Stick to trusted hardware.

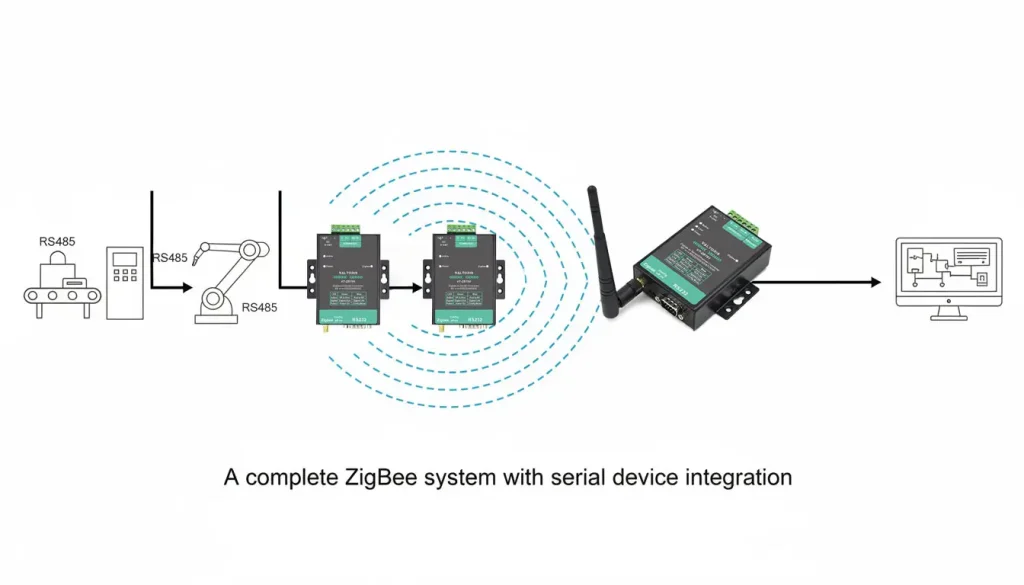

Making ZigBee Talk to the World
Here is the part most guides skip: ZigBee devices need to get their data somewhere useful with ZigBee. A sensor network is useless if the data stays in the sensors with ZigBee.
This is where ZigBee gateways come in.
If you have existing equipment with RS232 or RS485 ports, like PLCs flow meters, power monitors, old sensors they can join the ZigBee world with ZigBee. You add a ZigBee to RS485 converter at each device with ZigBee. It takes the data and sends it wirelessly with ZigBee.
A ZigBee to Ethernet converter at the collection point receives all the data. Pushes it to your server or cloud dashboard with ZigBee.
The equipment does not know anything changed with ZigBee. It just sees its connection with ZigBee. The software does not know anything changed with ZigBee. It just sees data arriving with ZigBee. The wireless part becomes invisible, with ZigBee.
This is how you modernize a system without ripping out everything that works with ZigBee.
Quick Comparison: ZigBee vs The Others
| Technology | Best For | Power | Range | Mesh? |
|---|---|---|---|---|
| ZigBee | Sensor networks, device control | Very low | Medium | Yes |
| WiFi | Internet access, video, audio | High | Medium | No |
| Bluetooth | Audio, wearables, phone pairing | Low | Short | Limited |
| LoRaWAN | Miles-long sensor data | Very low | Very long | No |
| Z-Wave | Home automation | Low | Medium | Yes |
What to Look for in ZigBee Hardware
If you’re building something that needs to work for a long time:
| Parameter | What to Look For | Why |
|---|---|---|
| Temperature range | –40°C to 85°C | Industrial sites need wide tolerance |
| Transmit power | Up to 25 dBm | Longer range |
| Receive sensitivity | –105 dBm or better | Picks up weak signals |
| Antenna | External SMA connector | Flexibility to add external antenna |
| Enclosure | Metal | Better EMI shielding and heat dissipation |
Use this table to plan your hardware requirements:
| Parameter | Your Requirement | Notes |
|---|---|---|
| Operating Temperature | __________ | Industrial: –40°C to 85°C / Commercial: 0°C to 50°C |
| Transmit Power | __________ | Higher (e.g., 25dBm) for long range |
| Receive Sensitivity | __________ | Lower number (e.g., –105dBm) means better reception |
| Interface Type | __________ | RS232, RS485, RS422, Ethernet |
| Power Input | __________ | DC 9–24V (industrial) / 5V USB (consumer) |
| Mounting | __________ | DIN rail, wall mount, desktop |
| Antenna Connection | __________ | External SMA for flexibility |
| Enclosure Material | __________ | Metal for EMI/heat / Plastic for cost |
| Network Topology | __________ | Star, Tree, Mesh |
Common Questions (Short Answers)
How far does ZigBee reach?
ZigBee can reach about 10 to 100 meters when you are inside a building with one device.. If you have a lot of devices that can talk to each other, which is called a mesh network then ZigBee can reach really far as long as you have devices to connect to.
Does ZigBee work with WiFi?
No, ZigBee and WiFi do not work directly with each other. They use the kind of frequency but they cannot talk to each other. You need something called a gateway to help them work together.
Is ZigBee still relevant?
Yes ZigBee is still a choice. It is especially good for things like sensors that are powered by batteries and for mesh networks.
Can I use ZigBee outdoors?
Yes you can use ZigBee outside if you put the devices in weatherproof boxes. Some devices are made for use and can work in very cold or very hot temperatures from -40°C to 85°C.
How bad is WiFi interference?
Real-time experiments show WiFi transmits at 10–100× higher power, which can cause ZigBee channel access failures. Proper channel selection is critical .
Your Next Steps
ZigBee is not a technology. It is not flashy.. It is really good at one thing: providing low-power wireless communication for large networks of devices.
When you are adding connectivity to machines in a factory or when you are building a new sensor network from scratch ZigBee is a good option. The equipment has been around, for a while. The standards are well established. It simply works.
If your equipment has RS485 ports and you want to make it wireless you can add a ZigBee converter to each device. The ZigBee mesh network will then take care of the rest.
