The Real Cost of a Weak RS485 Link
Industrial automation isn’t slowing down. According to the International Federation of Robotics, UK industrial robot installations jumped 51% in 2024, and the Americas saw over 55,000 new installations—the third consecutive year above 50,000 units. Every one of those robots, PLCs, sensors, and drives likely communicates over RS485.
But here’s a number that doesn’t make the headlines: 30–40% of RS485 communication failures are traced to ground loops and electrical noise . Another 20–25% come from improper termination or bus loading . That’s more than half of all issues—and they’re preventable with the right network design.
This is why RS485 repeaters and hubs matter in 2026. Not just for extending distance, but for isolating faults, increasing node capacity, and keeping critical systems online when one segment goes down.
What‘s Changed: 2026 Market Trends
Higher Node Density Demands
The global RS485 transceiver market was valued at $1.2–1.5 billion in 2024 and is projected to reach $2.4 billion by 2034, growing at 8.5% annually . Newer transceivers support 1/8 unit load, enabling up to 256 nodes on a single bus . If you’re expanding an existing network or designing for growth, your repeater must handle these node densities.
Tougher Environmental Requirements
Industrial environments are not getting any gentler. The latest RS485 components can work in cold and really hot temperatures from -40°C to +85°C. They also have protection against electrical shocks up to ±15kV. If you are putting your equipment outside or in a warehouse that does not have heat or, near big machines your RS485 repeater needs to be able to handle these conditions too. Your RS485 repeater must be able to work in these conditions just like the latest RS485 components.
Faster Data Rates
When we talk about speed 9600 bits per second is still something we see a lot.. Now more and more things need to be faster. Some special repeaters used in factories can even handle speeds of up to 12 million bits per second for things like PROFIBUS applications.. The regular repeaters that use RS485 can easily handle speeds of 1.5 million bits, per second. If you are using high-speed communication you should make sure your repeater is not the thing that slows everything down.
Isolation Is No Longer Optional
Ground loops are bad news for industrial networks. They can cause a lot of problems. Modern repeaters are a help. They have something called isolation that can handle 2500V to 3000V. This means they can protect the equipment and make sure everything keeps working smoothly even when there are different ground potentials in the system. Ground loops are still an issue but modern repeaters, with optical isolation can really help keep them under control.
What Matters: Key Specs Decoded
When you‘re comparing RS485 repeaters, these are the specs that actually matter:
( RS485 Repeater Core Specifications)
According to the TIA/EIA-485 standard , proper termination and grounding are as critical as the hardware itself.

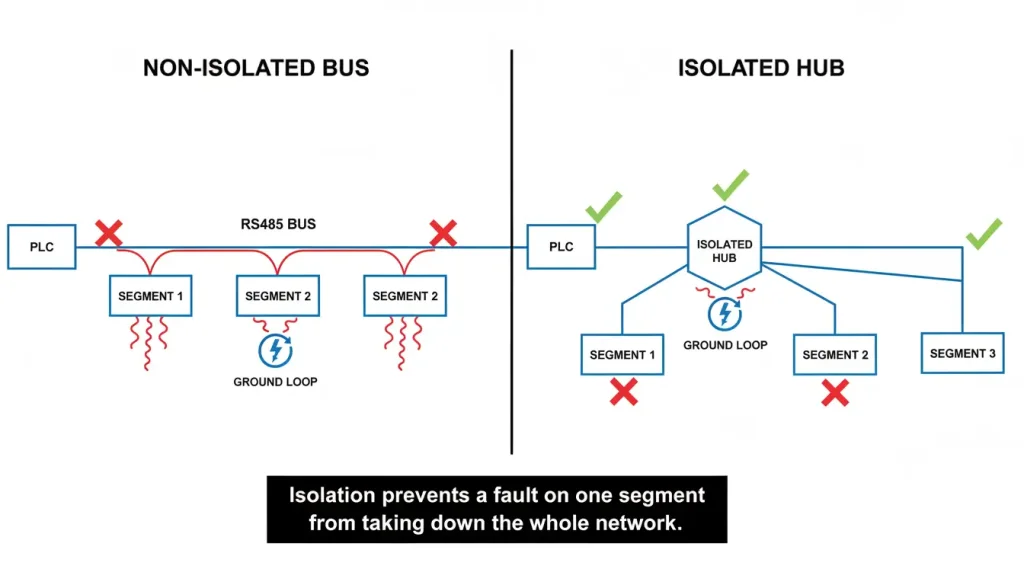

Real‑World Failures: What Isolation Actually Saves
Case 1: Factory with Intermittent Data Loss
A manufacturing plant had 24 sensors on a RS485 bus. This plant had a problem. Every time the welding robot started to work the plant would lose data from three of the sensors. The plant lost a lot of money because of this issue. Over six months the plant lost twelve thousand dollars in scrap. They did not know what was causing the problem until they found out that it was noise coupling through the bus that was the issue. The noise was coming from the bus and it was affecting the sensors. The plant had the welding robot and the sensors, on the RS485 bus.
Solution: A 4‑port isolated hub split the sensors into four groups. The welding robot was isolated to its own segment. Interference no longer affected the rest of the bus. Zero data loss in the following year.
Case 2: Water Utility with Lightning Damage
A water utility had sixteen pump stations all connected on one RS485 bus that went on for two kilometers across the facility. When the storm season came the lightning strikes would cause big voltage surges. These surges were really bad. They destroyed a lot of equipment. The water utility lost fifteen thousand dollars of equipment over two years because of this problem, with the lightning strikes and the voltage surges. The lightning strikes were the issue that caused the voltage surges that destroyed the equipment at the water utility.
Solution: An isolated hub was installed, with each pump station on its own isolated segment. During subsequent storms, only the affected segment went offline; the rest continued running. Damage cost dropped to near zero.
What to Buy: Matching Repeaters to Your Application
Not all networks are the same. Here’s how to choose based on your specific needs.
Scenario 1: Simple Distance Extension
You need: To go beyond 1200 meters on a straightforward point-to-point link.
What matters: Signal regeneration, basic isolation.
Recommended: A 2-port repeater with 2500V isolation. Valtoris 2CH-HUB-RS485 offers 1200m range per segment, supports up to 460800 bps, and handles 32 nodes per port. Its cache-type design also supports special modes for dual-master applications.
Scenario 2: Medium-Scale Industrial Network with Multiple Branches
You need: To connect several clusters of devices in a noisy factory environment.
What matters: Isolation, multiple ports, robust protection.
Recommended: A 4-port isolated repeater. Valtoris 4CH-HUB-RS485 provides 2500V optical isolation, four independent channels, and the same wide baud rate range. If you have mixed RS232 and RS485 equipment, the 4CH-HUB-RS232/485 gives you flexibility with a built-in converter.
Scenario 3: Large-Scale System with >32 Devices
You need: To exceed the 32-device limit while maintaining signal integrity.
What matters: High node capacity, multiple segments, isolation.
Recommended: An 8-port isolated repeater. Valtoris 8CH-HUB-RS485 supports eight independent channels, each handling up to 32 nodes. With 300–460800 bps self-adaptive baud rate, it automatically matches your network speed. Total capacity: 256 devices across all ports.

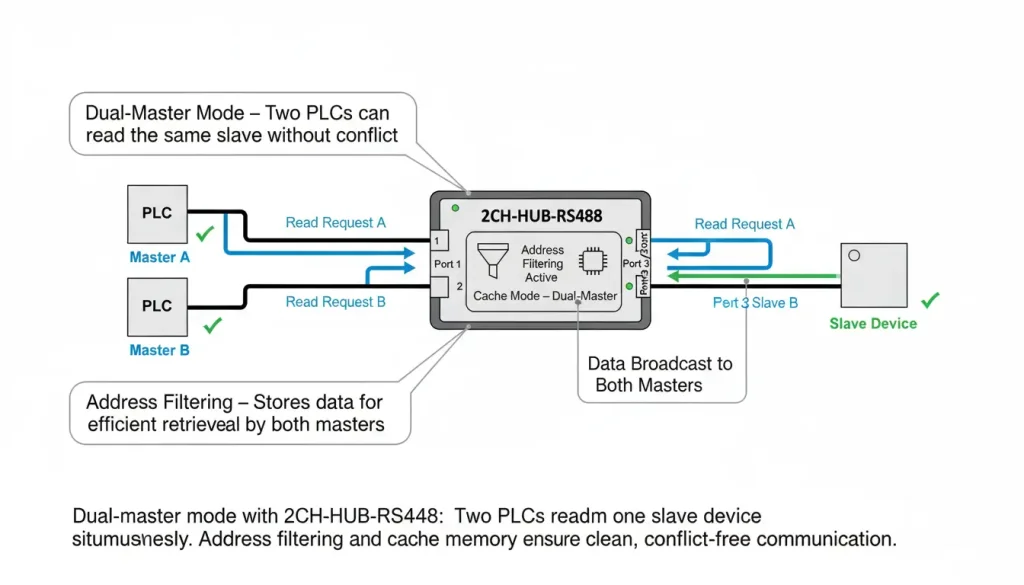

Scenario 4: Special Topology – Two Masters Reading One Slave
You need: A redundant monitoring system where two masters read from the same device.
What matters: Cache mode, address filtering.
Recommended: Valtoris 2CH-HUB-RS485 in dual-master mode. This unique configuration lets two hosts read data from one slave without conflict—perfect for critical applications requiring redundant monitoring.
Installation Tips That Make a Difference
Even the best repeater needs proper installation. Here’s what the field data says:

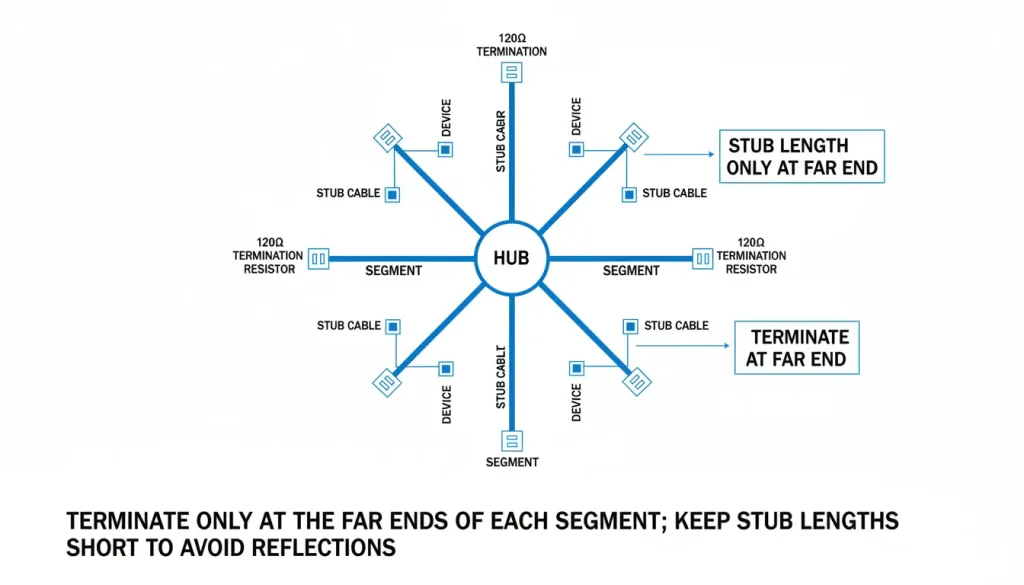

Termination Matters
Place 120Ω termination resistors only at the physical ends of each segment. If your repeater is in the middle of a segment, do not terminate it there .

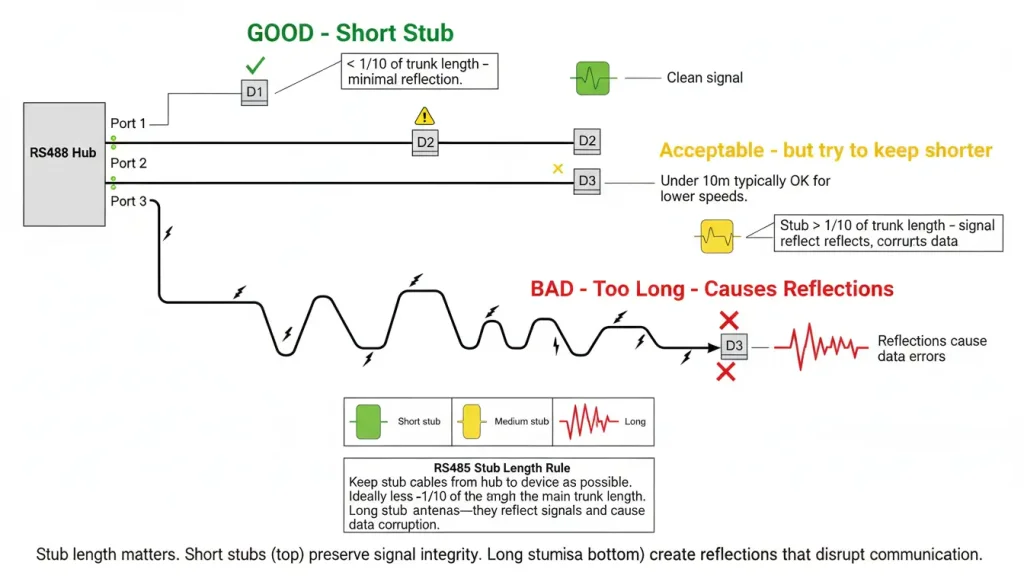

Keep Stubs Short
In star configurations, the cable from hub to device acts as a stub. Keep these under 1/10 of the main trunk length to minimize signal reflections.

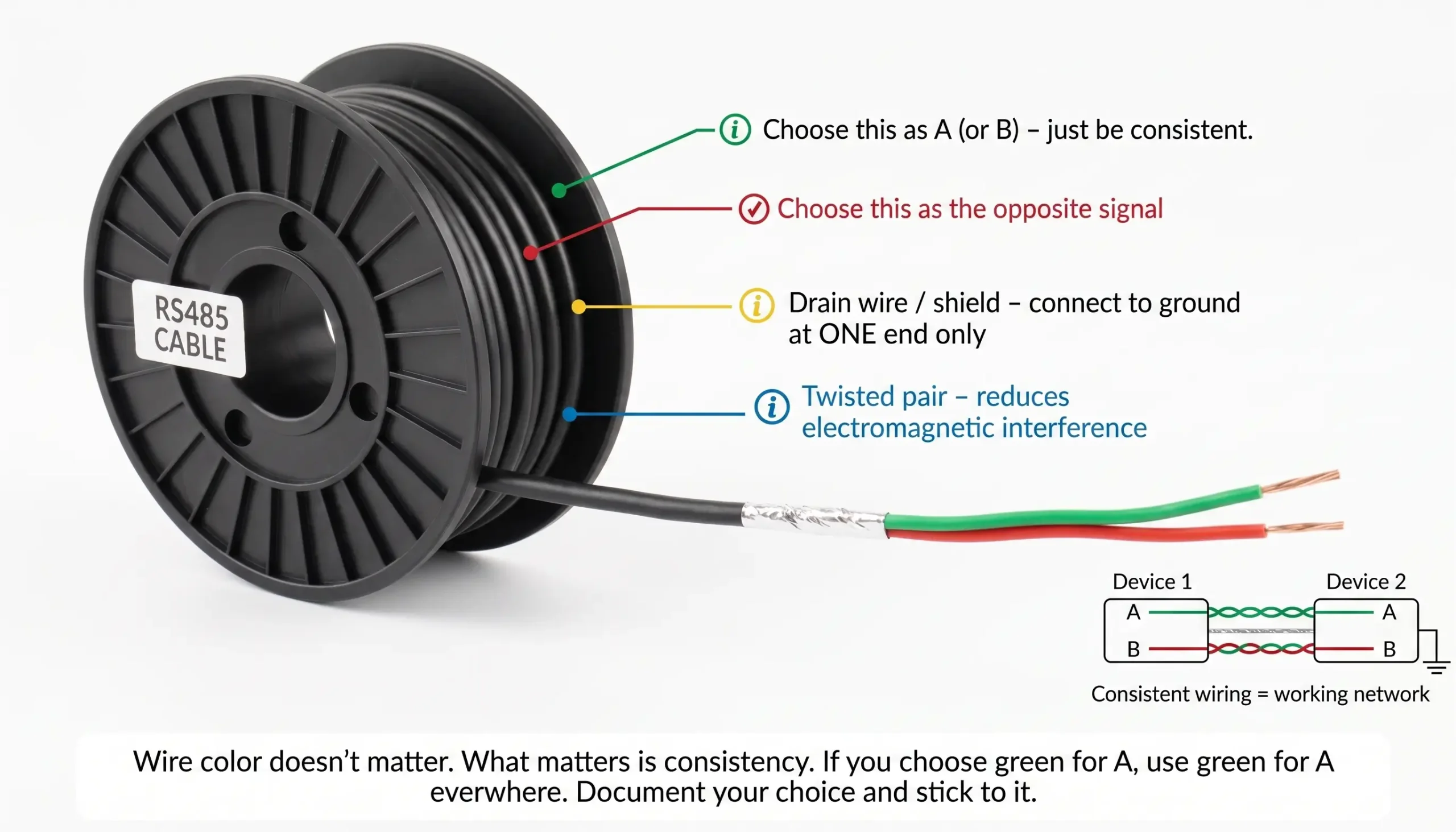

Ground Shields Properly
When you are working with cables it is an idea to connect the cable shields at one end only. It is better to do this at the hub side. If you ground the cable shields at both ends you will create ground loops. This is not what you want because it stops the isolation, from working like it should. The whole point of using cable shields is to keep things isolated so grounding both ends of the cable shields is not an idea. You should only ground the cable shields at one end. That end should be the hub side. This way the cable shields will work the way they are supposed to.
Match Baud Rates
Ensure all devices on a segment run at the same baud rate. Mismatched rates cause communication failures that repeaters can‘t fix.
Common Questions, Answered
Q: Can I cascade multiple repeaters?
A: Yes each repeater adds delay. This is a problem. When you have to cover distances and you need more than three or four repeaters you should think about using fiber optics. Fiber optics are better, for distances. Each fiber optics connection is a choice because fiber optics are better. Fiber optics can handle distances without the delay that each repeater adds.
Q: Is isolation really necessary?
A: If your devices are in different buildings, powered from different phases, or located in areas with lightning risk—yes. Isolation prevents ground loops and protects equipment.
Q: What‘s the difference between a repeater and a hub?
A: A repeater typically has two ports and simply regenerates the signal. A hub has multiple ports and lets you create star topologies. Many devices combine both functions.
Q: My system worked for months, now it‘s failing. Could it be the repeater?
A: You should check the wiring first. The thing is, when something does not work all the time it is often because of the wiring. Maybe the connections are loose. The terminals are corroded.. Maybe the cable is damaged. You should check all the connections before you replace the hardware. This is because wiring problems, like connections or corroded terminals or cable damage can cause these intermittent failures. So check the wiring and the connections and the cables before you do anything with the hardware.
Choosing for 2026
The RS485 landscape in 2026 demands:
- Higher node counts (up to 256 devices)
- Better isolation (2500V minimum)
- Wider temperature tolerance (-40°C to +85°C)

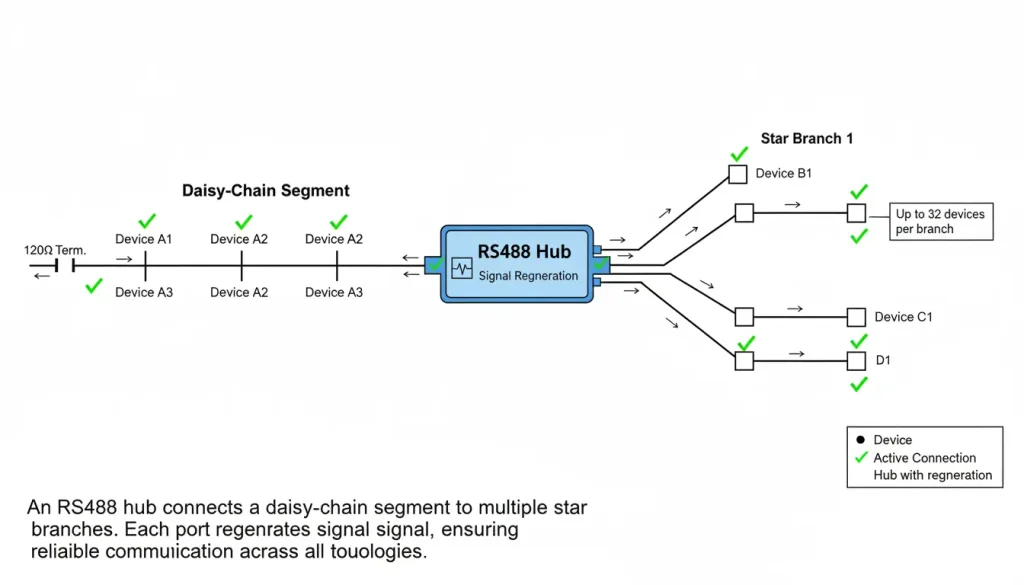

- Flexible topologies (star, daisy chain, mixed)
Your choice comes down to your specific needs:
| If you need… | Look for… |
|---|---|
| Simple distance extension | 2-port repeater with basic isolation |
| Multiple branches in noisy environments | 4-port isolated hub |
| Large networks with >32 devices | 8-port isolated repeater |
| Redundant monitoring | Dual-master capable hub |
Valtoris covers all these bases with its 2CH, 4CH, and 8CH industrial RS485 repeaters and hubs. Each offers wide temperature range, flexible power input (9-24V DC), DIN rail mounting, and the reliability your 2026 network demands.
