Industrial isolated 4-Port RS485 Hub

Name: Industrial 4-Port isolated RS485 Hub & Isolated Expansion Node - Valtoris Electronics
SKU: IoT-IC104
Price: 38.88 USD
Availability: InStock

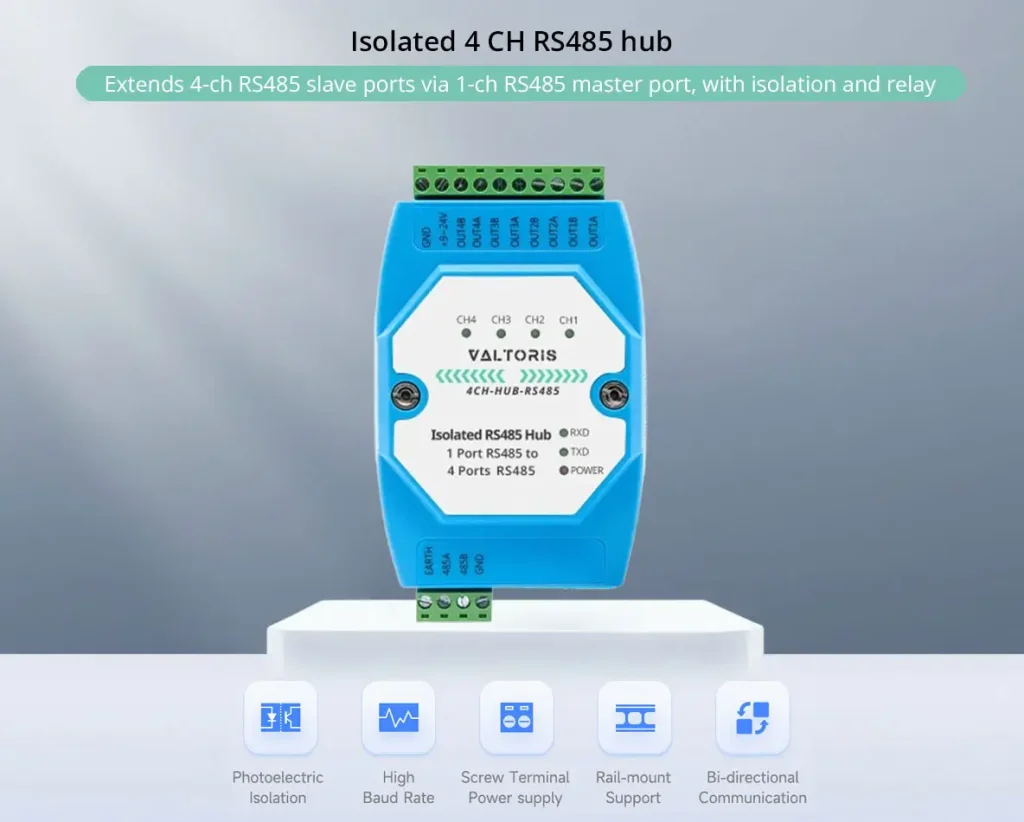

Engineered to expand complex serial networks, this industrial isolated RS485 hub enables flexible star topologies by distributing signals from one master to four slave channels. It provides critical 2500V optical isolation and signal repeating to prevent ground loops and safeguard field devices across industrial data acquisition systems

Part No. 4CH-HUB-RS485

sku : IoT-IC104

INSTANT QUOTE

Primary function

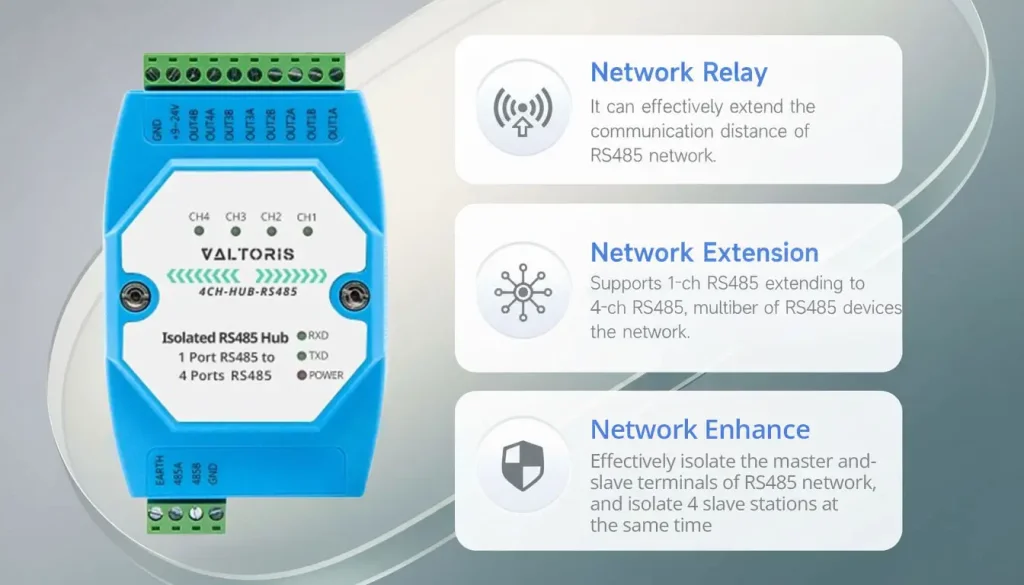

Supports RS485 network relay, extension and isolation functions

Connection diagram

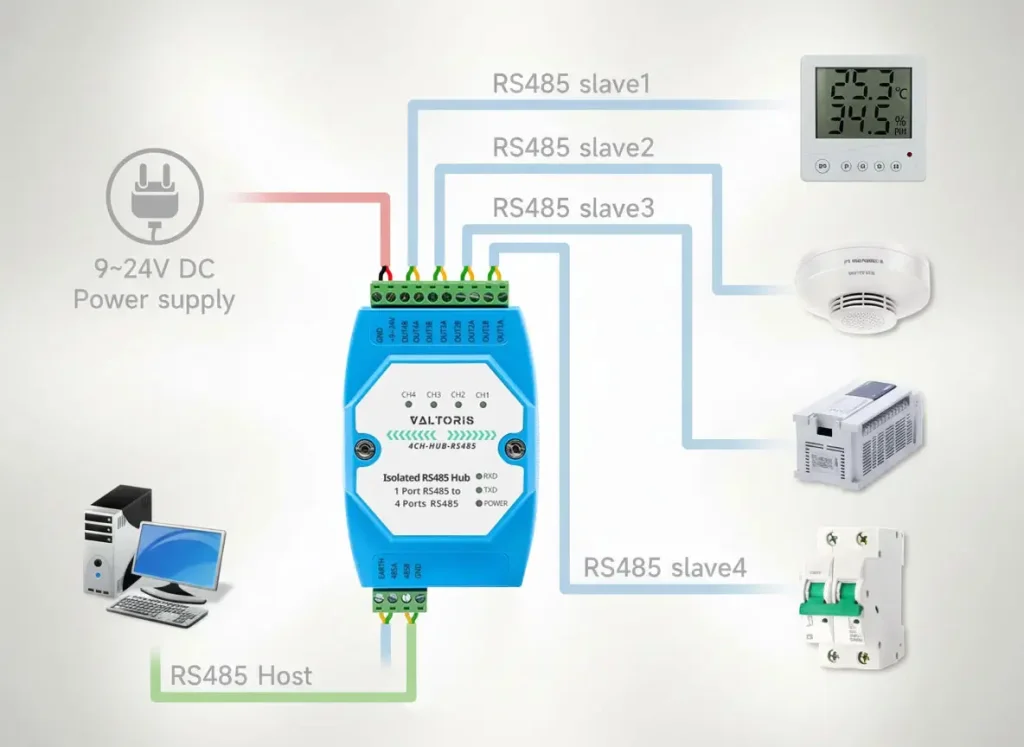

The isolated RS485 master port can be connected to the RS485 host device,

and the extended 4-ch isolated RS485 port can be connected to various RS485 slave devices,

such as RS485 sensors, etc.

Industrial isolation protection

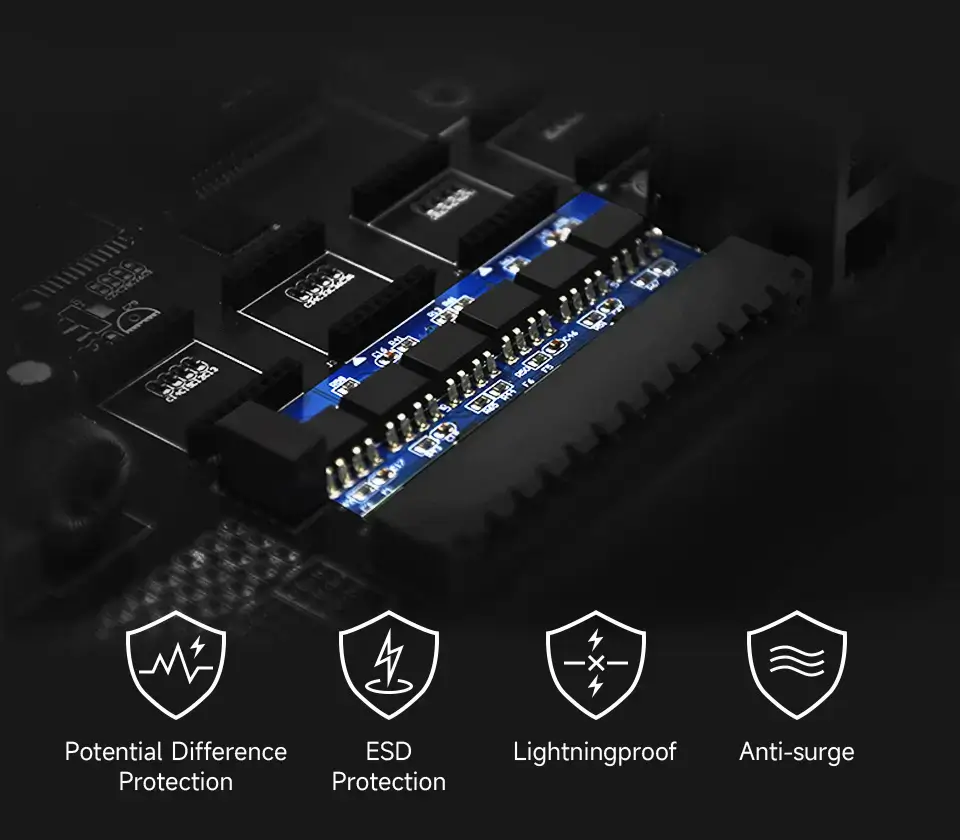

The built-in photoelectric isolation protection circuit can effectively isolate RS485 master and slave devices to avoid the damage of ground potential difference between devices, anti-electrostatic, lightning-proof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements.

Wide baud rate range

Supports 300～460800 bps wide baud rate communication range (self-adaptive)

Rail-Mount Support

Supports 35mm standard guide rail with rail-mount buckle, easy to install.

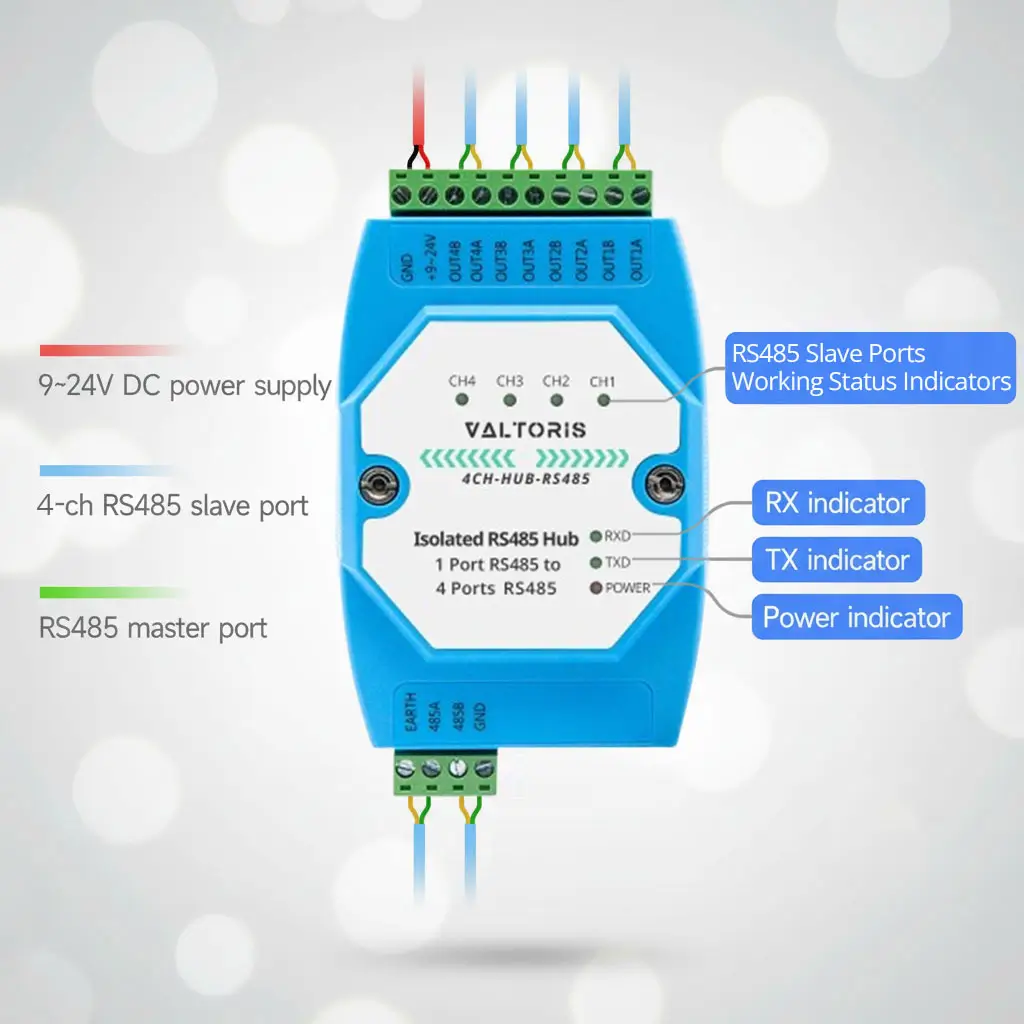

Interface introduction

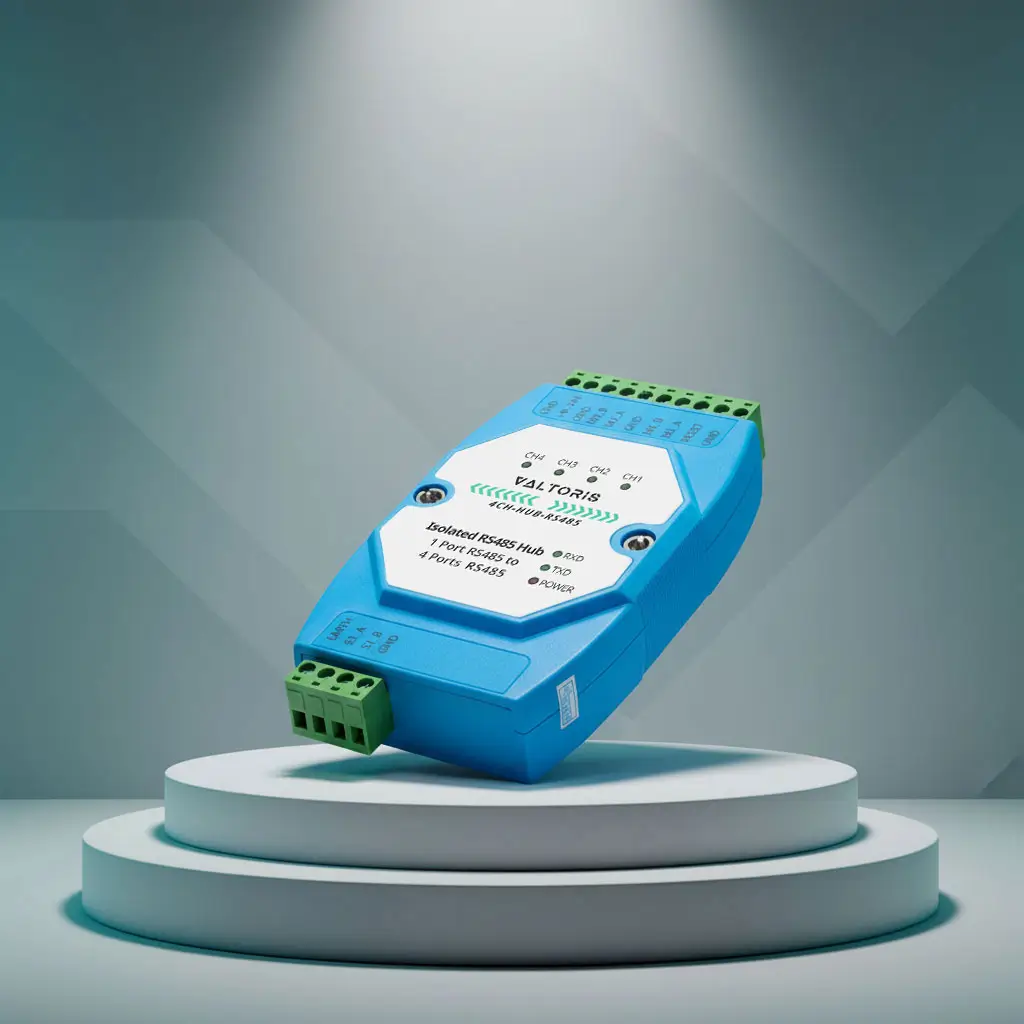

Product Show

Outline dimensions

Hub Selection Guide

Model	2CH-HUB-RS485	4CH-HUB-RS485	4CH-HUB-RS232/485	8CH-HUB-RS485
Product Brief	2-channel active RS485 caching hub	4-channel active RS485 expansion isolation hub	4-channel active RS485/232 expansion isolation hub	8-channel active RS485 expansion isolation hub
Physical interface	RS-485 port 3PIN flange head*3	RS-485 port 2PIN flange head*5	RS-232C end DB9 female head (hole type)1, RS-485 port 2PIN flange head5	RS-485 port 2PIN flange head*9
Transmission rate	1200~460800bps	300-460800bps (adaptive)	0~200Kbps (adaptive)	300-460800bps (adaptive)
Isolation protection	/	Isolation voltage RS485 Isolation voltage: 2500V Static protection RS485: 12KV	Isolation voltage RS485 Isolation voltage: 2500V Static protection RS485: 12KV	Isolation voltage RS485 Isolation voltage: 2500V Static protection RS485: 12KV
Interface parameters	Data bit 8 Check bits None/Odd/Even/Mark/Space Stop position 1/2
Support nodes	Each RS485 port supports a maximum of 32 nodes
Transmission distance	RS232C：15m; RS485: 1200 meters (at 9600bps); The higher the communication speed, the shorter the distance
Transmission medium	Ordinary wire, twisted pair or shielded wire
Working method	Asynchronous half duplex
Power consumption	DC9-24V 12V@30mA
Operating Temperature	-45℃~+85℃
Humidity	<95%RH
Size（Length x Width x Height）	121mm * 72mm * 34mm

Wiki

Wiki: 4CH-HUB-RS485

Interface standard	Compliant with RS485 standard
Physical interface	RS485 screw terminals
Baud rate	1200~460800
supported nodes	Each RS485 port supports up to 32 nodes
Communication distance	1200 m (9600 bps); the higher rate the shorter distance
Operating mode	RS485 two-wire (A, B), half-duplex transparent transmission
Power supply	DC 9~24V
Operating temperature	-45 ~ +85℃
Environment humidity	<95%RH
Transmission medium	Normal parallel cables/twisted-pair cables

4CH-HUB-RS485 is an industrial-grade isolated RS485 Hub/Splitter/Repeater that can expand 4-channel RS485 slave ports through 1-channel RS485 master port and can realize relay, extension, and isolation functions of the RS485 network, with a screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.

[User Manual] Valtoris-4CH-HUB-RS485 User Manual
