Industrial Zigbee to Ethernet Converter

Engineered for distributed wireless telemetry, this industrial Zigbee to Ethernet gateway bridges 2.4G DSSS mesh networks directly into enterprise IP infrastructure. It transparently encapsulates remote serial data into TCP/IP packets, allowing flexible star and mesh topologies to bypass complex wiring constraints and unify facility data acquisition.

Part No. VT-ZB701
sku : IoT-Z101
INSTANT QUOTE

Industrial Zigbee Ethernet Gateway & Edge Node

The VT-ZIGBEE700 and VT-ZIGBEE701 provide high-performance, high-stability wireless transmission for industrial data collection. Eliminate expensive cable runs by bridging legacy RS232/485/422 equipment directly into your TCP/IP networks via a 2.4G wireless mesh.

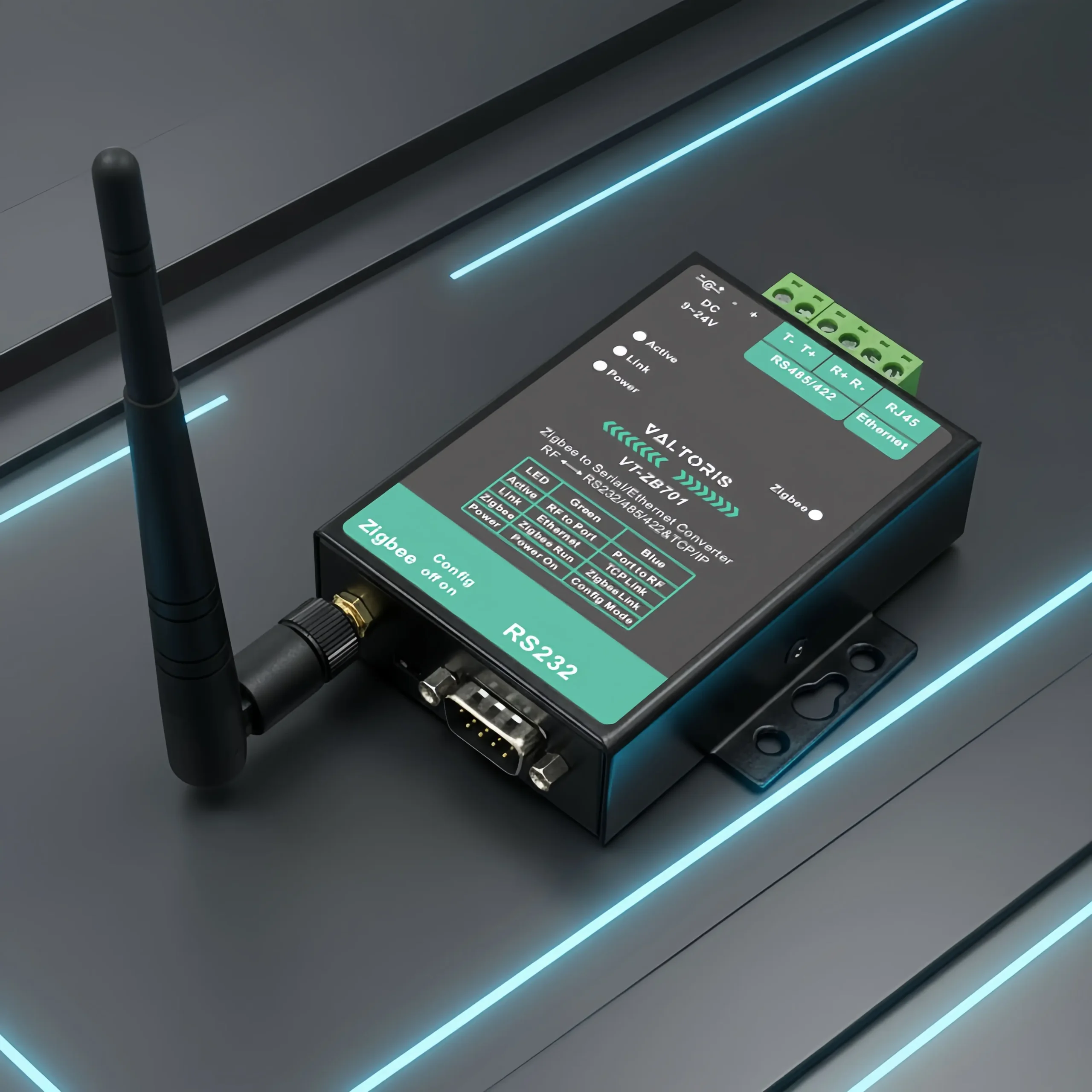

VT-ZIGBEE701 Industrial Zigbee Ethernet Gateway Overview

Flexible Mesh & Star Topologies

Adapt to any facility layout without line-of-sight restrictions. Supports point-to-point, star, tree, and mesh networking with up to 65,535 user-definable network IDs and 16 independent channels to completely eliminate crosstalk.

Zigbee Mesh and Star Topology Network Diagram

Universal Serial & Ethernet Bridging

Operating as a master station, the VT-ZIGBEE701 receives serial data from remote VT-ZIGBEE700 nodes and seamlessly converts it into TCP/IP packets. It functions as a complete serial device server with TCP Server, TCP Client, and UDP modes.

Zigbee to Ethernet TCP/IP Transparent Transmission

Hardware Interfaces & Dimensions

Housed in a rugged, radiation-resistant SECC metal enclosure, it operates flawlessly in -40°C to 85°C environments. The compact design includes built-in mounting flanges for rapid deployment in constrained control panels.

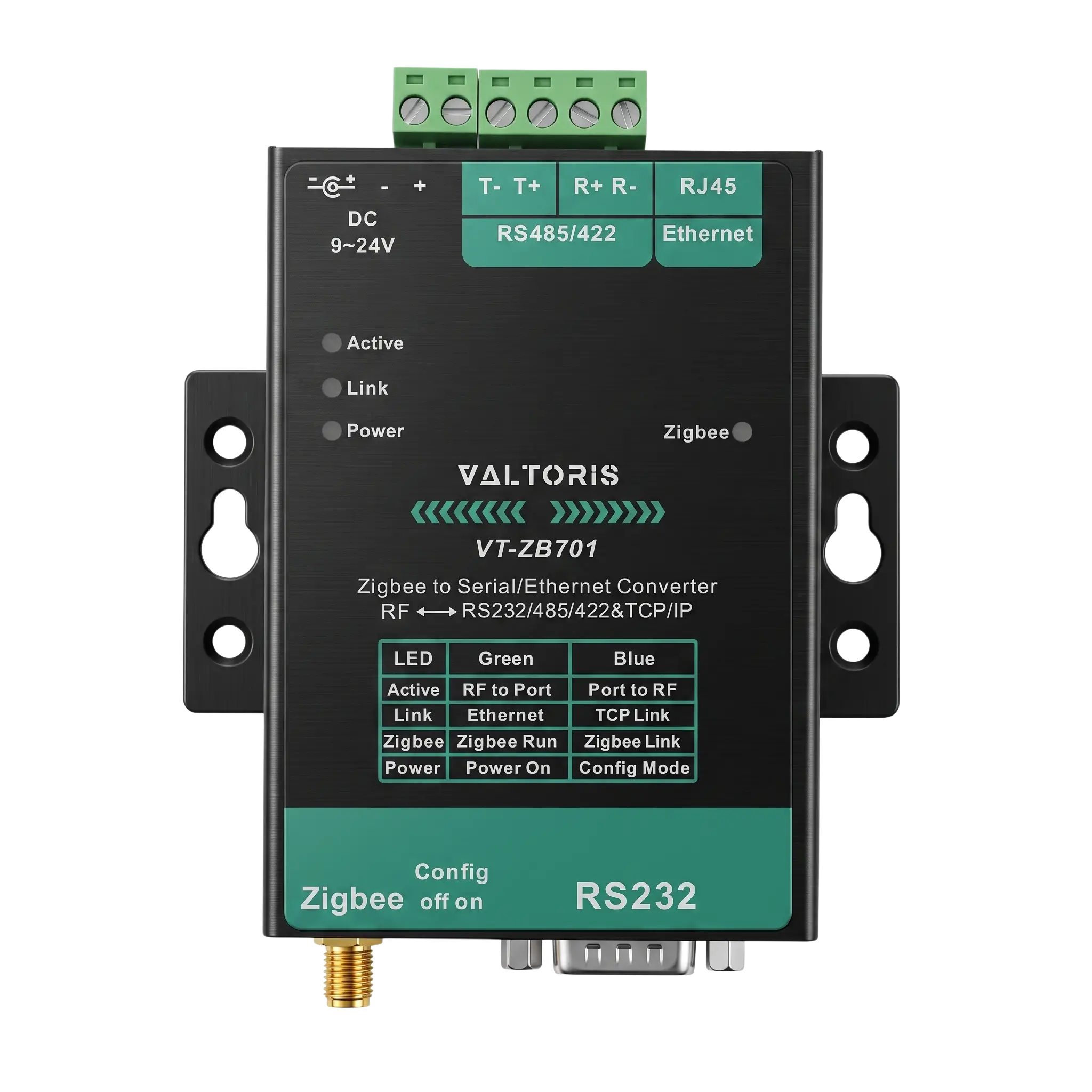

VT-ZIGBEE701 Hardware Port Definitions

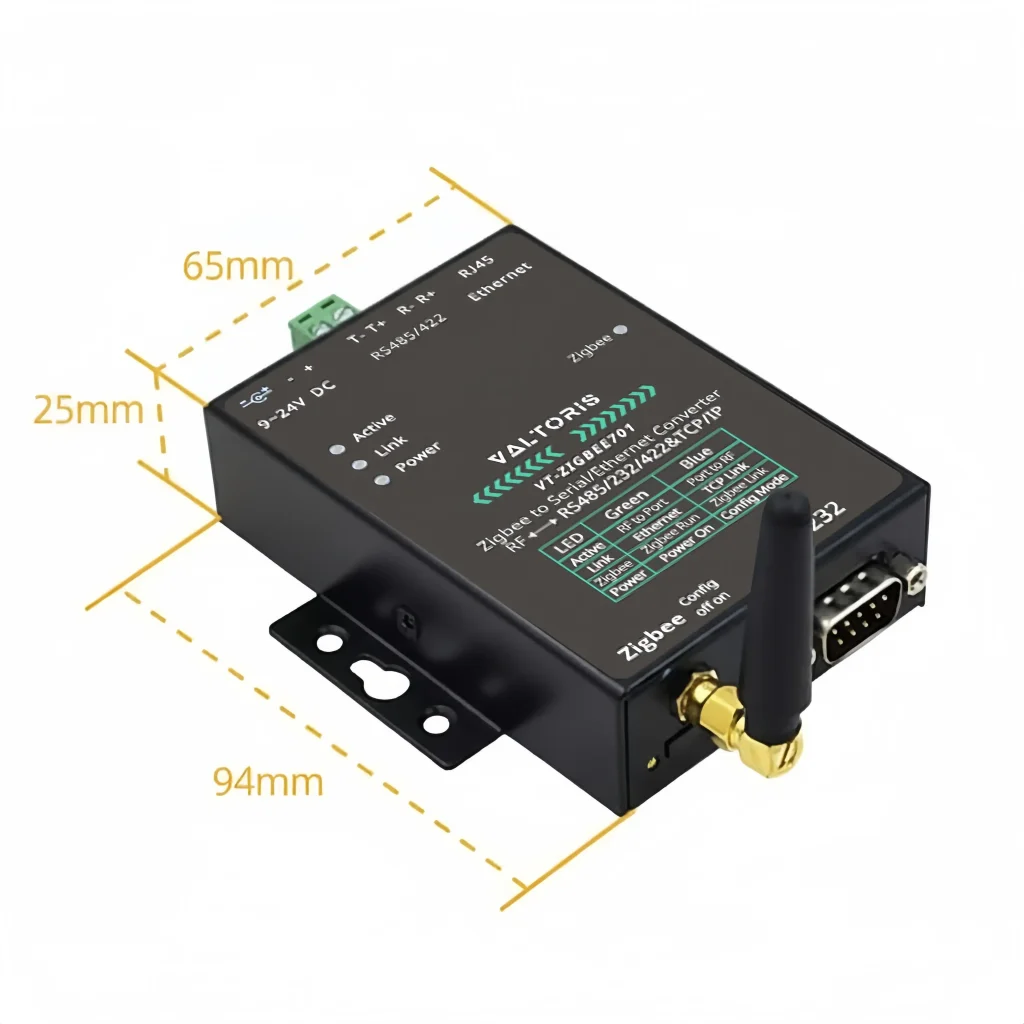

VT-ZIGBEE700 Physical Mechanical Dimensions

Hardware & Interfaces
Data InterfacesRS232 (DB9), RS485/422 (Terminal Block), 10/100M RJ45 (VT-ZIGBEE701 only)
Power InputDC 9~24V (Inside positive outside negative, standard outlet)
Dimensions9.4cm × 6.5cm × 2.5cm
Wireless Communication
Transmission Distance2000m (Line of Sight)
Frequency Range2.405GHz ~ 2.480GHz (16 Channels)
RF PerformanceTransmit Power: 25dBm | Receiving Sensitivity: -105dBm
Network TopologyPoint-to-point, Star, Tree, Mesh (0000~FFFF Network IDs)
Software & Environment
Serial Port SetupBaud Rate: 1200~115200bps; Parity: None, Even, Odd
ProtocolsIEEE802.15.4 / ZigBee Standard, ETHERNET, IP, TCP, UDP
Operating Temp.-40℃ ~ +85℃
Field-Tested Wireless Reliability
✓ Ultra-Long Range Transmission: Achieves ultra-stable 2.4G DSSS wireless communication with a distance of up to 2000 meters, overcoming complicated wiring constraints in large factories.
✓ Zero Packet Loss Architecture: Designed for continuous telemetry. Provides a full-duplex, error-free communication channel with no packet loss or stalling under 38400 bps.
✓ Flexible Mesh & Star Topologies: Extremely adaptable to any physical layout. Supports point-to-point, star, tree, and mesh networking with 16 independent channels to eliminate RF crosstalk.
Software & Edge Capabilities
✓ Universal Serial Bridging: Acts as a true transparent bridge, effortlessly integrating legacy RS232, RS485, and RS422 instruments into your modern network without modifying existing PLC code.
✓ Ethernet & TCP/IP Conversion: The VT-ZIGBEE701 functions as a wireless serial device server, translating serial streams directly into TCP Server, TCP Client, or UDP network packets.
✓ Developer-Friendly Tools: Equipped freely with our Windows Virtual Serial & Device Management Tool (VirCom) for one-key searches and seamless virtual COM port creation.
