Industrial Zigbee to Serial Converter

Engineered for distributed industrial telemetry, this long-range Zigbee serial node seamlessly bridges RS232, RS485, and RS422 legacy devices into robust 2.4G DSSS wireless networks. With up to 2000m transmission and zero packet loss under 38400bps, it enables flexible star, tree, and mesh topologies to overcome complex wiring constraints across expansive facility architectures.


Part No. VT-ZB700
sku : IoT-Z100
INSTANT QUOTE

Industrial Zigbee to Serial/Ethernet Wireless Converters

The VT-ZIGBEE700 and VT-ZIGBEE701 provide high-performance, high-stability wireless transmission for industrial data collection, bridging RS232/485/422 and Ethernet networks.

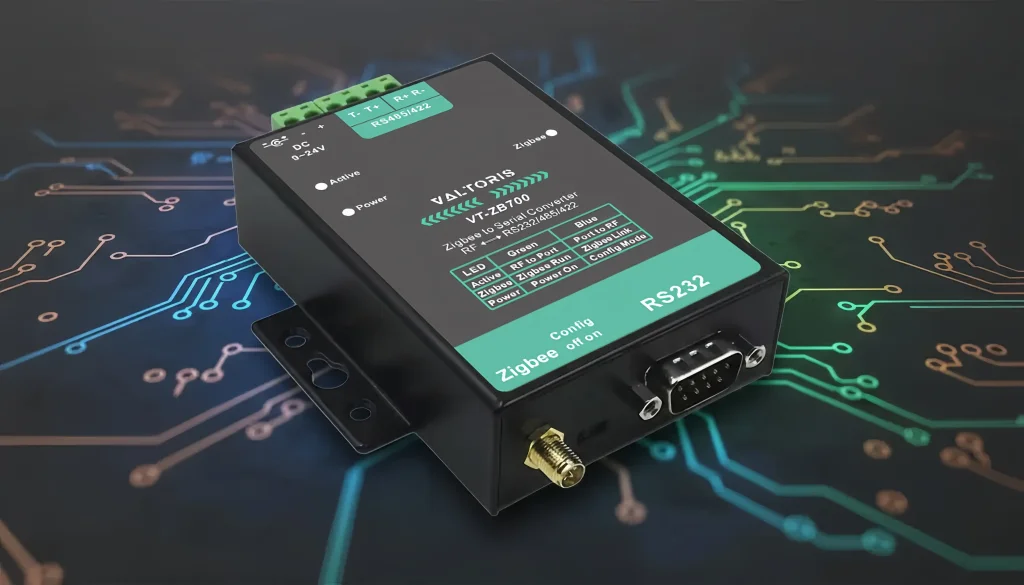

VT-ZIGBEE700 Industrial Zigbee Wireless Converter Overview

Flexible Mesh & Star Topologies

Supports point-to-point, point-to-multipoint, star, tree, and mesh network structures. Configurable with 16 channels and up to 65,535 network IDs for expansive facility architectures.

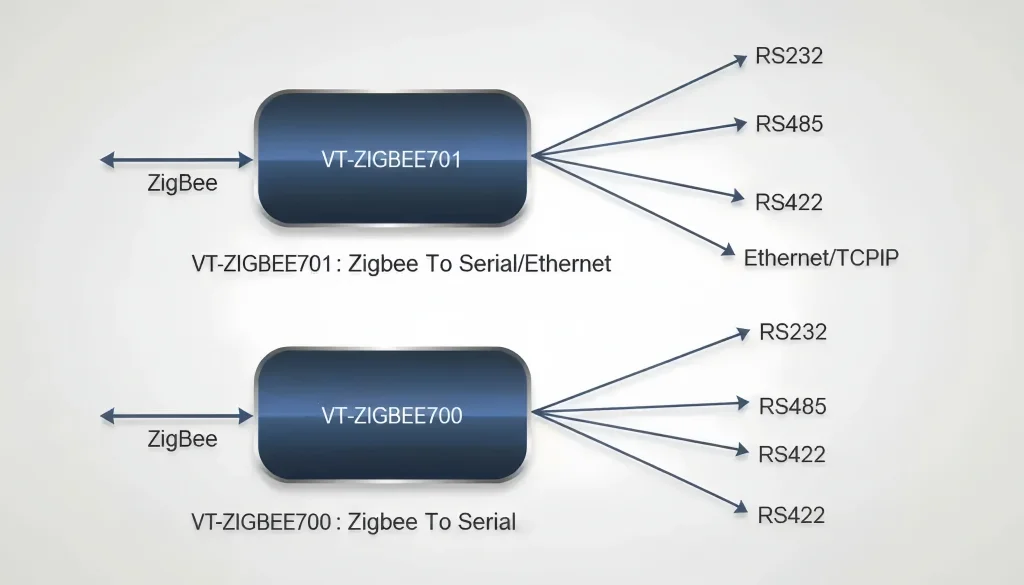

Zigbee Mesh and Star Topology Network Diagram

Universal Serial & Ethernet Bridging

The VT-ZIGBEE701 acts as a master station, receiving serial data from VT-ZIGBEE700 nodes and seamlessly converting it to TCP/IP packets for Ethernet transmission. Supports TCP Server, TCP Client, and UDP modes.

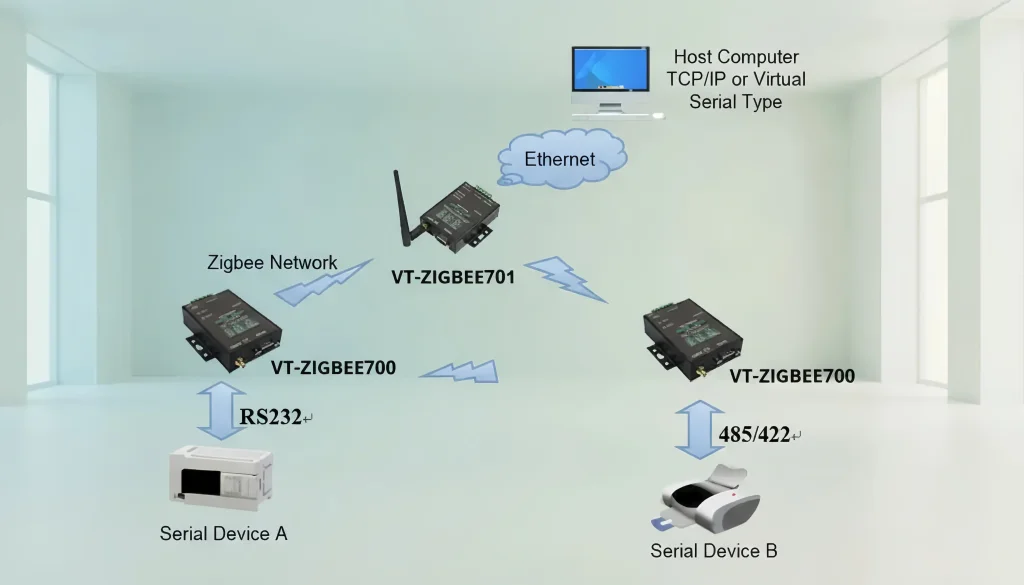

Zigbee to Ethernet TCP/IP Transparent Transmission

Outline Dimensions

Compact design (9.4cm x 6.5cm x 2.5cm) with built-in mounting "ears" for easy installation in tight industrial cabinets.

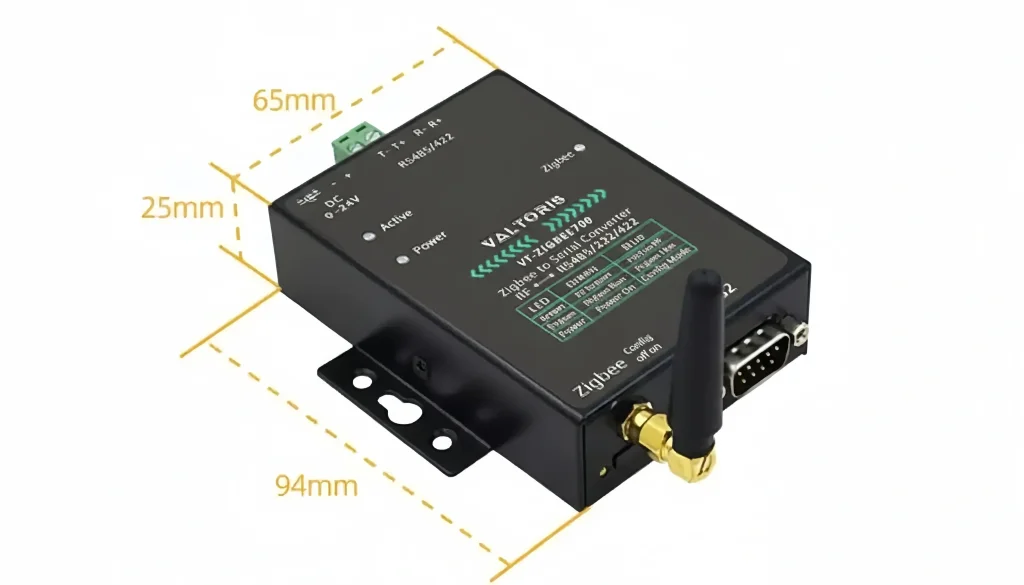

VT-ZIGBEE700 Hardware Port Definitions
VT-ZIGBEE700 Physical Mechanical Dimensions

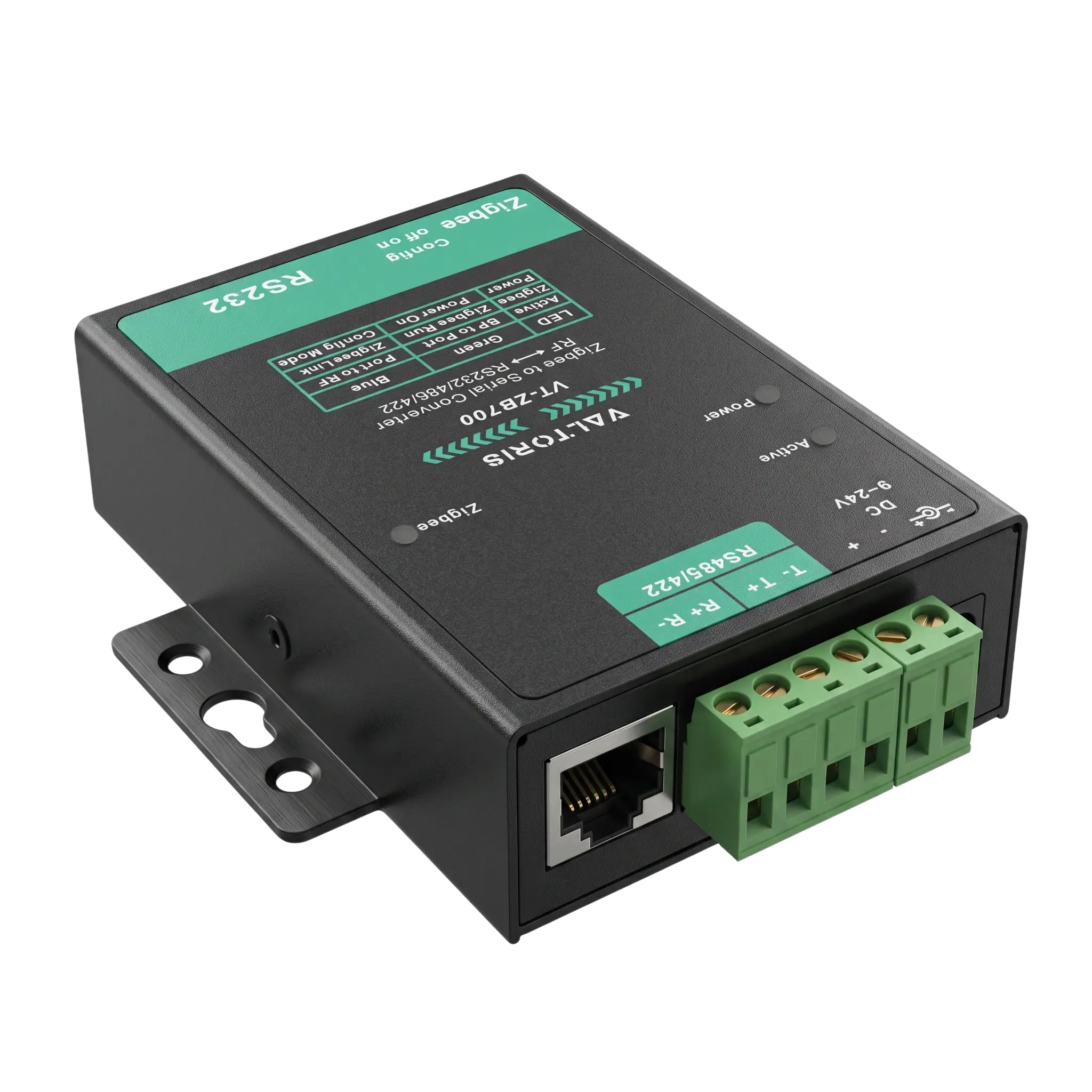

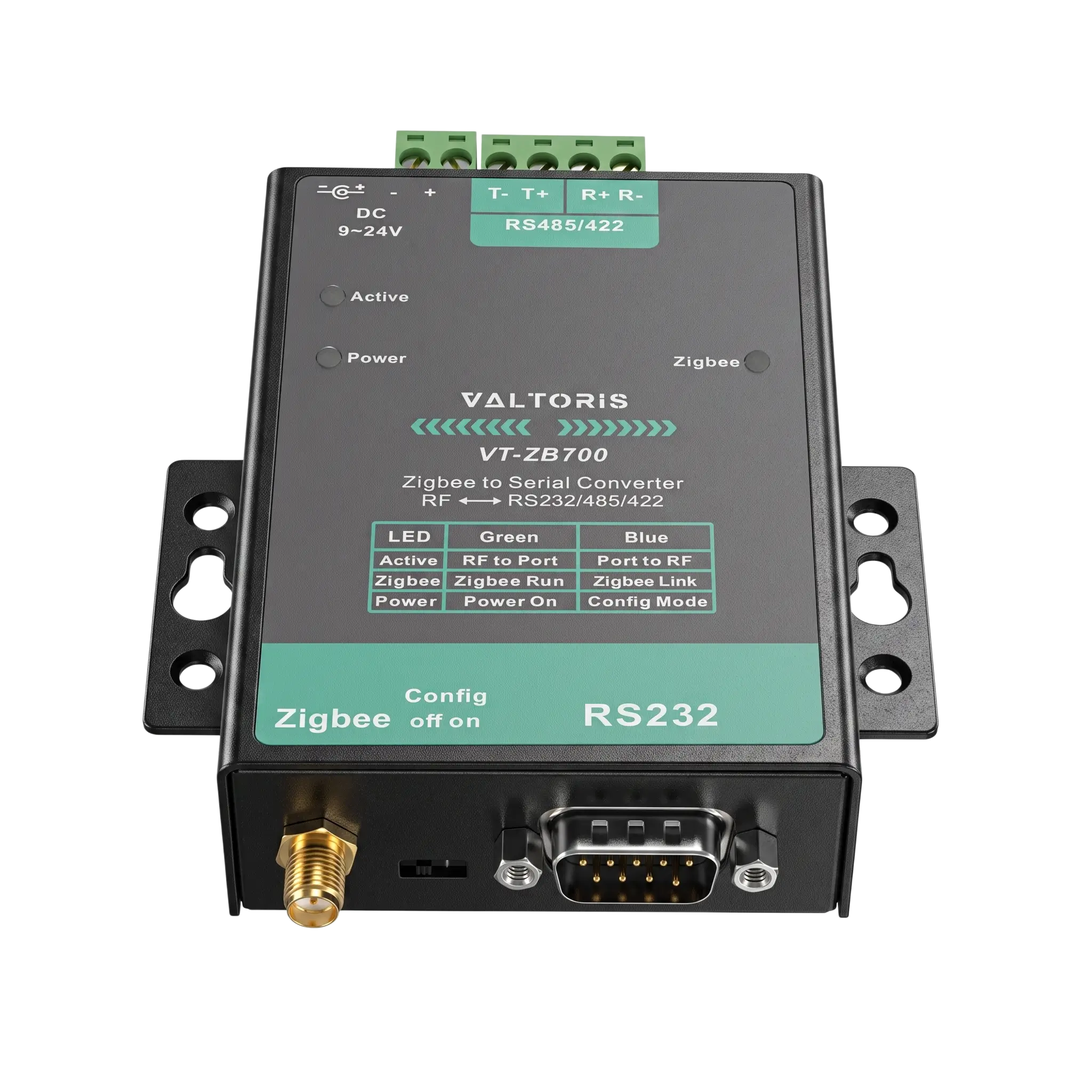

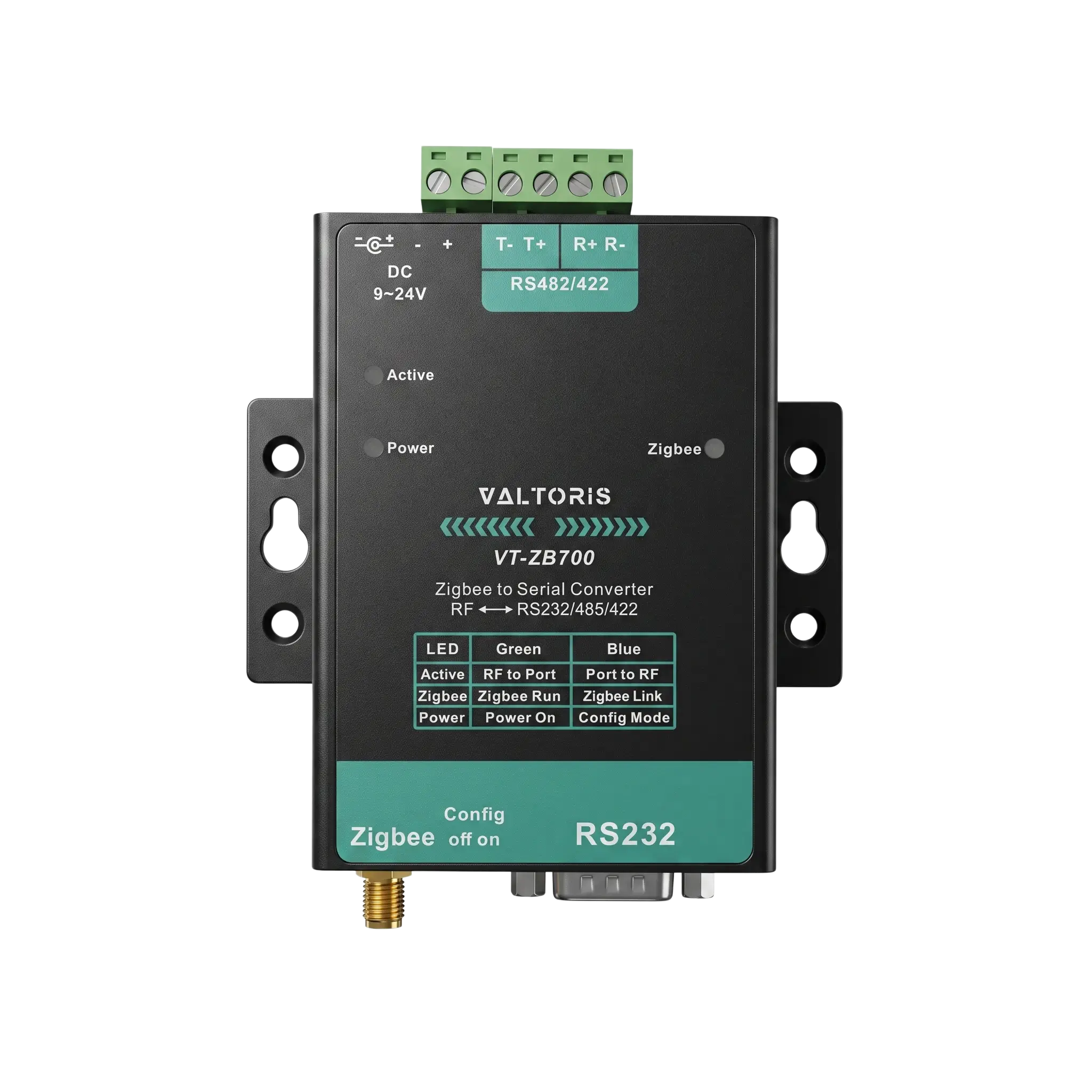

Appearance & Hardware
Data InterfacesRS232 (DB9), RS485/422 (Terminal), Ethernet 10M/100M (RJ45, VT-ZIGBEE701 only)
Power SupplyDC 9~24V (Inside positive outside negative, standard outlet)
Dimensions9.4cm × 6.5cm × 2.5cm
Wireless Communication
Transmission Distance2000m
Frequency Range2.405GHz ~ 2.480GHz (DSSS Modulation)
Network Capacity16 Channels, 0000~FFFF Network IDs
Network TopologyPoint-to-point, Star, Tree, Mesh
Software & Environment
Serial Port SetupBaud Rate: 1200~115200bps; Check bit: None, Even, Odd
Communication ProtocolIEEE802.15.4 / ZigBee standard, ETHERNET, IP, TCP, UDP
Operating Temp.-40°C ~ +85°C
Core Wireless Telemetry Capabilities
✓ Ultra-Long Range Transmission: Achieves ultra-stable 2.4G DSSS wireless communication, with a transmission distance of up to 2000m, perfectly avoiding complicated wiring constraints.
✓ Zero Packet Loss Architecture: Ideal for real-time data streams. It provides a full-duplex, error-free communication channel without packet loss or stalling under 38400 bps.
✓ Flexible Mesh & Star Topologies: Adaptable to any facility layout. Supports point-to-point, star, tree, and mesh networking with up to 65,535 user-definable network IDs and 16 independent channels.
Software & Edge Capabilities
✓ Universal Serial Bridging: Effortlessly integrates RS232, RS485, and RS422 legacy instruments into a single wireless network with no changes to your existing PLC code.
✓ Ethernet & TCP/IP Conversion: The VT-ZIGBEE701 can be configured as a TCP server, TCP client, or UDP mode, transparently converting Zigbee serial data to network packets.
✓ Developer-Friendly Tools: Equipped freely with the Windows Virtual Serial & Device Management Tool (VirCom) for one-key search, parameter modification, and virtual serial port support.

Frequently Asked Questions

Since the VT-ZIGBEE700 lacks an Ethernet port, how do I configure the network IDs and baud rates?
The device has a dedicated hardware “Config” switch (DIP switch). Simply dial it to “ON” to enter configuration mode, connect it to your PC using a standard RS232 or USB-to-RS485 adapter, and easily configure your channels and baud rates using our free VirCom Tool for Windows.
Will standard 2.4G factory Wi-Fi networks interfere with this Zigbee serial data?
No. The VT-ZIGBEE series employs advanced DSSS (Direct Sequence Spread Spectrum) technology which offers strong anti-jamming capabilities. You can also select from 16 independent channels to ensure no overlap with local Wi-Fi frequencies.
Can I connect multiple VT-ZIGBEE700 nodes to a single RS485 master PLC?
Yes. You can easily configure a Point-to-Multipoint (Star) or Mesh topology. The polling requests of the PLC will be transparently broadcasted, and the addressed slave node will reply, perfectly emulating a traditional wired RS485 daisy-chain over the air.
