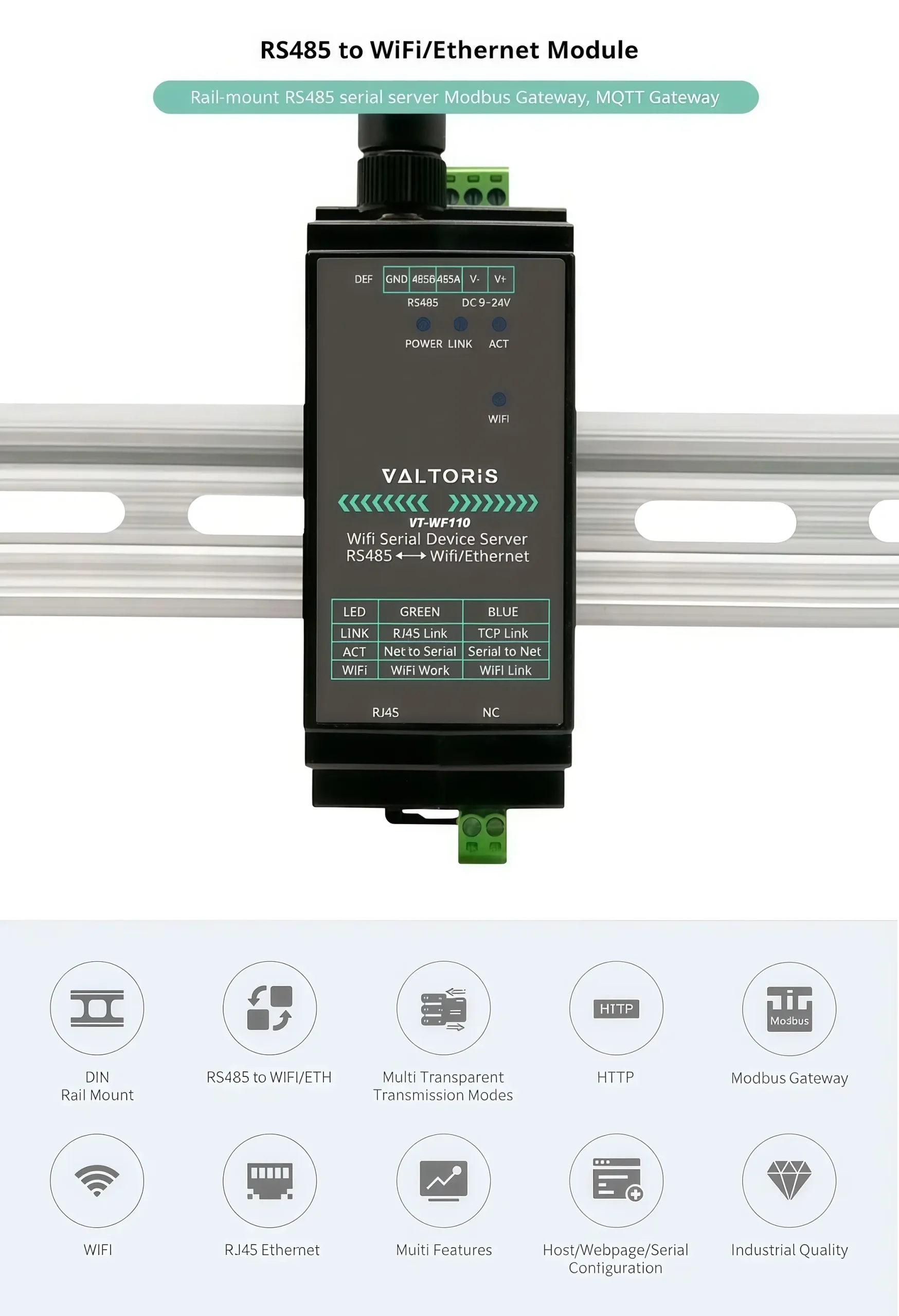

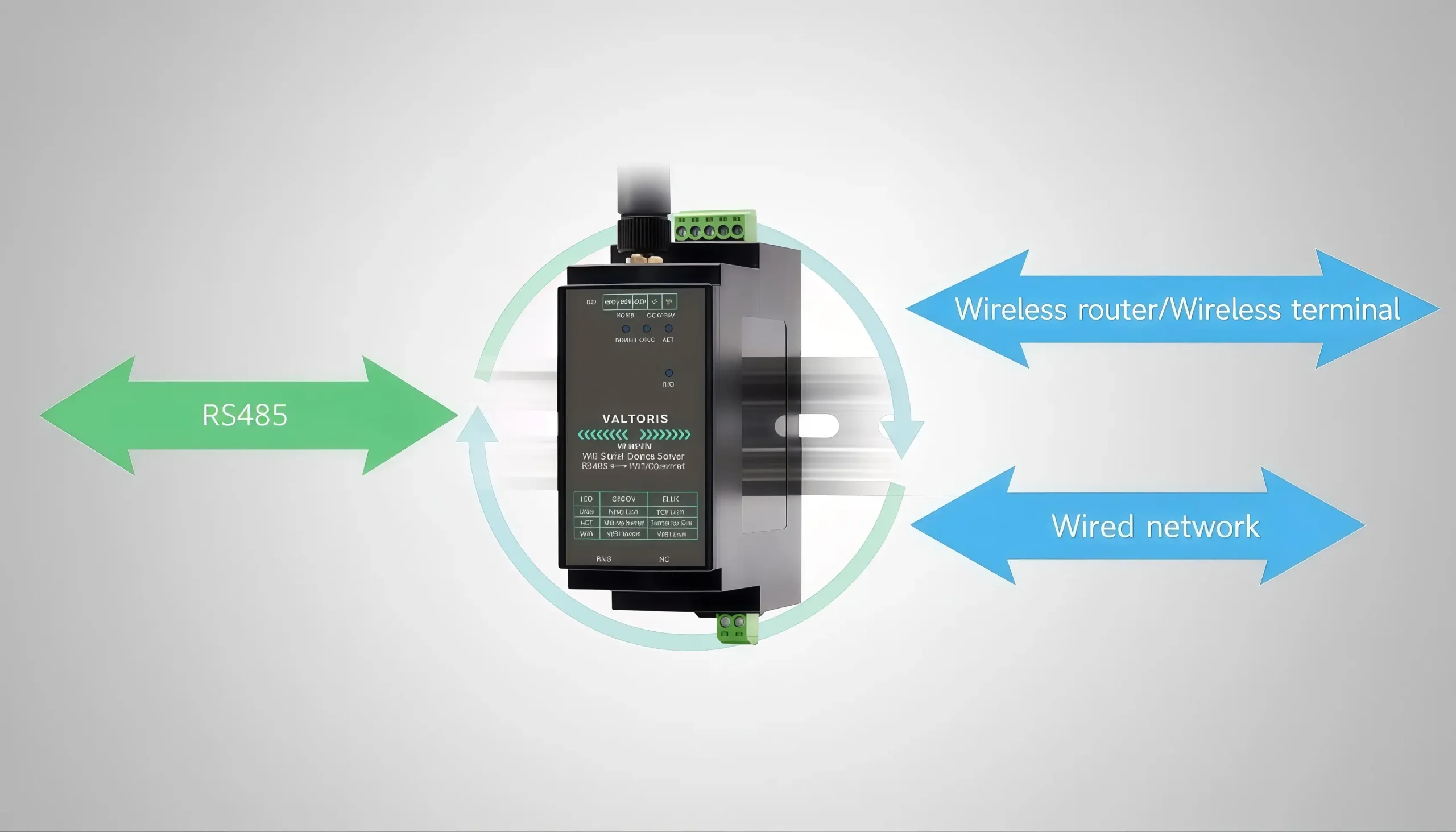

Support RS485 to WIFI, RS485 to Ethernet, Ethernet to WIFI, etc.

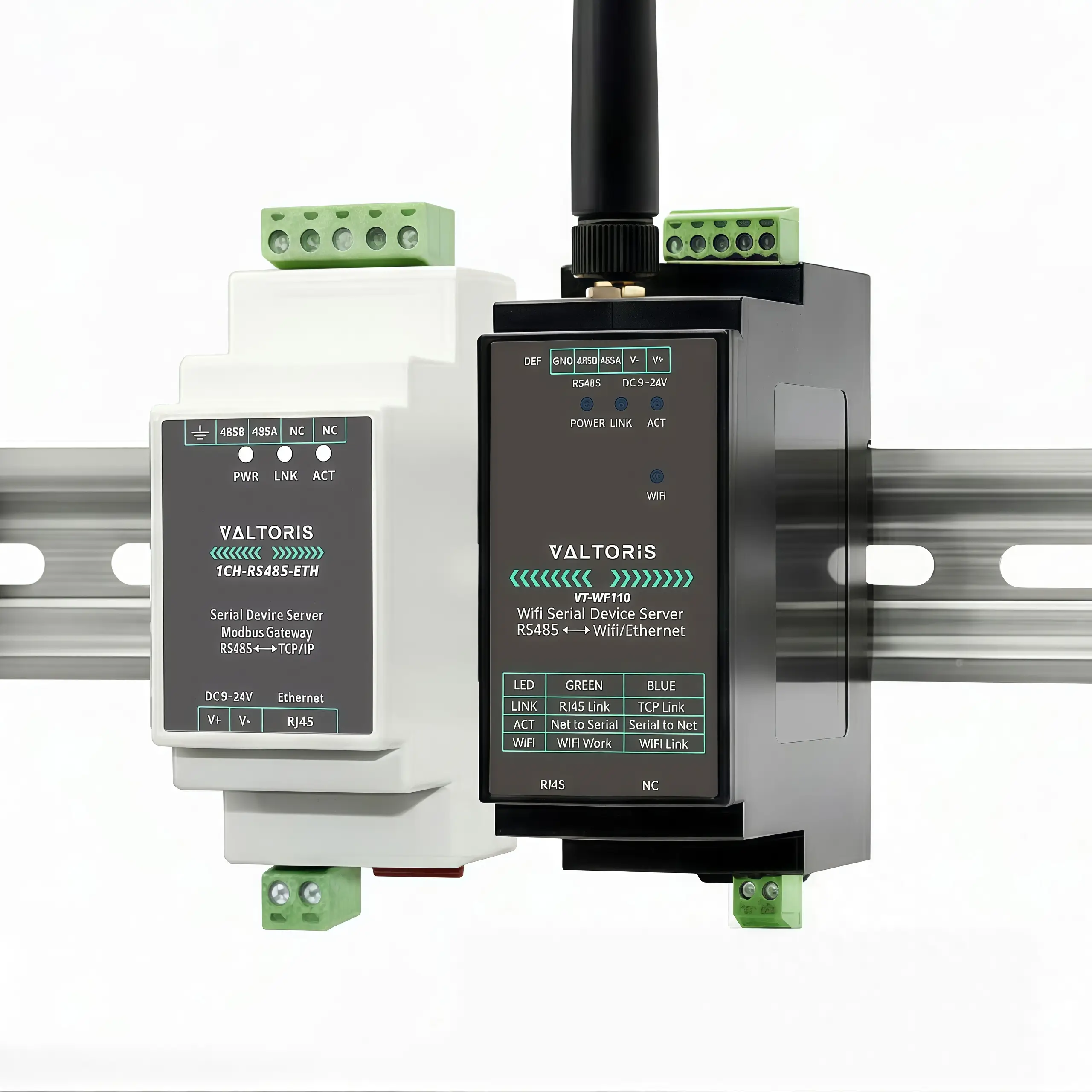

Industrial Rail-mount Support, Easy to Install, Compact Size, Cost-effective
Supports TCP Server / TCP Client / UDP Server / UDP Client
| Product model | VT-WF100 | VT-WF110 |
| OUTLINE | ||
| Product Type | Industrial rail-mount/wall-mount module with metal case | Industrial rail-mount module with plastic case |

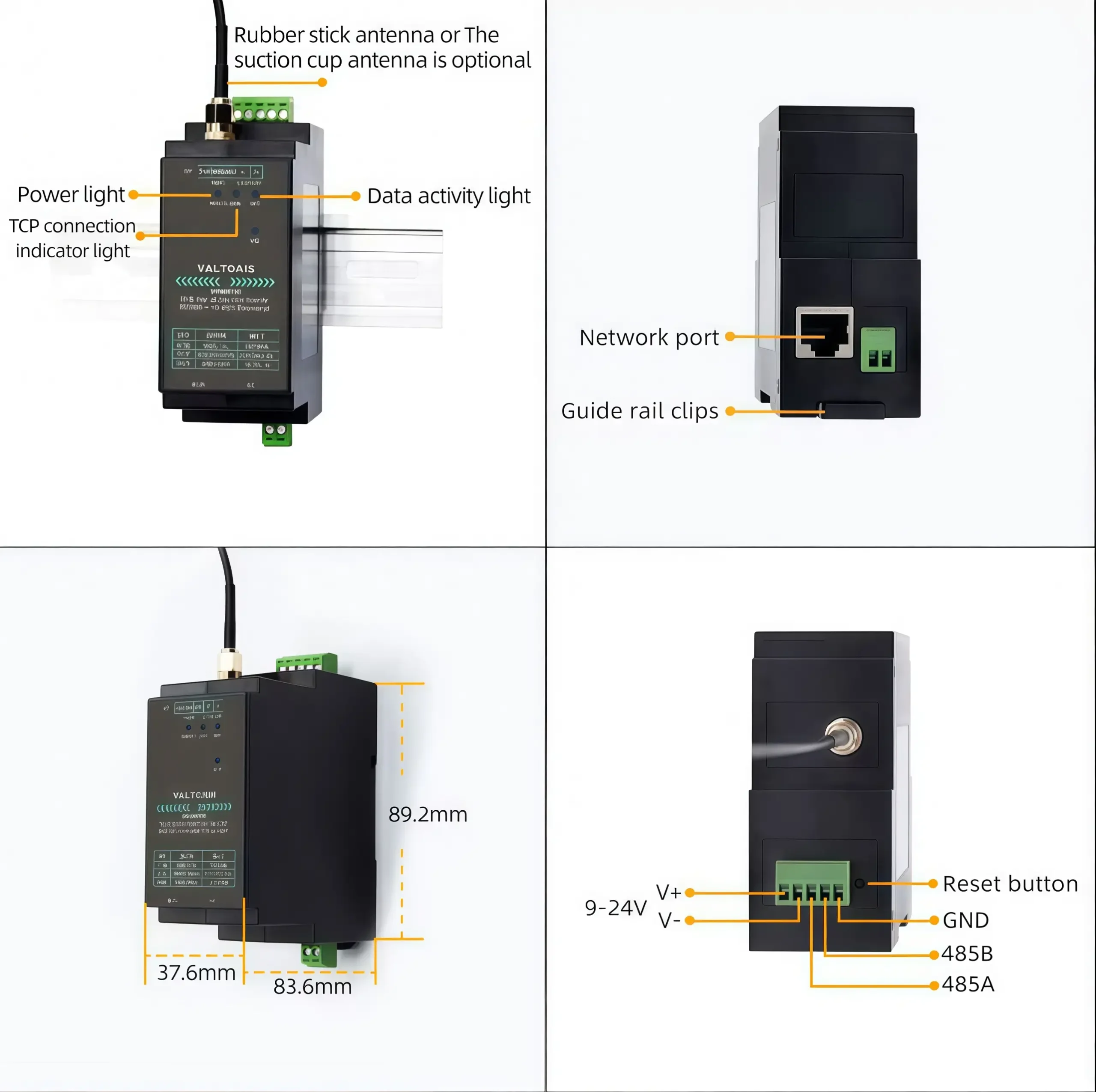

| Interface | RS232 port x 1, RS485 port x 1, RS422 port x 1, Ethernet port x 1 | RS485 port x 1, Ethernet port x 1 |
| Power supply | 485/422: 9 ~ 24V DC screw terminal, 232：9 ~ 24V DC DB9 | 9 ~ 24V DC screw terminal |

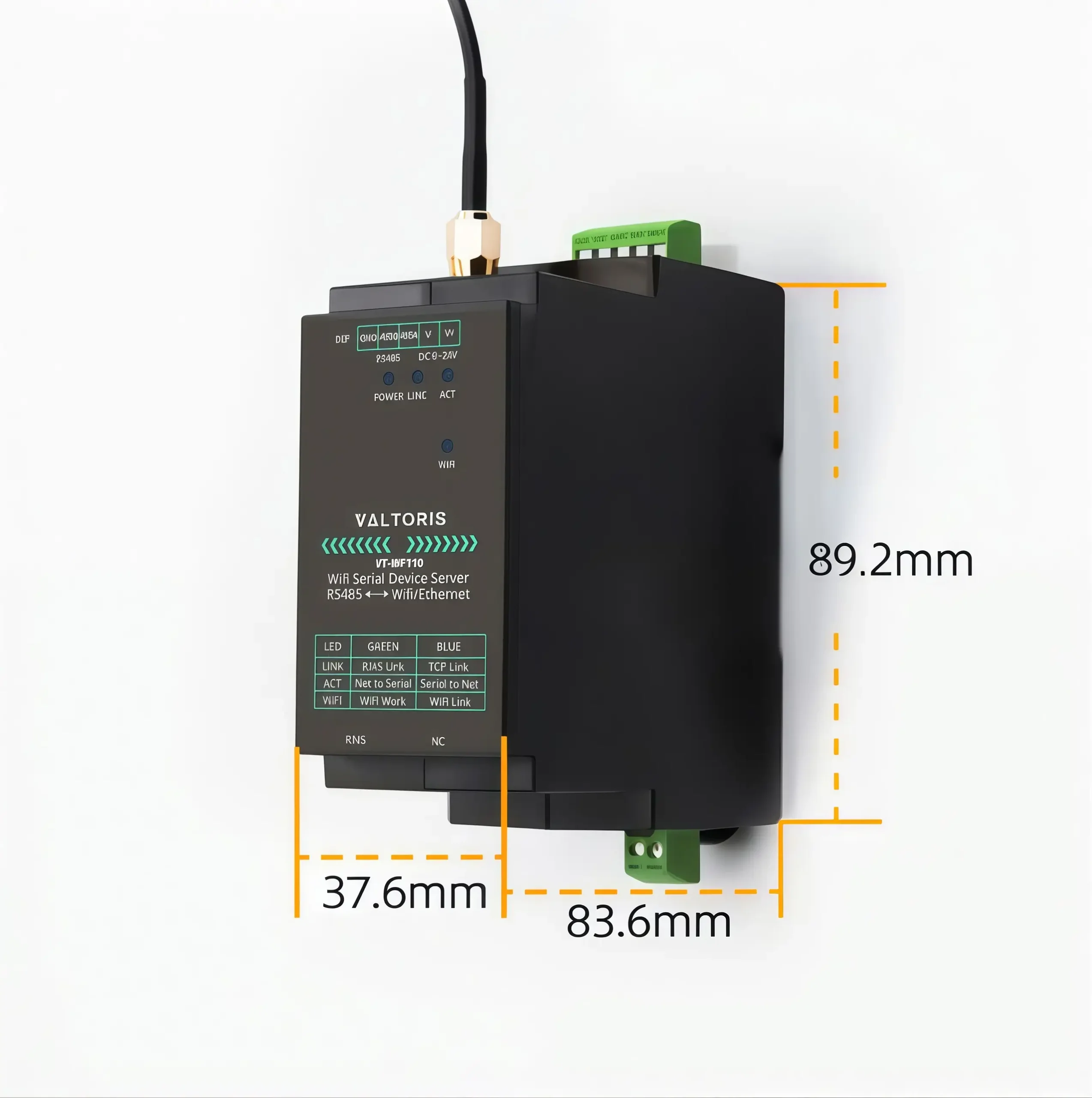

| Dimensions (L × W × H) | 94mm×65mm×25mm | 37.6mm×83.6mm×89.2mm |
| Communication | ||
| Ethernet | 10 / 100M auto-negotiation RJ45 connector | |
| WiFi | 802.11 b/g | |
| Serial port | RS485/232/422 | RS485 |
| WIRELESS specification | ||
| Frequency Band | 2.412GHz-2.484GHz | |
| Wireless network | STA/AP | |
| Security mechanism | WEP/WPA-PSK/WPA2-PSK | |
| Encryption type | WEP64/WEP128/TKIP/AES | |
| Transmitting power | 802.11b: +20dBm(Max.); 802.11g: +18dBm(Max.); | |
| Receiving sensitivity | 802.11b: -89dBm; 802.11g: -81dBm; | |
| Serial specification | ||
| Baud rate | 1200~115200bps | |
| Parity bit | none, odd, even, mark, space | |
| Data bit | 5 ~ 9 bits | |
| Flow control | RTS/CTS，XON/XOFF，NONE | NONE |
| Software | ||
| Protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP | |

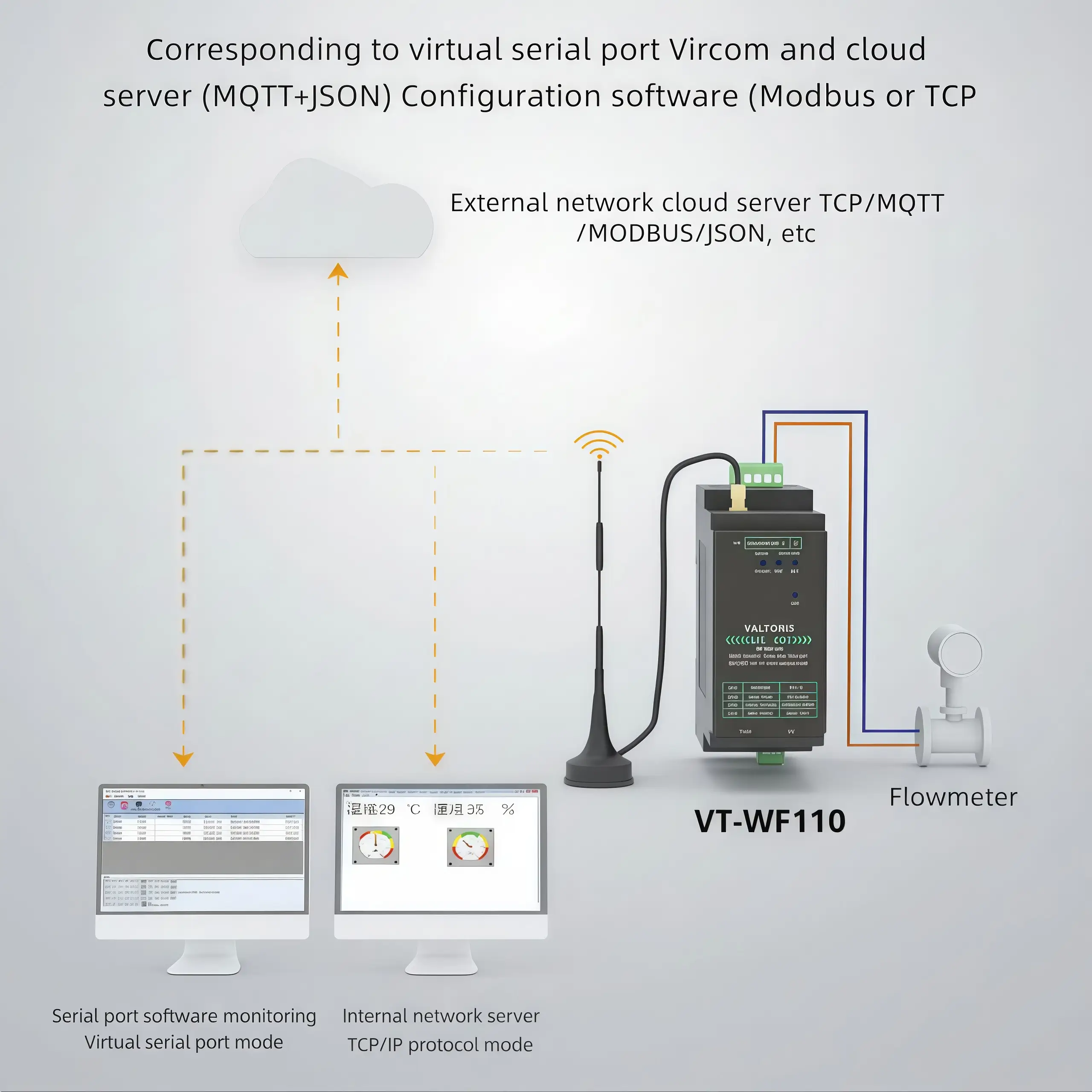

| Configuration | VirCom, WEB browser | |
| Communication method: | TCP/IP direct communicate, Virtual serial | |
| Environment | ||
| Operating temperature | -40~85℃ | |
| Storage temperature | -45~165℃ | -45~100℃ |
| Humidity range | 5~95% relative humidity | |

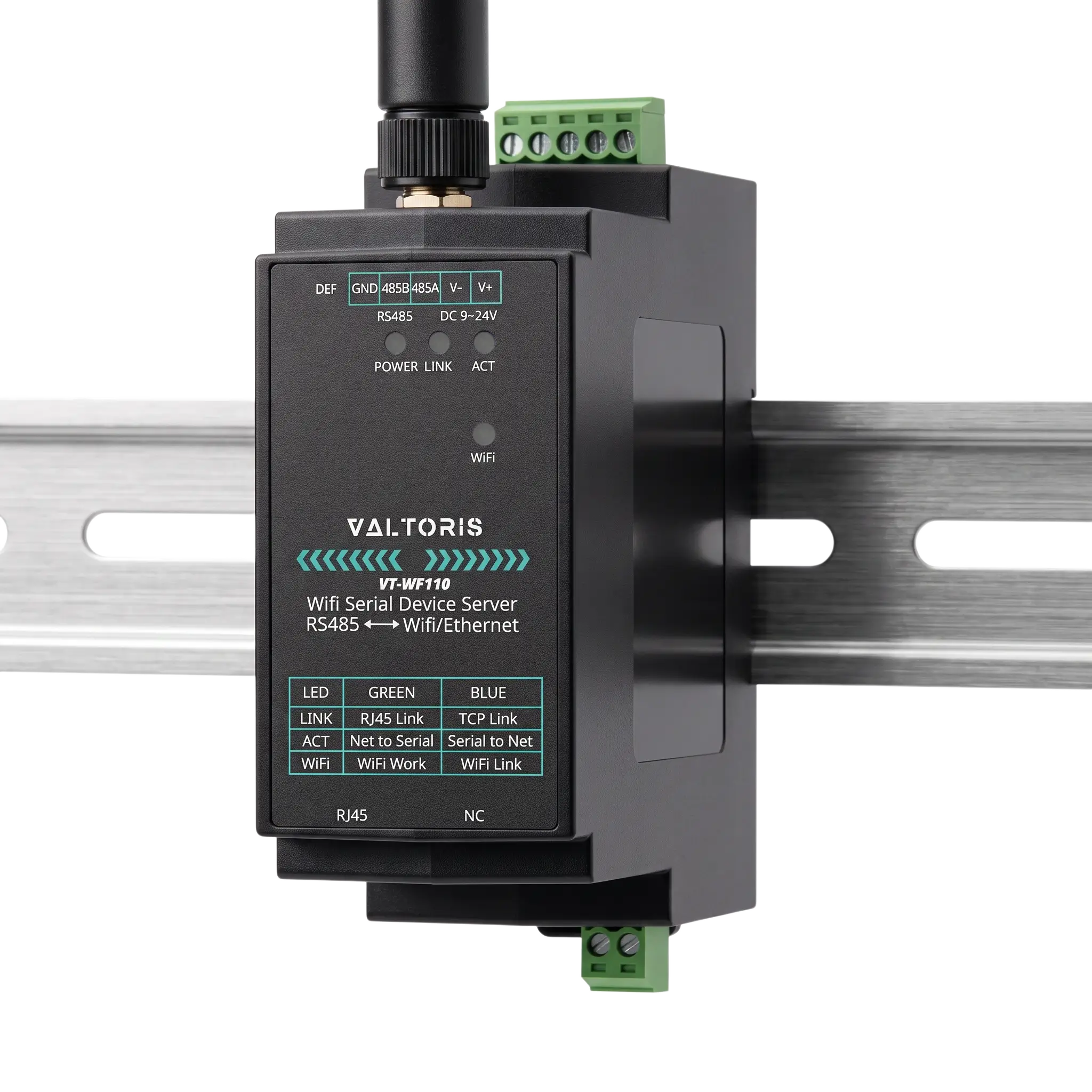

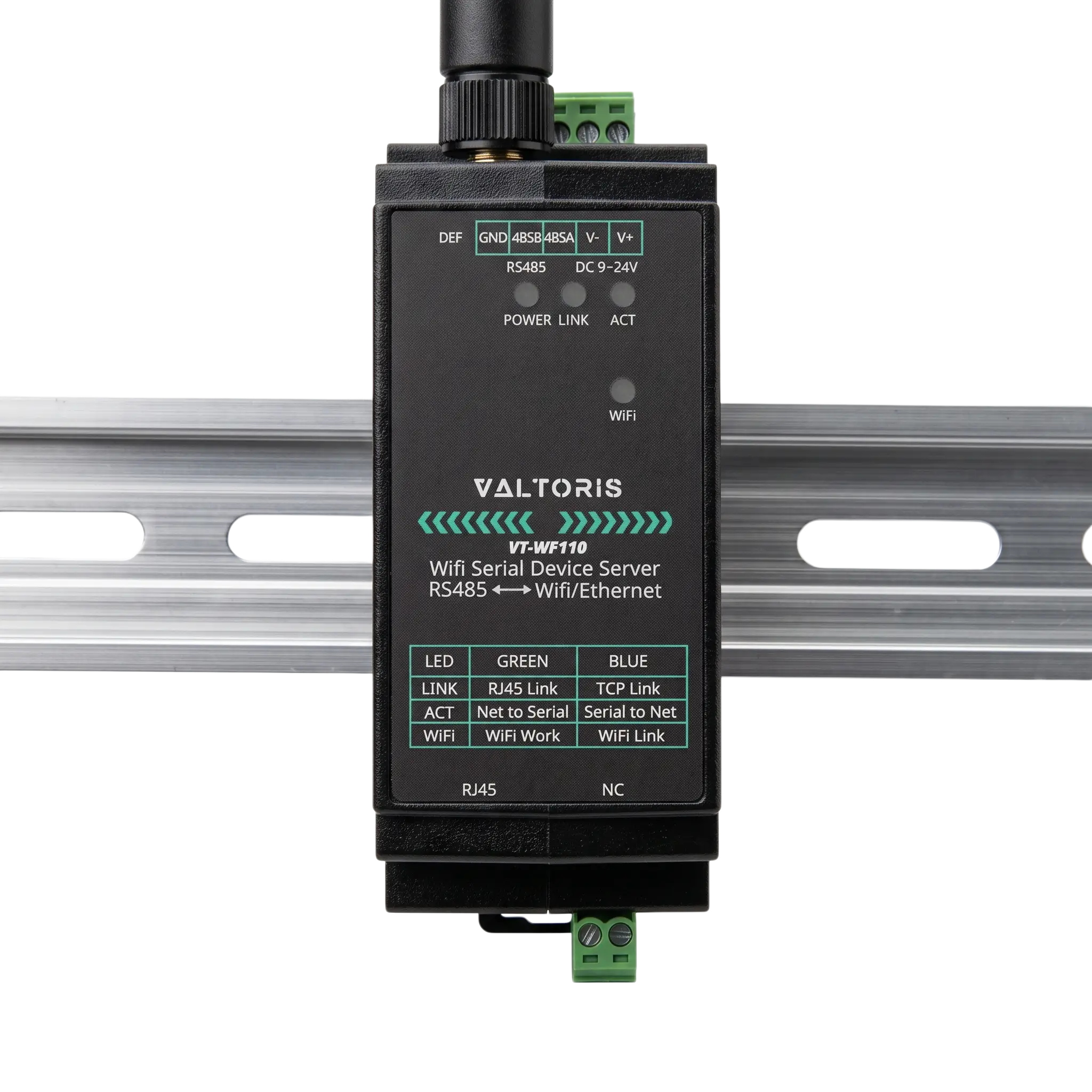

The VT-WF110 is a high-performance wireless bridge that gets rid of the need for expensive wiring. It is made for industrial panels that don’t have a lot of room. It only needs a standard DIN-rail mount and a wide 9–24V DC input to work well in places where there is a lot of demand.
Built-in Modbus TCP Gateway: Stop polling collisions and communication timeouts. The VT-WF110 can convert Modbus RTU to Modbus TCP without any extra software. This makes sure that your old serial meters and sensors can still collect data even if there are problems.

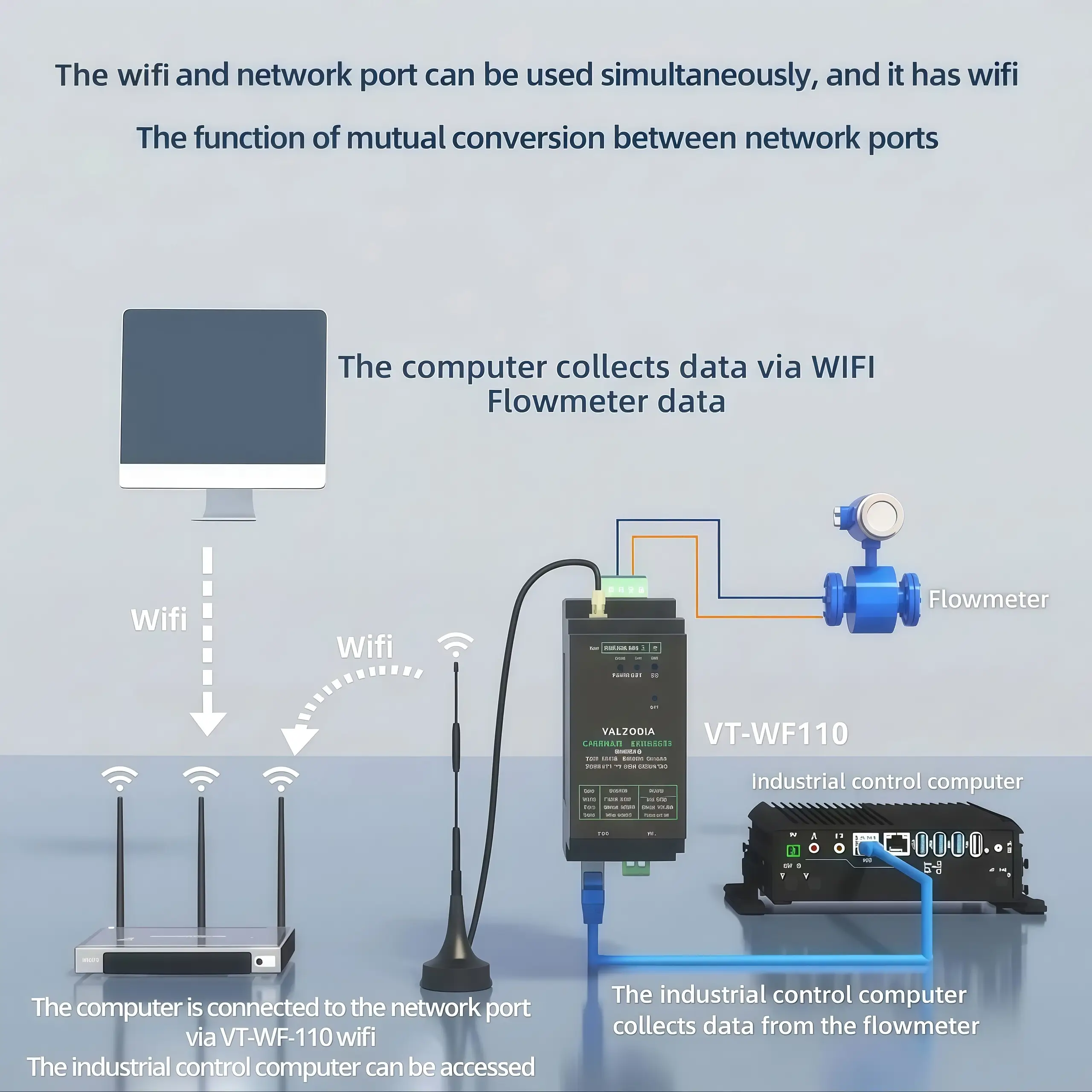

Flexible AP and STA Modes: Use STA mode to easily connect serial devices to your facility’s existing WiFi network. Or, use AP mode to create a localized network that lets engineers safely debug and monitor equipment from their smartphones or laptops right on the factory floor.
