Industrial Zigbee to Ethernet Converter

Engineered for distributed wireless telemetry, this industrial Zigbee to Ethernet gateway bridges 2.4G DSSS mesh networks directly into enterprise IP infrastructure. It transparently encapsulates remote serial data into TCP/IP packets, allowing flexible star and mesh topologies to bypass complex wiring constraints and unify facility data acquisition.

Part No. VT-ZB701
sku : IoT-Z101
INSTANT QUOTE

Industrial Zigbee to Ethernet Gateway

Engineered for distributed wireless telemetry, the VT-ZIGBEE701 serves as an advanced Zigbee to Ethernet gateway. It bridges your 2.4G DSSS wireless mesh networks directly into enterprise IP infrastructure, eliminating expensive cable runs by seamlessly converting remote serial data into TCP/IP packets.

VT-ZIGBEE701 Industrial Zigbee Ethernet Gateway Overview

Long-Range Wireless Mesh Coordination

Acting as the central LAN coordinator, this gateway manages long-range data transmission up to 2km. It supports point-to-multipoint, star, tree, and self-healing Zigbee wireless mesh networks, configurable with 16 channels and up to 65,535 network IDs for expansive facility architectures.

Zigbee Mesh and Star Topology Network Diagram

TCP/IP, Modbus & Virtual Serial Integration

Designed for seamless SCADA integration, the converter supports TCP Server, TCP Client, and UDP modes. It features a built-in Modbus TCP to RTU translation engine and supports Zigbee virtual serial port mapping via the included Vircom software, easily linking remote wireless nodes to your Ethernet network.

Zigbee to Ethernet TCP/IP Transparent Transmission

Compact Industrial Design

Housed in a rugged, radiation-resistant SECC metal enclosure, this Zigbee LAN gateway operates flawlessly in -40°C to 85°C environments. The compact design includes built-in mounting flanges for rapid deployment in constrained control panels.

VT-ZIGBEE701 Hardware Port Definitions
VT-ZIGBEE701 Physical Mechanical Dimensions

Hardware & Interfaces
Data InterfacesRS232 (DB9), RS485/422 (Terminal Block), 10/100M RJ45 (VT-ZIGBEE701 only)
Power InputDC 9~24V (Inside positive outside negative, standard outlet)
Dimensions9.4cm × 6.5cm × 2.5cm
Wireless Communication
Transmission Distance2000m (Line of Sight)
Frequency Range2.405GHz ~ 2.480GHz (16 Channels)
RF PerformanceTransmit Power: 25dBm | Receiving Sensitivity: -105dBm
Network TopologyPoint-to-point, Star, Tree, Mesh (0000~FFFF Network IDs)
Software & Environment
Serial Port SetupBaud Rate: 1200~115200bps; Parity: None, Even, Odd
ProtocolsIEEE802.15.4 / ZigBee Standard, ETHERNET, IP, TCP, UDP
Operating Temp.-40℃ ~ +85℃
Field-Tested Wireless Reliability
✓ Ultra-Long Range Transmission: Achieves ultra-stable 2.4G DSSS wireless communication with a distance of up to 2000 meters, overcoming complicated wiring constraints in large factories.
✓ Zero Packet Loss Architecture: Designed for continuous telemetry. Provides a full-duplex, error-free communication channel with no packet loss or stalling under 38400 bps.
✓ Flexible Mesh & Star Topologies: Extremely adaptable to any physical layout. Supports point-to-point, star, tree, and mesh networking with 16 independent channels to eliminate RF crosstalk.
Software & Edge Capabilities

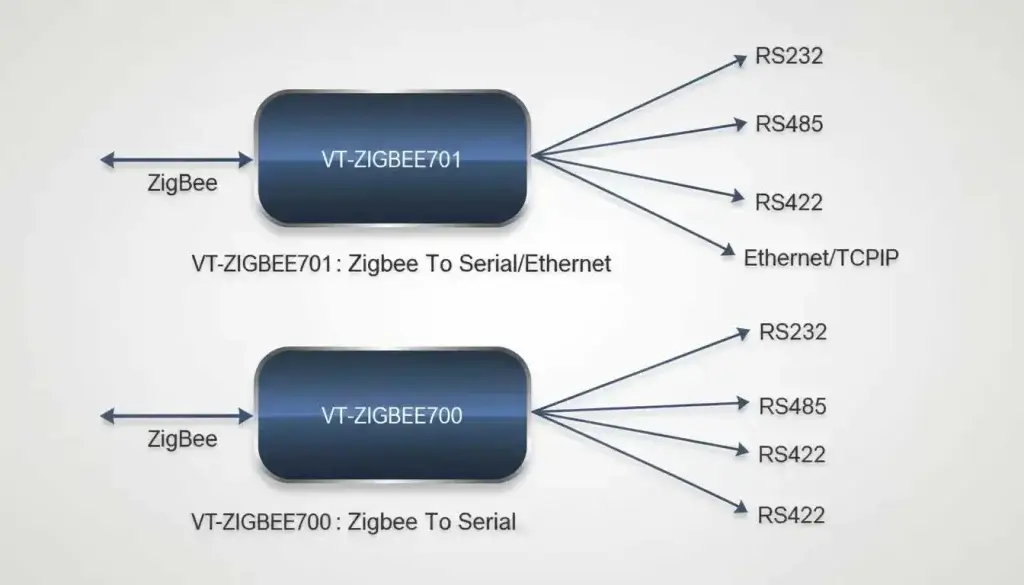

✓ Universal Serial Bridging: Acts as a true transparent bridge, effortlessly integrating legacy RS232, RS485, and RS422 instruments into your modern network without modifying existing PLC code.
✓ Ethernet & TCP/IP Conversion: The VT-ZIGBEE701 functions as a wireless serial device server, translating serial streams directly into TCP Server, TCP Client, or UDP network packets.
✓ Developer-Friendly Tools: Equipped freely with our Windows Virtual Serial & Device Management Tool (VirCom) for one-key searches and seamless virtual COM port creation.
