Engineered for long-distance industrial network expansion, this 10/100M Ethernet to single-mode fiber media converter provides robust up to 20km point-to-point data transmission, extending CCTV and IoT infrastructure across expansive facility environments without compromising bandwidth.

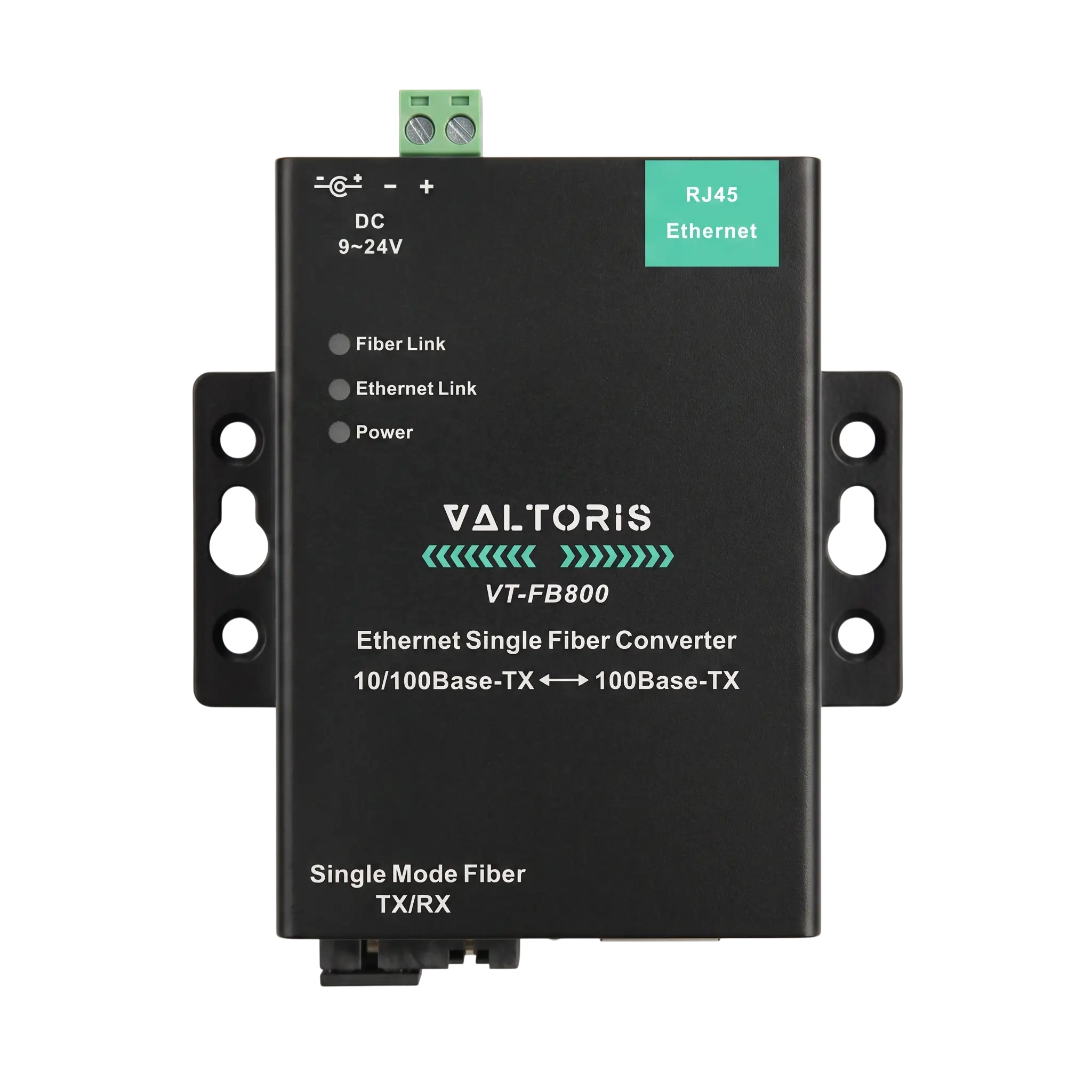

Appearance | |||
Interface: | Fiber Interface: Optical SC plug-gable interface | ||
Power Supply: | 5.5mm, Inside positive outside negative, standard power socket/terminal block | ||

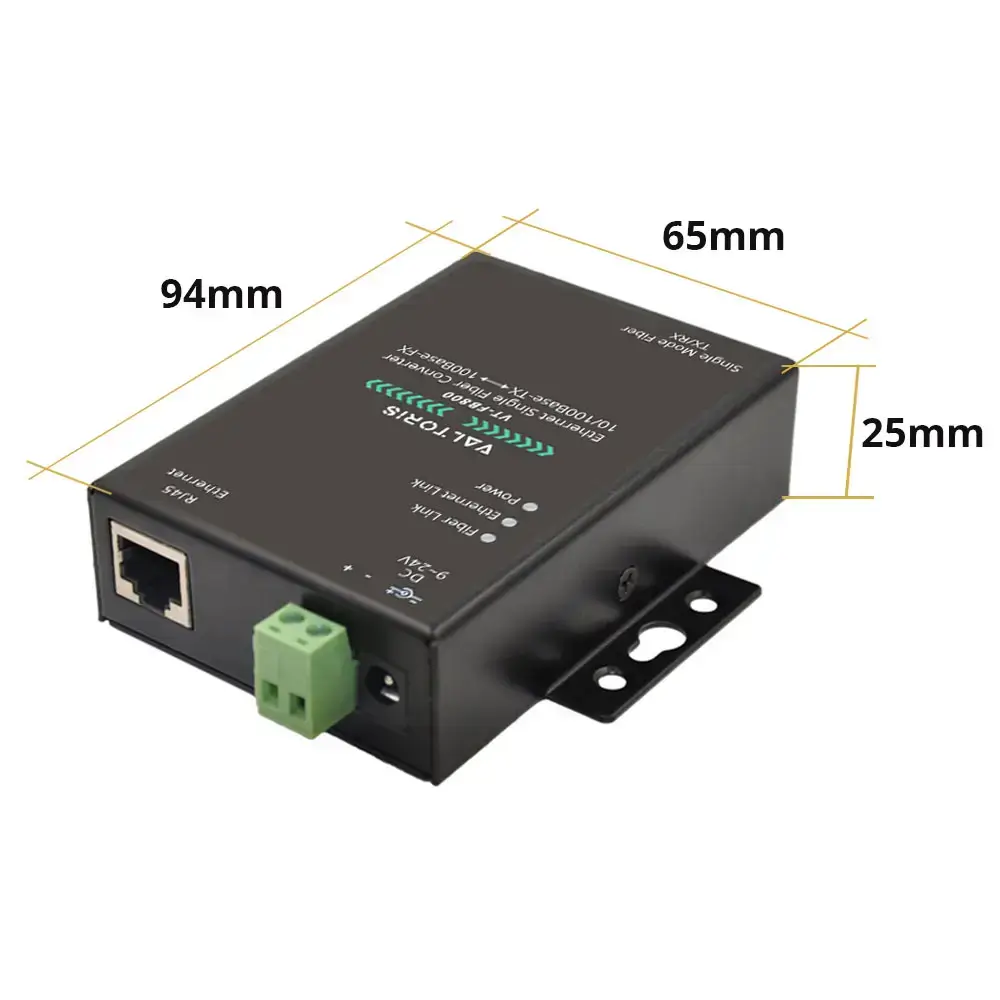

Size: | L x W x H =9.4cm×6.5cm×2.5cm | ||
Communicate Interface | |||
Ethernet: | 10M/100M, 2KV surge protection | ||
Optical Fiber: | Single-mode Single-fiber, Bi-direction | ||
Optical Fiber Parameters | |||
Sub-Model: | Emission (TX) Wavelength | Receiving (RX) Wavelength | |
VT-FB800-A（A-end） | 1310nm | 1550nm | |
VT-FB800-B（B-end） | 1550nm | 1310nm | |
Optical Fiber Transmission Distance: | 20Km | Optical Communication Interface: | SC |
Power | |||
Power: | 9～24V DC，165mA@9V | ||
Environment | |||
Operating temperature | -40~85℃ | ||
Storage temperature | -45~165℃ | ||
Humidity range | 5~95% relative humidity | ||
Summary:

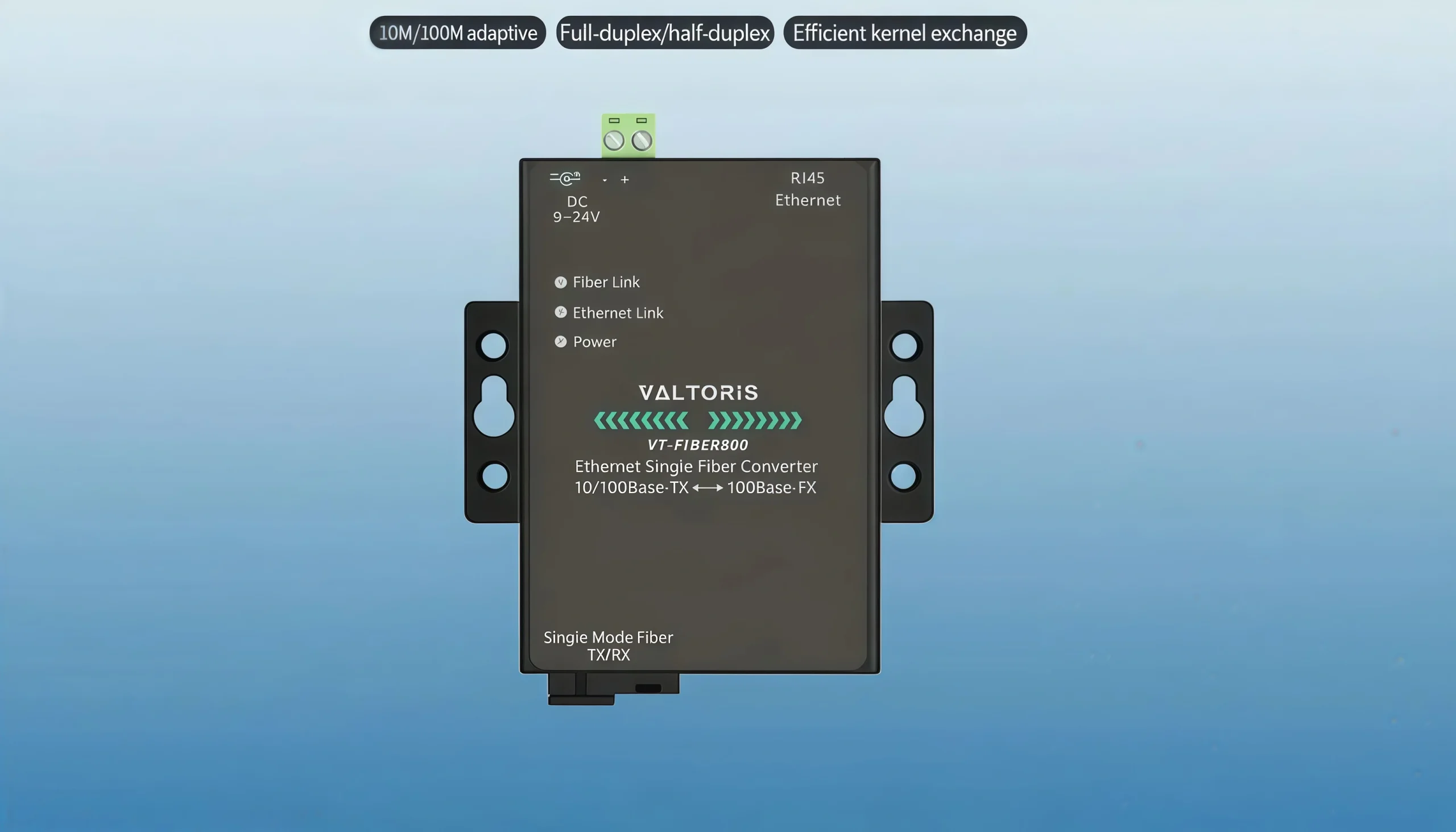

VT-FB800 is an optoelectronic conversion device that converts 10M/100M Ethernet electrical signals into optical signals or vice versa. By converting electrical signals into optical signals and transmitting them over single-mode optical fibers, the limitation of short cable distances is overcome, enabling Ethernet to achieve long-distance transmission of several kilometers to hundreds of kilometers using optical fiber media while ensuring high bandwidth transmission.
VT-FB800 has two key advantages:

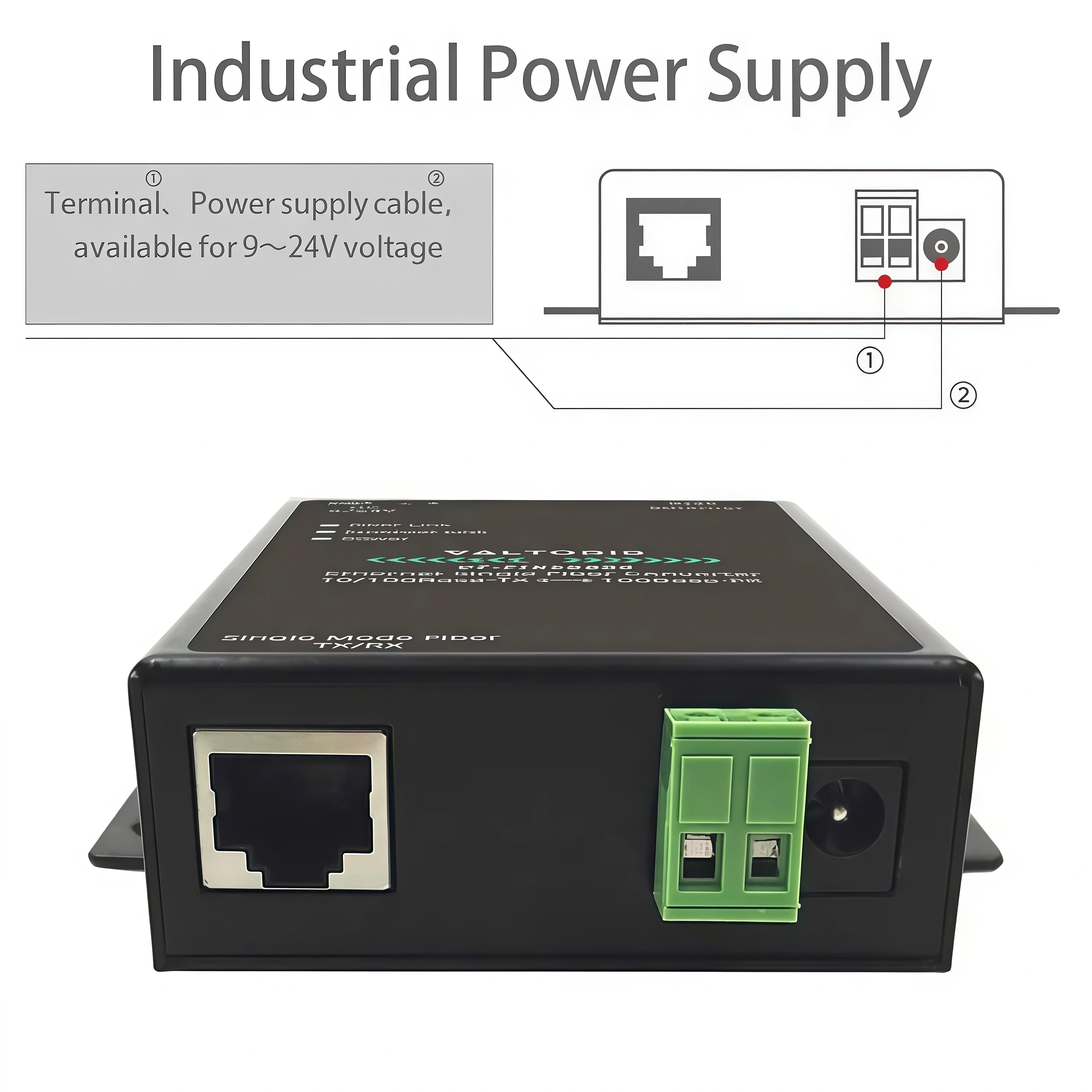

1. Designed for industrial applications. Power input can be via a plug or two-wire terminal block, supporting a wide input voltage range of 9–24V.
2. Employs a single-mode, single-fiber optical fiber connection. This saves on fiber optic costs for long-distance transmission compared to dual-fiber converters.
It can be applied to various applications that require extending the transmission distance of industrial Ethernet via fiber optic cables; it can also be used in places where Ethernet devices and optical switching devices need to be connected.
Note: VT-FB800 comes in two sub-models: VT-FB800-A (A-end unit) and VT-FB800-B (B-end unit). These two models must be used in pairs. That is, A-end unit connects to B-end unit; B-end unit connects to A-end unit. Units with the same ports cannot be connected together.
1. One RJ45 Ethernet port and one single-fiber SC optical port enable photoelectric signal conversion between twisted-pair and fiber optic cables;

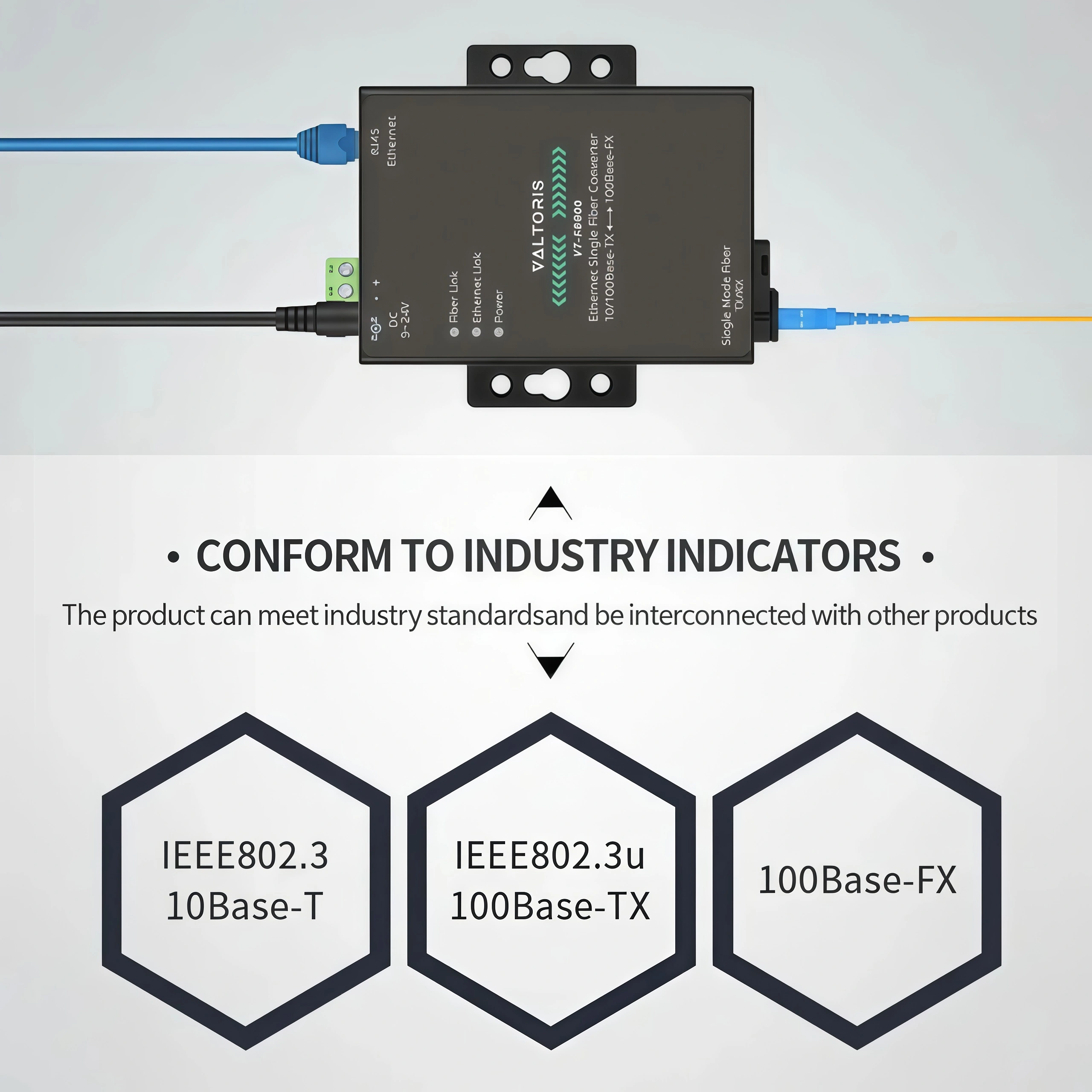

2. Compliant with IEEE 802.310Base-T and IEEE 802.3u 100Base-TX, 100Base-FX standards, allowing interconnection with other products;
3. 10M/100M auto-sensing capability;

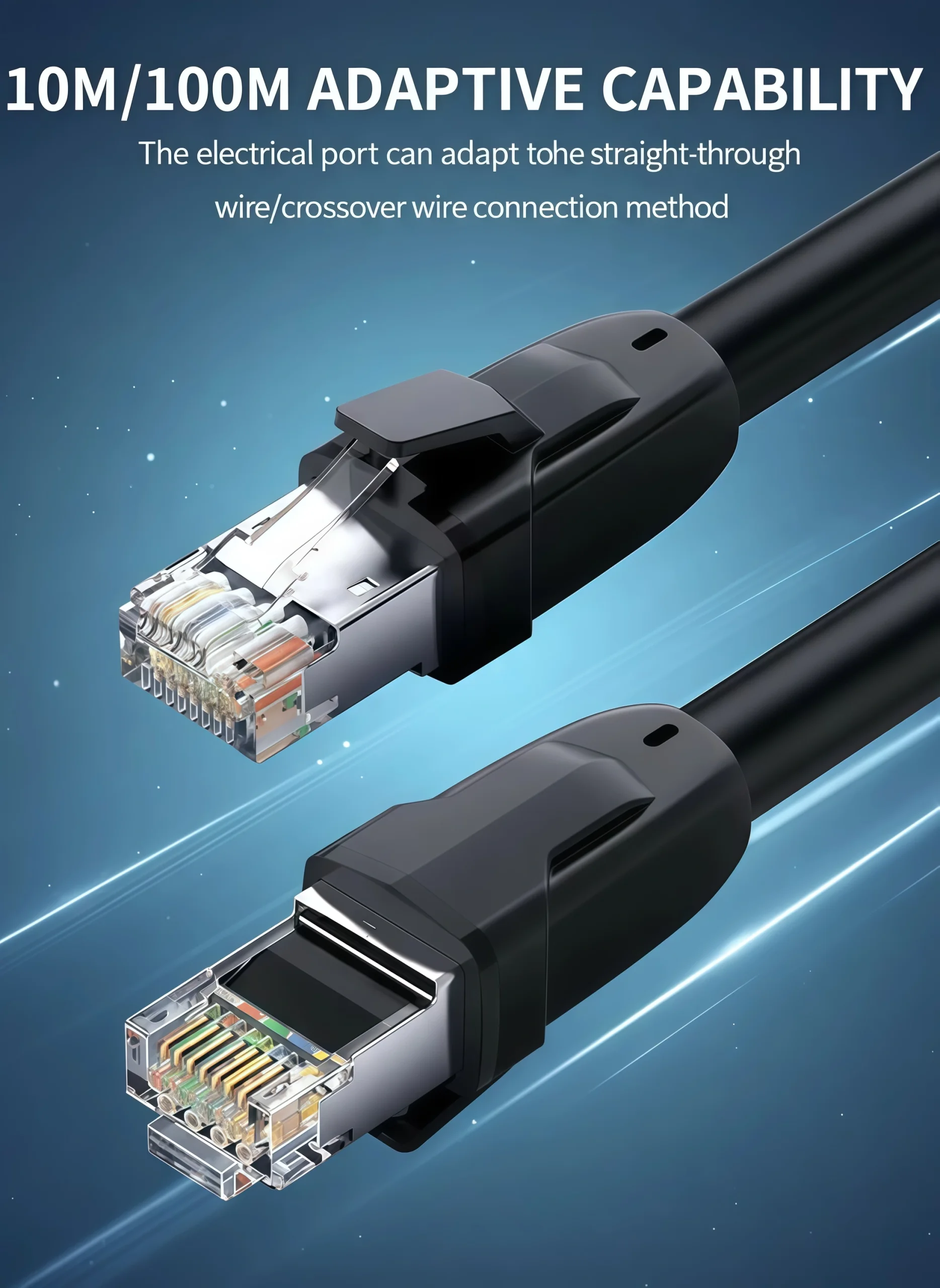

3. Electrical ports adapt to straight-through/crossover connections;

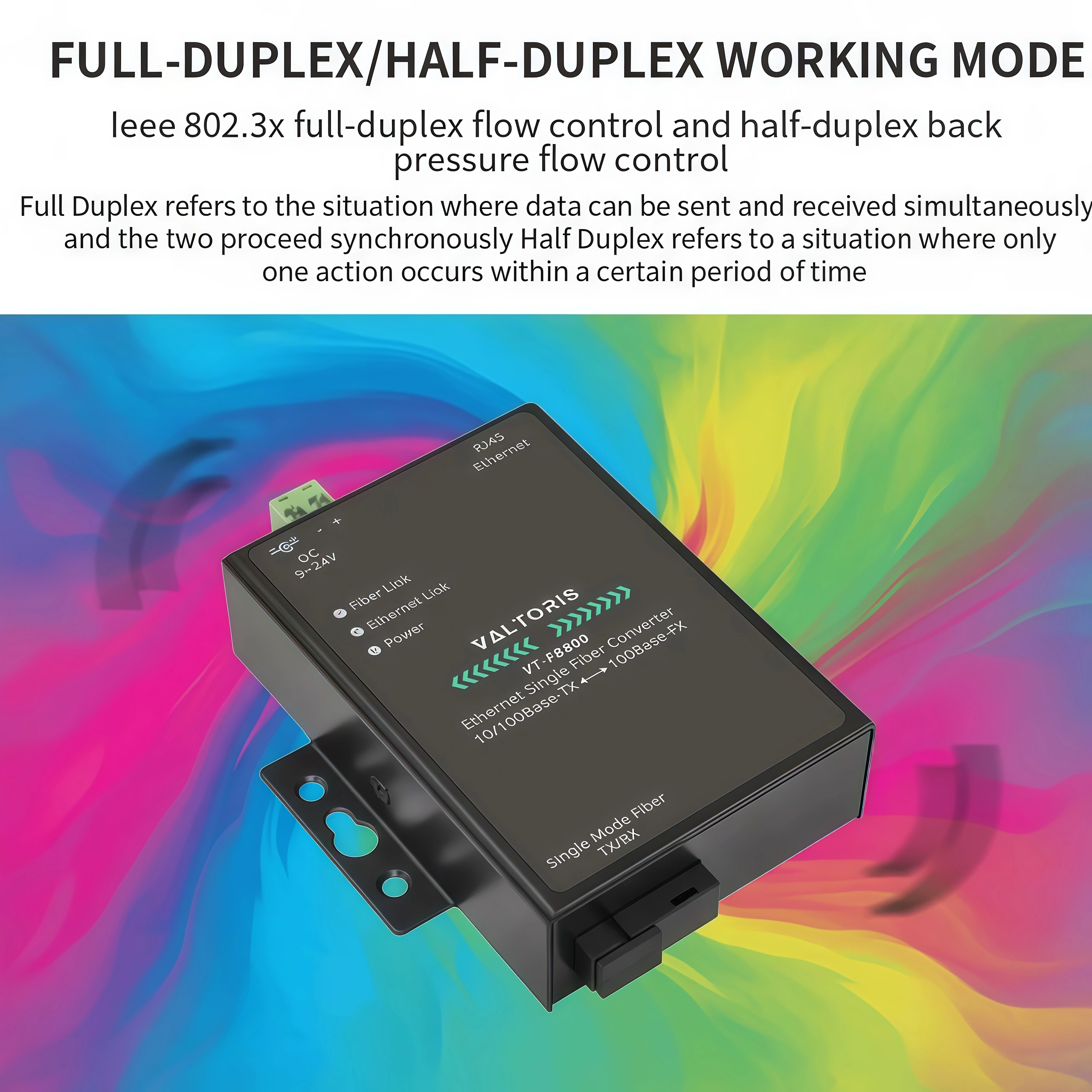

4. Supports full-duplex/half-duplex operating modes;
5. Supports IEEE 802.3X full-duplex flow control and half-duplex backpressure flow control;

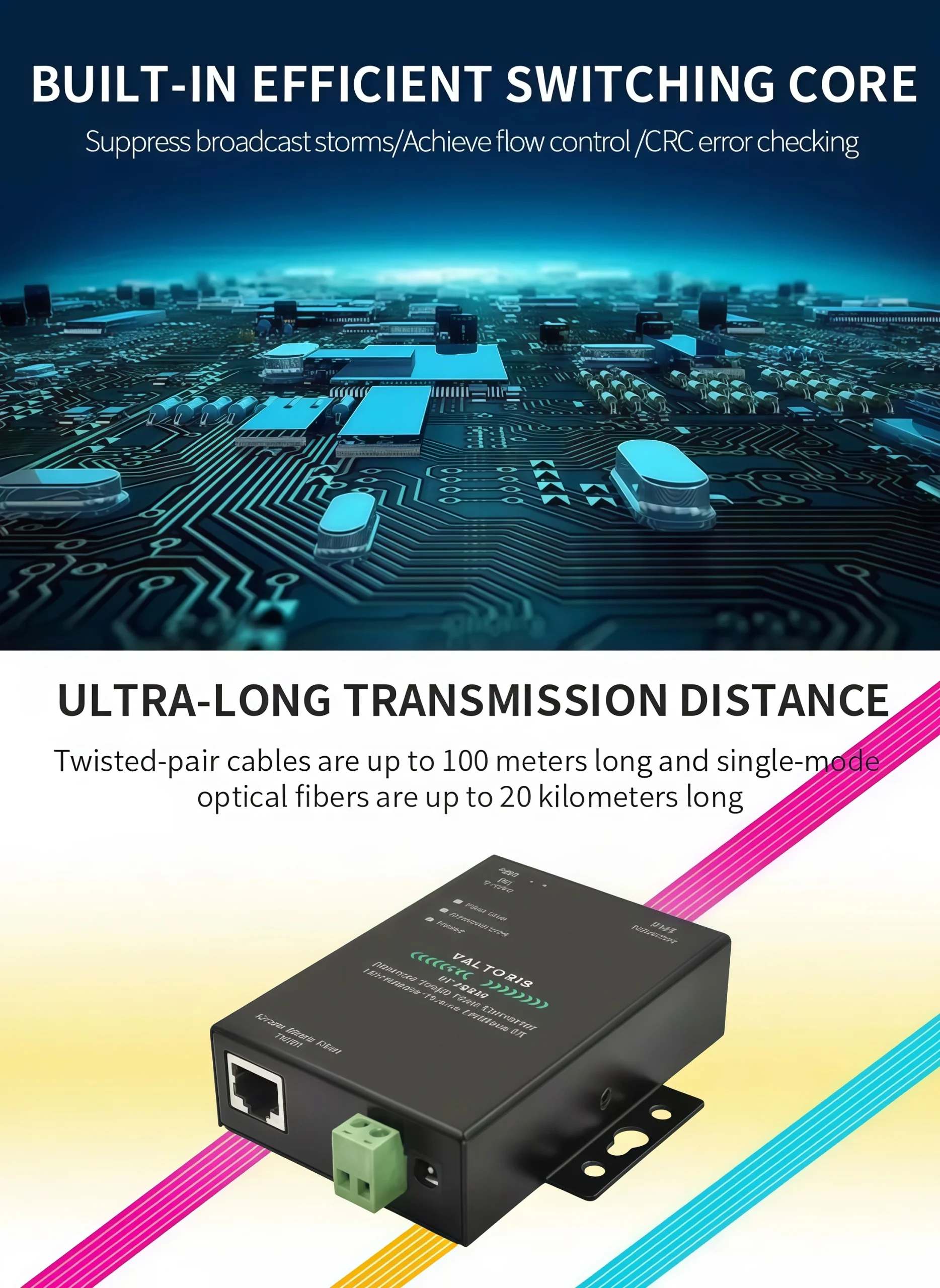

6. Built-in high-efficiency switching core suppresses broadcast storms, implements flow control, and CRC error checking;
7. Twisted-pair cable maximum length 100 meters; single-mode fiber maximum length 20 kilometers;
