8-Port Unmanaged PROFINET Switch (RT Priority)

The Valtoris VT-SW8PN is an industrial 8 Port PROFINET Switch, plug-and-play, with built-in protocol priority transmission. It is in a 46mm IP40 aluminum casing, with redundant DC9~60V/AC24V power and safely operates at -40Ā°C to +75Ā°C.

Part No. VT-SW8PN
sku : IoT-PES101
INSTANT QUOTE

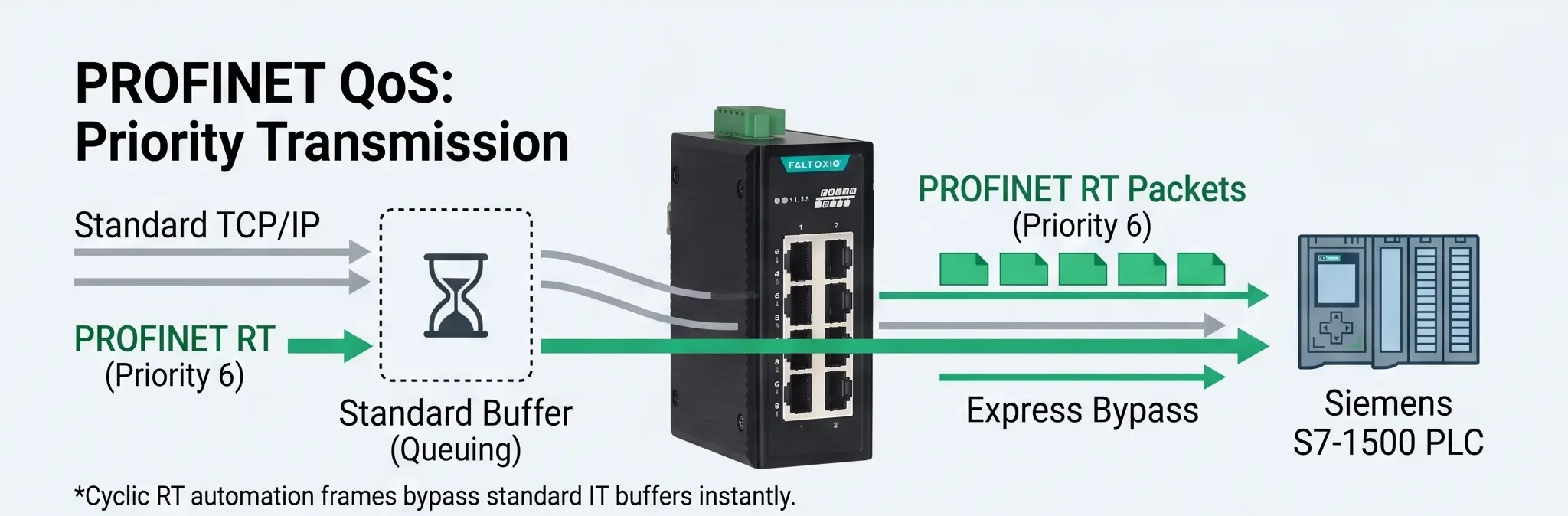

PROFINET QoS: Priority Transmission

Built-in hardware QoS automatically pushes PROFINET Real-Time (RT) frames to the front of the queue. Prevents PLC bus faults caused by heavy IP camera or HMI traffic bursts.

PROFINET Protocol Priority Transmission Architecture

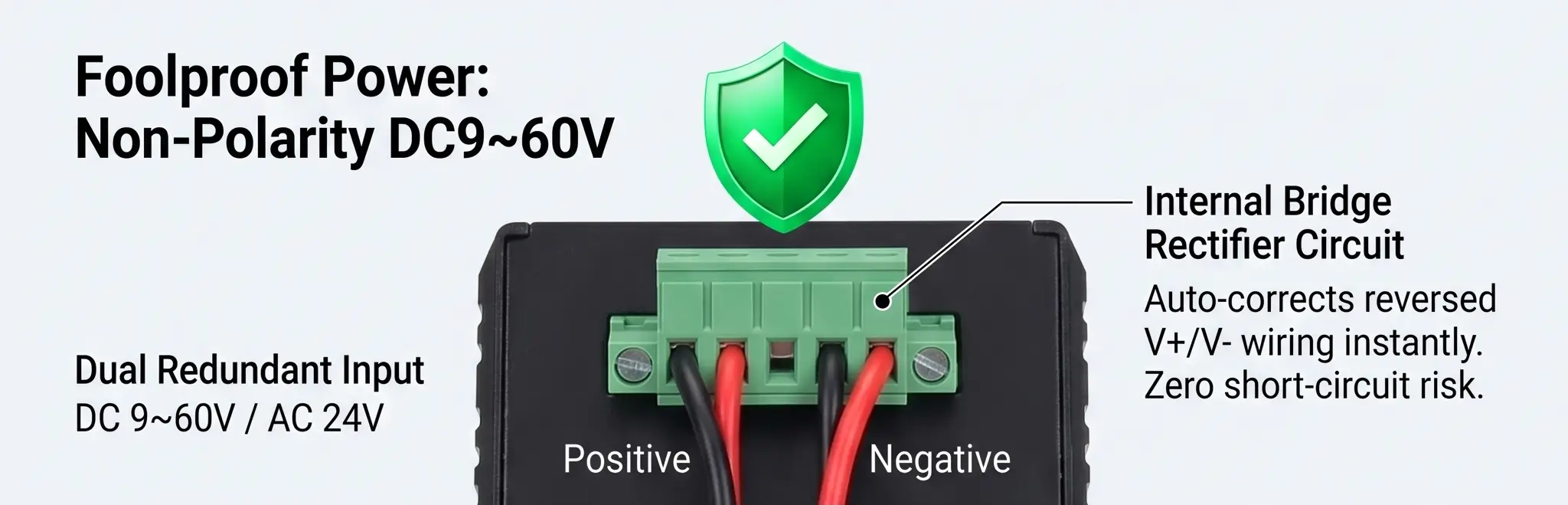

Foolproof Power: Non-Polarity DC9~60V

Supports dual redundant DC9~60V or AC24V inputs. Completely non-polarity circuitry prevents short-circuits even if wires are accidentally reversed during cabinet maintenance.

Non-Polarity Dual Redundant Power Input Terminal Block

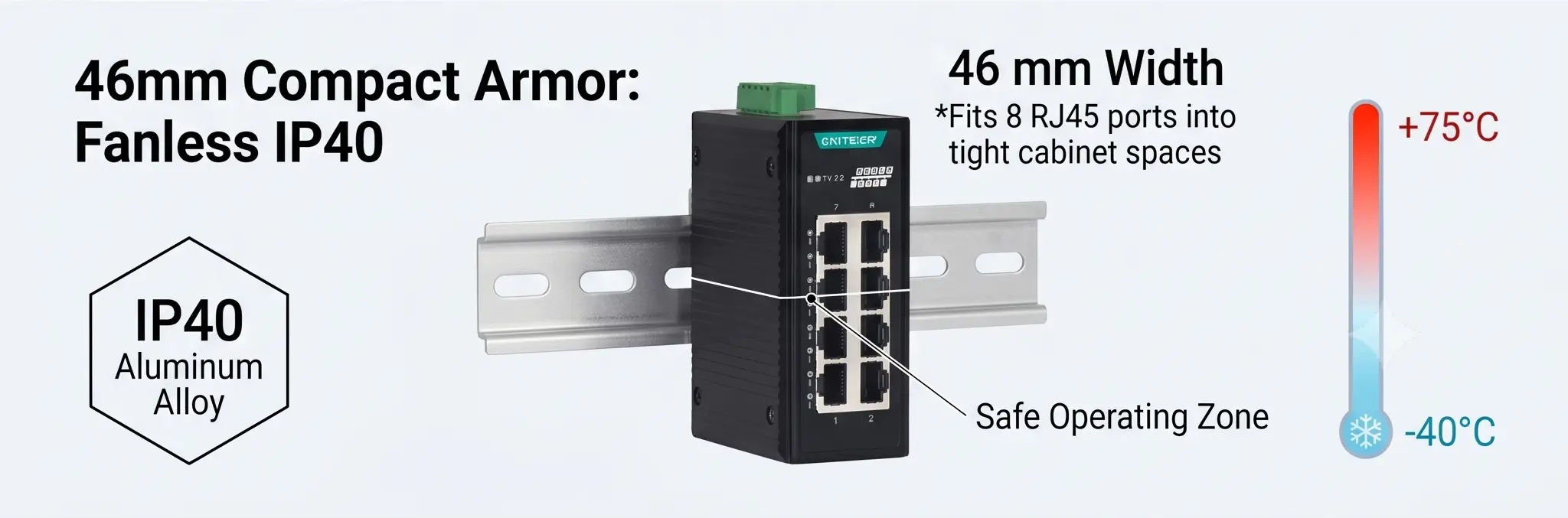

46mm Compact Armor: Fanless IP40

Packs 8 ports into a slim 46mm width, saving critical DIN-rail space. Engineered for extreme -40Ā°C to +75Ā°C environments with certified Level 4 EMC immunity.

Compact 46mm Width DIN-Rail Mounted Industrial Switch

Interface & Protocol
Ethernet Ports8 Ɨ 10/100Base-T(X) RJ45, Auto MDI/MDI-X, Full/Half Duplex
Protocol FeaturePROFINET protocol priority transmission (Built-in QoS)
Switch Capability1.6Gbps Backplane, 768Kbit Buffer, 2K MAC, 2Kbyte Jumbo Frame
Power Supply
Input VoltageDC 9~60V or AC 24V, Dual power redundancy, No polarity
Power ConsumptionLess than 1.4W @ DC24V (Full load)

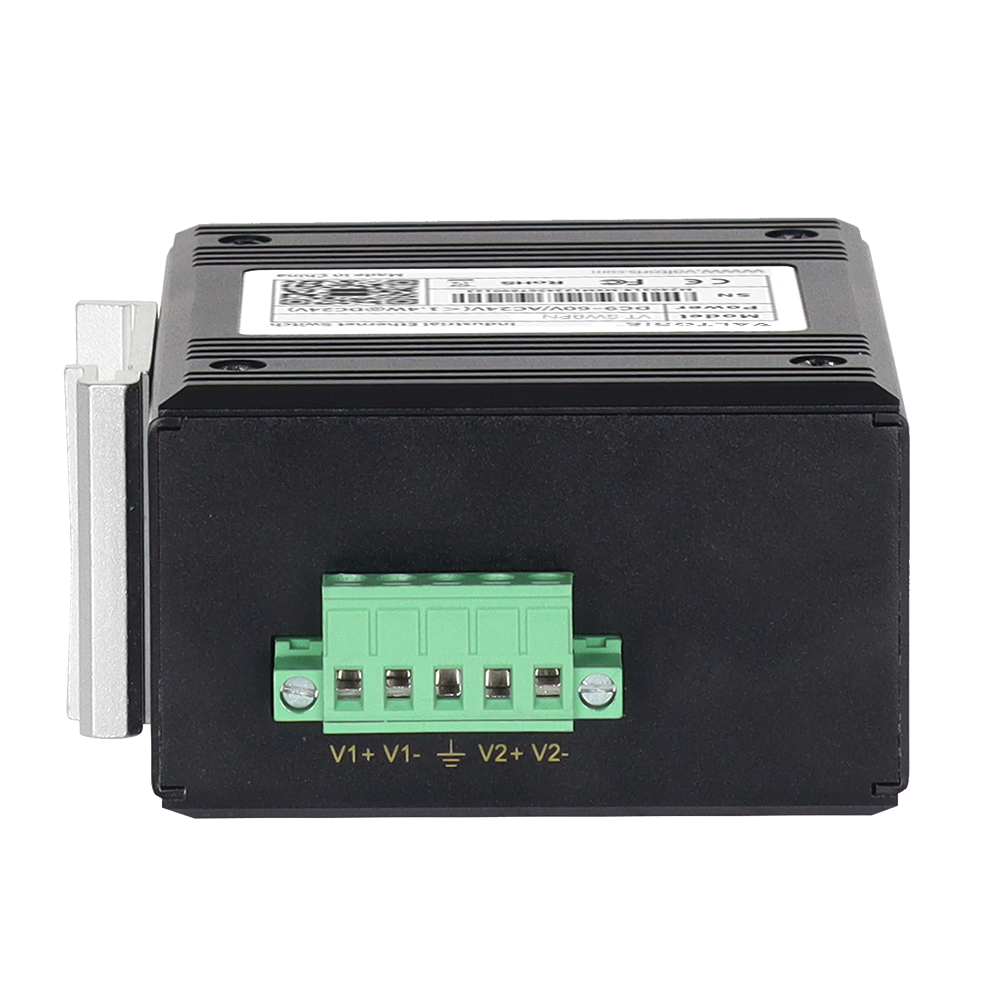

Connection5-pin 5.08mm pitch lock terminal block
Physical & Environment
Dimensions / Weight102 Ɨ 46 Ɨ 78 mm (Excluding DIN clip) / Approx. 0.33 kg
Casing & MountingIP40 High-strength aluminum alloy, 35mm DIN-Rail
Operating / Storage Temp.-40Ā°C ~ +75Ā°C / -40Ā°C ~ +85Ā°C
EMC ImmunityIEC 61000-4-2 (ESD): Level 4 / Surge: Level 4 / EFT: Level 4

šŸ“„ Technical Documentation

Which PROFINET Conformance Class does the VT-SW8PN fall under?
Conformance Class A (CC-A). Being an unmanaged switch, it natively supports RT (Real-Time) frame prioritization and transparently forwards LLDP packets for PLC topology mapping. It is engineered for standard factory I/O and VSD drives, but is not suitable for Class C (IRT) isochronous motion loops.
Can I run Rockwell EtherNet/IP and Siemens PROFINET traffic simultaneously?
Yes, perfectly compatible. The internal switch engine executes IEEE 802.1p Quality of Service. It routes standard EtherNet/IP data smoothly while ensuring PROFINET RT cyclic packets (VLAN Priority 6) bypass the standard holding buffer instantly.
What is the switchover interruption time when a redundant power supply fails?
Zero milliseconds (0ms). The dual DC9~60V / AC24V non-polarity power inputs rely on internal diode-ORing. If Power Source V1 fails completely, the active load shifts to Source V2 seamlessly with zero power-cycle delay or packet loss.
