8-Port Gigabit PROFINET Switch

The Valtoris VT-SW8GPN is an industrial 8 Port Gigabit PROFINET Switch delivering line-rate 10/100/1000Mbps automated protocol priority for Real-Time PLC control. Engineered in a 46mm IP40 aluminum casing, it accepts redundant DC9~60V/AC24V power and holds official UL certification.

Part No. VT-SW8GPN
sku : IoT-PES103
INSTANT QUOTE

Full Gigabit Bandwidth: Built for Machine Vision

Equips 8 x 10/100/1000Base-T(X) ports driven by a 16Gbps backplane and 9kByte Jumbo Frames. Multiple GigE Vision cameras stream heavy uncompressed inspection images simultaneously without bottlenecking your network.

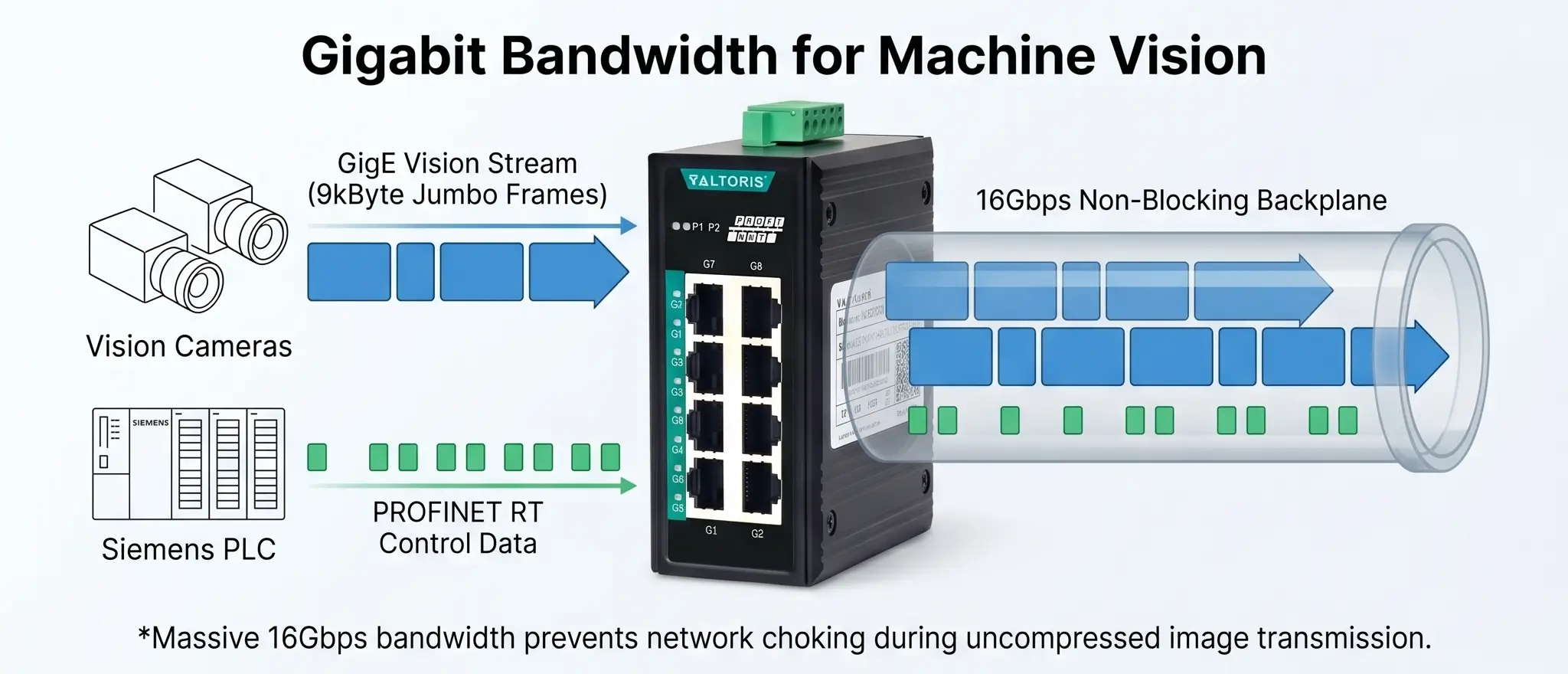

Gigabit Bandwidth mixed Machine Vision and PLC traffic architecture

PROFINET QoS: Absolute PLC Priority

Built-in hardware QoS instantly identifies and elevates PROFINET Real-Time (RT) cyclic packets. High-volume IT traffic bursts will never delay your deterministic PLC automation commands.

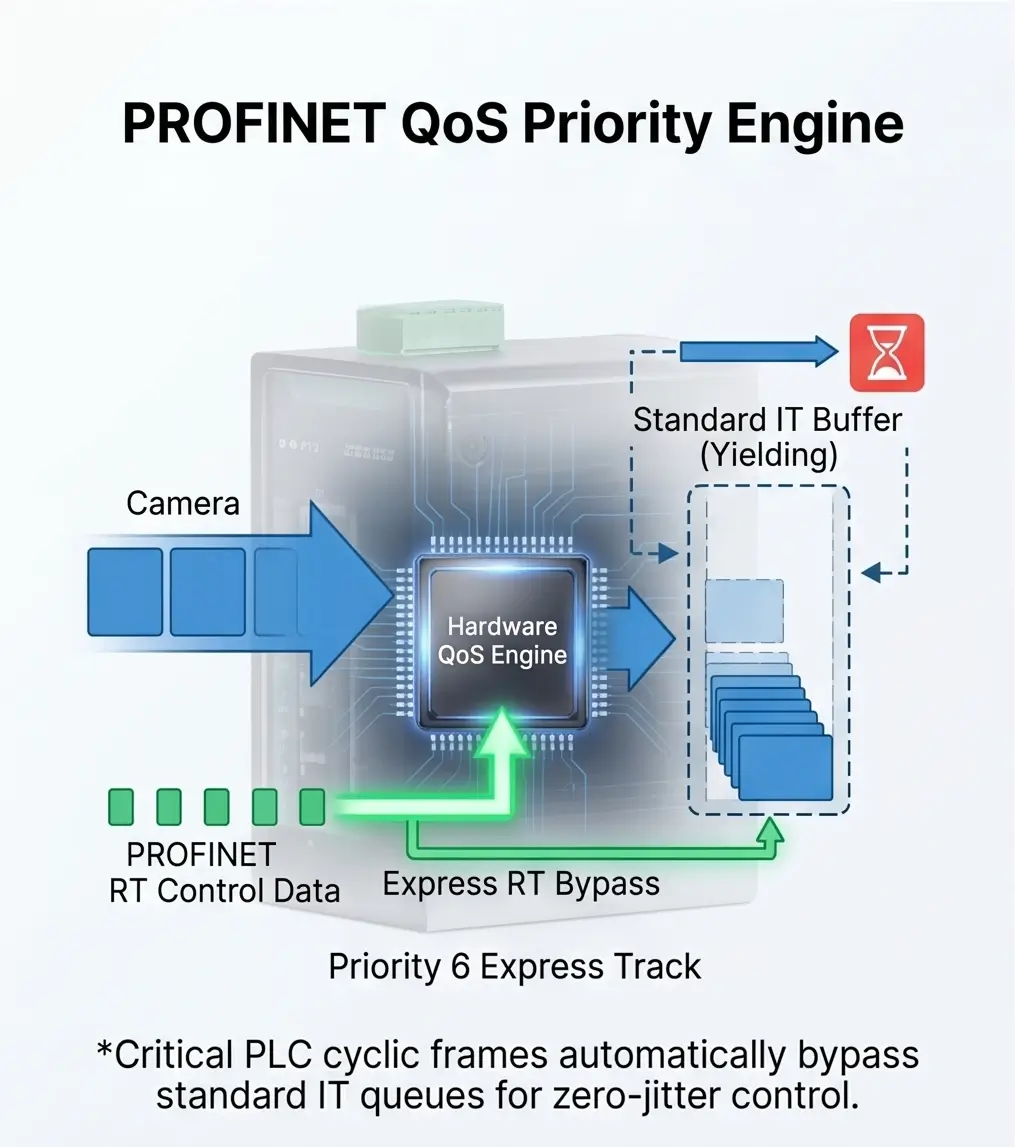

PROFINET QoS packet prioritization engine

46mm Slim Armor: UL Certified & Foolproof

Packs 8 Gigabit ports into a narrow 46mm width. Backed by official UL certification and Level 4 EMC immunity, its non-polarity dual power inputs completely prevent short-circuits during accidental reverse wiring.

46mm Ultra-Slim DIN Rail Switch with UL Certification

Interface & Performance
Gigabit Ethernet Ports8 Ɨ 10/100/1000Base-T(X) RJ45, Auto MDI/MDI-X, Full/Half Duplex
Protocol FeaturePROFINET protocol priority transmission (Built-in hardware QoS)
Switching CapabilityStore-and-Forward, 16Gbps Backplane, 1.5Mbit Buffer, 4K MAC
Jumbo Frame9kByte (Optimized for GigE Vision uncompressed streaming)
Power & Environment
Input VoltageDC 9~60V or AC 24V, Dual power redundancy, Non-polarity
Power ConsumptionLess than 3.2W @ DC24V (Full load)

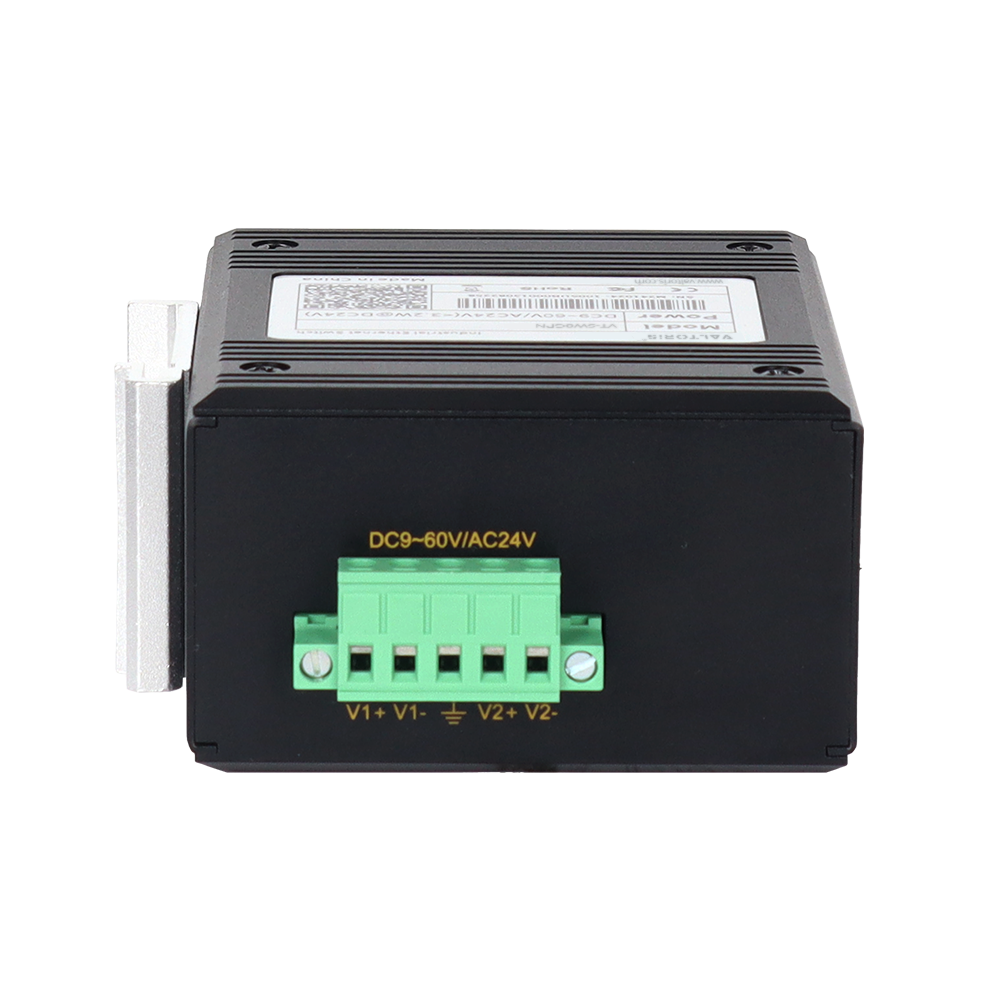

Terminal Block5-pin 5.08mm pitch lock terminal block
Mechanical & Compliance
Dimensions / Weight102 Ɨ 46 Ɨ 78 mm (Excluding DIN clip) / Approx. 0.35 kg
Housing & MountingIP40 Fanless aluminum alloy housing, 35mm DIN-Rail
Operating / Storage Temp.-40Ā°C ~ +75Ā°C / -40Ā°C ~ +85Ā°C
EMC ImmunityIEC 61000-4-2 (ESD): Level 4 / Surge: Level 4 / EFT: Level 4
CertificationsCE, FCC, RoHS, UL

šŸ“„ Technical Documentation

Will 4 active GigE Vision cameras cause the 4 PROFINET I/O stations to drop offline?
No. The VT-SW8GPN operates on a 16Gbps backplane with a dedicated 1.5Mbit buffer. When cameras blast 9kByte jumbo frames, the hardware QoS elevates cyclic RT frames (Priority 6) to the absolute top of the exit queue, keeping PLC jitter near zero.
Why doesn’t the VT-SW8GPN appear when I scan for ‘Accessible Devices’ in TIA Portal?
Because it is a purely unmanaged Layer 2 device. It possesses no IP address or PROFINET device name. It acts as a transparent physical medium: your PLC will natively pass RT cyclic frames and LLDP topology discovery packets through it instantly without needing a GSDML file.
Will this switch overheat inside a sealed cabinet at +75Ā°C without a fan?
No. The switch utilizes a low-power Gigabit ASIC capped at less than 3.2W under full load. Dissipation is managed entirely through the finned high-strength aluminum casing, acting as an efficient passive heat sink engineered to maintain safe core junction temperatures up to +75Ā°C ambient.
