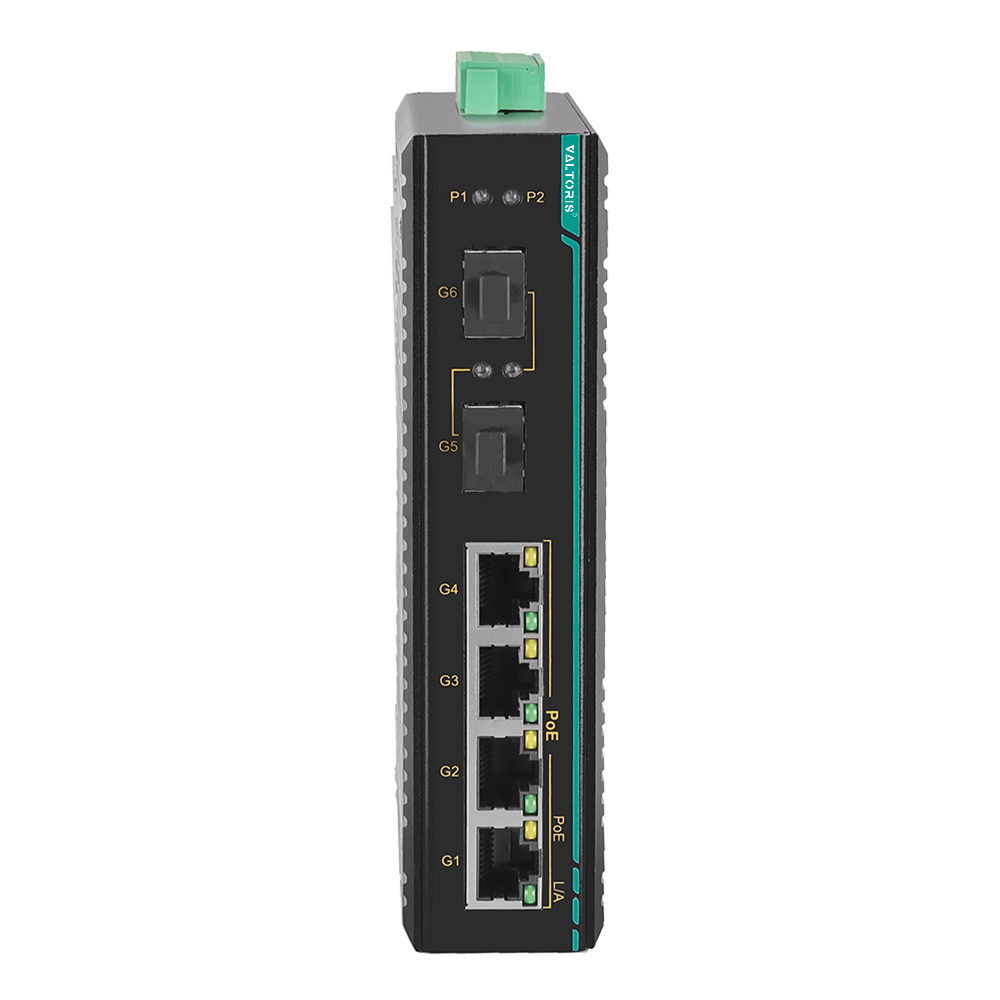

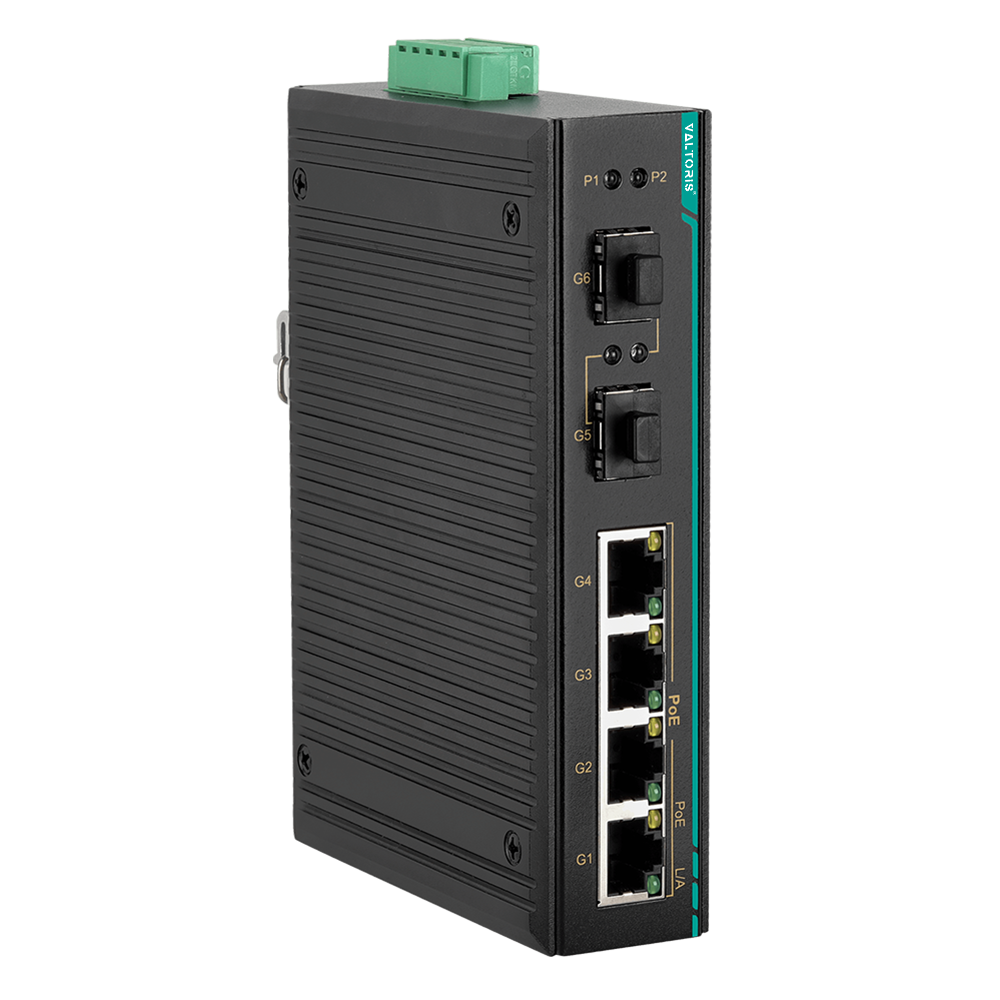

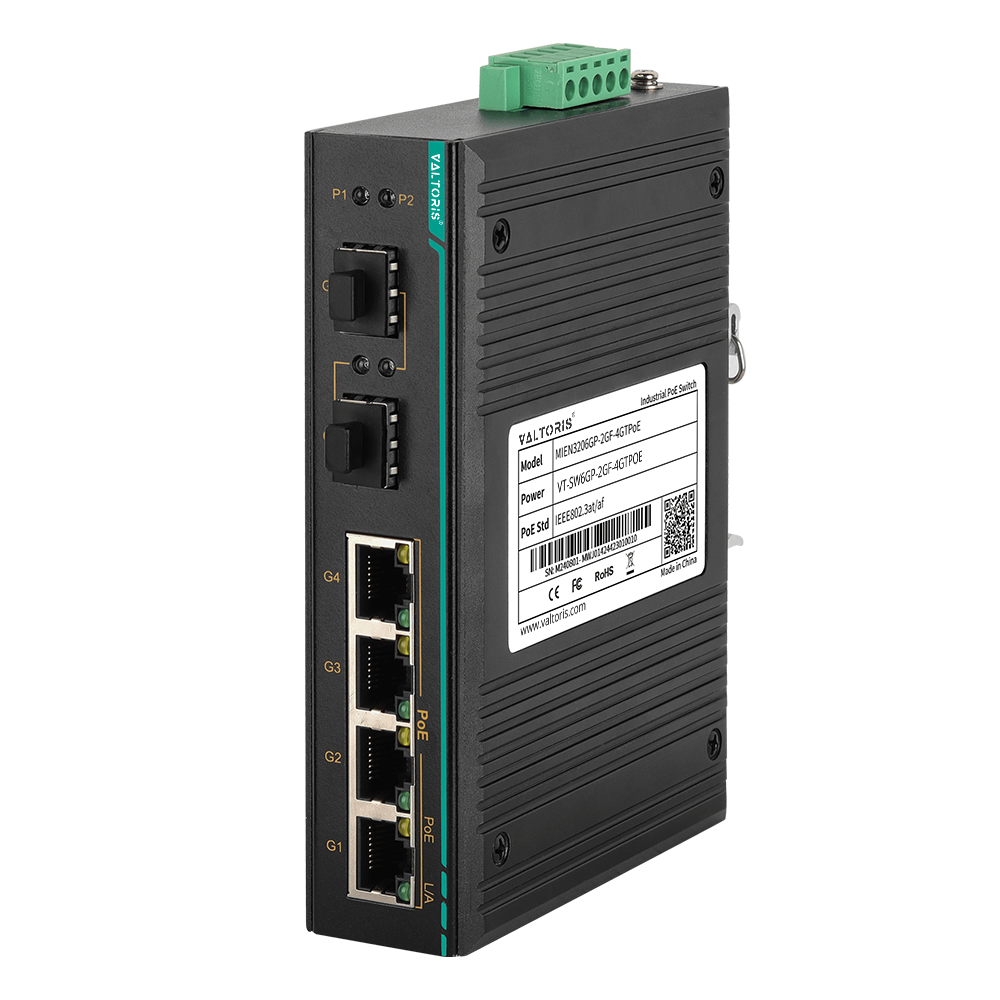

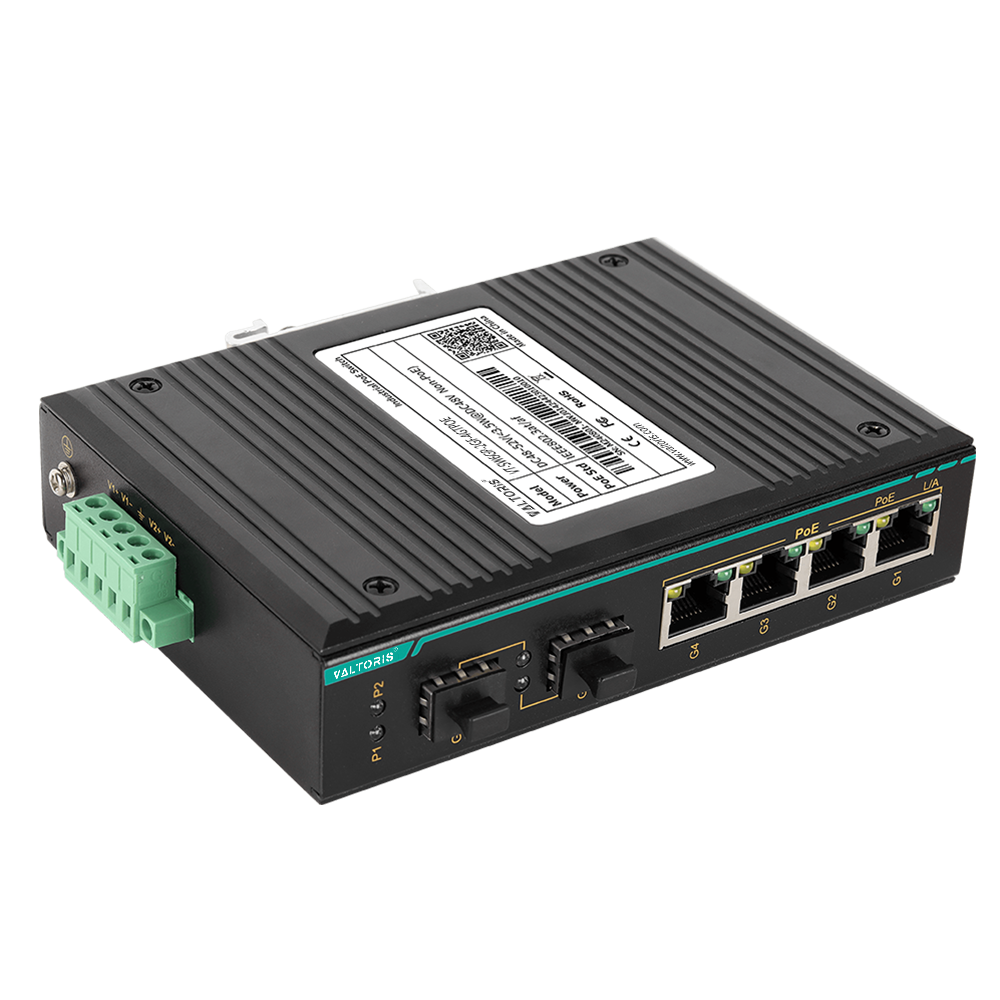

6-Port Gigabit Industrial PoE Switch (2 SFP + 4 PoE)

The VT-SW6GP-2GF-4GTPOE is an unmanaged DIN-rail 6-Port Gigabit Industrial PoE Switch designed to support scalable networks. Four full Gigabit PoE+ ports (up to 30W each) and two separate Gigabit SFP slots for flexible daisy-chaining over fiber.

Part No. VT-SW6GP-2GF-4GTPOE
sku : IoT-IPS102
INSTANT QUOTE

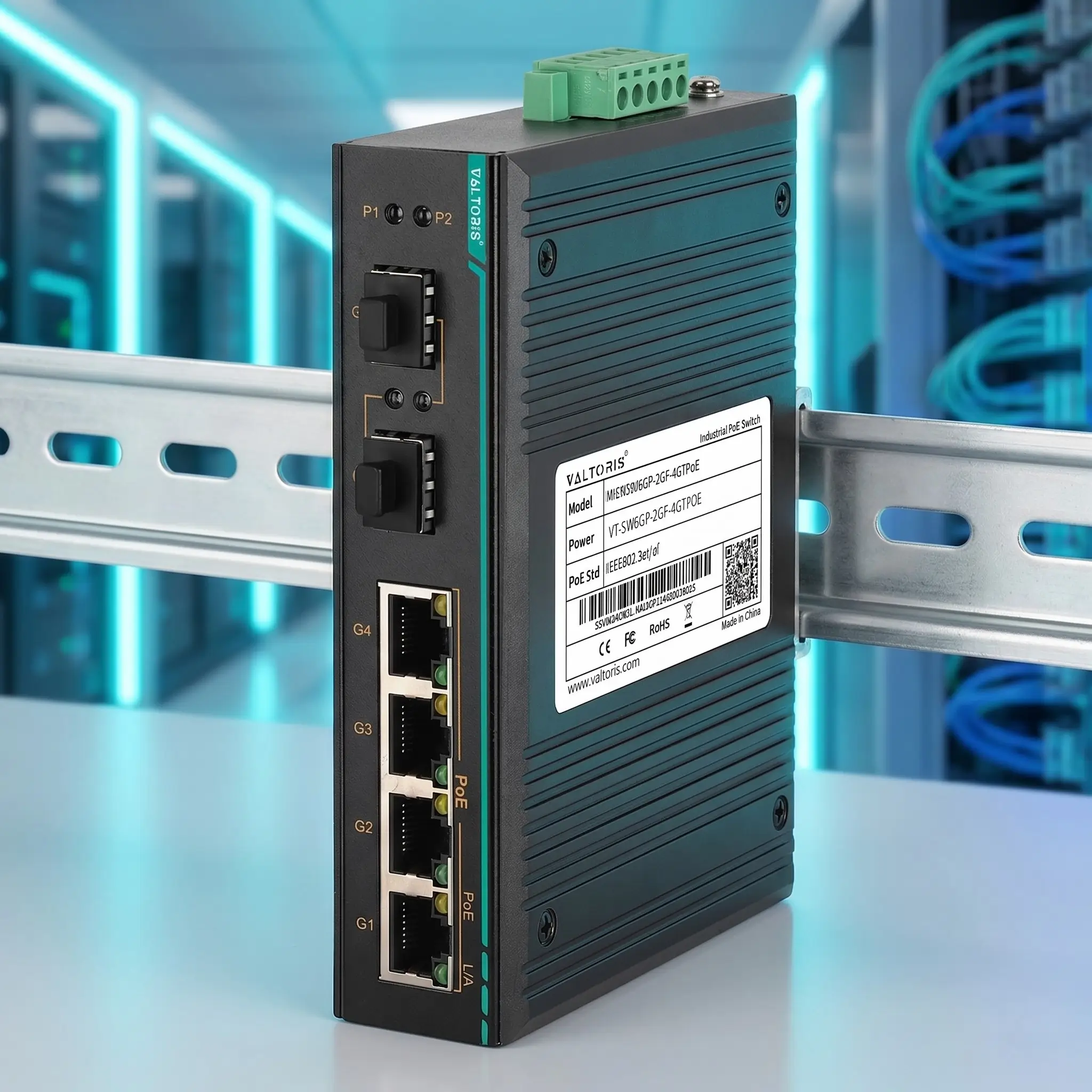

VT-SW6GP-2GF-4GTPOE 6-Port Gigabit Industrial PoE Switch

Dual Gigabit SFP Uplinks for Flexible Fiber Topologies

Unlike the normal switch that only has one uplink port, the 6-Port Gigabit Industrial PoE Switch provides two independent 1000Base-X SFP slots. With its two fiber design, network engineers can easily deploy daisy-chain topologies along highways or railways or create highly resilient redundant fiber links. Standard SFP modules capable of transmitting data securely up to 120km without electromagnetic interference.

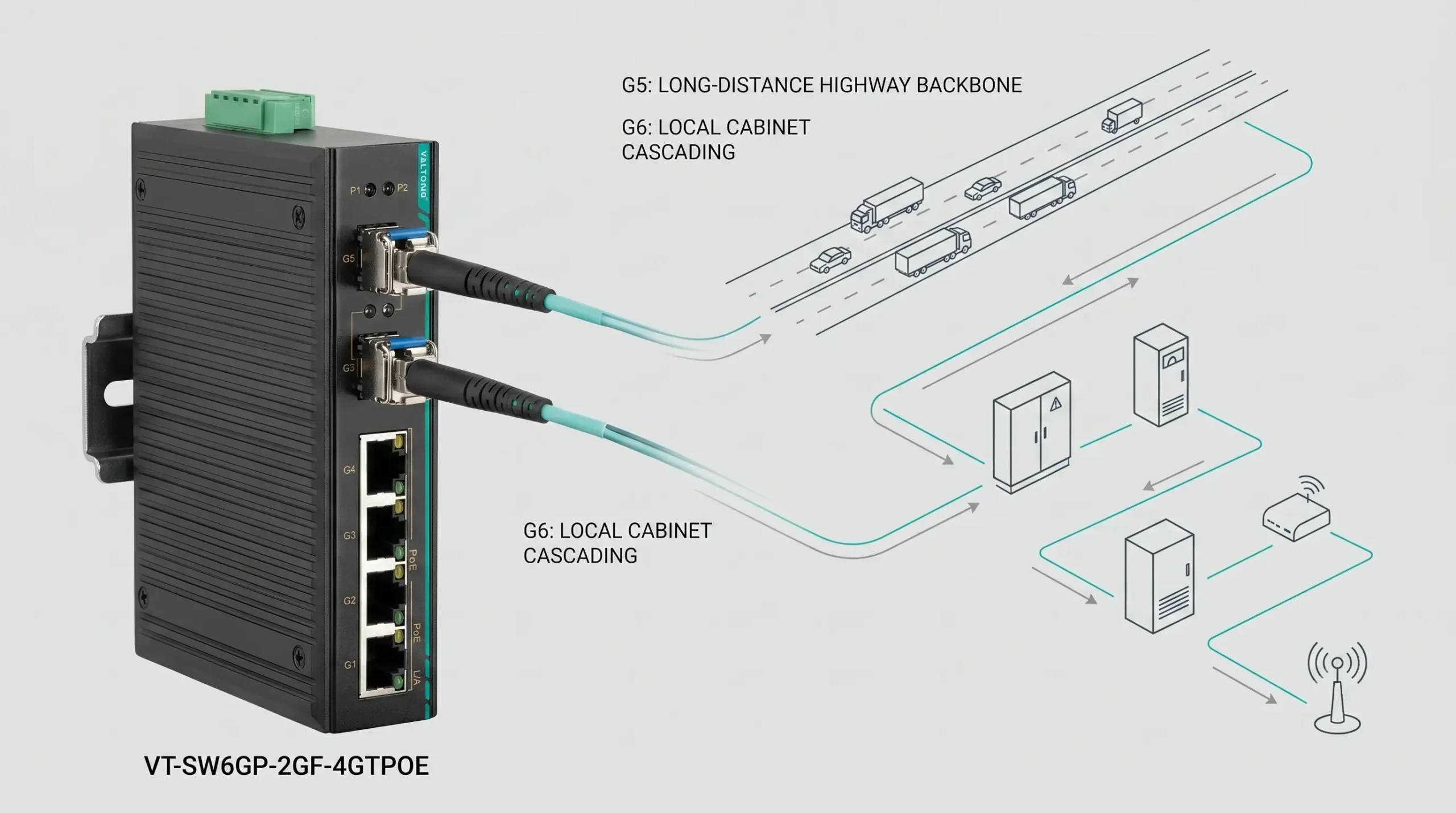

Dual SFP Fiber Ports for Daisy Chain Topology

Gigabit PoE+ Power for Heavy-Load Edge Devices

Bandwidth bottlenecks and power constraints are eliminated with four dedicated 10/100/1000Base-T(X) RJ45 ports. Fully compliant with IEEE 802.3af/at standards, each port delivers up to 30W of power alongside full Gigabit data speeds. It effortlessly drives modern Powered Devices (PDs) such as 4K PTZ surveillance cameras, Wi-Fi 6 Access Points, and digital signage over a standard Cat5e/Cat6 cable.

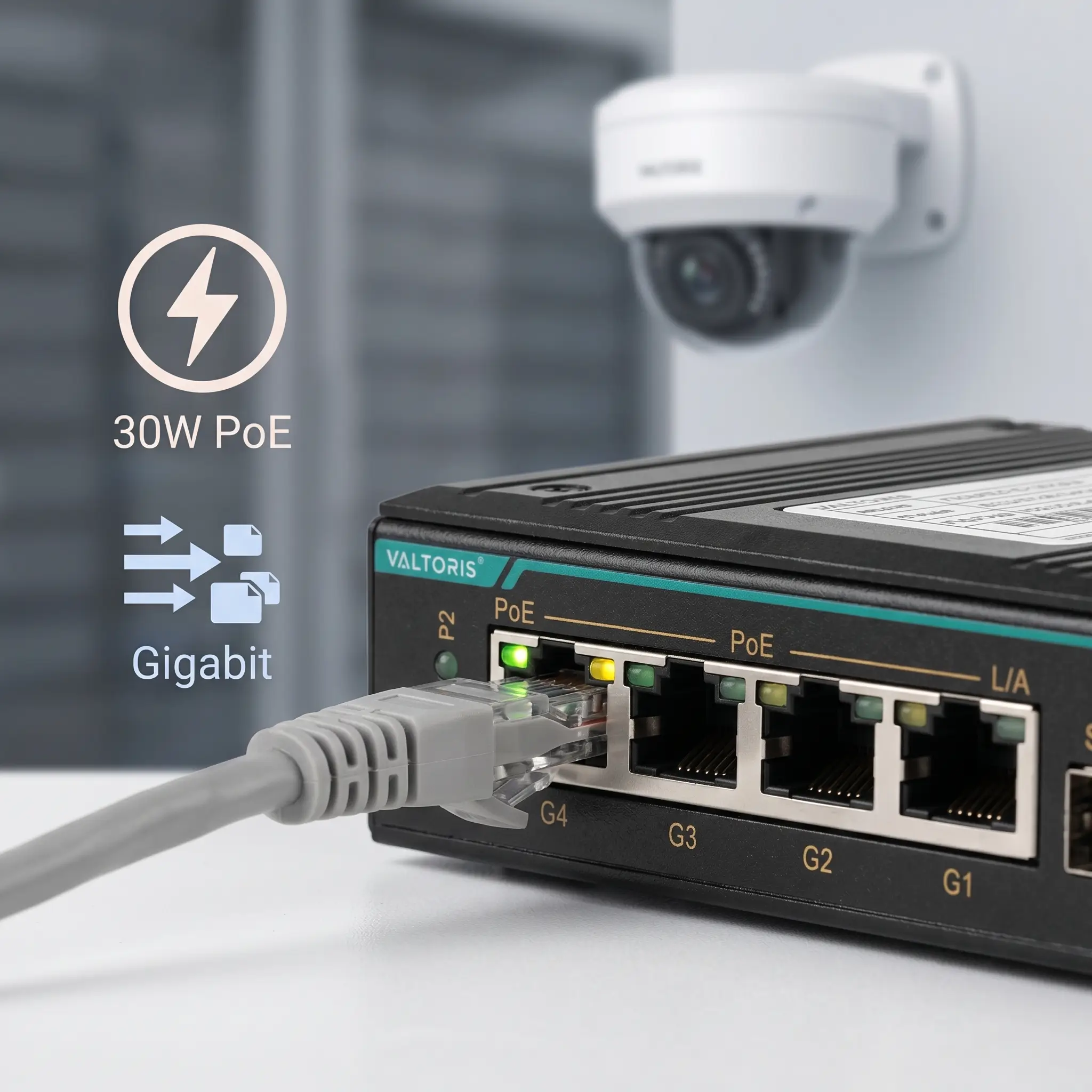

Full Gigabit PoE+ High Power Delivery 30W

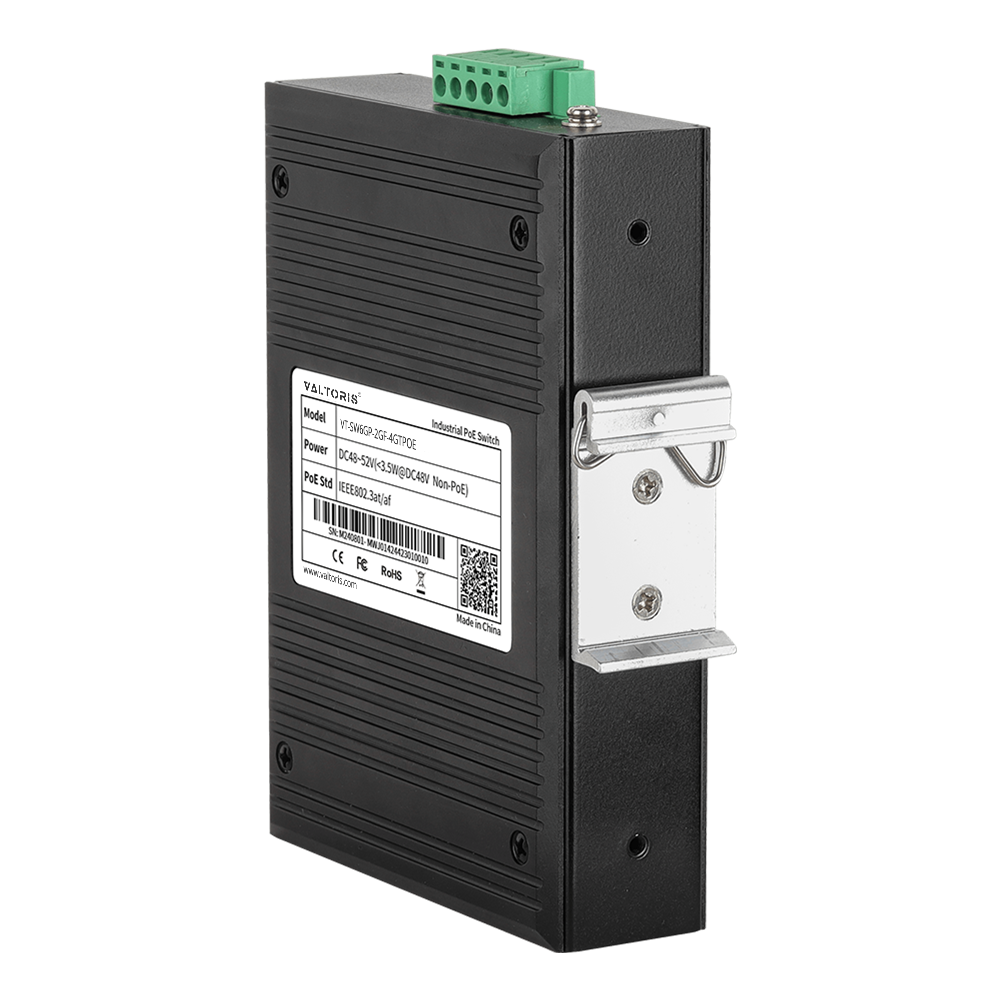

Rugged Aluminum Casing & 4kV Surge Protection

Designed for survival in non-climate-controlled environments, the switch has a high-strength, IP40-rated aluminum alloy casing with a passive fanless heat dissipation design. It will perform perfectly across an extreme temperature range of -40ºC to +75ºC. In addition, the network ports are protected with Level 4 ESD immunity and 4kV lightning surge protection against damage from high electrical transients.

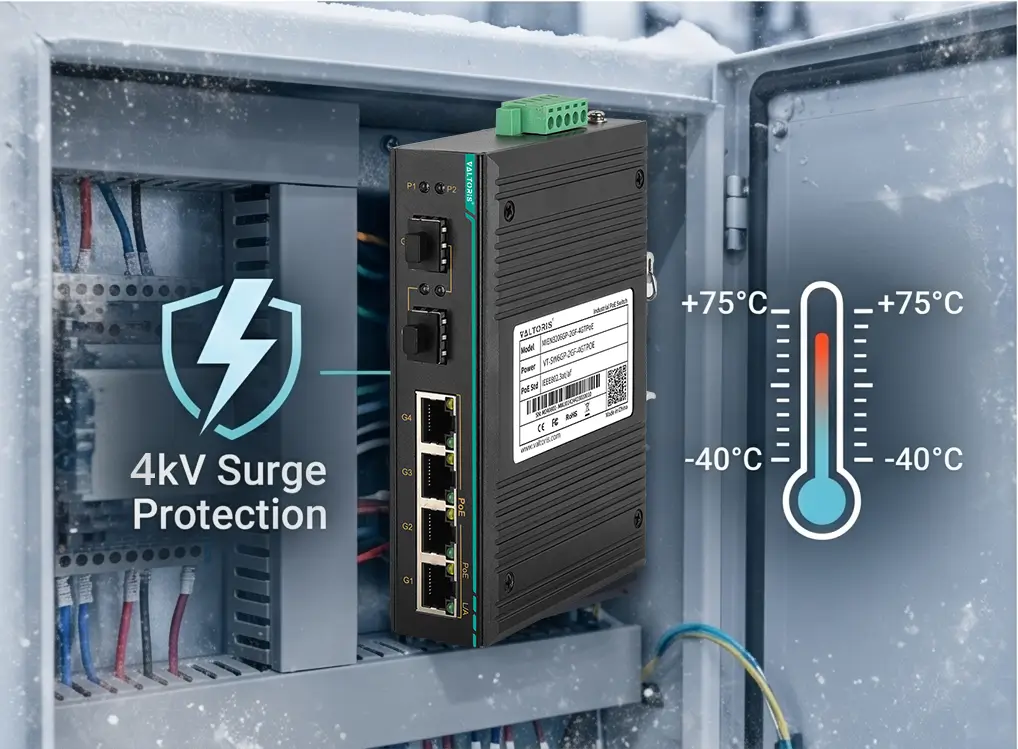

IP40 Aluminum Casing and 4kV Surge Protection

Hardware Interface
PoE Ports (Downlink)4 × 10/100/1000Base-T(X) RJ45, IEEE 802.3af/at, Max 30W per port
Fiber Ports (Uplink)2 × 1000Base-X Gigabit SFP slots
Switching Performance
Backplane Bandwidth14 Gbps
MAC Table & Buffer2K MAC Address Table / 2 Mbit Buffer Size
Power & Environment
Input VoltageDual DC 48~52V (Redundant Inputs), Anti-reverse connection
Power ConsumptionSystem: < 3.5W @DC48V (No PoE load)
Operating Temperature-40°C ~ +75°C
EMC ProtectionIEC 61000-4-2 (ESD) Level 4 / IEC 61000-4-4 (EFT) Level 4
Surge & LightningIEC 61000-4-5 (Surge) Level 4; Network ports support 4kV lightning protection
Mechanical
Casing & MountingIP40 High-strength aluminum alloy shell, 35mm DIN-Rail mount
Dimensions / Weight140 × 35 × 100 mm / Approx. 0.5 kg
📥 Documents & Manuals
Is this switch vendor-locked, or can I use third-party SFP transceivers?
No vendor lock-in. We understand the frustration of proprietary hardware. The VT-SW6GP-2GF-4GTPOE supports any standard, MSA-compliant 1.25G SFP transceiver. Whether you are using generic modules or transceivers coded for Cisco, Ubiquiti or MikroTik, they will plug and play without a problem as long as they match your physical fiber type (Single-mode/Multi-mode).
Can I use the two SFP ports to create a redundant fiber ring network?
No, please do not form a closed ring. This is a critical deployment detail. Because this model is an unmanaged Layer 2 switch, it lacks the software protocols (like STP, RSTP, or ERPS) required to manage loop avoidance. If you connect the two SFP ports into a closed ring, it will instantly create a broadcast storm and paralyze your network. The dual SFP design is engineered specifically for long-distance linear daisy-chain topologies (e.g., linking cameras along a highway in a straight line) or for dual independent uplinks. If you need self-healing ring redundancy, please browse our Managed Industrial Switch series.
What specifications do I need for the external power supply to utilize all 4 PoE+ ports?
Like most DIN-rail industrial equipment, it does not come with a power supply in the box. For best results using the PoE features (powering devices like PTZ cameras or outdoor APs with 30W on all 4 RJ45 ports simultaneously), your external DC power supply must meet two conditions:

1. Voltage: Need supply DC48V to DC52V to enable PoE negotiation.
2. Wattage: Should be at least 120W total (we recommend a 150W PSU to give yourself some safety room). The switch will be powered by a standard 12V or 24V industrial supply for data transmission, but it will not power the PoE devices.
