6-Port Industrial EtherCAT Switch (1-In-5-Out Junction)

VT-SW6EC:6-Port Industrial EtherCAT Switch is a hardware-level junction module that transforms linear fieldbus constraints into flexible star or tree topologies. It has 1 input and 5 output 100Mbps ports with dedicated hardware EtherCAT Slave Controllers (ESC) for nanosecond on-the-fly processing latency and Distributed Clock (DC) synchronization.

INSTANT QUOTE
Part No. VT-SW6EC SKU: IoT-EES102 Categories: ,

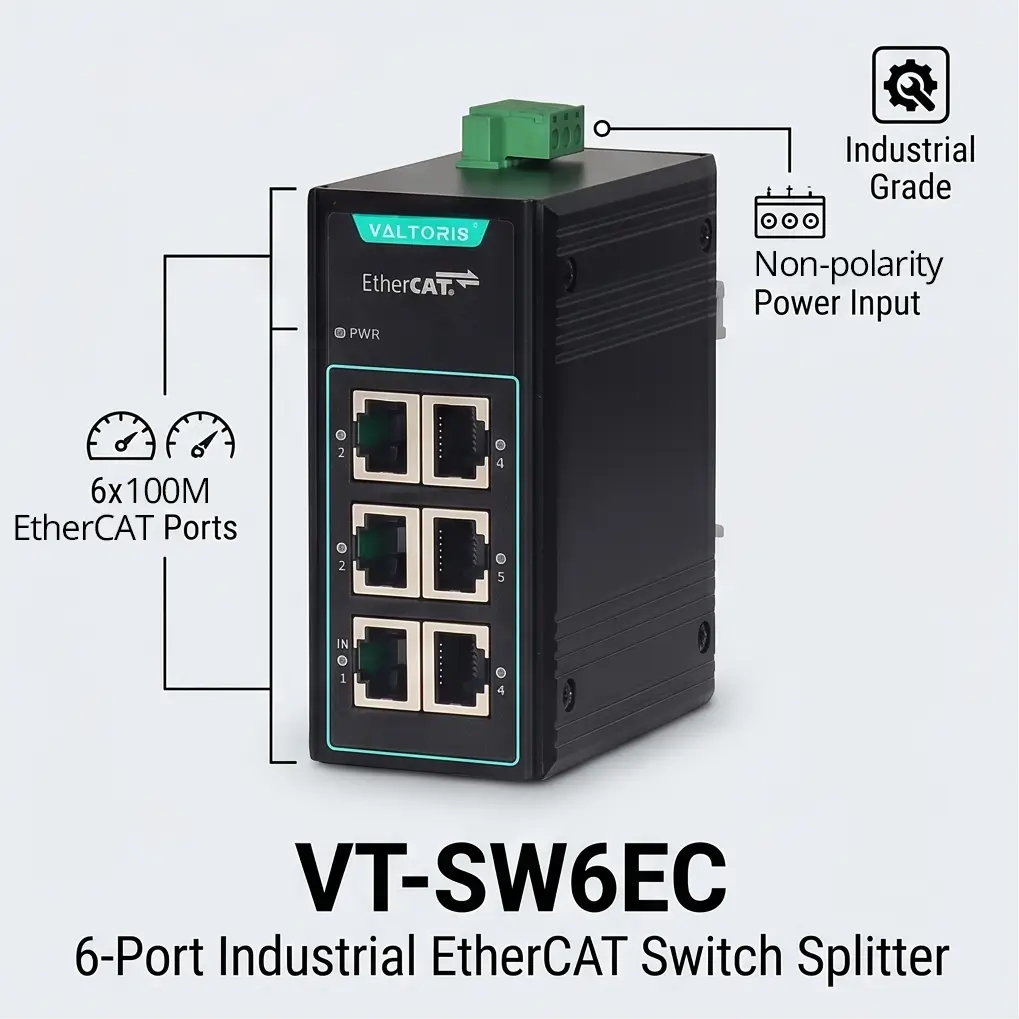

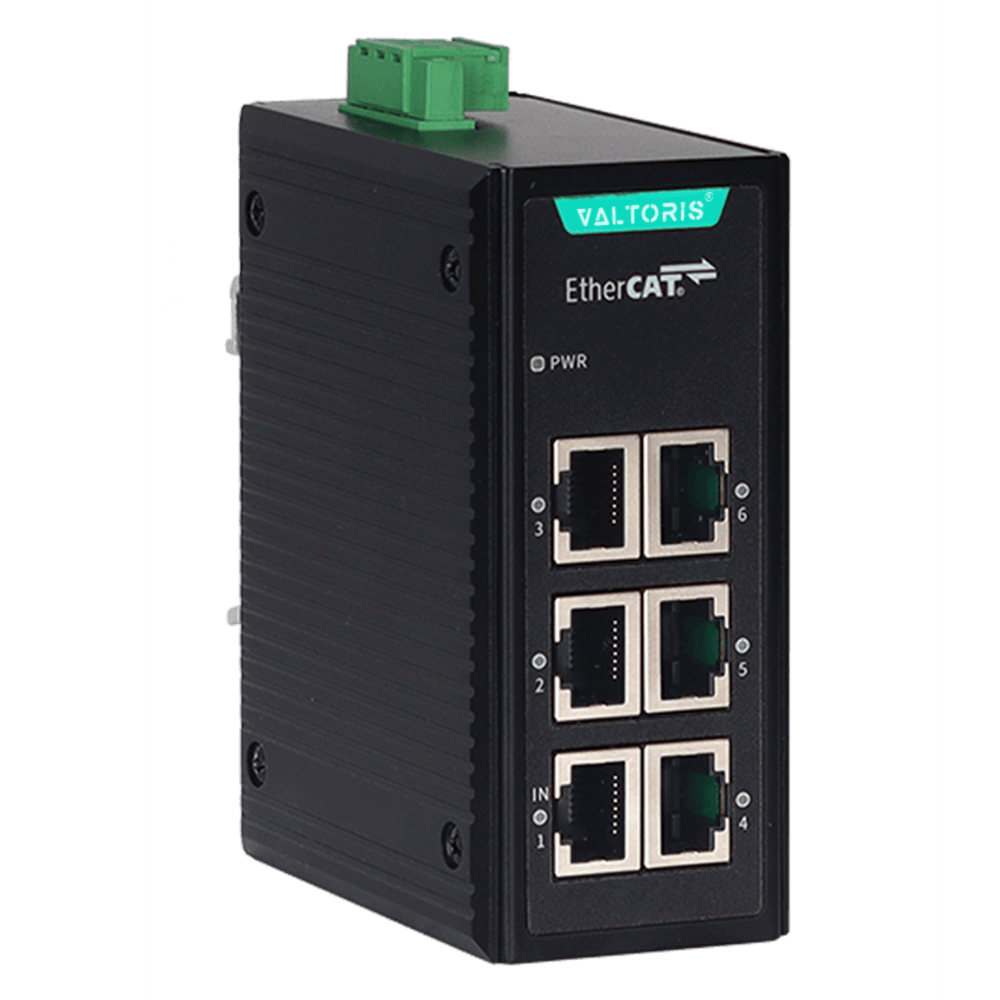

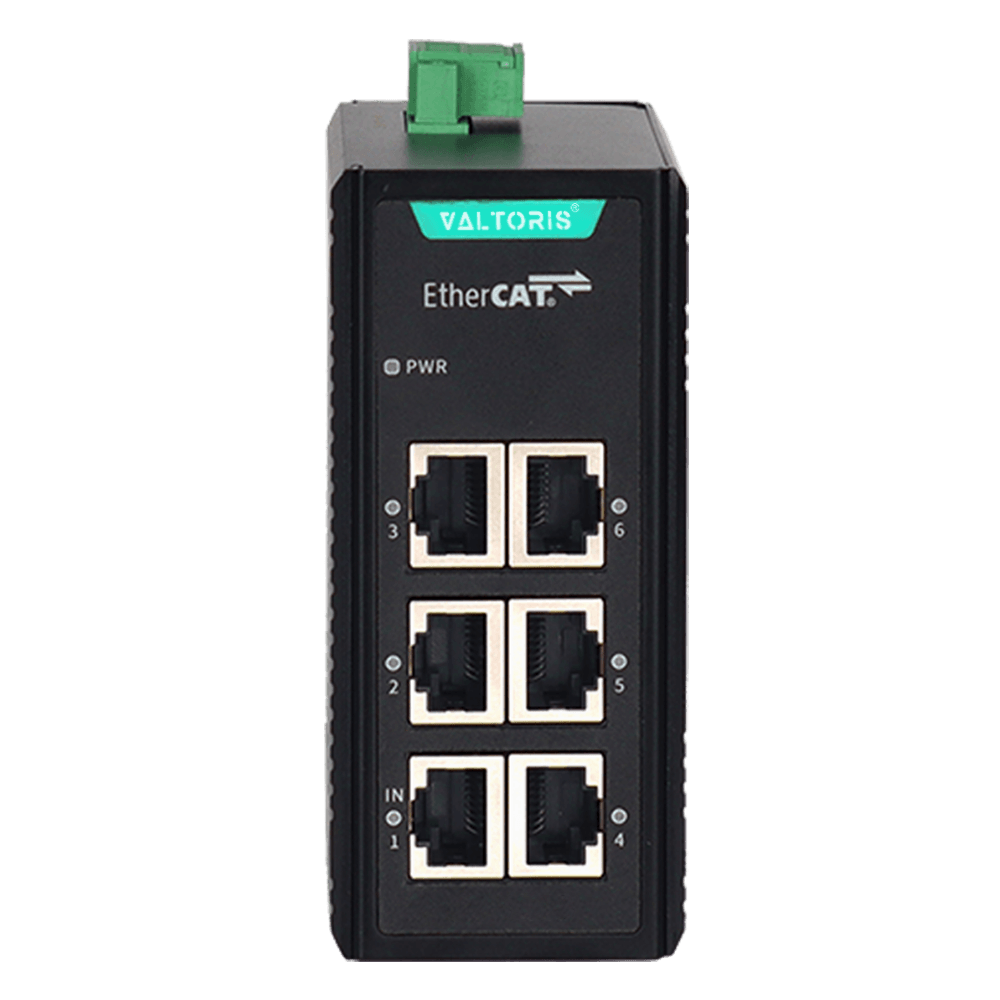

VT-SW6EC 6-Port Industrial EtherCAT Switch Splitter

1-In, 5-Out: Build Star & Tree Topologies

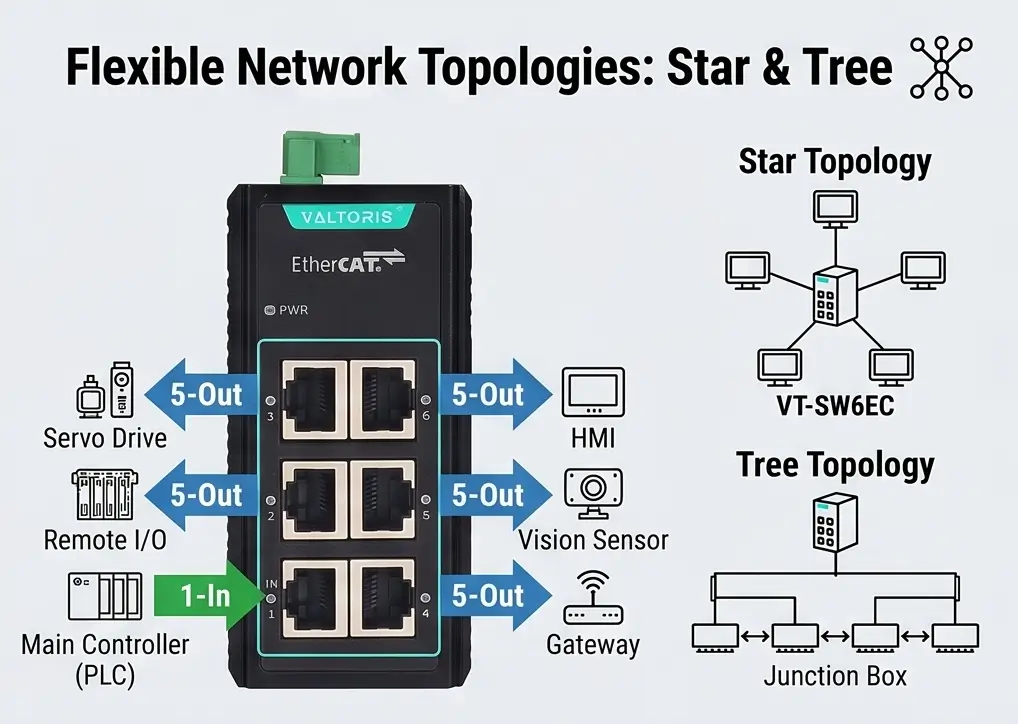

Illustration of 1-In, 5-Out Star and Tree Topologies for EtherCAT wiring

Break free from rigid daisy-chains. The VT-SW6EC acts as a central junction with 1 input and 5 outputs. This allows control engineers to split the EtherCAT network into five independent drop-lines, drastically simplifying cabinet and machine-frame wiring for multi-axis equipment, AGVs, and remote I/O islands.

Zero Jitter: Hardware Distributed Clocks (DC)

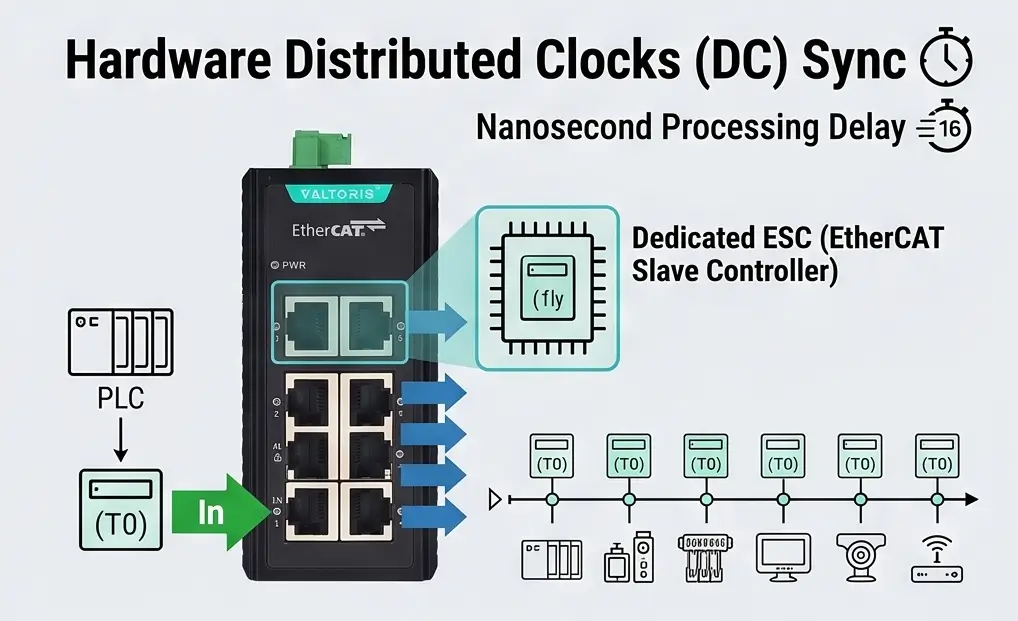

Diagram showing Hardware Distributed Clocks (DC) synchronization and zero jitter processing

Unlike standard commercial switches that buffer packets, this module utilizes dedicated hardware EtherCAT Slave Controllers (ESC) in an internal cascaded architecture to process frames on-the-fly. It guarantees nanosecond transmission delays and accurate Distributed Clocks (DC) synchronization, ensuring your servo drives and I/O modules operate with zero CRC errors.

Foolproof Power: Non-Polarity DC9~60V / AC24V

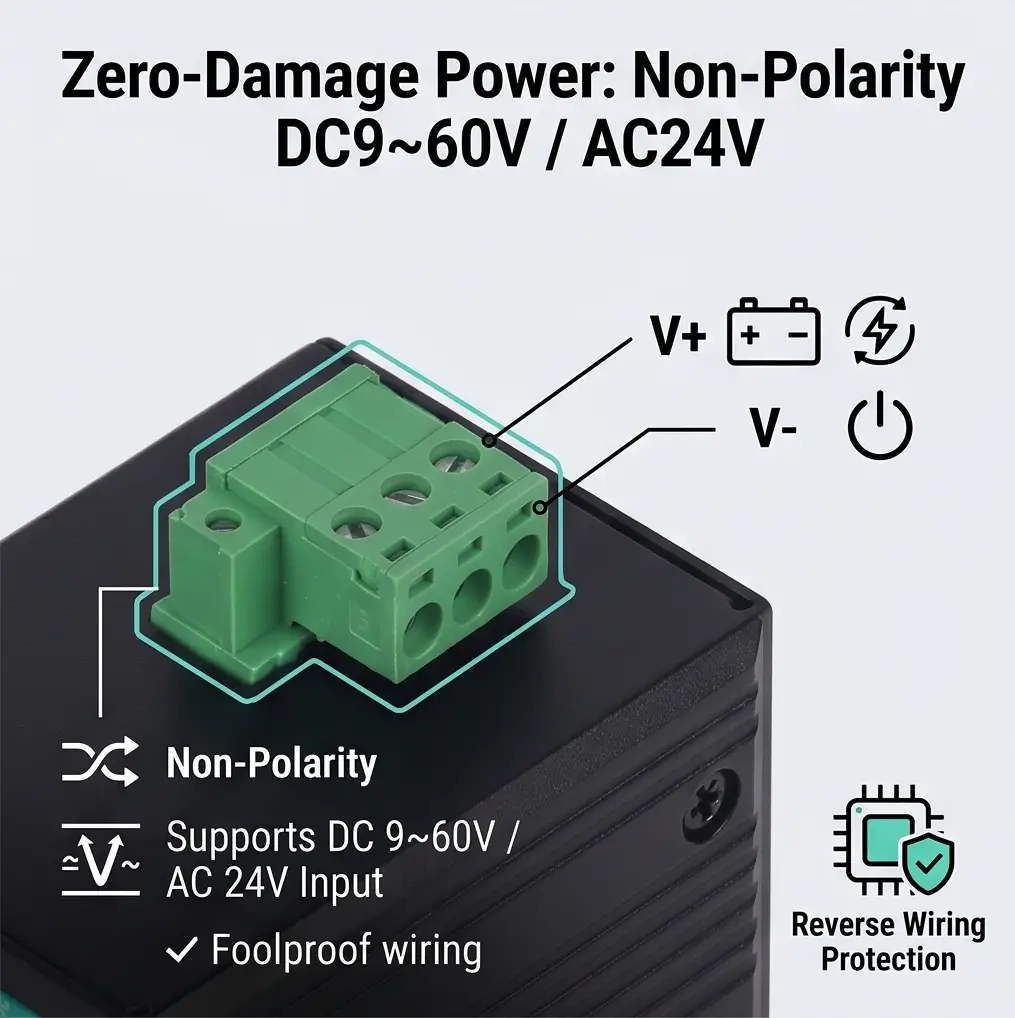

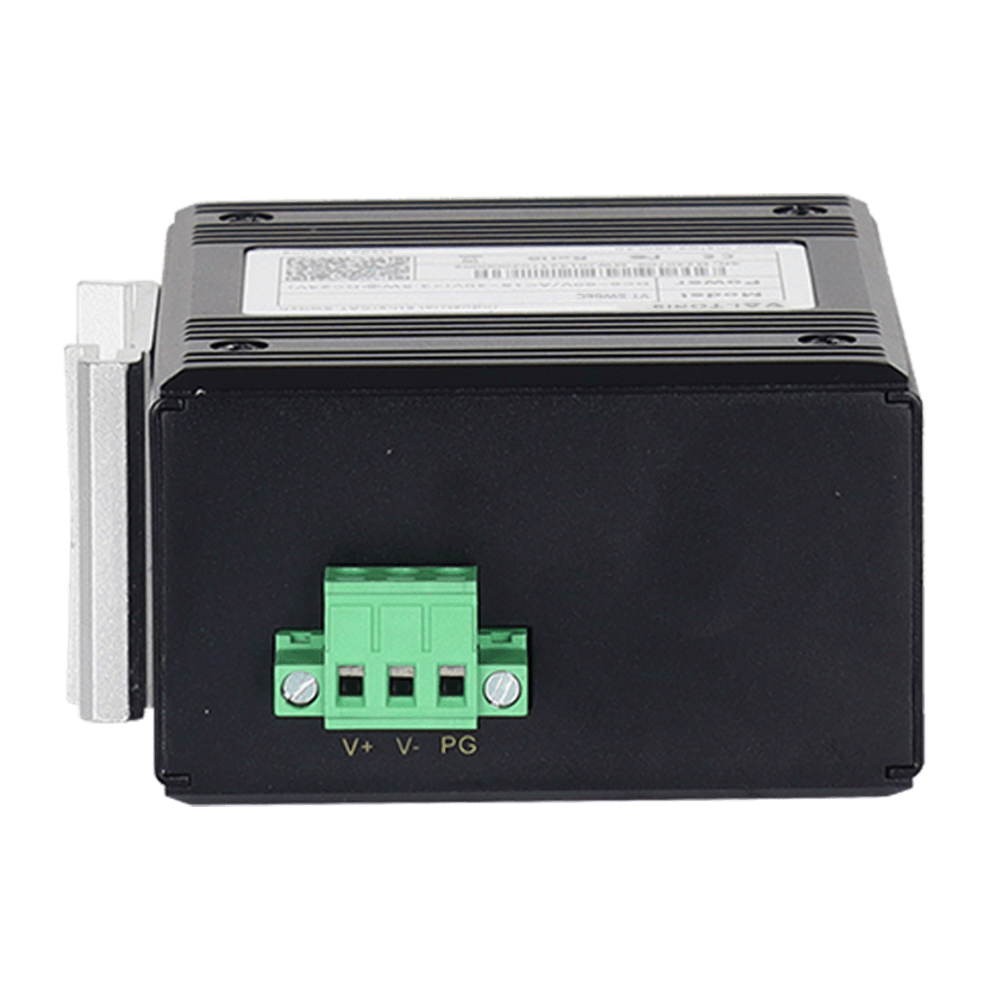

Close-up of the foolproof, non-polarity DC9~60V and AC24V power terminal block

Designed for the realities of field installation and mobile battery systems. The top terminal block accepts an ultra-wide DC9~60V or AC24V input without requiring an external E-bus power coupler. Its completely non-polarity circuitry means accidental reverse wiring will not damage the unit, preventing costly commissioning downtime.

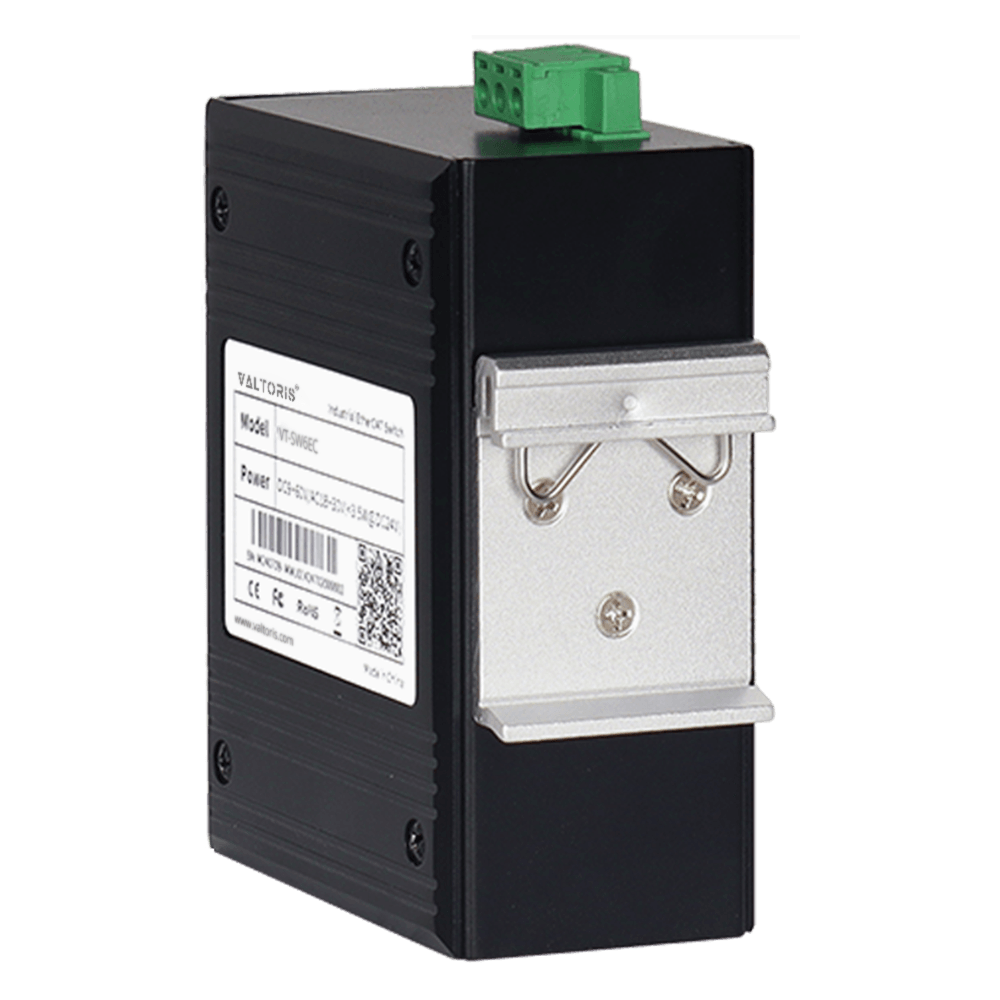

Narrow 46mm Footprint, IP40 Armor & 6kV Surge Protection

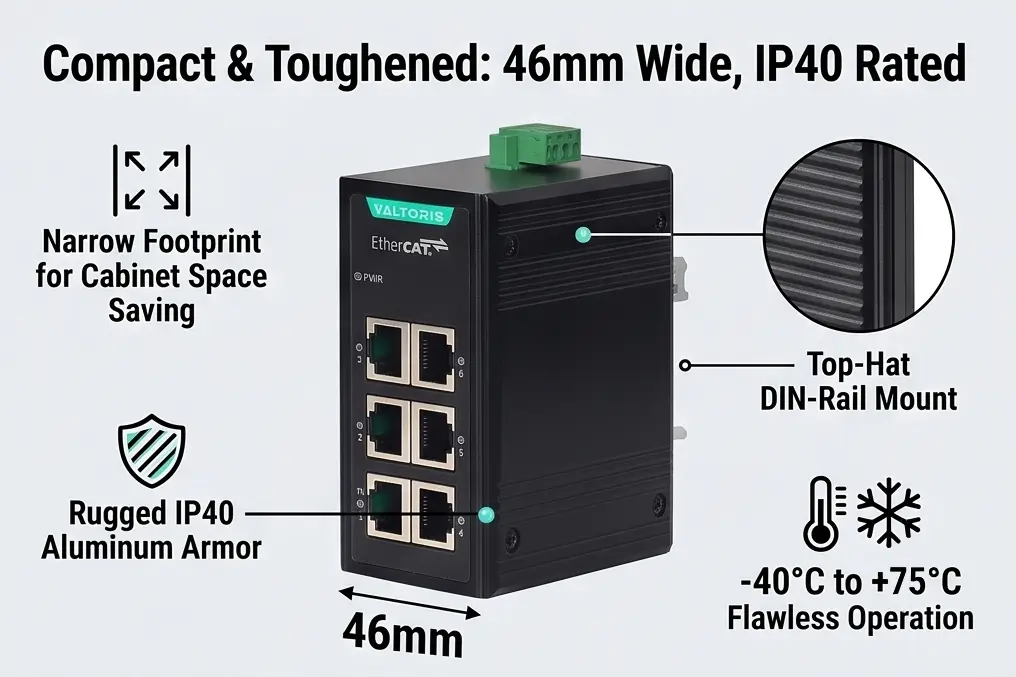

Dimensions showing the compact 46mm footprint and rugged IP40 aluminum housing

Cabinet space is premium. Measuring just 46mm wide, this IP40-rated aluminum alloy junction packs 6 ports into a compact DIN-rail footprint with IEC 61000-4-5 Level 3 (6kV) port surge protection. Fanless thermal design guarantees reliable operation from freezing -40°C to +75°C.



Interface & Protocol
EtherCAT Ports6 × 100Mbps RJ45 (1 Input, 5 Outputs), Auto MDI/MDI-X
Protocol / DelayEtherCAT (Compliant) / Nanosecond hardware transmission delay
Nodes Capacity≤ 65,535 slaves per segment
Power & Environment
Input VoltageDC 9~60V or AC 24V (Non-polarity, 3-pin terminal)
Power Consumption< 3.5W @ DC24V
Operating Temp.-40°C ~ +75°C
Mechanical & Protection
Dimensions / Casing102 × 46 × 78 mm / IP40 Aluminum alloy, DIN-Rail
EMCLevel 3 ESD, Level 3 EFT,  Level 3 Surge (6kV Port Lightning Protection)
If I unplug one of the 5 output branches, will it crash the entire EtherCAT network?
No, your network remains safe. This is a major advantage of using a dedicated hardware junction. If a technician unplugs port 3 for maintenance, the internal EtherCAT ASIC automatically closes the logical ring in microseconds. The master controller will register the missing node, but outputs 1, 2, 4, and 5 will continue operating with perfect synchronization.
Does this junction provide “E-Bus” power to downstream slave devices via the RJ45 cable?
No, it transmits data only. Do not confuse this junction with a modular I/O power coupler. The VT-SW6EC only forwards standard EtherCAT data frames. All slave devices (sensors, I/O blocks, servo amplifiers) connected to its 5 output branches must be powered by their own localized DC power supplies.
